CD4028  BCD to Decimal Decoder IC
CD4028  BCD to Decimal Decoder IC
 BCDtodecimal or BinarytoOctal decoder with 10 Output Buffers
 BCD Code Applied to the 4 Inputs will produce a 10 Decimal Decoded Output
 Binary Code Applied to the 3 Inputs is Decoded to Octal at the Output
 Operating Temperature to 85oC
 Low Power TTL
CD4028  BCD to Decimal Decoder IC

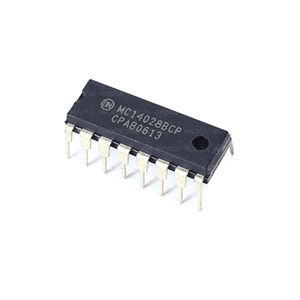

CD4028 IC is a BCD to decimal or binary to octal decoder consisting of 4 inputs and 10 output buffers. A BCD code is applied to the 4 inputs, A, B, C, and D. Thus resulting in a high level at the selected 1of10 decimal decoded outputs. Similarly, a 3bit binary code applied to inputs A, B, and C is decoded into octal at outputs 0–7. A highlevel signal at the D input inhibits octal decoding and causes outputs 0–7 to go LOW.
The IC is always available in a 16–pin hermetically sealed dual inline IC package (DIP), making it easy to interface with TTL, CMOS, and NMOS devices. The IC offers many features such as high noise immunity and low thermal dissipation. High drive capability is provided at all outputs to enhance dc and dynamic performance in high fan ut applications. Meanwhile, all the inputs are protected against static discharge damage by diode clamps to V_{DD} and V_{SS}.
A BCD to Decimal Decoder is defined as a simple logic circuit that can translate a BCD (binary coded decimal) input into a decimal (0 – 9) output In any BCD to decimal decoder, the inverters are connected in pairs to make BCD input data available for decoding by the NAND gates. Full decoding of valid BCD input logic ensures that all outputs remain OFF for all invalid binary input conditions. Moreover, these decoders feature TTL inputs and high–performance NPN output transistors designed for use as indicator/relay drivers or as open–collector logic circuit drivers.
check out : CD4514  4 Bit Latch/416 Line Decoder IC
Pinout:
Pinout of CD4028 IC
Application
 Code conversion
 Address decoding
 Indicatortube decoder
Package Includes:
Selected qty of IC  CD4028
Specifications:
Supply Voltage Range  3 to 20V
Input or Output Current  ±10mA
Power Dissipation  500mW
Lowlevel Output Voltage Max  0.05V
Highlevel Output Voltage Min  4.95V
Lowlevel Input Voltage  2.25V
Highlevel Input Voltage  2.75V
Propagation Delay Time Max  600ns
Package  DIP16
