How Lithium-ion Batteries Work

Summary

Lithium-ion batteries are the invisible engines of our modern, portable world, powering everything from the smartphone in your pocket to the electric car in your driveway. Like the air we breathe, we often take their existence for granted, only noticing them when the dreaded low-battery icon appears.

But have you ever stopped to wonder what’s happening inside that small, powerful package? There’s a lot of interesting Chemistry and Physics behind this technology. Let's peel back the layers and take a walkthrough of how these revolutionary power sources actually function.

What is a Lithium-Ion Battery?

A lithium-ion (Li-ion) battery is a type of rechargeable battery that has become the gold standard for portable electronics and electric vehicles. Before Li-ion batteries became widespread, we were often tethered to devices with short battery lives or clunky, heavy power packs like those made of nickel-cadmium (Ni-Cd). Li-ion technology changed the game by offering a much higher energy density, meaning it can store more energy in a smaller, lighter package.

Think of it like packing for a trip. Older batteries were like packing a massive, heavy suitcase for an overnight stay. A lithium-ion battery is like having a compact, lightweight backpack that holds everything you need for a week. This breakthrough in energy storage technology is what made sleek smartphones, thin laptops, and long-range electric cars possible. Unlike its predecessors, it also doesn't suffer from the "memory effect," where a battery had to be fully drained before recharging to maintain its capacity. This combination of high capacity, low weight, and user-friendliness cemented its place as a cornerstone of modern tech.

Structure and Components of a Lithium-Ion Battery

To understand how a Li-ion battery works, we first need to look at its fundamental architecture. Imagine a sandwich with very specific ingredients. The lithium-ion battery structure consists of four key components that work in harmony to store and release energy.

Anode

The anode is the negative electrode of the battery. Its main job is to act as a storage container for lithium ions when the battery is being charged. When you use your device, the anode releases these ions, which then travel to the cathode. In most modern lithium-ion batteries, this component is made from graphite.

Cathode

The cathode is the positive electrode. It serves as the destination for lithium ions during the discharging process (when the battery is powering something). The material used for the cathode is a critical factor in determining a battery's capacity, voltage, and safety.

Electrolyte

The electrolyte is a chemical substance, typically a liquid, that fills the space inside the battery and surrounds the electrodes. It functions as a transport medium, creating a chemical "highway" that allows lithium ions to flow easily between the anode and the cathode. Without the electrolyte, the ions couldn't move, and no electricity would be generated.

Porous Separator

The porous separator is a very thin, micro-perforated membrane placed between the anode and cathode. It plays a crucial safety role by physically preventing the two electrodes from touching, which would cause a dangerous short circuit. Its pores are specifically designed to be large enough for lithium ions to pass through but small enough to block any other materials.

Lithium Ion

A lithium ion is a lithium atom that has lost one electron, giving it a positive charge. These ions are the fundamental charge carriers in the battery. Their movement from the anode to the cathode through the electrolyte is what generates the flow of electrons in the external circuit, creating the electrical current that powers your device.

Lithium-Carbon (Graphite)

Lithium-Carbon, specifically graphite, is the most commonly used material for the anode. Graphite has a unique layered, crystalline structure that makes it an excellent host for lithium ions. During charging, the ions slide between these layers in a process called intercalation, where they can be stored safely and efficiently until they are needed.

Lithium-Metal Oxide

Lithium-metal oxide refers to a class of chemical compounds used to create the cathode. The "metal" in the name can be cobalt, manganese, nickel, or iron, and the specific choice defines the battery's characteristics. For example, Lithium Cobalt Oxide offers high energy density for smartphones, while Lithium Iron Phosphate provides exceptional safety and longevity for electric vehicles.

Working Principle of Lithium-Ion Batteries

Now that we know the parts, let's explore the Working Principle of Lithium Ion Batteries. The name "lithium-ion" gives us the biggest clue: the entire process revolves around the movement of lithium ions. Unlike some other batteries where the electrodes themselves undergo a chemical transformation, in a Li-ion battery, the electrodes act more like hosts. The anode and cathode are intercalation compounds, meaning they have microscopic structures that can absorb and release lithium ions without fundamentally changing.

So, how does a lithium-ion battery work? It's all about a carefully controlled migration of ions. When the battery is charged, it's packed with potential energy, with a high concentration of lithium ions stored in the graphite anode. When you unplug your device and start using it, a chemical process kicks off, encouraging these ions to move. They travel from the anode, through the electrolyte and separator, to the cathode. This movement is what generates the power.

This elegant system is the essence of lithium-ion battery chemistry. It’s not about consuming chemicals in an irreversible reaction, but about reversibly moving ions from one side to the other and back again, thousands of times. The fundamental science of how lithium-ion batteries work is based on this constant, controlled shuttle of charged particles.

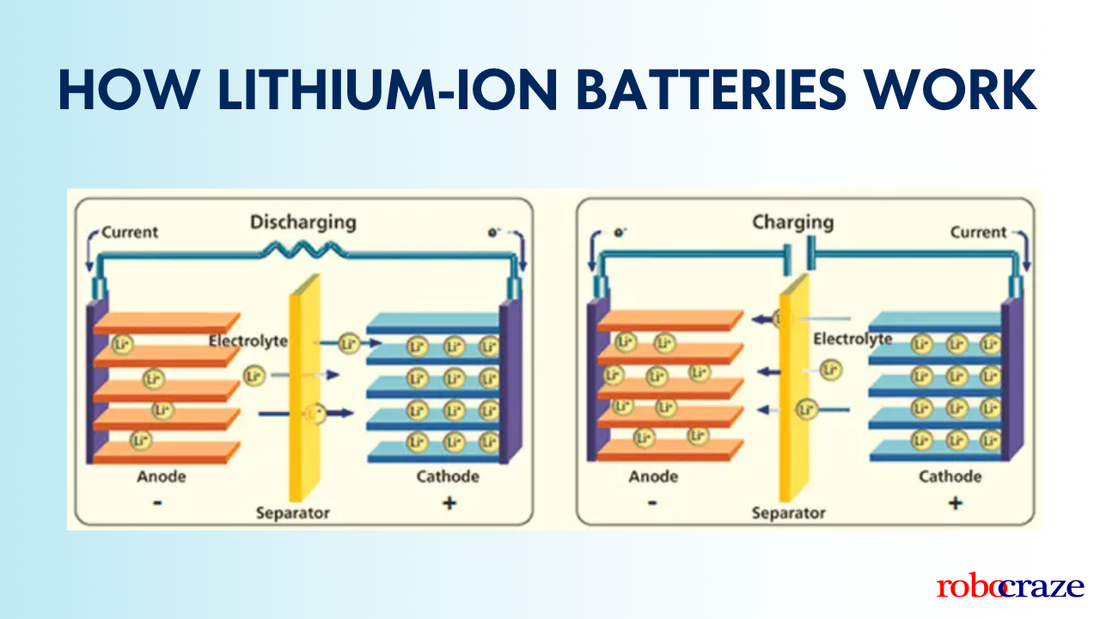

Charging and Discharging Process

The working principle can be practically observed during the charge and discharge cycles. These two processes are essentially the same journey for the lithium ions, just in opposite directions.

Discharging (Powering Your Device)

When you use your phone, watch a video, or drive your electric car, the battery is discharging. Here’s the step-by-step breakdown:

Lithium ions, which have been resting in the layered graphite anode, begin their journey.

As each lithium ion leaves the anode, it leaves behind an electron.

These electrons cannot pass through the separator. Instead, they are forced to travel through the external circuit—the electronics of your device. This flow of electrons is the electric current that powers your gadget.

Meanwhile, the lithium ions travel through the electrolyte, pass through the pores in the separator, and arrive at the cathode.

Once the electrons have passed through your device's circuit, they meet the lithium ions at the cathode, completing the circuit. This process continues until most of the available ions have moved from the anode to the cathode, at which point your battery is "dead" and needs to be recharged.

Charging (Plugging It In)

The charging and discharging of a lithium-ion battery is a beautifully reversible process. When you plug your device into a power outlet, you are applying an external electrical force. This force essentially reverses the discharging process:

The external power from the charger forces the lithium ions to detach from the cathode.

These ions travel back across the battery, through the electrolyte and separator, and re-insert themselves into the graphite structure of the anode.

Simultaneously, the electrons are also pushed back through the external circuit to the anode, where they rejoin the lithium ions.

Once the anode is full of lithium ions again, the battery is fully charged and ready to power your device once more.

Types of Lithium-Ion Batteries

The term "lithium-ion battery" is actually an umbrella for a family of batteries, each with a slightly different chemical makeup. The choice of materials for the cathode, and sometimes the anode, gives each type unique characteristics. Understanding the different types of lithium-ion batteries helps explain why a battery for a power drill is different from one in a smartphone.

Lithium Cobalt Oxide (LCO)

These batteries have a very high energy density, making them perfect for small, portable devices like smartphones and laptops where space is at a premium. However, they have a shorter lifespan and lower thermal stability compared to other types.

Lithium Manganese Oxide (LMO)

LMO batteries are known for their high-temperature stability and enhanced safety. They can deliver high power, making them suitable for power tools and medical devices, but they offer a lower capacity than LCO batteries.

Lithium Nickel Manganese Cobalt Oxide (NMC)

NMC is one of the most successful Li-ion chemistries. It blends the strengths of nickel, manganese, and cobalt to create a balanced battery with good energy density, decent power output, and a long cycle life. This versatility makes it a top choice for e-bikes, power tools, and many electric vehicles.

Lithium Iron Phosphate (LFP)

Safety and longevity are the hallmarks of LFP batteries. They are chemically very stable, not prone to overheating, and can endure thousands of charge-discharge cycles. Their trade-off is a lower energy density, but their durability has made them popular for electric buses and grid-scale energy storage technology.

Lithium Nickel Cobalt Aluminum Oxide (NCA)

Popularized by Tesla, NCA batteries offer very high energy density and a long lifespan, making them ideal for high-performance electric vehicles. However, they are less safe than other types and require more sophisticated monitoring systems.

Conclusion

From a clever concept in a chemistry lab to the driving force behind our connected world, the lithium-ion battery stands as a monumental achievement in engineering. Its elegant design has unlocked unprecedented levels of portability and power. This technology has not only untethered our gadgets but is also paving the way for a greener future by making electric vehicles and large-scale renewable energy storage practical realities. As researchers continue to push the boundaries of lithium-ion battery chemistry, we can expect even more powerful, safer, and longer-lasting batteries to shape the next generation of technology, layer by tiny layer.
