PCA9685 16 Channel 12 Bit Servo Motor Driver
PCA9685 16 Channel 12 Bit Servo Motor Driver
Regular price
Rs. 249
Regular price
Rs. 449
Sale price
Rs. 249
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 7 hours and 57 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is PCA9685 16 Channel 12 Bit Servo Motor Driver
- The adjustable frequency PWM up to about 1.6 KHz
- 12-bit resolution for each output – for servos, that means about 4us resolution at a 60Hz update rate
- Configurable push-pull or an open-drain output
- The output enable pin to quickly disable all the outputs
- This has terminal block for power input
- Reverse polarity protection on the terminal block input
- Green power-good LED
PCA9685 16 Channel 12 Bit Servo Motor Driver

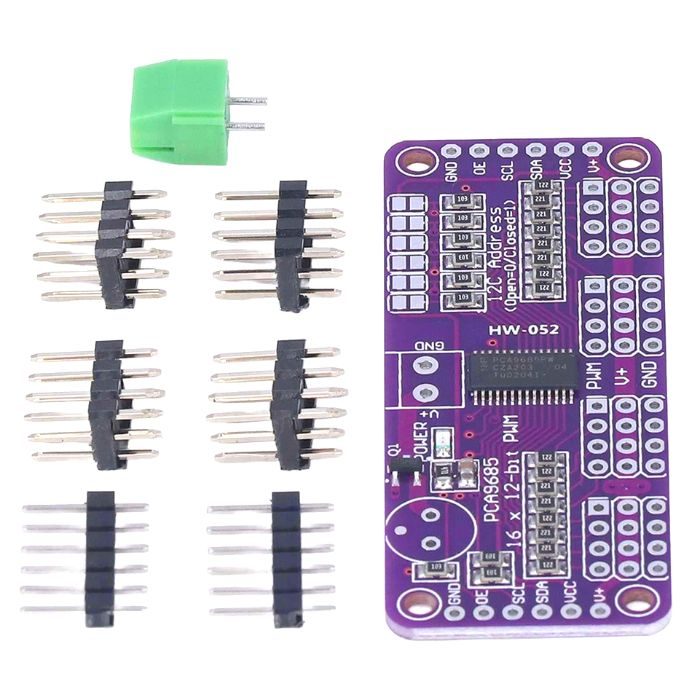

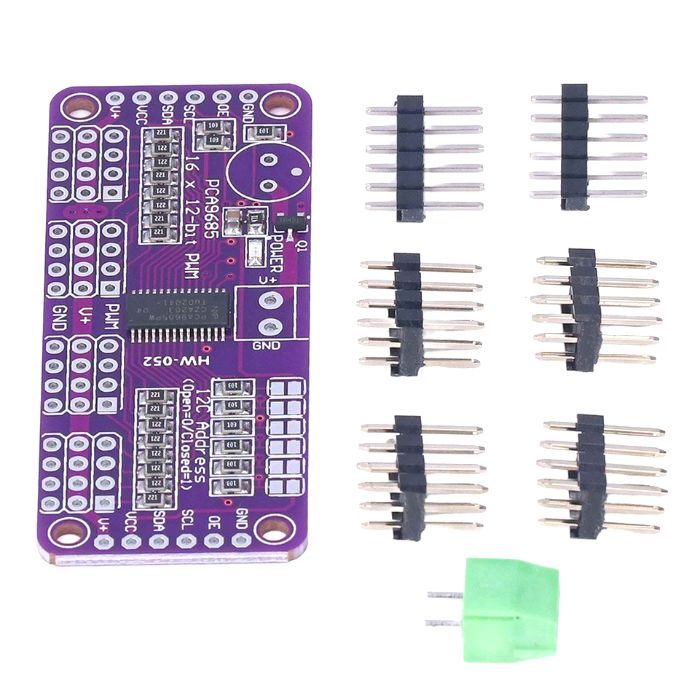

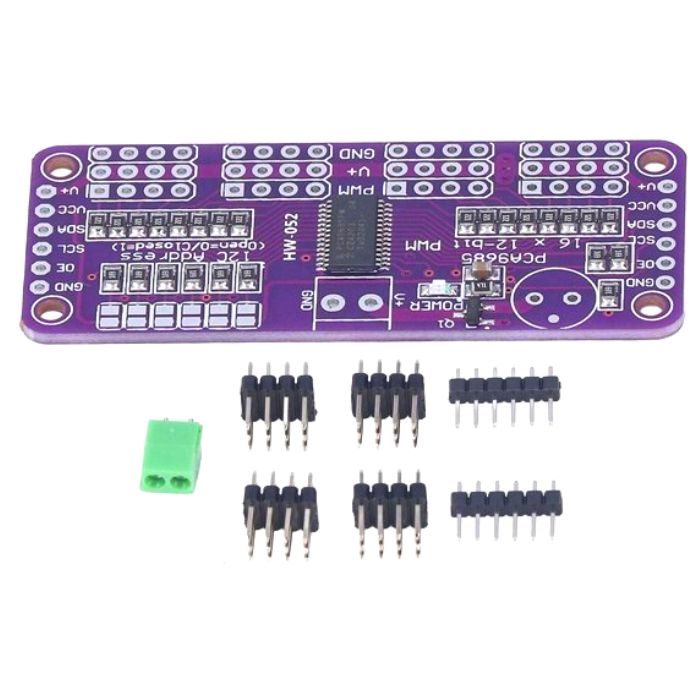

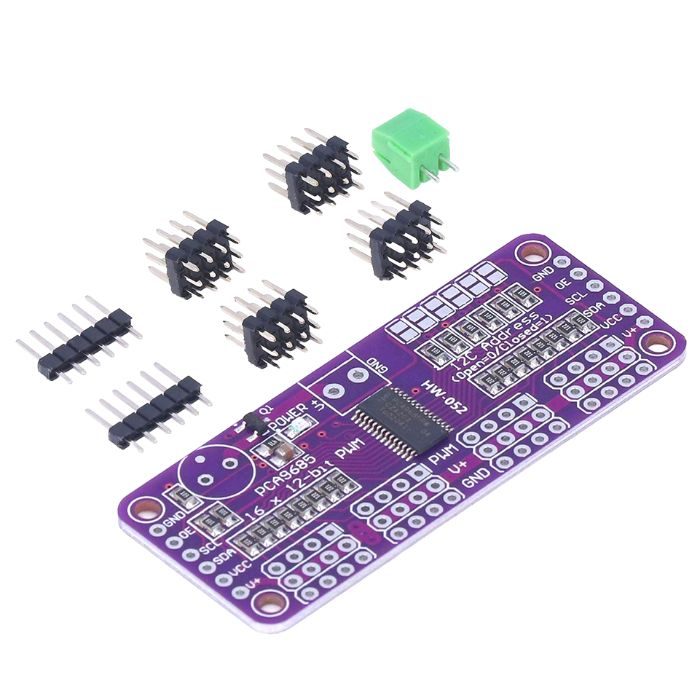

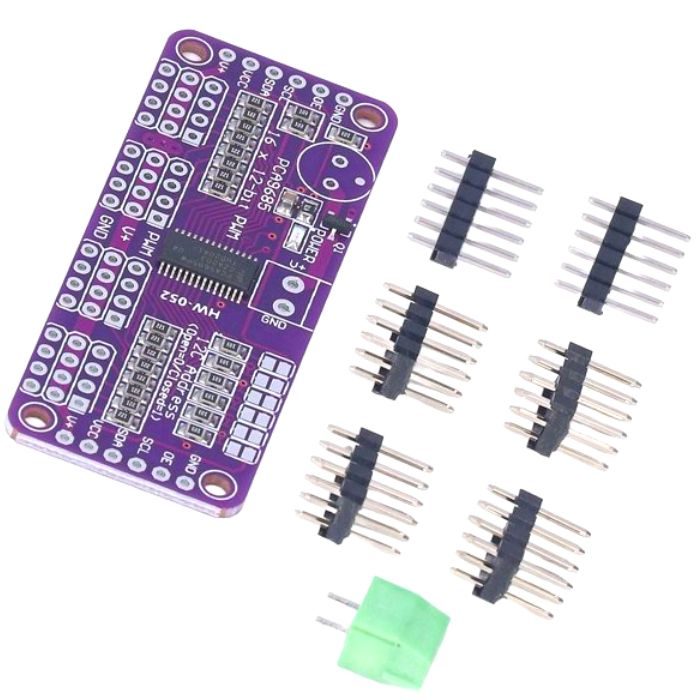

This is the PCA9685 16 Channel 12 Bit Servo Motor Driver, With just two pins, you can control 16 free-running PWM outputs. Do you want to build a robot or a hexapod walker? Perhaps you're creating a work of art with many moving parts, or you need to drive a large number of LEDs with precise PWM output. Your microcontroller has a limited number of PWM outputs, and you're almost out! Do you require more than 16 PWM outputs? No worries. Chain up to 62 of these beauties together for a total of 992 PWM outputs.
This is an I2C-controlled PWM driver with an integrated clock. That means you don't have to send it to signal all the time, tying up your microcontroller; it's completely free to run! It is 5V compliant, which means it can be controlled by a 3.3V microcontroller while driving up to 6V outputs safely. This is useful when controlling white or blue LEDs with forward voltages of 3.4 or higher. There are six address select pins, allowing you to connect up to 62 of these to a single I2C bus for a total of 992 outputs.
If you want to control the servo motors with this 16-channel servo motor driver, for that you will need a few essential components like
Features:
- Adjustable frequency PWM up to about 1.6 KHz
- Configurable push-pull or an open-drain output
- The output enable pin to quickly disable all the outputs
- Reverse polarity protection on the terminal block input
- 3 pin connectors in groups of 4 so you can plug in 16 servos at once
- Terminal block for power input
Also check the 16-Channel 12-bit PWM/Servo Driver Shield for Arduino offered by Robocraze. The shield is designed for development boards compatible with Arduino and allows the control of up to 16 servos over I2C with only 2 pins. It features an onboard PWM controller that can drive all 16 channels simultaneously with no additional processing overhead on the Arduino
Package Includes:
- 1 x PCA9685 16 Channel 12 Bit Servo Motor Driver
Specifications:
| Driver IC | PCA9685 |
| Length | 62mm |
| Height | 15mm |
| Width | 25mm |
| Weight | 10gm |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
4.3 Kgf-cm Servo Motor (ES3001)
Regular price
Rs. 688
Regular price
Rs. 1,037
Sale price
Rs. 688
Unit price
per
Incl. GST (No Hidden Charges)
Sale
RDS3115MG 15KG Large Torque 180 Degree Servo Motor with Brackets
Regular price
Rs. 1,125
Regular price
Rs. 2,198
Sale price
Rs. 1,125
Unit price
per
Incl. GST (No Hidden Charges)
Sale
40Kgcm High Torque Servo Motor (S8218)
Regular price
Rs. 3,009
Regular price
Rs. 3,299
Sale price
Rs. 3,009
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. What is PCA9685 servo driver?
- The PCA9685 servo driver module is used in applications requiring a high number of servo motors, such as robot arms, hexapods, and robots. It increases your microcontroller's PWM output count. You can control 16 free-running PWM outputs with just two pins.
2. What is OE pin in PCA9685?
- OE - This is the Output Enable pin, which is normally pulled LOW, resulting in all pins being enabled. When this pin is HIGH, all output pins are disabled. Output ports: The PCA9685 board has 16 output ports, each with V+, GND, and PWM pins, where the servo motors are connected.
3. Why PCA9685 used?
- The PCA9685 16-Channel module is extremely useful and can come in handy when there are insufficient PWM output pins. The most important application is for controlling servo motors. This module can control a large number of servo motors at the same time. As previously stated, the PCA9685 driver can control 16 servo motors.
