Arduino 16 channel PWM Servo Motor Shield

Arduino 16 channel PWM Servo Motor Shield

Regular price Rs. 416
Regular price Rs. 649 Sale price Rs. 416
Sale Sold out 36% off Best Price Guaranteed
You save Rs. 233 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 9 hours and 10 minutes.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • This is 16 channel PWM Servo Motor Shield for Arduino
  • This servo motor shield compatible with arduino is used for vehicles & Remote Control Toys
  • The 16 channel servo motor shield is manufactured with best quality composite materials.
  • This is  an I2C-controlled PWM driver with a built-in clock.
  • The 12 bit servo motor also features protection against reverse polarity on the terminal block input.
Trust Badge 1 Trust Badge 2 Trust Badge 3

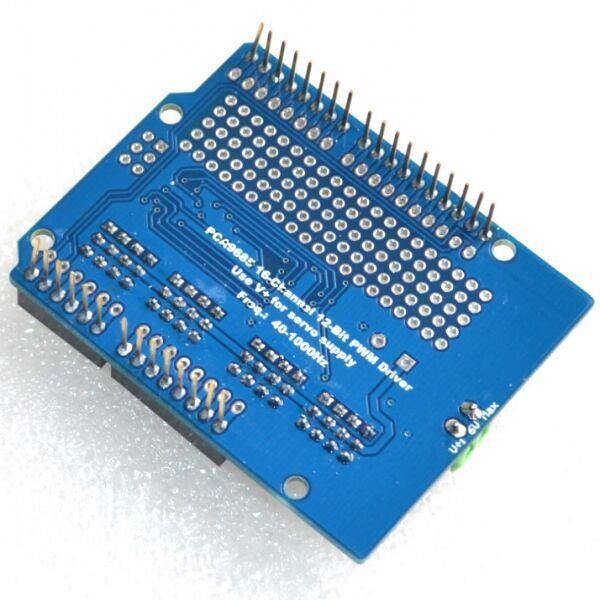

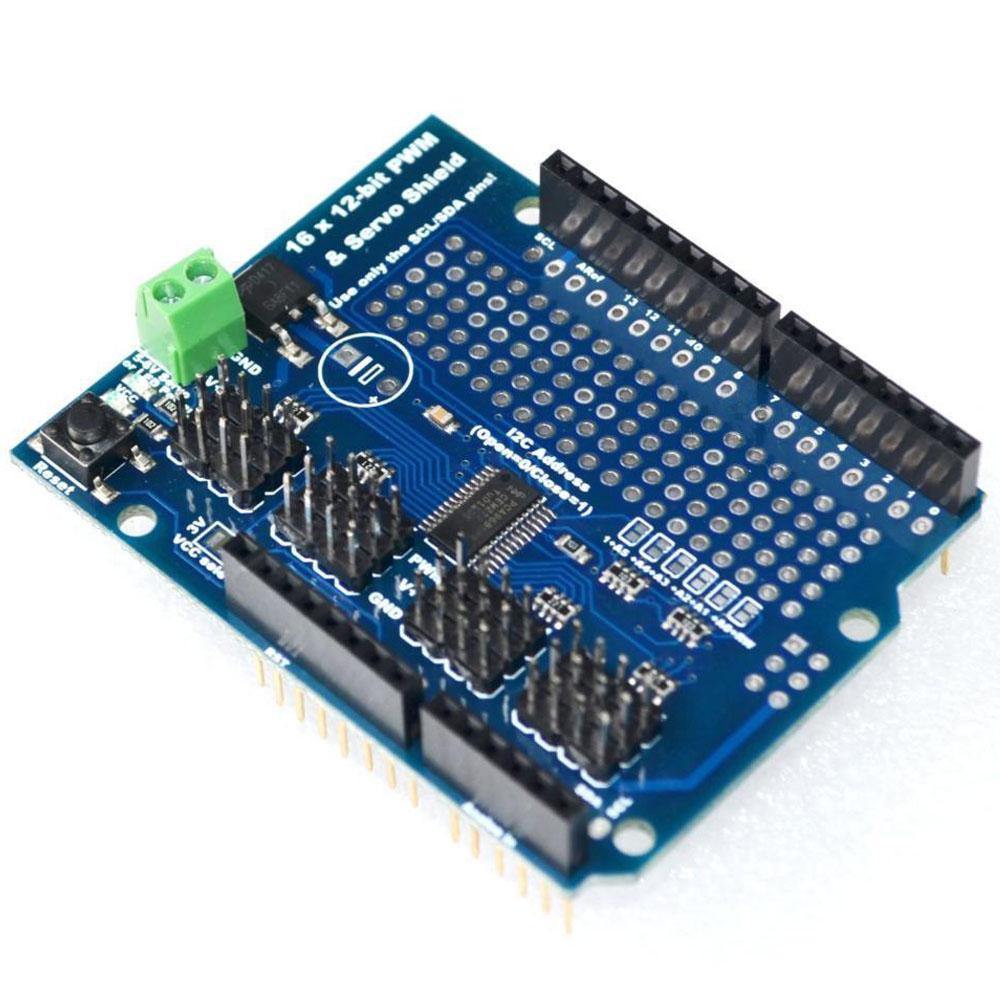

16 channel PWM Servo Motor Shield for Arduino

The 16-Channel 12-bit PWM/Servo Driver Shield is designed for development boards compatible with Arduino which will drive up to 16 servos over I2C with only 2 pins. You can use jumper wires to connect.

The onboard PWM controller will drive all 16 channels simultaneously with no additional board compatible with Arduino processing overhead. What's more, you can stack up to 62 of them to control even more servo motors - all with the same 2 pins.

This shield is perfect if you want to build a robot, perhaps a hexapod or a project that requires several components that require movement. It is also ideal in controlling many LEDs with precise PWM signal and perform microprocessors has a limited number of PWM pins. For these applications, the shield of servo-motors with a PWM driver is the product you are looking for. Using this shield, 16-pin PWM can be controlled with just 2 pins I2C interface.

Applications:

  • RGB or RGBA LED drivers
  • LED status information
  • LED displays
  • LCD backlights
  • Keypad backlights for cellular phones or handheld devices

Package Includes:

  • 1 x 16-Channel 12-bit PWM/Servo Driver Shield

Specifications:

Shield Type  Servo Driver Shield
Number of Channel  16

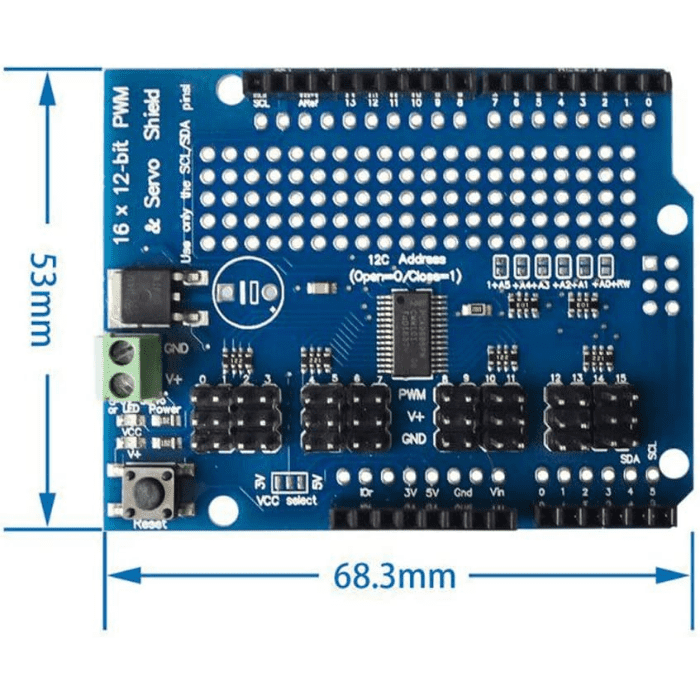

Dimensions  5 x 4 x 1cms
Weight  15 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details
Trust Badge 1 Trust Badge 2 Trust Badge 3

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. What is servo shield?

  • This servo shield connects 20 servos to SPDuino and other Arduino-compatible boards. The servos' selectable power supply allows you to choose between the onboard regulator and other suitable power sources via separate servo power terminals.

2. What are the applications of the 16-channel PWM Servo Motor Shield?

  • The 16-channel PWM Servo Motor Shield is used in applications like RGB or RGBA LED drivers, LED status information, LED displays, LCD backlights, and Keypad backlights for cellular phones or handheld devices. This shield is perfect if you want to build a robot, perhaps a hexapod, or a project that requires several components that require movement.

3. Does Arduino need Motor Shield?

  • Using an Arduino and the Arduino Motor Shield, you can easily control motor direction and speed. It makes incorporating a motor into your project very simple by allowing you to simply address Arduino pins. It also enables you to power a motor with a separate power supply of up to 12 volts.
