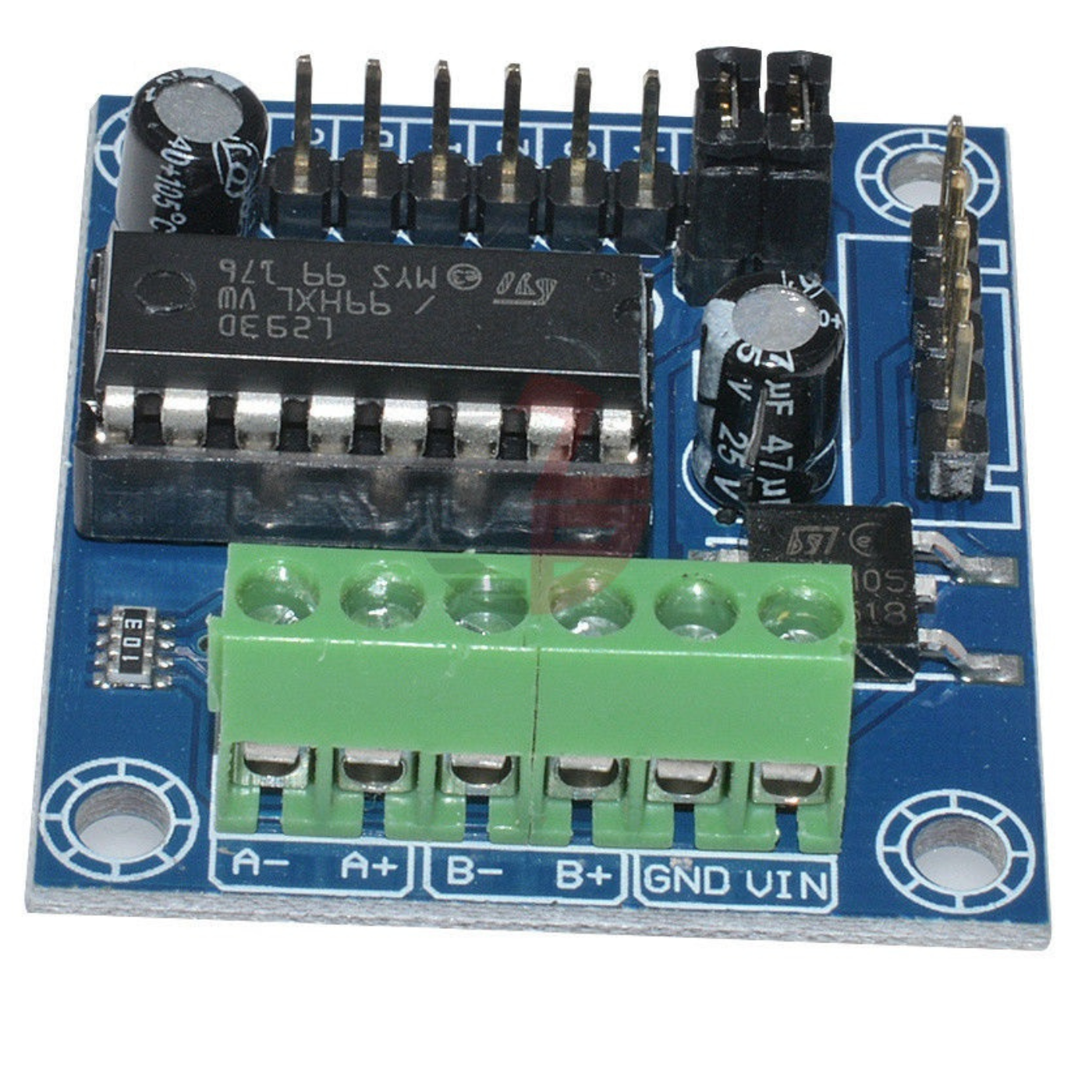

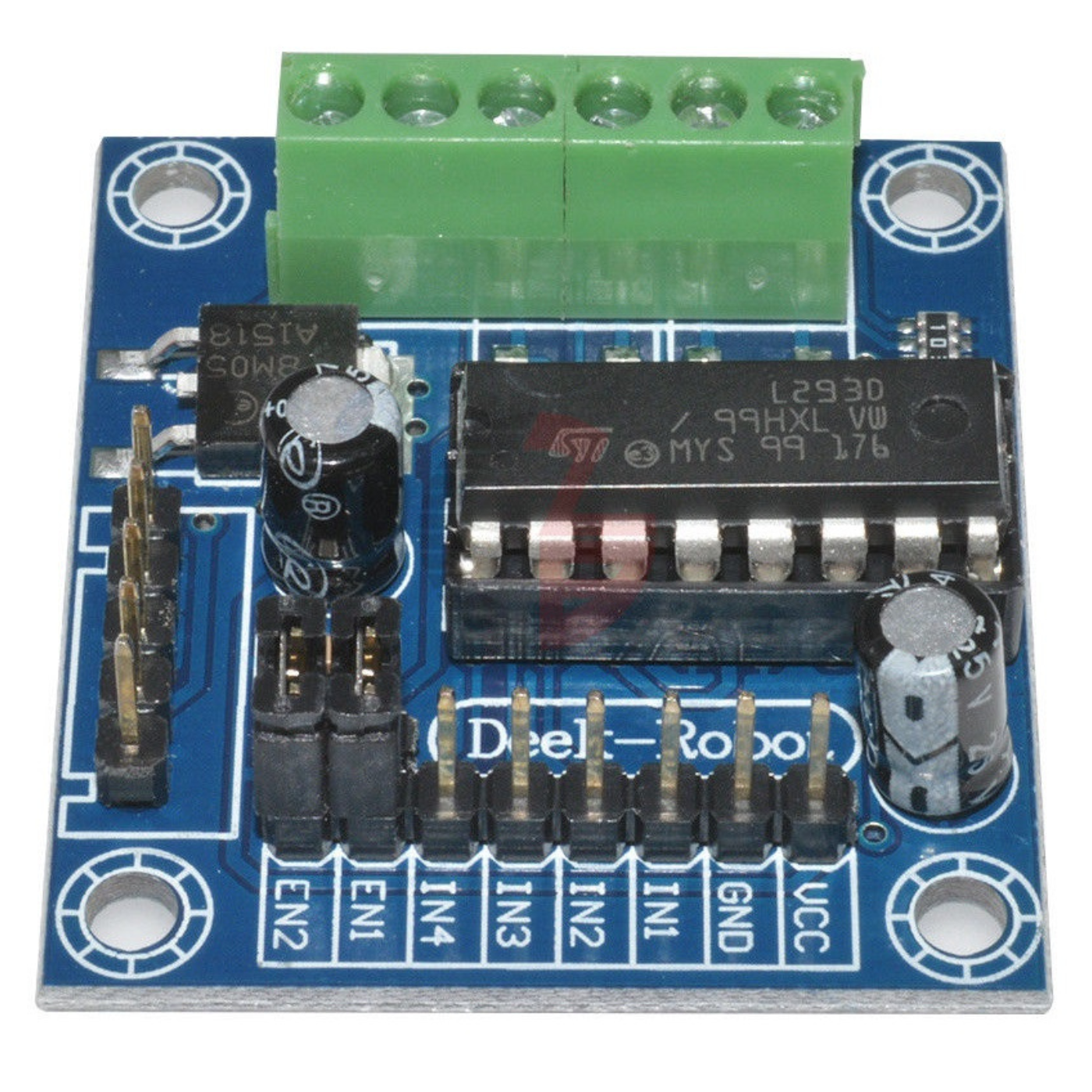

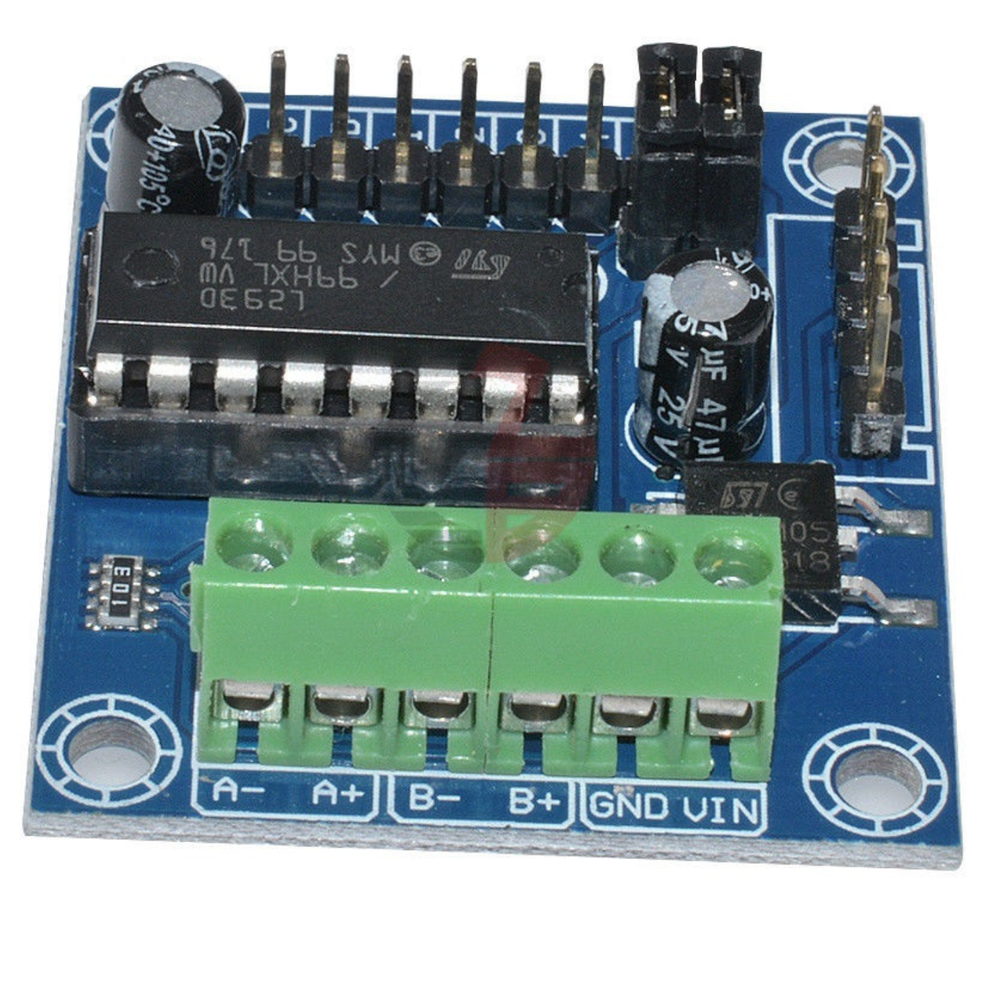

L293D 4 Channel DC Motor Driver
L293D 4 Channel DC Motor Driver
Regular price
Rs. 82
Regular price
Rs. 119
Sale price
Rs. 82
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 5 hours and 48 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is L293D 4 Channel DC Motor Driver
- The Device is a monolithic integrated high voltage,high current four channel driver.
- The input voltage of L293D motor shield is DC4.5-25V.
- This features 600mA output current capability per channel.
- Logical "0" input voltage up to 1.5 V(high noise immunity).
- This allows you to control 2 DC motors in 2 directions at the same time.
- Designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoides, DC and stepping motors) and switching power transistors.

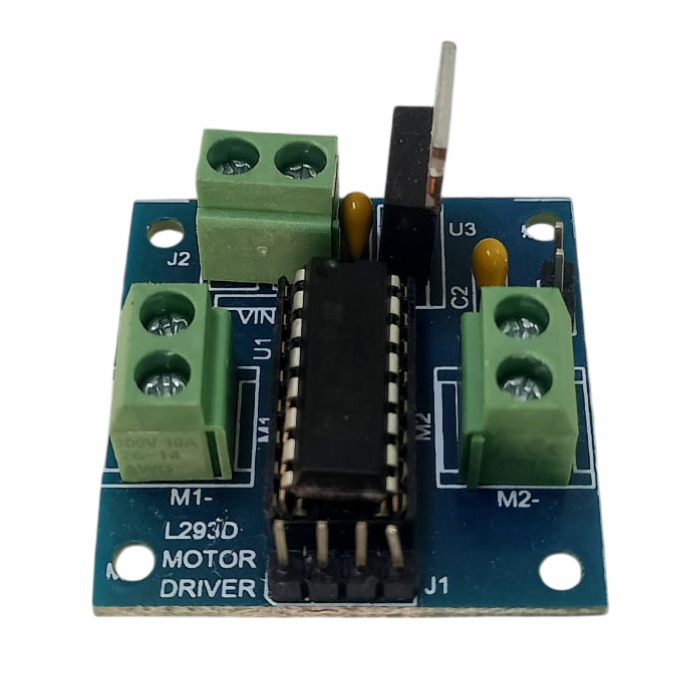

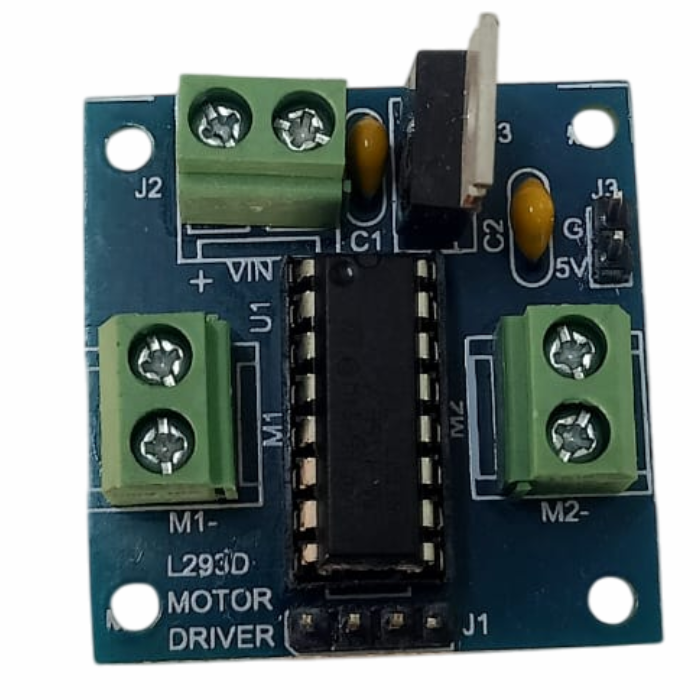

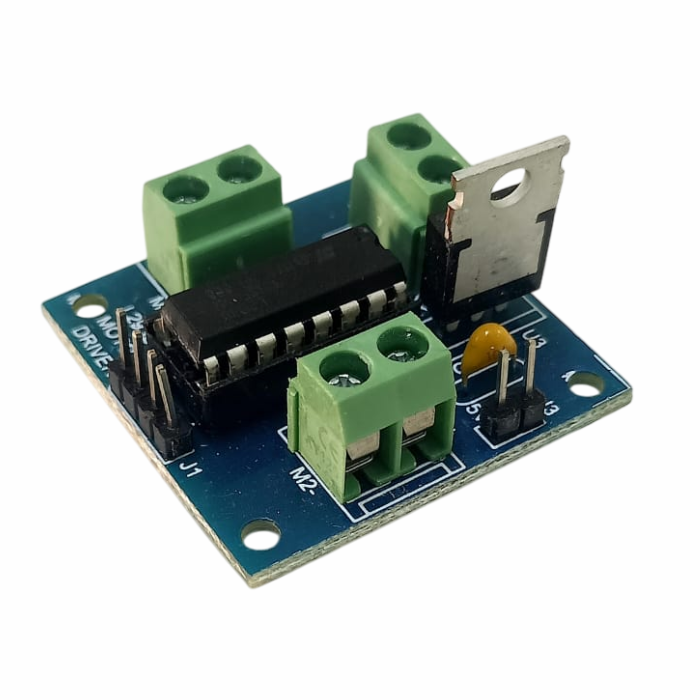

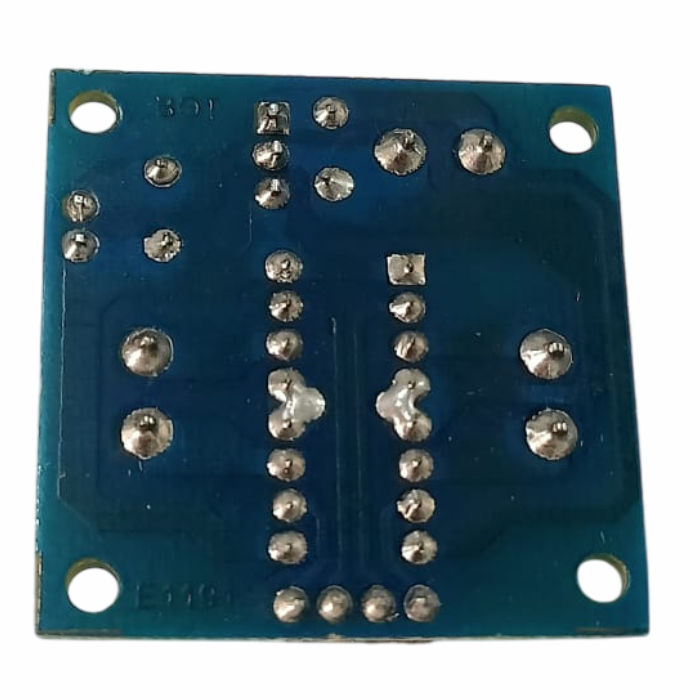

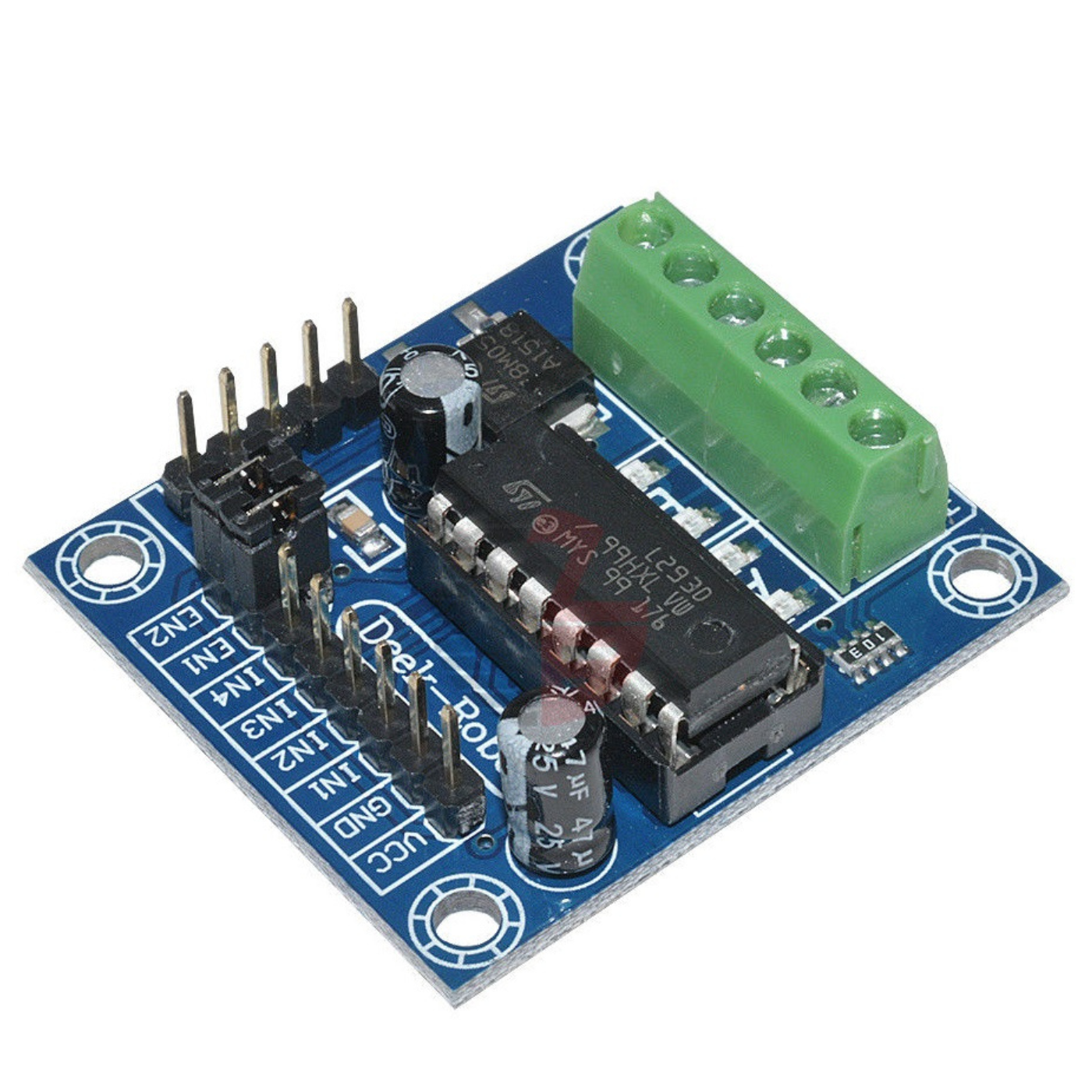

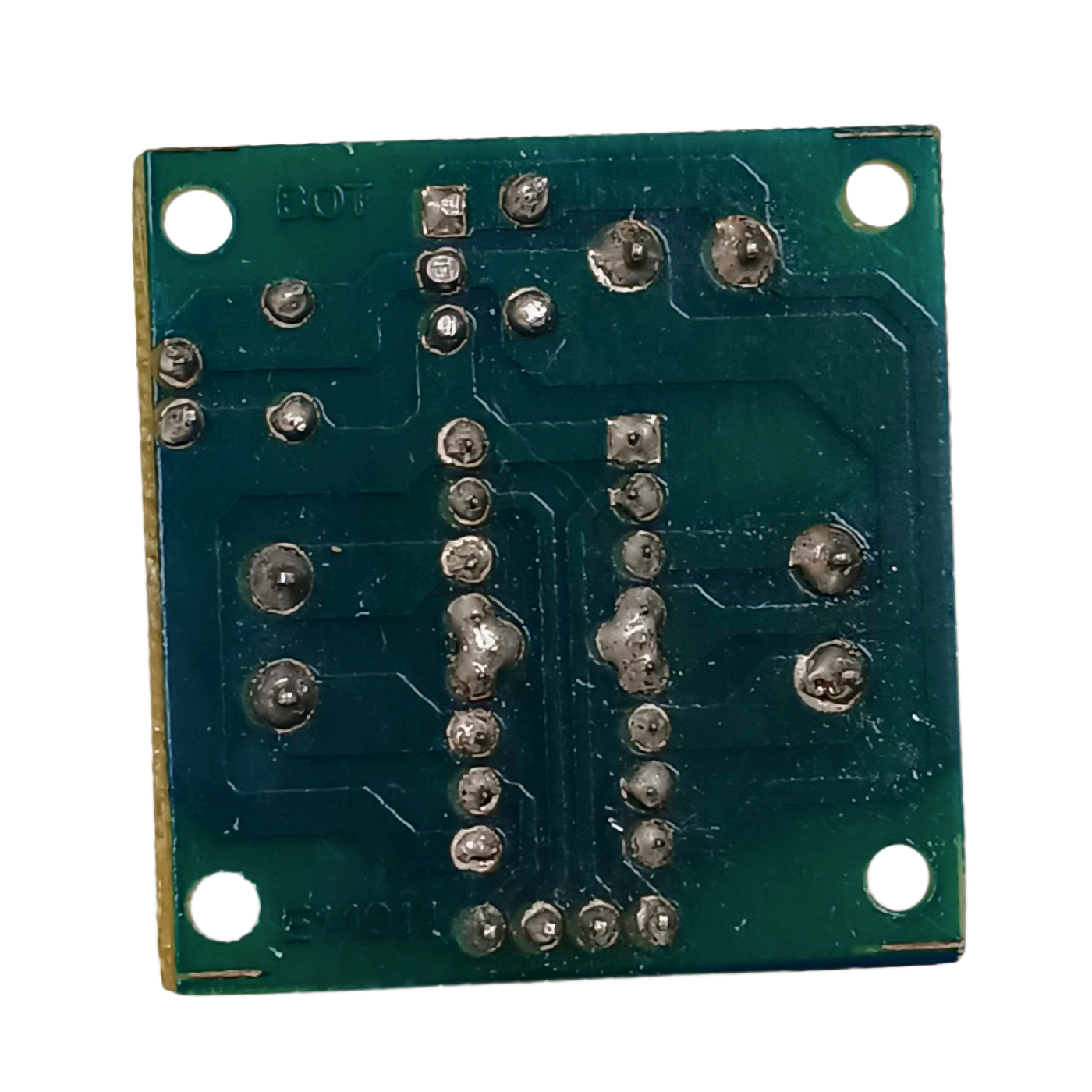

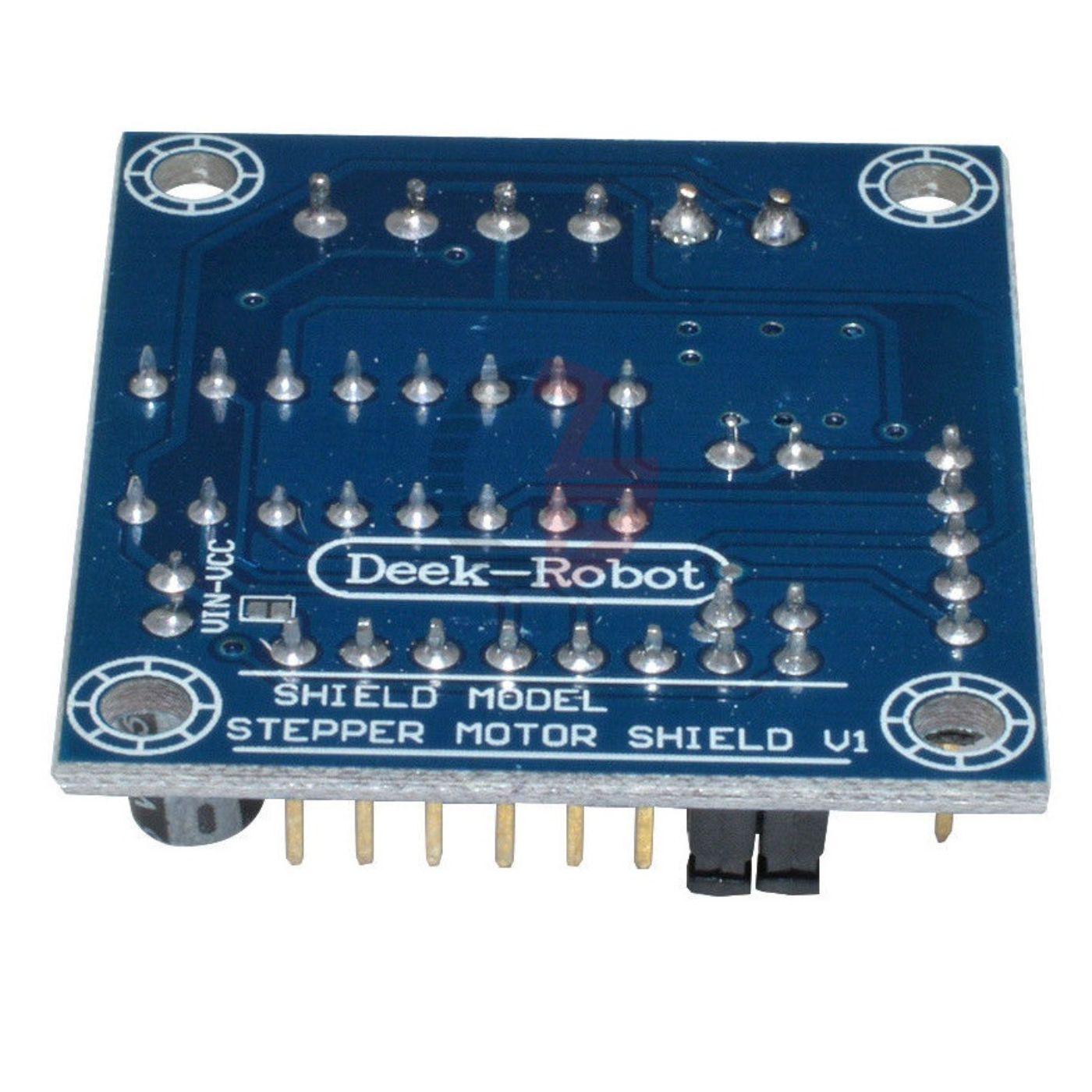

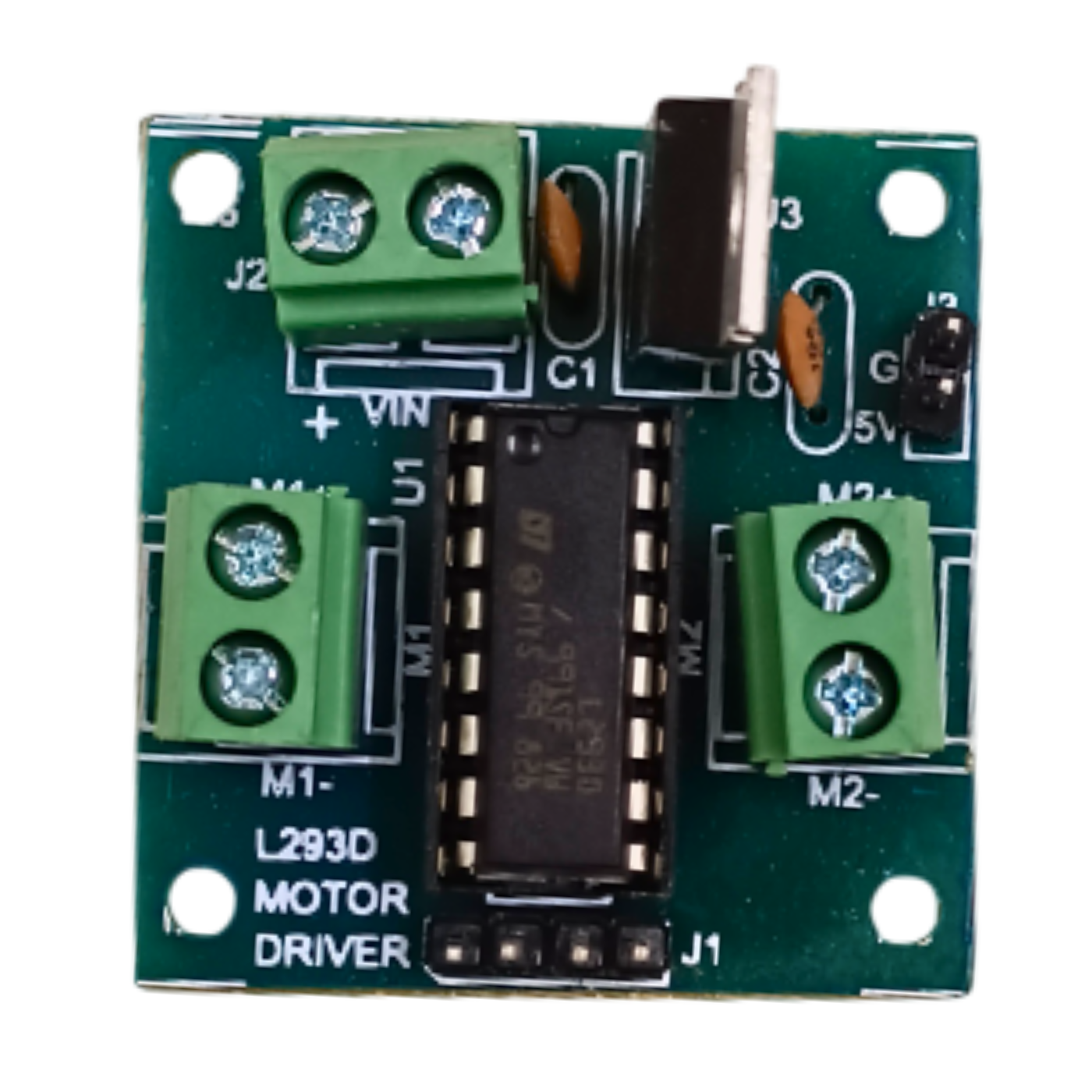

L293D 4 Channel DC Motor Driver
Motor Drive Board L293D Module For Arduino UNO MEGA 2560 is a Device is a monolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoids, DC, and stepper motors) and switching power transistors.
To simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage, and internal clamp diodes are included. This device is suitable for use in switching applications at frequencies up to 5 kHz.
It is a medium-power motor driver perfect for driving DC Motors and Stepper Motors. It uses the popular L293 motor driver IC. It can drive 4 DC motors on and off, or drive 2 DC motors with directional and speed control. L293D DC Motor Driver Module is fully compatible with Arduino and Raspberry Pi cards. Allows you to control 2 DC motors in 2 directions at the same time. L293D DC Motor Driver has become easy to use by being turned into a module. You can integrate them into your circuits very quickly by making the necessary connections to the output and input pins.
check out : L9110S H Bridge Stepper Motor Dual DC Driver Controller Module For Arduino
Applications:
- Can be used to control motors of DIY Robot
- Can be used to control motor speed and direction
Also, read our blog What is Motor Driver detailing an overview of motor drivers, including the different types available and how they work.
Package Includes:
- 1 x L293D 4 Channel DC Motor Driver
Specifications:
| Model | L293D |
| Input Voltage (VDC) | 4.5-25V |
| Output current (Per channel) | 600mA |
| Dimensions mm (LxWxH) | 40 x 35 x 12 |
| Weight (gm) | 11 |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
L298N 2A Dual Motor Driver Module with PWM Control
Regular price
Rs. 109
Regular price
Rs. 152
Sale price
Rs. 109
Unit price
per
Incl. GST (No Hidden Charges)
Sale
DRV8825 Stepper Motor Driver Module
Regular price
Rs. 109
Regular price
Rs. 199
Sale price
Rs. 109
Unit price
per
Incl. GST (No Hidden Charges)
Sale
TB6600 Stepper Motor Driver
Regular price
Rs. 299
Regular price
Rs. 449
Sale price
Rs. 299
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
Found a better price?
Let us know!
We'll try to match the price for you
1. What is L293D motor driver?
- The L293D is capable of bidirectional drive currents of up to 600 mA at voltages ranging from 4.5 V to 25 V. In positive-supply applications, These are intended to drive inductive loads such as relays, solenoids, DC and bipolar stepping motors, as well as other high-current/high-voltage loads.
2. What does L293D stand for?
- L293D is a common motor driver or motor driver IC that allows a DC motor to drive in either direction. The L293D is a 16-pin integrated circuit that can control two DC motors in any direction at the same time. It means that a single L293D IC can control two DC motors. Integrated Dual H-bridge Motor Driver Circuit (IC)
3. Which is better L293D or L298N?
- L293D drivers operate from 4.5V to 36V, whereas L298N drivers can operate up to 46V. L293D can draw up to 600mA current from both channels, whereas L298N Motor Driver can draw up to 2A from both channels.
