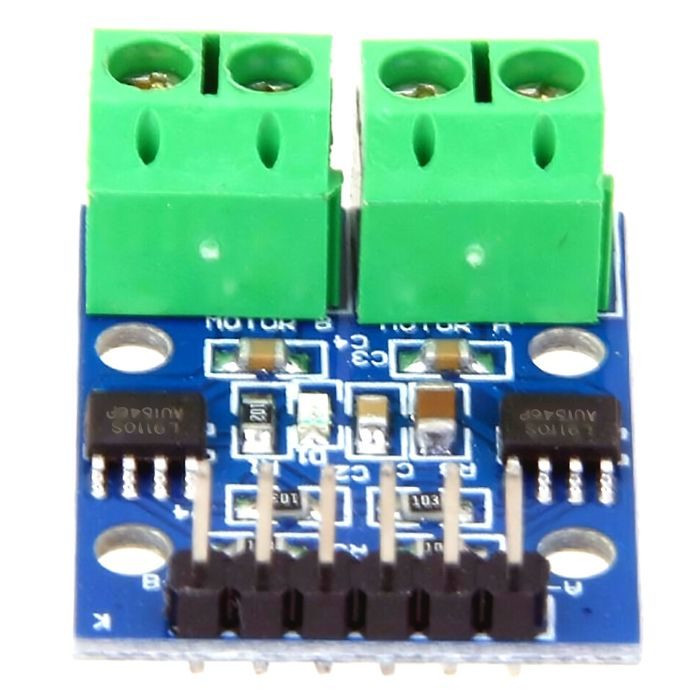

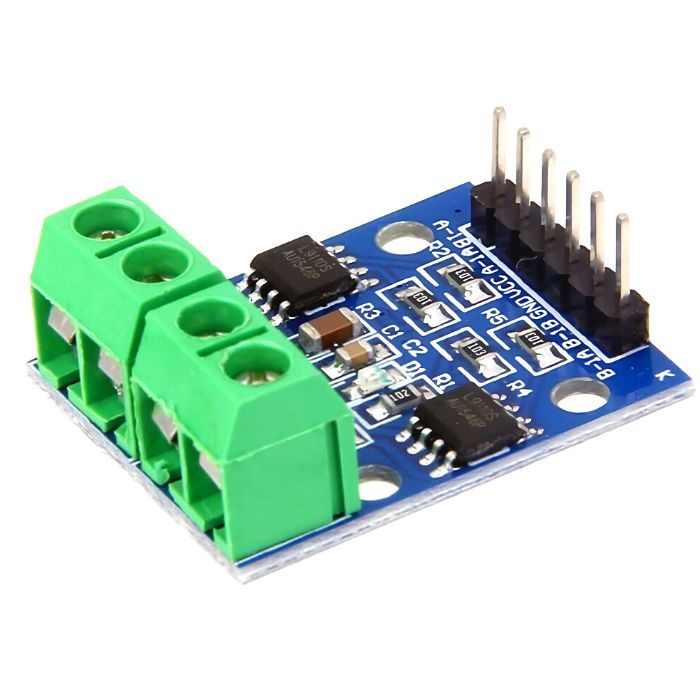

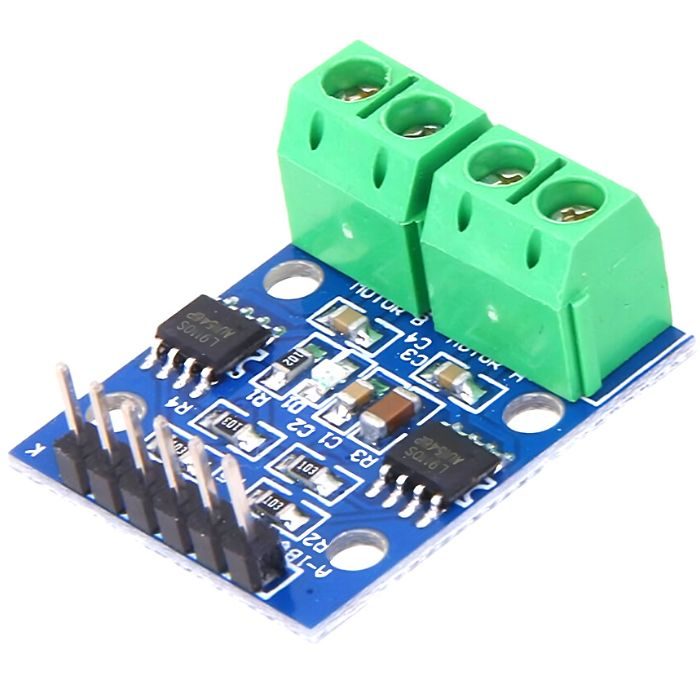

L9110S H Bridge Stepper Motor Dual DC Driver Controller Module For Arduino

L9110S H Bridge Stepper Motor Dual DC Driver Controller Module For Arduino

Regular price Rs. 55
Regular price Rs. 69 Sale price Rs. 55
Sale Sold out 20% off Best Price Guaranteed
You save Rs. 14
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here

Contact form

  • This is L9110S H Bridge Stepper Motor Dual DC Driver Controller Module For Arduino
  • This has Low saturation pressure drop
  • This has Low static work current
  • On-board two L9110 motor control chip
  • Module can be driven by two dc motors at the same time or one phase 4 line 2 type stepping motor
  • Input voltage of this stepper motor driver module is 2.5 to 12 Volt DC
  • Each channel has a continuous output current 800 ma

L9110S H Bridge Stepper Motor Dual DC Driver Controller Module For Arduino

The L9110S dual channel h-bridge motor driver module is a compact board that can be used to drive small robots. This module is based on L9110 Motor Driver IC. This module has two independent motor driver chips which can each drive up to 800mA of continuous current. The boards can be operated from 2.5 volts to 12 Volts enabling this module to be used with both 3.3 Volts and 5 Volts microcontrollers. A set of female header pins and jumper wires are used to connect this module to a microcontroller like Arduino. The motors are attached via two sets of screw terminals.

A PWM Pulse Width Modulation signal is used to control the speed of a motor and a digital output is used to change its direction. This module can also be used to drive a single four-line two-phase stepper motor. Four holes make this board easy to mount onto your robot or other projects.

This dual-motor driver comes in a compact form factor and it is ideal for use in small robots.
The actual direction of “forward” and “reverse” depends on how the motors are mounted and wired. You can always change the direction of a motor by reversing its wiring.

The HG7881 (L9110) Dual Channel Motor Driver Module uses two of these motor driver chips. Each driver chip is intended to drive one motor, so having two means that this module can control two motors independently. Each motor channel uses the same truth table as above. Each set of screw terminals is used to connect a motor. Refer to the table below for pin header connections.

Pin diagram of L9110S H Bridge Stepper Motor Dual DC Driver Controller Module:

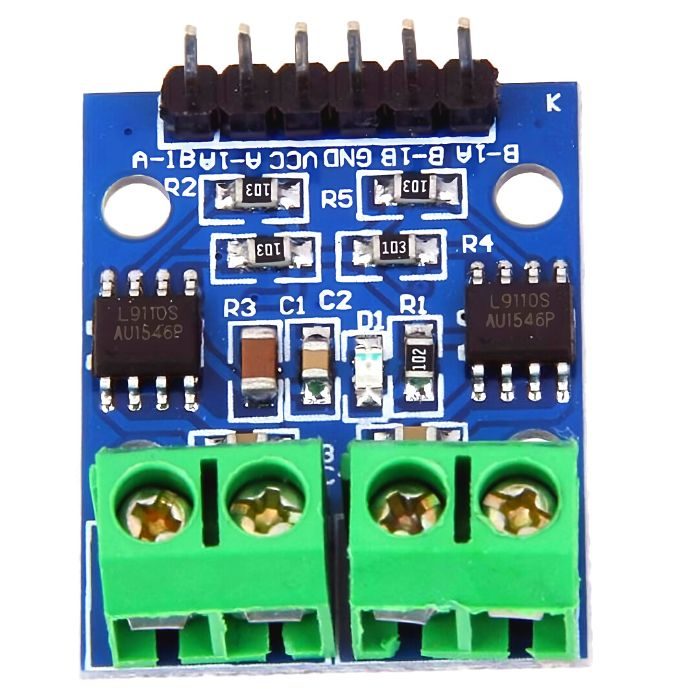

L9110S DC Stepper Motor Driver Board Pin Diagram
L9110S DC Stepper Motor Driver Board Pin Diagram

Module Interfaces:

6P black bent pin description:

  • 1 VCC external voltage 2.5V-12V
  • 2 GND External GND
  • 3 AIA external microcontroller IO port
  • 4 AIB external microcontroller IO port
  • 5 BIA external microcontroller IO port
  • 6 BIB external microcontroller IO port

4P green terminal:

  • 1 OA1 OB1 contact DC 2-pin, non-directional
  • 2 OA2 OB2 contact DC 2-pin, non-directional


  • ON VCC, GND module power indicator light
  • AIA input high, AIB input low, [OA1 OB1] motor is transferred;
  • AIA input low, AIB input high, [OA1 OB1] motor reversal;
  • BIA input high, BIB input low, [OA2 OB2] motor is transferred;
  • BIA input low, BIB input high,] [OA2 OB2] motor reversal


  • L9110S-chip motor drive
  • Small-sized, suitable for assembly
  • This can drive two DC motors or a 4-wire 2-phase stepping motor
  • This is provided with fixed mounting holes

Package Includes:

  • 1 x L9110S dual channel h-bridge motor driver module


Input voltage 2.5 to 12 Volt DC
Maximum operating current 0.8A
Output current 800 mA (Each channel)
PCB Size 29.2 mm x 23 mm

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. What is L9110S?

  • The L9110S 2-Channel motor driver module is a small board for driving small robots. This module includes two independent motor driver chips, each capable of driving up to 800mA of continuous current. Because the boards can be powered from 2.5V to 12V, this module can be used with both 3.3V and 5V microcontrollers.
