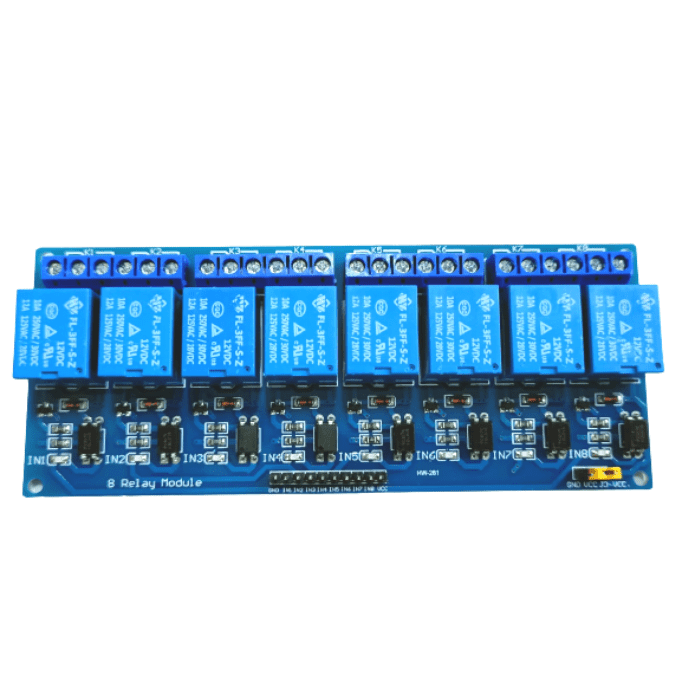

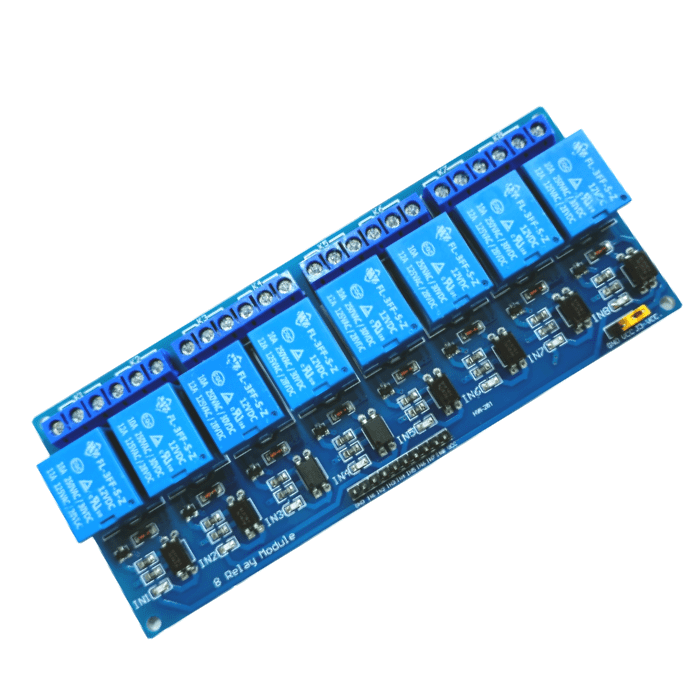

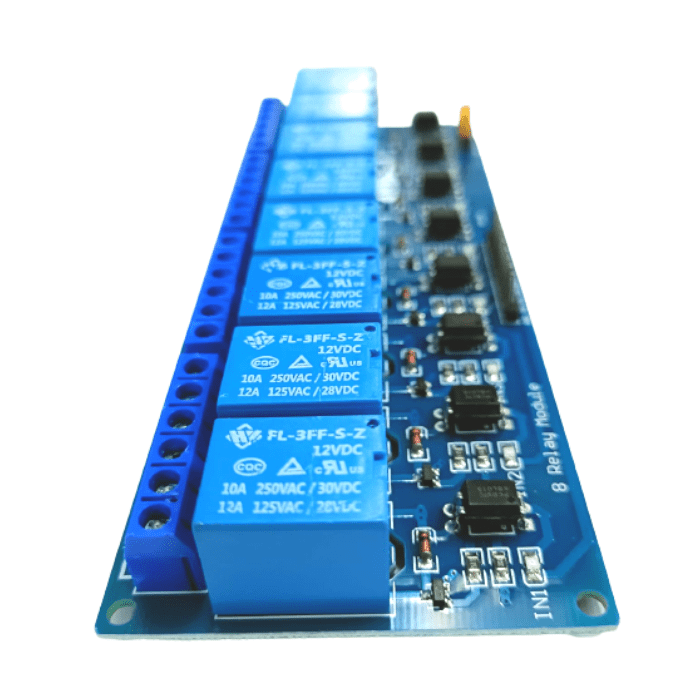

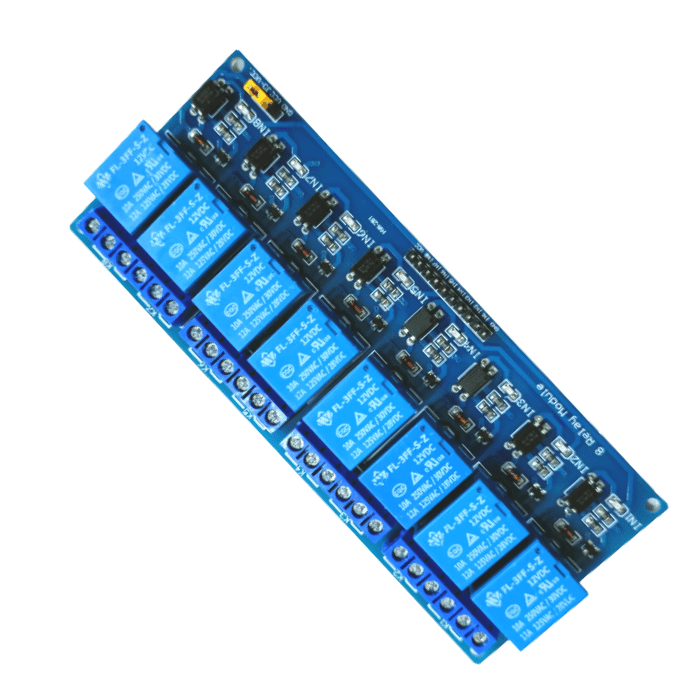

12V 8-Channel Relay board

12V 8-Channel Relay board

Regular price Rs. 324
Regular price Rs. 349 Sale price Rs. 324
Sale Sold out 7% off Best Price Guaranteed
You save Rs. 25
Incl. GST (No Hidden Charges)
  • Equipped with high-current relay 10A@250VAC / 10A@30VDC
  • It can control both AC and DC appliances such as Solenoids, Motors, lights, fans, etc.
  • High-quality screw terminals (Terminal Block) provided (C, NC, NO) for quick and easy connection
  • Freewheeling diode to protect your microcontroller
  • Input Signal Pin connected to Burg stick for easy accessibility
  • LED Status indicators to indicate the relay ON/OFF status

12V 8 Channel Relay board

This 12V 8 Channel Relay board meet the safety standard as control areas and load area have the isolation groove. Optical coupling isolation module. The triggering of 8 Channel Relay Module is reliable, more stable. The double FR4 circuit board design, high-end SMT process. It has power and relay operation instructions.

Relays terminals (C, NC, NO) are accessible through screw terminals which makes wiring up the board very easy. The inputs of the 8 Channel 12V Relay Module are isolated to protect any delicate control circuitry. A wide range of microcontrollers such as Arduino, AVR, PIC, ARM and so on can control it.

The use of such high-voltage relay eliminates the risk of heating up of the relay as electromechanical relay limit the current consumption in accordance with a voltage rating.

APPLICATIONS:

  • Control Solenoids
  • Motors
  • Bulbs and Lamp
  • smart home control
  • Freewheeling diode to protect your microcontroller.

Also check 12V 16 Channel Relay Module with Light Coupling LM2576 Power Supply, suitable for controlling various appliances and equipment with a large current. It can be directly controlled by microcontrollers such as Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, and TTL logic. Each relay on the board requires 15-20mA Driver Current, and there is an indication LED for Relay output status. The module features light coupling protection (optocoupler) for isolation of control circuitry.

Package includes:

  • 1 x 12V 8 Channel Relay board

Specifications:

Channel

8

Operating Voltage (VDC)

12

Trigger Voltage (VDC)

12

Switching Voltage (VAC)

250@10A

Switching Voltage (VDC)

30@10A

PCB hole diameter (mm)

3.1

PCB hole pitch distance (mm)

132 mm (x-pitch), 50.5 mm (y-pitch)

Dimensions

138x57x17mm

Weight

50g
