SimonK Red 30A BLDC ESC Electronic Speed Controller with Connectors
SimonK Red 30A BLDC ESC Electronic Speed Controller with Connectors
9
Regular price
Rs. 312
Regular price
Rs. 549
Sale price
Rs. 312
Unit price
per
Incl. GST (No Hidden Charges)
Couldn't load pickup availability
Currently, 15 people are actively viewing.
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
RC100
FLAT ₹ 100/- OFF
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- The Simonk ESC is a 30A Electronic Speed Controller for brushless DC motors used in DIY quadcopters and multi-copters
- These ESCs can supply a constant current of 30A and a peak current of 40A for less than 10 sec.
- Suitable Batteries for this esc are 2-3S LiPo.
- Application: BLDC Motors in Quadcopters, Multirotor drones, RC Planes etc.
SimonK Red 30A BLDC ESC Electronic Speed Controller with Connectors
The Simonk 30A BLDC ESC for drones is an Electronic Speed Controller (ESC) that is used to drive brushless DC drone motors and is capable of supplying current up to 30A. The Simonk 30A ESC controller is made for quadcopters and multicopters to provide faster and better motor speed control.
This High-speed 30A brushless ESC for racing drones features a battery eliminator circuit (BEC) that provides 5V and 2A to the receiver or flight controller, so an extra battery is not needed to power them. These electronic speed controllers with fast throttle response are best used with A2212 BLDC motors of 1000kv, 1400kv, and 2200kv.

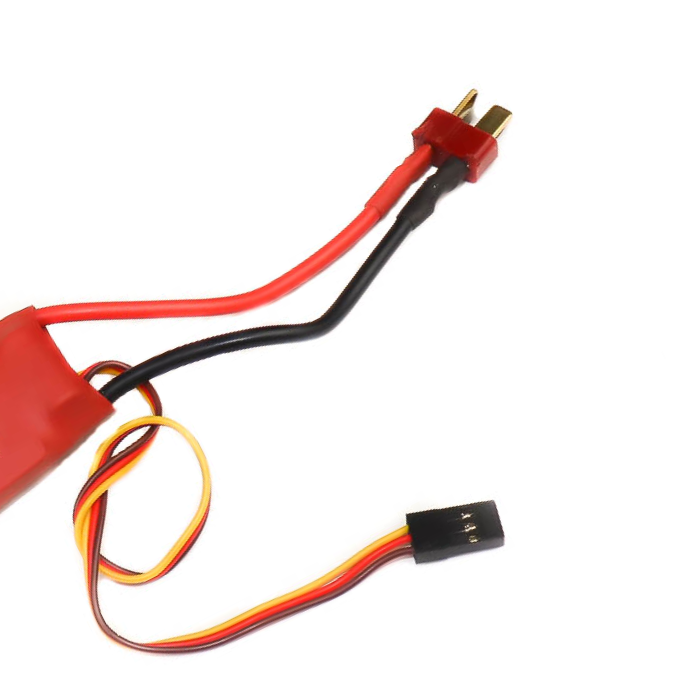

CONNECTIONS:
- Power: Red - 7.4V to 14.8V
Black - GND - Servo: Yellow - Throttle Input
Red - 5V, 2Amp Out
Brown - GND - BLDC Motor: 3 Blue Wires - BLDC ESC Connections
Safe Power Function of the Simonk 30A ESC Motors
- High-quality MOSFETs for BLDC motor drive.
- The throttle calibration function of the Simonk ESC motor helps you to adapt to different remote throttle travel differences and improve your throttle response smoothly.
- It provides low voltage protection as well as reverse polarity protection.
- This brushless motor speed controller provides protection on the 5v lines.
- High-performance heat sink for better thermal management.
Features:
- Simonk 30A Electronic Speed Controller (ESC) with connectors.
- Capable of supplying constant current up to 30A and peak current of 40A for less than 10 seconds.
- Features a battery eliminator circuit (BEC) providing 5V and 2A to the receiver or flight controller.
- Designed for use with A2212 BLDC motors of 1000kv, 1400kv, and 2200kv.
-
Connections: Power (Red for 7.4V to 14.8V, Black for GND), Servo (Yellow for throttle input, Red for 5V/2A output, Brown for GND), BLDC Motor (3 Blue wires).
- Throttle calibration function for adapting to different remote throttle travel differences and improving throttle response.
- Provides low voltage protection, reverse polarity protection, and protection on the 5V lines.
- Equipped with high-quality MOSFETs for BLDC motor drive.
- Features a high-performance heat sink for better thermal management.
Application:
- BLDC Motors in Quadcopters.
- Multirotor drones.
- RC Planes etc.
Package Includes:
- 1 x Simonk 30A ESC with Connectors
Specifications:
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
Simonk Red ESC 30A without Connector for Quadcopter
7
Regular price
Rs. 359
Regular price
Rs. 591
Sale price
Rs. 359
Unit price
per
Incl. GST (No Hidden Charges)
Sale
SimonK ESC 12A
7
Regular price
Rs. 550
Regular price
Rs. 799
Sale price
Rs. 550
Unit price
per
Incl. GST (No Hidden Charges)
Sale
30A Simonk ESC Controller (With only bullets) for Drones
3
Regular price
Rs. 312
Regular price
Rs. 529
Sale price
Rs. 312
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
ADDITIONAL RESOURCES
1. What exactly is SimonK ESC?
SimonK firmware is ESC (electronic speed controller) firmware developed by Simon Kirby. This firmware has been found to provide faster response than standard ESC firmware, as well as easy handling and good compatibility, all of which greatly improve multirotor performance.
2. What is a 30A ESC?
SimonK firmware is ESC (electronic speed controller) firmware developed by Simon Kirby. This firmware has been found to provide faster response than standard ESC firmware, as well as easy handling and good compatibility, all of which greatly improve multirotor performance.
3. Is ESC considered necessary for drones?
Drones with brushed motors and those with brushless motors both require ESCs. Multirotor drones may have an ESC for each rotor or an integrated device that controls all rotors with a single system.
4. What exactly is a Simonk 30A BLDC ESC?
The Simonk 30A Electric Speed Controller (ESC) is a fantastic little powerful ESC that runs extremely well and does not overheat like other ESCs. This has been discovered to provide faster response than standard ESC, as well as ease of handling and compatibility, all of which greatly improve multirotor performance.
5. What is the purpose of a BEC (Battery Eliminator Circuit) in an ESC?
A BEC provides a regulated voltage output to power auxiliary components such as receivers or flight controllers, eliminating the need for separate power sources.
6. What is the difference between Simonk ESCs and other ESCs?
Simonk ESCs are known for their smooth throttle response and rapid acceleration, making them popular choices for racing drones. They often feature advanced firmware optimized for performance.
7. Can the Simonk ESC be used with other types of motors?
While primarily designed for brushless motors like the A2212 series, the Simonk ESC can be compatible with other brushless motors within similar specifications.
