Witty Fox - ESP32 Storm Board with On-Board Li-ion Battery & Wireless Programming

Regular price
Rs. 1,157
Sale price
Rs. 1,157
Regular price
Rs. 1,508
You save Rs. 351
23% off
You save Rs. 351
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team
  • This is Witty Fox - ESP32 Storm Board with On-Board Li-ion Battery & Wireless Programming

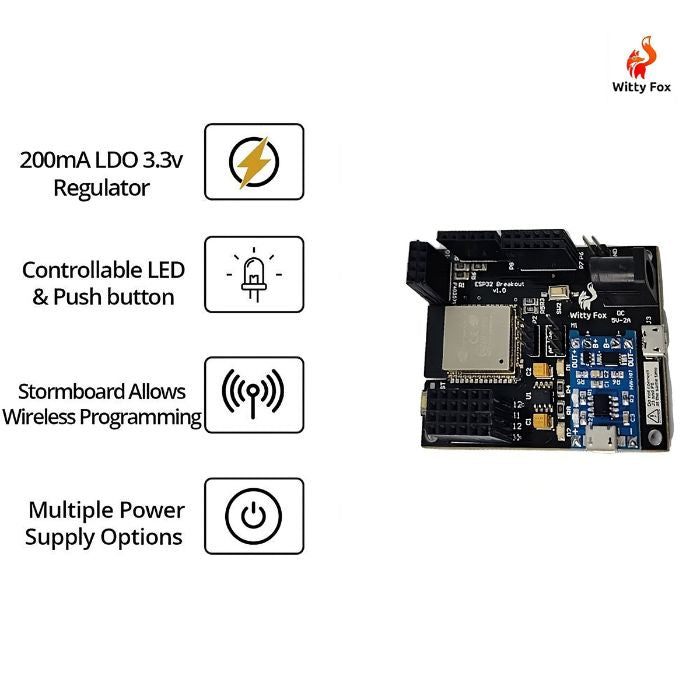

  • This has an on-board 1000 mAh Li-ion Battery with Inbuilt protection and a charge-discharge module and has a selectable power switch
  • [Advanced Technology]: The Witty Fox Storm board enables users to wirelessly program the board (OTA) directly.
  • This has multiple power supply options (micro USB, DC Jack, Battery, Headers)
  • This module has a 200mA LDO 3.3v regulator for a wide operating voltage range.
  • This has an on-board Controllable LED & push button connected to GPIO

Witty Fox - ESP32 Storm Board

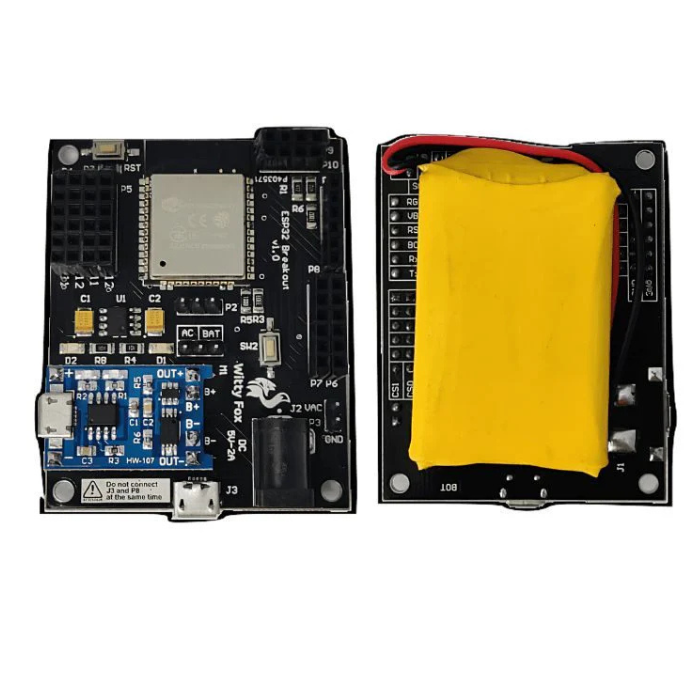

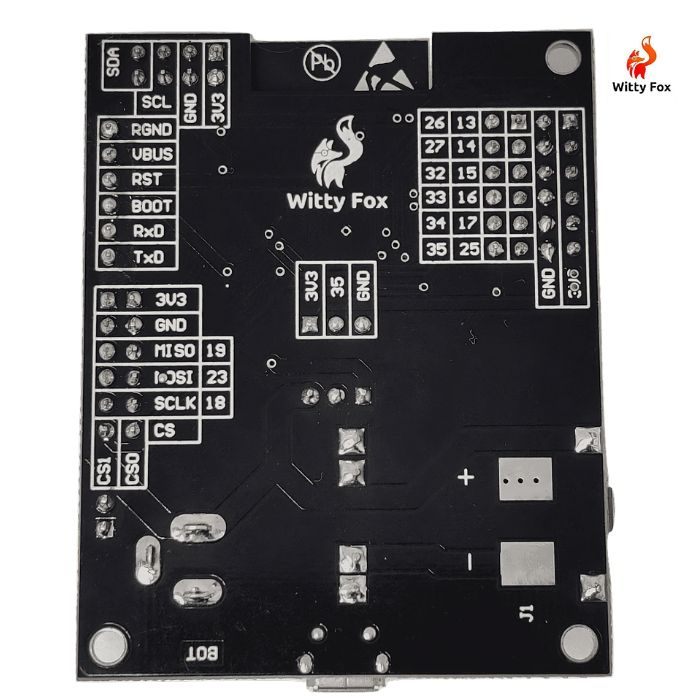

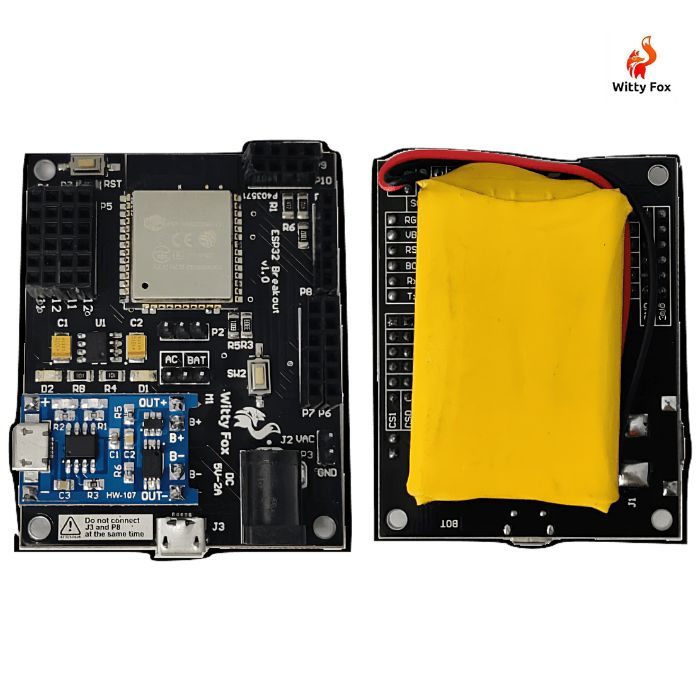

The Witty Fox ESP32 Storm board is an easy-to-use prototyping board developed specially keeping IoT Applications in mind. It allows users to upload their program wirelessly (OTA) by default or connect to the laptop using Witty Fox ESP Programmer. With mostly all usable GPIO breakouts of ESP32 neatly organized with power pins to aid the user in quick prototyping. It also has multiple breakouts for both SPI and I2C interfaces, as well as a dedicated breakout for the PIR sensor.

If want you can make NFC based security door lock and for that you will need few essential components like:

 The in-built battery charging and protection board can be easily replaced by the user in case of any damage to the product caused during prototyping. It features a low dropout on-board linear regulator by Microchip Technology[TM] for operation with Li-Ion batteries. The board comes along with a 1000 mAh Lithium-ion battery.

Video Tutorial of Witty Fox - ESP32 Storm Board:

Over The Air (OTA) | Wirelessly Program Witty Fox ESP32 Storm Board using Arduino IDE

Package Includes:

  • 1 x Witty Fox ESP Storm Board
  • 1 x In-Built Li-ion Battery Pack

Specifications:

Brand  Witty Fox
Model ESP Storm Board
Dimensions 12.7 x 9.91 x 5.08 cm
Weight 100grams
Style Storm Board with battery

Frequently Asked Questions

1. WHAT IS AN ESP32 STORM BOARD USED FOR?

  • The ESP32 storm board is used to build any embedded solution or prototype embedded applications. It is also a good platform for a beginner who wants to get a quick start in learning about embedded systems and IoT.

2. WHAT PROGRAMMING LANGUAGES CAN I USE TO PROGRAM THE ESP32 STORM BOARD?

  • You have several options here as the ESP32 Storm Board supports multiple programming languages. The two most widely used frameworks are the ESP-IDF and Arduino Framework.
