12V DC Solenoid for Electric Door Lock

Regular price
Rs. 309
Sale price
Rs. 309
Regular price
Rs. 403
You save Rs. 94
23% off
You save Rs. 94
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team
  • The 12V DC elctric door lock solenoid assembly is manufactured with an iron body.
  • The solenoid assembly is a high quality ultra-compact electric lock.
  • The lock works as the circuits disconnects, and it will unlock as the instant power-on.
  • The hidden way of unlocking can be used for an emergency.

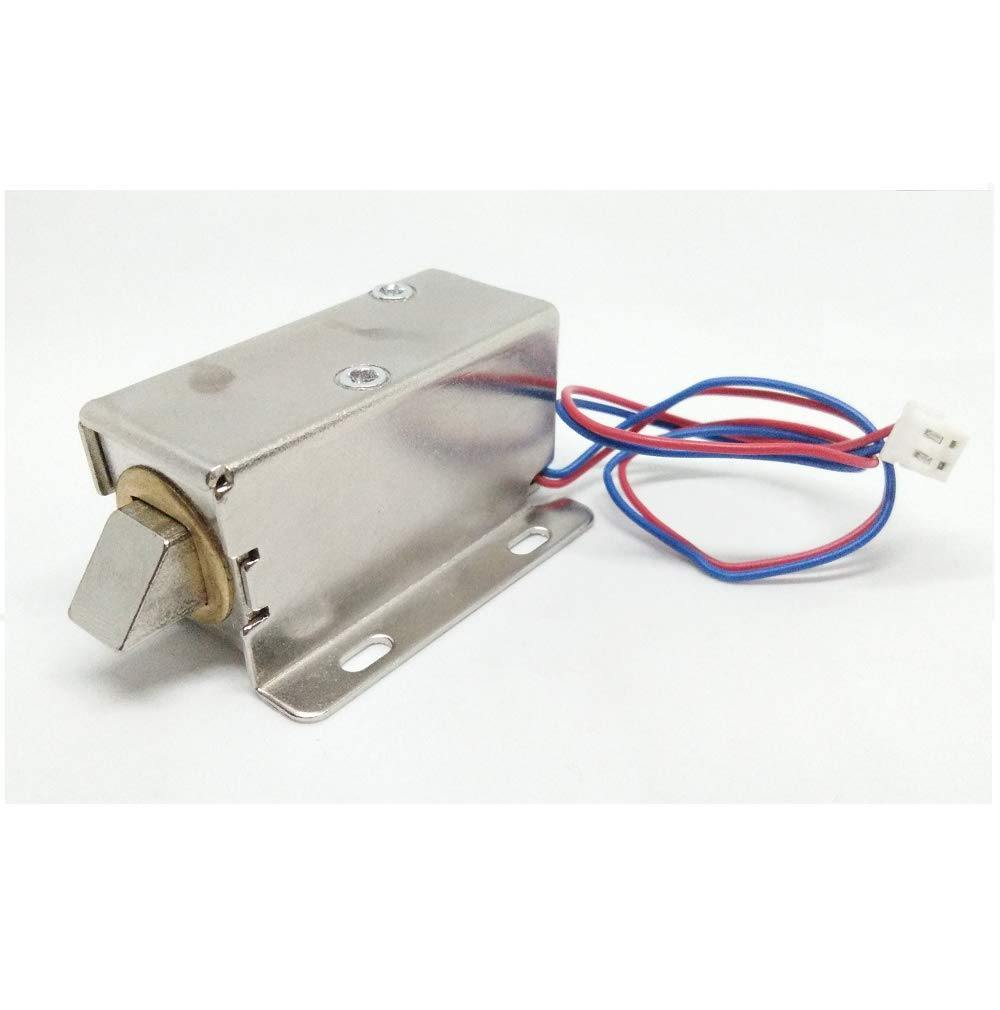

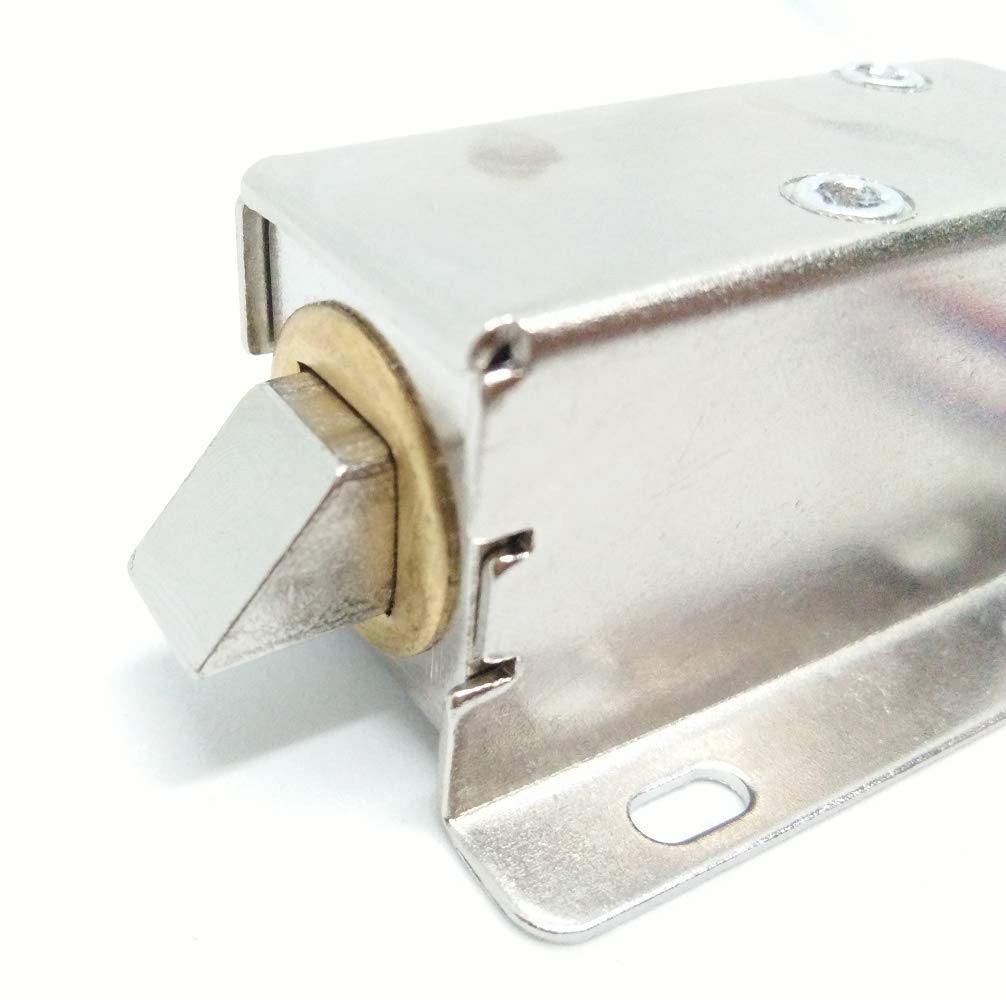

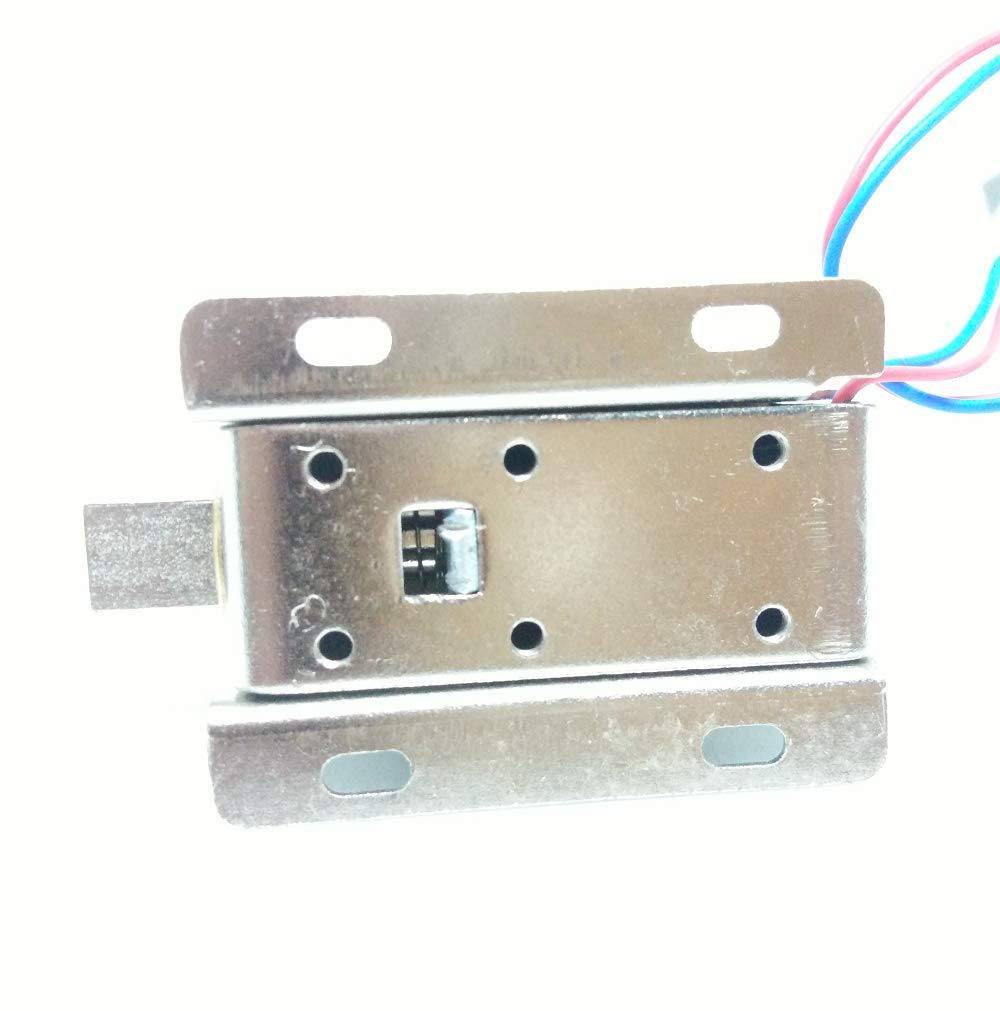

12V DC Solenoid for Electric Door Lock

This DC 12V Lock Electric Lock Assembly Solenoid can be used for locking iron luggage, file cabinet, and storage shelves. The electric lock assembly is a great fit for several DIY Arduino based projects. It is steady, durable, and energy-saving and had a long lifespan. The lock works as the circuit disconnects, and it will unlock as the instant power-on. In the anti-theft and shockproof design, the lock is better than other kinds of locks. It is steady, durable, energy-saving, and had a long lifespan.

The hidden way of unlocking can be used in an emergency. The lock works as the circuit disconnects, and it will unlock as the instant power-on. It is steady, durable, and energy-saving and had a long lifespan. In the anti-theft and shockproof design, the lock is better than other kinds of locks. After connecting the wires and when the current is available, the electric lock can control the doors opening and closing.

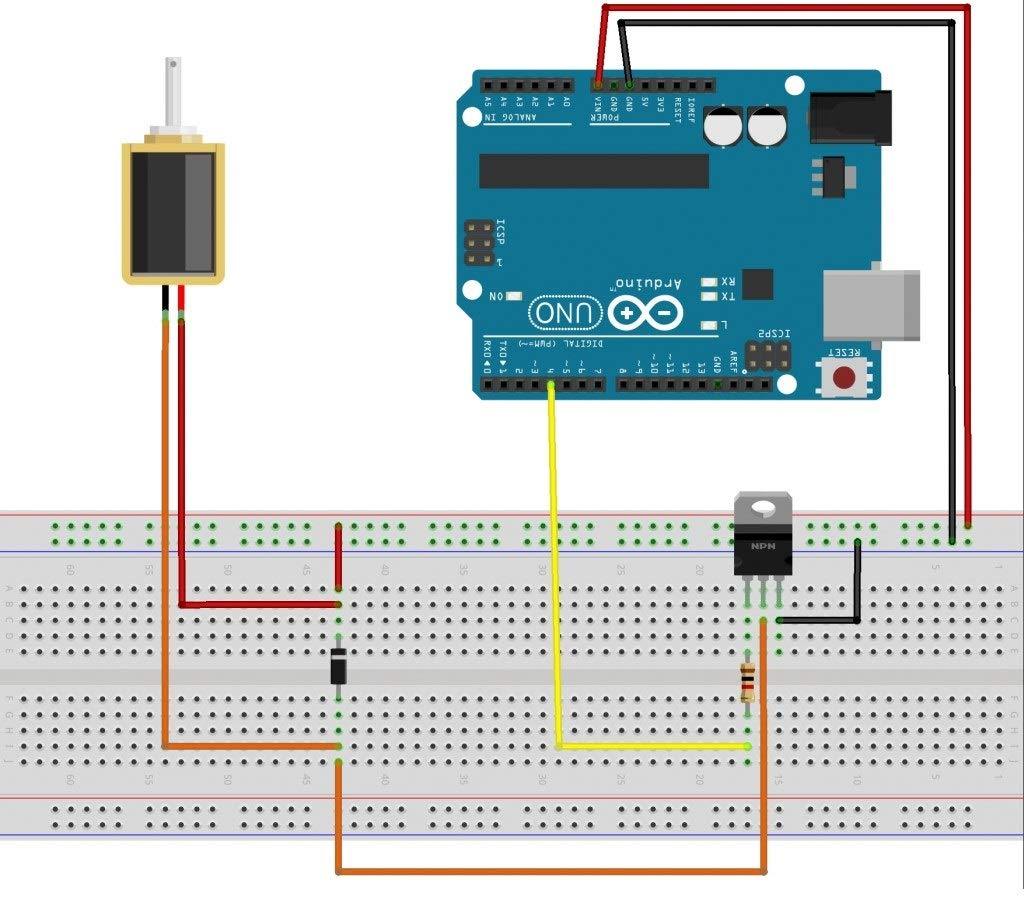

If you want to control this 12V DC Solenoid for Electric Door Lock with Arduino, for that you will need few essential components like

Features:

  • Iron Body Material
  • High quality ultra-compact electric lock.
  • Rustproof, durable, safe, convenient to use.
  • Suction tightly sucks the iron, thus locking the door.
  • Applicable for being installed in the escape door or fire door electronic controlled system.
  • Adopts the principle of electric magnetism, when the current through the silicon, the electromagnetic lock will achieve a strong.

Applications:

  • Home Automation
  • Cabinet locking
  • Smart code locking doors
  • Electronic door control for attendance systems
  • Mobile control of door locks

Package Includes:

  • 1 x 12V DC Lock Electric Solenoid Assembly

Specifications:

Operating Voltage (VDC) 12
Rated Current (mA) 600
Lead length  25mm
Locking telescopic length 10mm
Unlock time  1 second
Weight (gm) 150
Dimensions (mm) 54 x 42 x 28 (LxWxH)

Frequently Asked Questions

1. What is solenoid lock 12V?

  • The 12V Solenoid lock has a slug with a slanted cut and a good mounting bracket. It's basically an electronic lock, designed for a basic cabinet, and door. When 9-12VDC is applied, the slug pulls in so it doesn't stick out and the door can be opened.

2. What happens to electronic locks when the power goes out?

  • Just because you've lost power doesn't mean your smart lock is no longer functional. Because smart locks are battery-powered, the locking mechanism can continue to function even if the rest of your home loses power.

3. What is the use of the solenoid in the electric lock?

  • A solenoid is a small electromagnet that pushes or pulls a plunger that can operate a function. In this case, it holds the strike opening closed or allows the strike opening to swing open, thus allowing the door's lock latch to open without the lock latch being retracted.

4. How does an electric solenoid lock work?

  • The solenoid plunger connects to a latch that locks or unlocks when the system is activated with an electric current. The electromagnets are turned on and off through the supply and withdrawal of current. The electromagnet pulls the plunger in to unlatch, and when removed, a fail-safe spring re-engages the lock.
