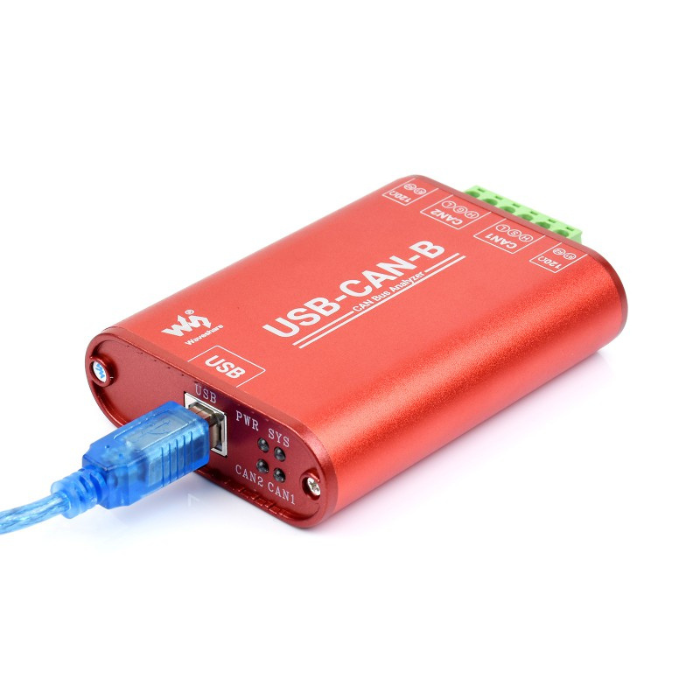

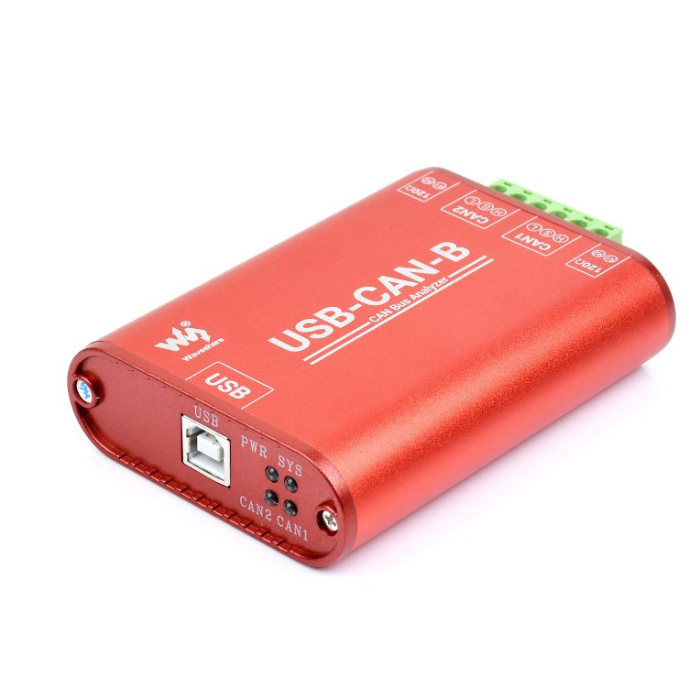

Waveshare USB to CAN Adapter with Dual-Channel CAN Analyzer
Couldn't load pickup availability
The Waveshare USB to CAN Adapter with Dual-Channel CAN Analyzer is a high-performance industrial-grade device designed to interface with CAN bus systems via USB.
This adapter supports a dual CAN bus interface, allowing independent communication on each channel without interference.

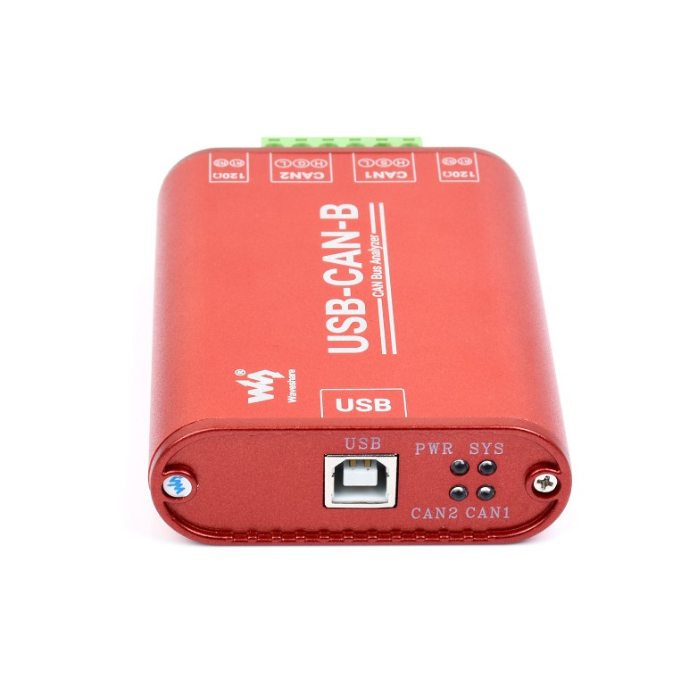

It uses a high-speed USB 2.0 interface, while also being backward compatible with USB 1.1 and USB 3.0. The CAN bus baud rate is configurable between 10 Kbps and 1 Mbps, with features for baud rate calculation, auto-detection, and settings via a configuration tool.

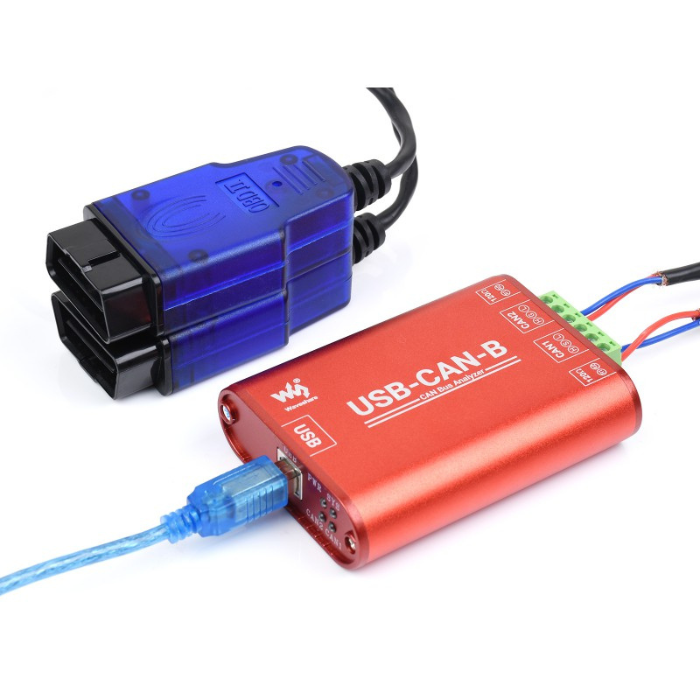

Supporting CAN 2.0A, CAN 2.0B, CANOpen, SAE1939, DeviceNet, ICAN, and ISO 15765 protocols, this adapter is a versatile solution for industrial and automotive applications.
Additionally, it provides comprehensive secondary development support for popular platforms such as C++, Python, LabVIEW, and more, making it an ideal tool for integration in a wide range of applications.
| Item Type | Adapter |
|---|---|
| Model Type | USB to CAN Adapter |
| Operating Voltage | 5V |
| Protection | Power and signal fully isolated, 2500V DC isolation, ±8KV electrostatic discharge |
| Additional Specs. | Dual-channel CAN1 and CAN2 (independent and isolated) |

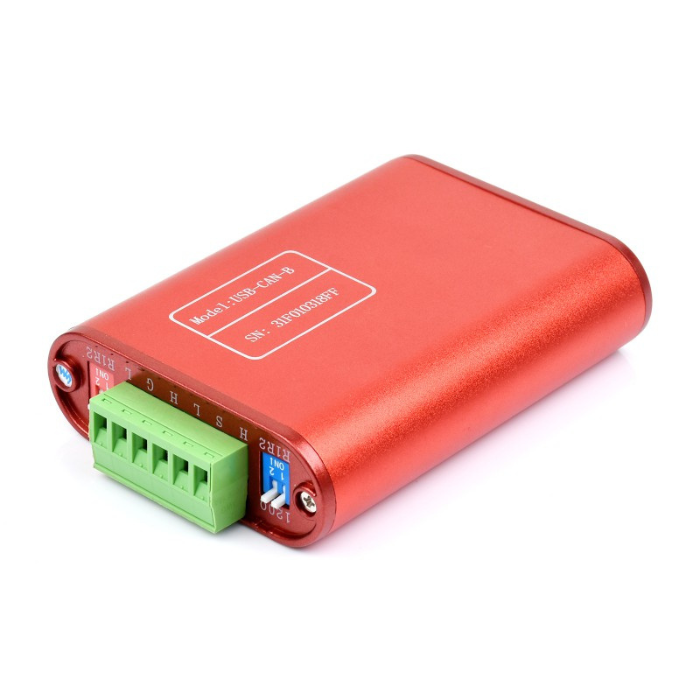

| Connector | CAN bus screw terminal |
| Baud Rate | 10 Kbps ~ 1 Mbps |
| Protocol Support | CAN 2.0A, CAN 2.0B, CANOpen, SAE J1939, DeviceNet, iCAN, ISO 15765 |
| Hardware Support | Single-wire CAN, High-speed CAN, Low-speed/Fault-tolerant CAN |
| Transfer Speed | Receiving and sending: 8500 frames/s per CAN channel |
| Weight | 132 gm |
| Dimensions (L x W x H) | 14.2 x 7.8 x 3.3 cm |
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
