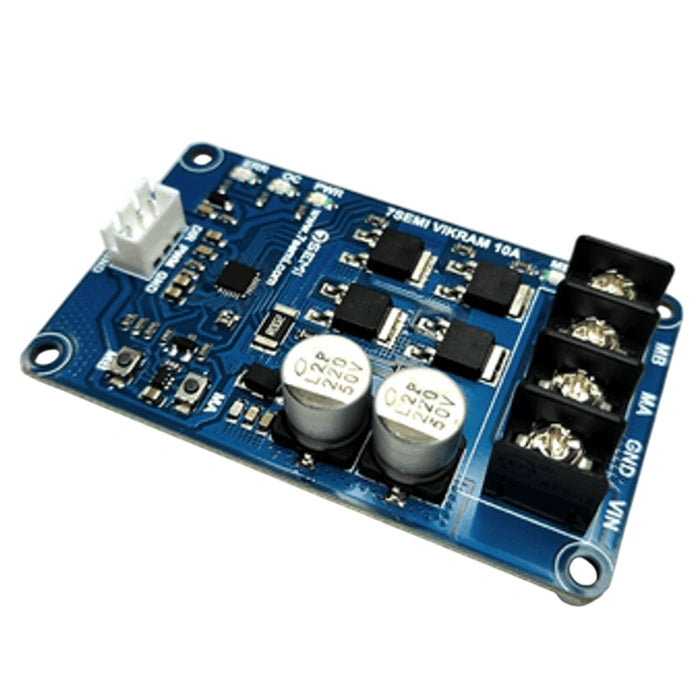

Vikram-3010 30V 10A Single Channel Motor Driver - 7Semi
The 7Semi Vikram-3010 30V 10A Single Channel Motor Driver is a powerful and reliable solution crafted for single-channel brushed DC motor control. Operating within a wide voltage range of 6V to 30V, it supports bi-directional motor control with a continuous current handling capacity of 10A, making it ideal for a variety of industrial and hobbyist applications.
Designed for flexibility, the Vikram-3010 works with both 3.3V and 5V logic levels, enabling seamless integration with platforms like Arduino, Raspberry Pi, and PLCs. It features onboard buttons for quick motor testing and LED indicators that provide real-time motor output status.
Safety is paramount with the Vikram-3010, as it includes overcurrent protection, over-temperature protection, and undervoltage shutdown to ensure reliable operation even under challenging conditions. The driver utilizes a fully NMOS H-Bridge design, ensuring efficient motor control without the need for an external heat sink.
Supporting PWM and DIR inputs with a broad input logic voltage range from 1.8V to 12V, the Vikram-3010 is engineered for versatility and ease of use across a broad range of projects and control systems.
Features:
-
Bi-directional Control: Allows forward and reverse motion of a single brushed DC motor
-
Wide Operating Voltage: 6V to 30V support for flexible power requirements
-
High Current Handling: Provides up to 10A continuous current
-
Logic Level Support: Compatible with both 3.3V and 5V input signals
-
Onboard Testing: Includes buttons for quick testing and LEDs for motor output indication
-
Built-in Protections: Features overcurrent, over-temperature, and undervoltage protection
- Efficient Design: Fully NMOS H-Bridge architecture eliminates the need for an external heat sink
