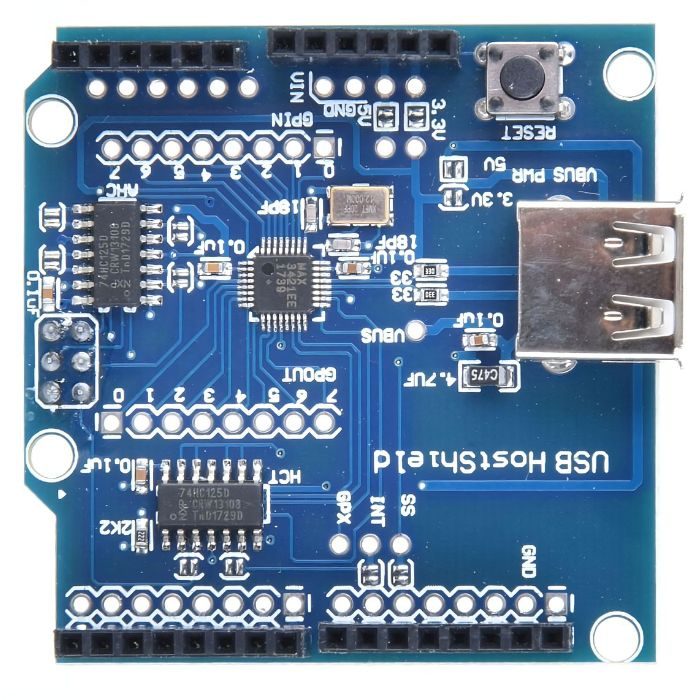

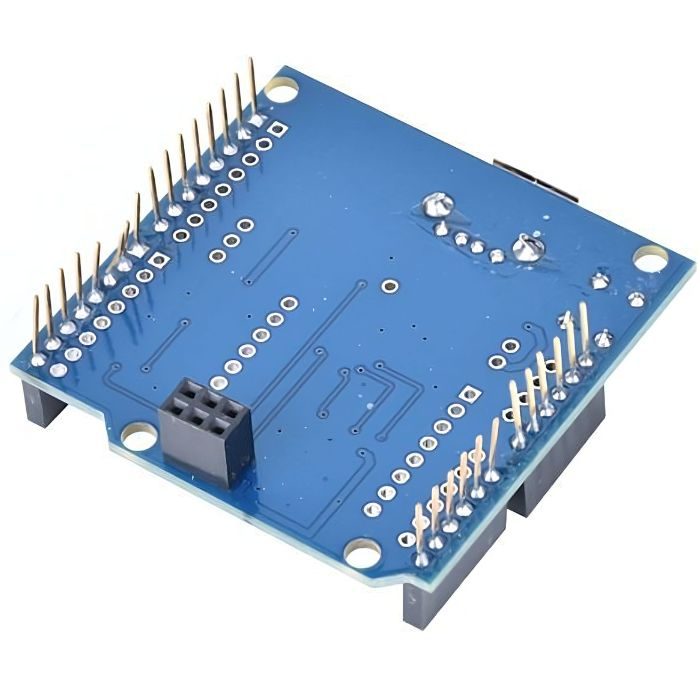

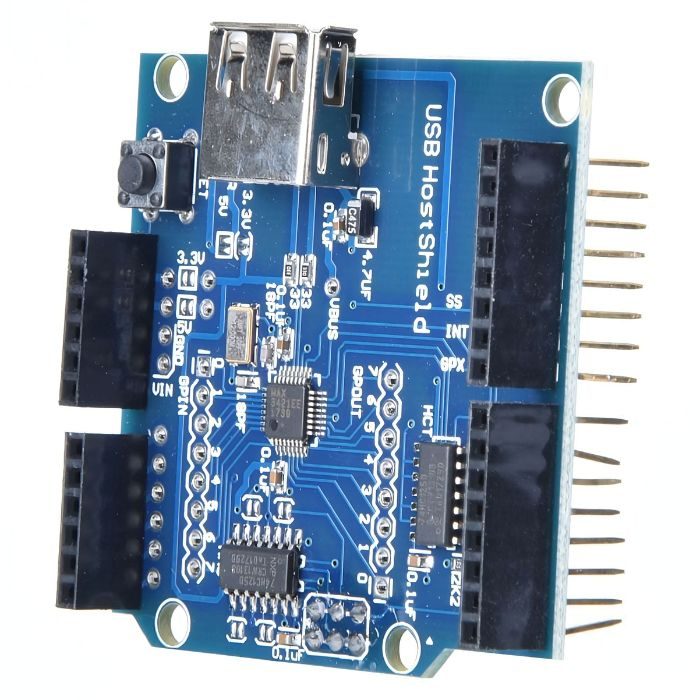

Arduino UNO USB Host Shield
Arduino UNO USB Host Shield
Low stock: 3 left
Regular price
Rs. 580
Regular price
Rs. 999
Sale price
Rs. 580
Unit price
per
Incl. GST (No Hidden Charges)
Couldn't load pickup availability
Currently, people are actively viewing.
Same Day Shipping
If Ordered within 5 Hours and 54 Minutes
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
RC100
FLAT ₹ 100/- OFF
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is UNO USB Host Shield for Arduino
- The UNO USB shield for Arduino works with standard (dual 5/3.3V) and 3.3V boards.
- The USB shield host complies with USB Specification Revision 2.0 (Full-Speed 12Mbps Peripheral, Full-/Low-Speed 12Mbps/1.5Mbps Host)
- It Supports HID devices, such as keyboards, mice, joysticks, etc.
- This is Compatible with Mass storage devices, such as USB sticks, memory card readers, external hard drives (FAT32 Type File System – Mega Arduino only).
UNO USB Host Shield for Arduino
The UNO USB Host Shield compatible with Arduino is based on the MAX3421E, which is a USB peripheral/host controller containing the digital logic and analog circuitry necessary to implement a full-speed USB peripheral or a full-/low-speed host compliant to USB specification rev 2.0. For a successful communication to happen using USB host shield protocol, you need at least one of the device to be the host, which means that you cannot connect two keyboards together and expect them to communicate with each other.
Features:
- Works with standard (dual 5/3.3V) and 3.3V-only (for example, Pro Arduino) boards.
- Operates over the extended -40°C to +85°C temperature range
- Complies with USB Specification Revision 2.0 (Full-Speed 12Mbps Peripheral, Full-/Low-Speed 12Mbps/1.5Mbps Host)
- Supports HID devices, such as keyboards, mice, joysticks, etc.
- Compatible with Mass storage devices, such as USB sticks, memory card readers, external hard drives
Applications:
- Interfacing HID Devices: Connects keyboards, mice, and joysticks to Arduino projects.
- Game Controllers: Allows the use of Sony PS3, Nintendo Wii, and Xbox360 controllers with Arduino.
- USB to Serial Converters: Supports FTDI, PL-2303, ACM, and certain cell phones and GPS receivers.
- Android Devices: Enables communication with ADK-capable Android phones and tablets.
- Digital Cameras: Interfaces with Canon EOS, Powershot, Nikon DSLRs, and other PTP cameras.
- Mass Storage Devices: Connects USB sticks, memory card readers, and external hard drives.
- Bluetooth Dongles: Adds Bluetooth connectivity to Arduino projects.
- Custom USB Controllers: Create custom USB controllers for various applications.
- Data Logging: Log data from USB devices like sensors and storage devices.
- Robotics: Integrate USB peripherals into robotics projects for enhanced functionality.
Package Includes:
- 1 x UNO USB Host Shield for Arduino
UNO USB Host Shield Specifications:
| Shield Type | USB Host Shield |
| Compatible | UNO board compatible with Arrduino |
| Supports | HID devices, such as keyboards, mice, joysticks |
| Dimensions | 5 x 4 x 1 cms |
| Weight | 15 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
Arduino Uno R3 Board compatible
27 reviews
Regular price
Rs. 459
Regular price
Rs. 699
Sale price
Rs. 459
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Arduino Decimilia Duemilanove compatible Board
27 reviews
Regular price
Rs. 599
Regular price
Rs. 946
Sale price
Rs. 599
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
Arduino MEGA 2560 Atmel R3 compatible Board
27 reviews
Regular price
Rs. 1,249
Regular price
Rs. 1,648
Sale price
Rs. 1249
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. How to connect USB Host Shield to Arduino?
- To connect a USB Host Shield to an Arduino board, you will need to follow these steps:
- Gather your materials: You will need an Arduino board, a USB Host Shield, and any other components or sensors you want to include in your project.
- Connect the shield to the Arduino: Line up the pins on the shield with the pins on the Arduino board and carefully press the shield onto the board. Make sure the pins are aligned properly and that the shield is seated securely on the board.
- Connect your components: If you are using any additional components or sensors, such as a USB device or an SD card, connect them to the appropriate ports on the shield.
- Load the software: Use the Arduino software to load the sketch (program) that you want to run on your Arduino. You may need to install the USB Host library or other libraries to use the shield.
- Upload the sketch: Connect your Arduino to your computer using a USB cable and upload the sketch to the Arduino using the Arduino software.
- Test your project: Once the sketch has been uploaded, test your project to make sure it is working as expected.
Keep in mind that the specifics of connecting a USB Host Shield to an Arduino board will depend on the specific version of the shield and the Arduino board you are using. Refer to the documentation provided with the shield and the Arduino software for more detailed instructions.
2. What is a USB Host Shield Arduino?
- A USB Host Shield is an Arduino expansion board that allows the Arduino to communicate with and control USB devices. A USB host controller and a series of connectors that can be used to interface with USB devices are typically included in the shield. The USB Host Shield can be used to add a variety of features to an Arduino project. You can use it to connect and control USB devices such as keyboards, mice, and USB storage devices, for example. It can also be used to interface with USB sensors and other USB-based devices. To use the USB Host Shield with an Arduino, you must first install the USB Host library or another USB communication library. After installing the library, launch the Arduino software to load a sketch (programme) that communicates with the USB devices connected to the shield. Overall, the USB Host Shield is a simple and convenient way to add USB connectivity to your Arduino projects. It can control a variety of USB devices and add new functionality to your projects.
3. What is the primary use of the UNO USB Host Shield?
- This shield allows an Arduino to act as a USB host, enabling it to connect to USB devices such as keyboards, mice, game controllers, and more.
4. What types of USB devices can be connected using this shield?
- The shield can interface with HID devices (keyboards, mice, joysticks), game controllers (PS3, Wii, Xbox360), USB to serial converters, ADK-capable Android devices, digital cameras, mass storage devices, and Bluetooth dongles.
5. Which Arduino boards are compatible with this shield?
- The UNO USB Host Shield is compatible with various Arduino boards, including the Arduino UNO, Mega, and Duemilanove
