Strain Gauge Module

Strain Gauge Module

Out of stock

Regular price Rs. 955
Regular price Rs. 1,143 Sale price Rs. 955
Sale Sold out 16% off Best Price Guaranteed
You save Rs. 188 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Voltage: 5V ~ Reverse protection diode (power to prevent reversed).
  • The analog output voltage 0-3.5V.
  • Potentiometer can adjust the output voltage start.
  • Resistance: 350 Ohm.
  • Fatigue life:> 10 million times.
Trust Badge 1 Trust Badge 2 Trust Badge 3

Strain Gauge Module

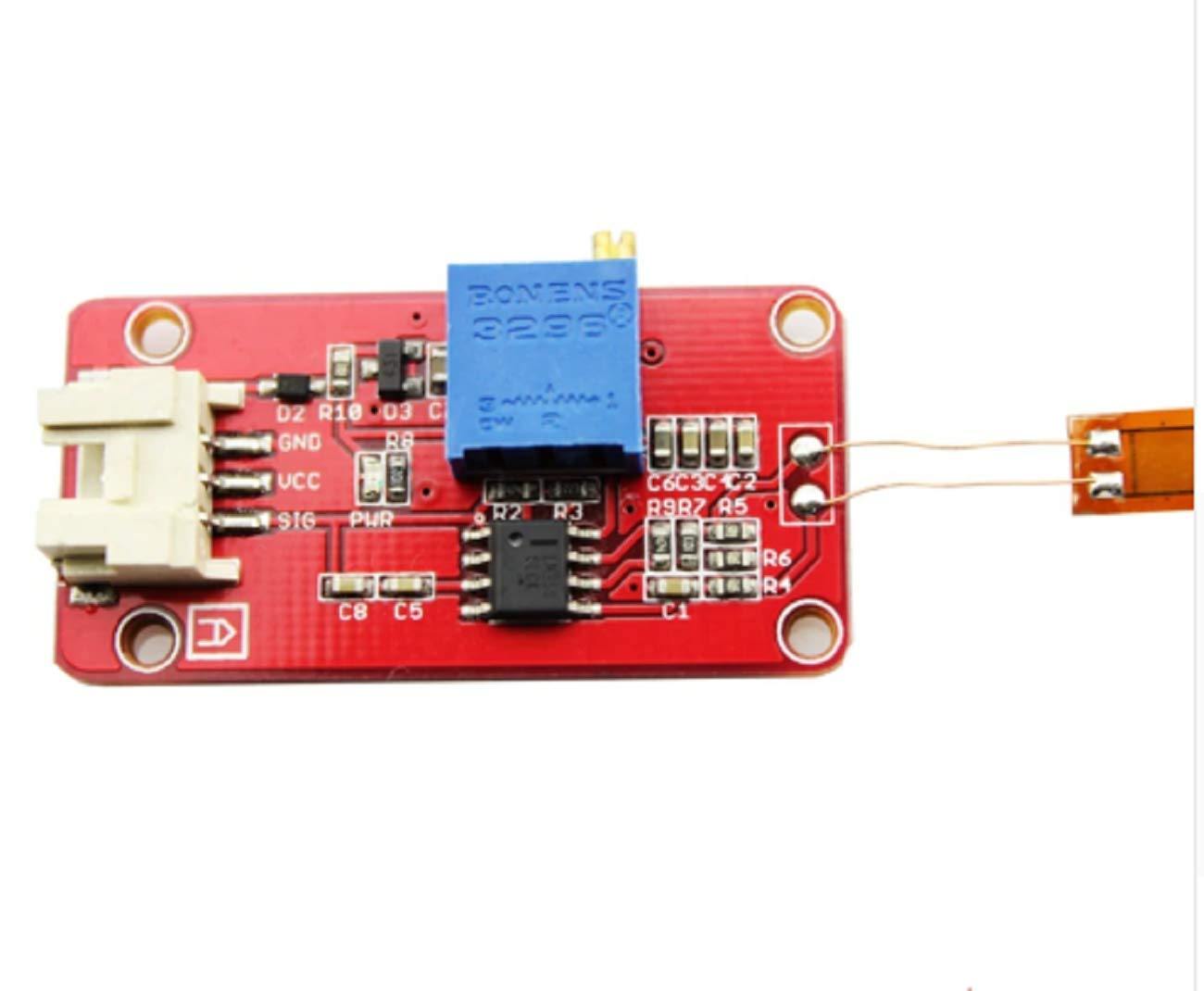

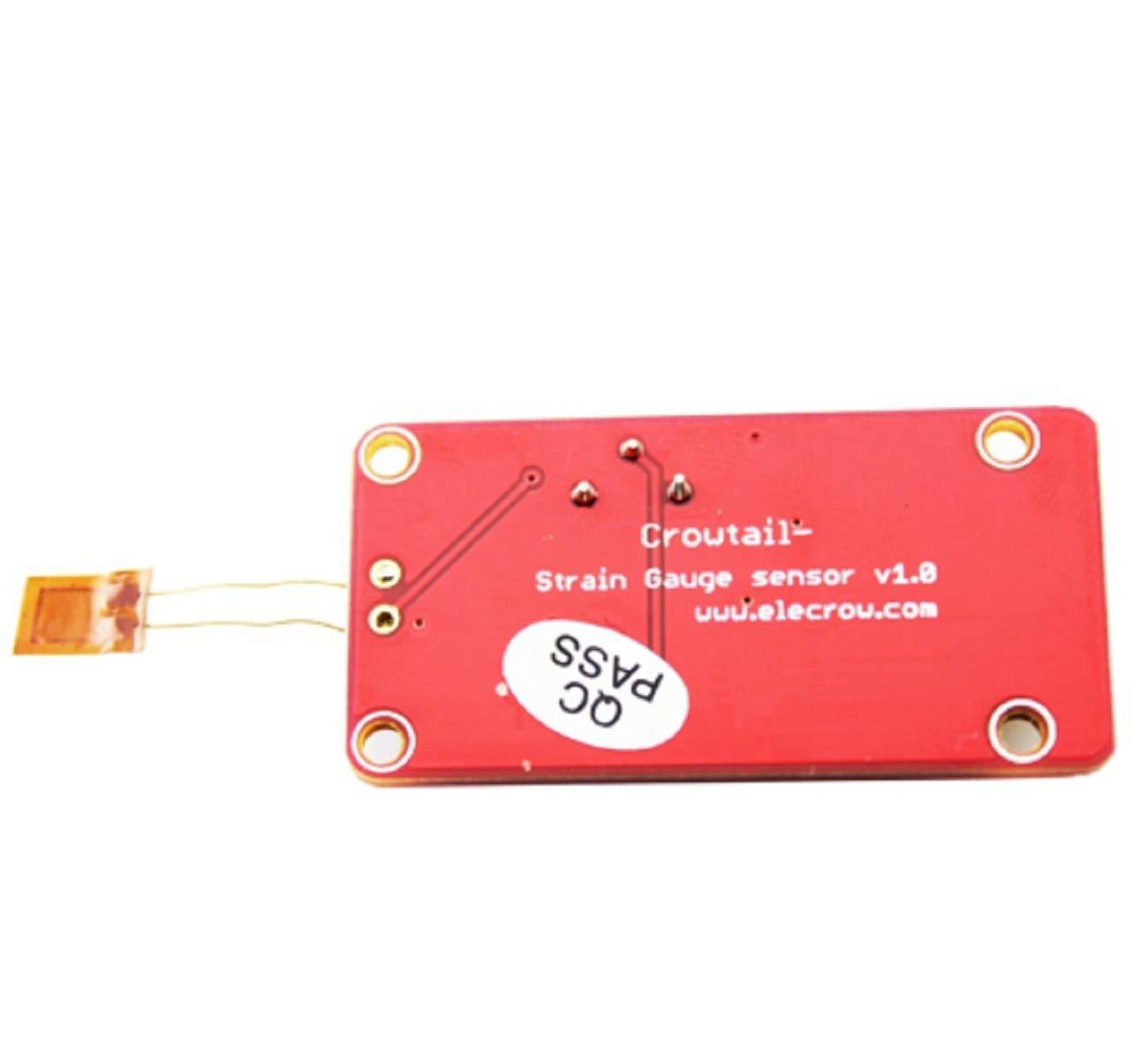

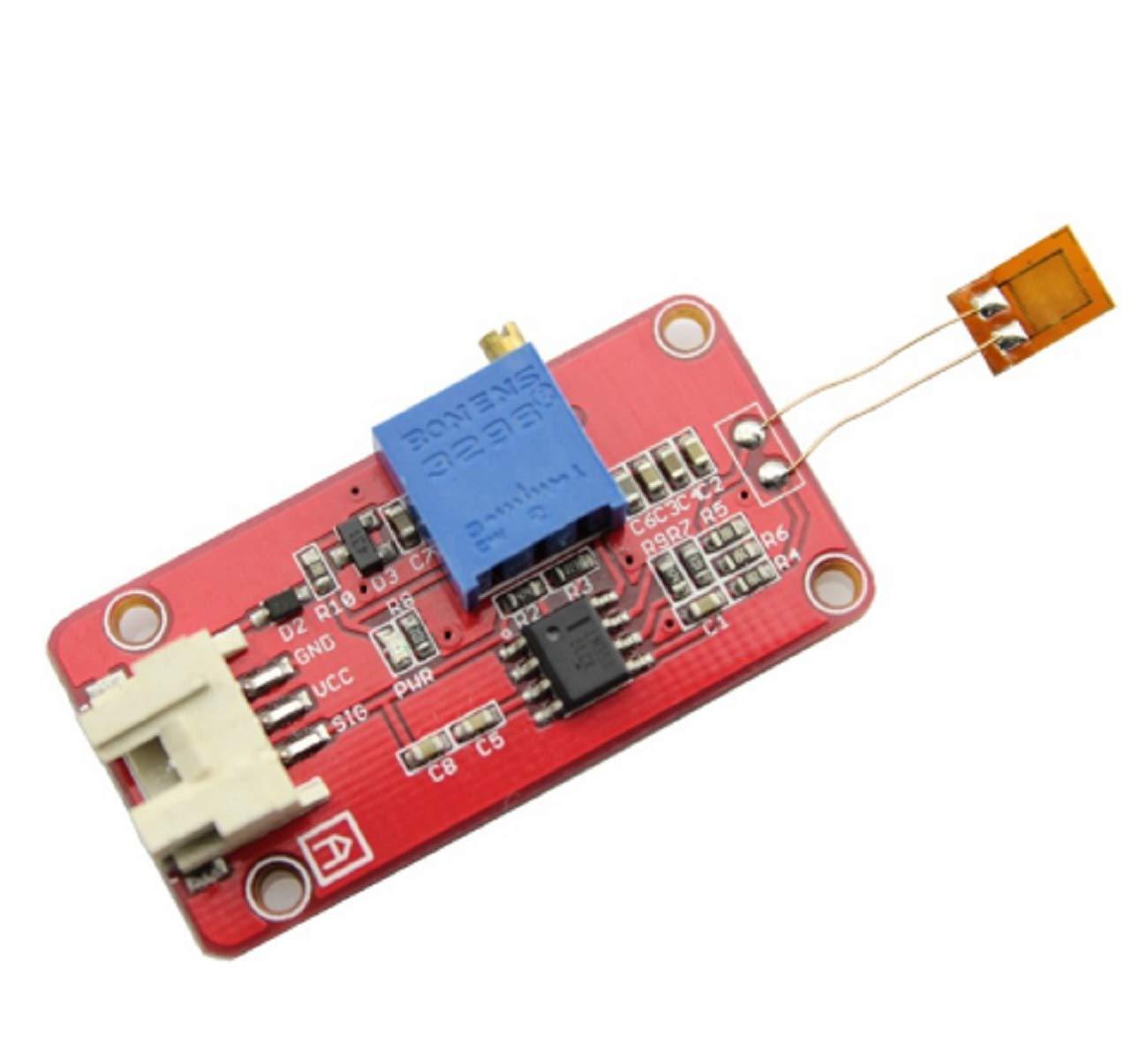

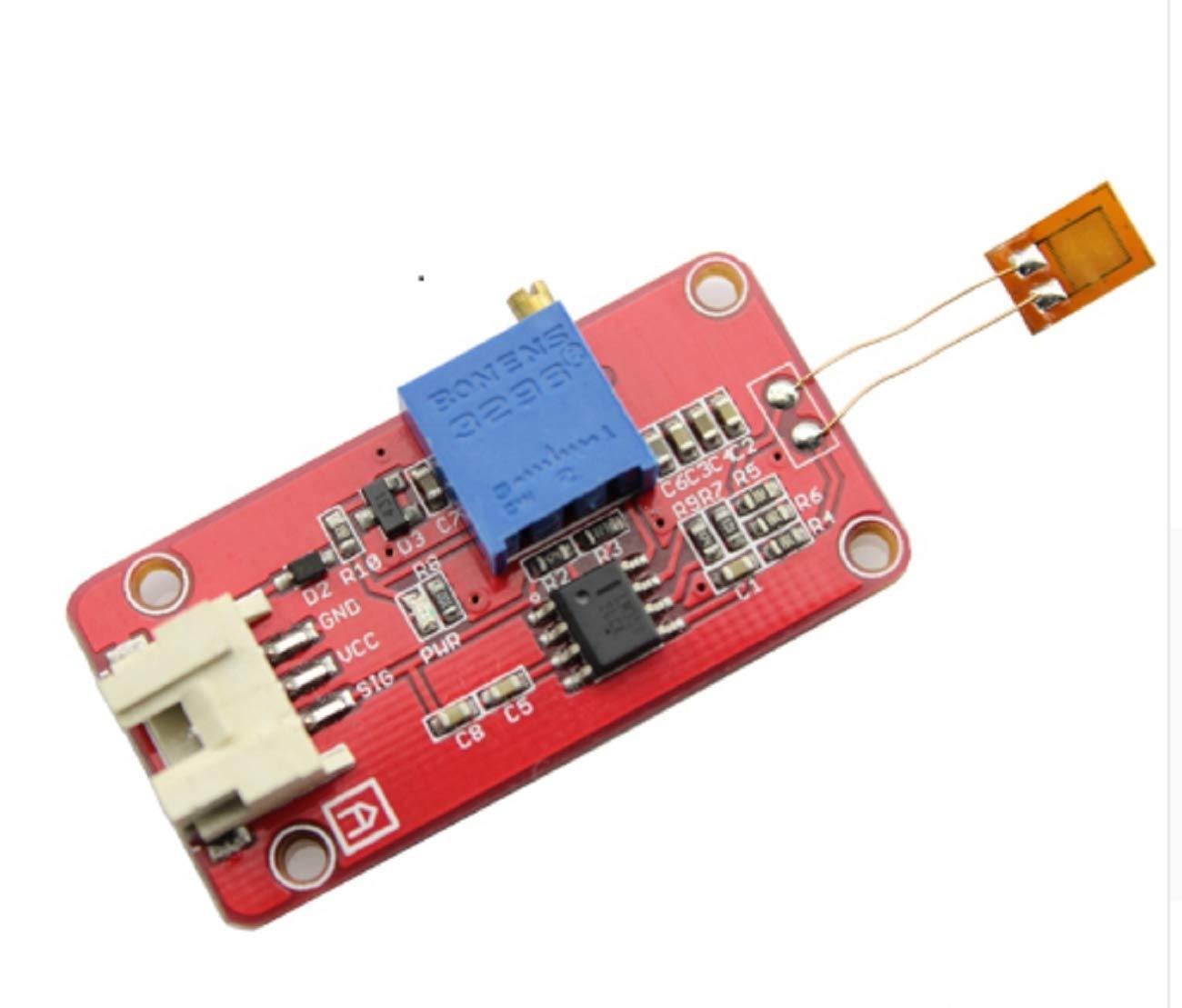

A strain gauge sensor module is a device used to measure strain on an object. This strain gauge module uses the strain gauge BF350-3AA, it has an onboard amplifier and potentiometer to adjust the measured results. This sensor module can be positively used in measuring deformation (for example, across a bridge by loading positions and effects) in engineering and in physical distortions proportional to loading or thermal environments.

In the everyday world, this module can be used to applications such as gating a traffic light into a new sequence when a car on a lightly traveled side-street enters a Tee-intersection.

Package Includes:

  • 1 x Strain Gauge Module

Specifications

Accuracy rating 2.11% + / -1%
Sensitivity coefficient 2.0-2.20
Resistance 350+ / -0.1 Ω
Power 5VDC
Dimensions  32*17mm
Weight  5 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details
Trust Badge 1 Trust Badge 2 Trust Badge 3

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

What is a Strain Gauge Module and how does it work?

  • A Strain Gauge Module is an instrument that measures mechanical stress or strain on an object. It usually has a strain gauge, which is a sort of sensor that changes electrical resistance when mechanical stress deforms it. The resistance change is then translated into a voltage or digital signal that a microcontroller or other device may read to determine the degree of strain on the object.

What are the common applications of Strain Gauge Module?

  • Strain Gauge Modules are frequently used in industrial and scientific applications such as load cells, force measurement, pressure measurement, weight measurement, and other applications requiring mechanical stress or strain measurement. They are also applicable in the aerospace, automotive, and medical industries.

What are the factors that affect the accuracy of Strain Gauge Module?

  • Temperature, humidity, and the mechanical qualities of the object being measured can all have an impact on the accuracy of a Strain Gauge Module. It is also influenced by the gauge factor, the applied load, and the gauge size. To get reliable results, choose a strain gauge that is appropriate for the application and thoroughly calibrate the device.
