STM32F103C8T6 ARM Development Board
People Also Buy
STM32F103C8T6 ARM Development Board

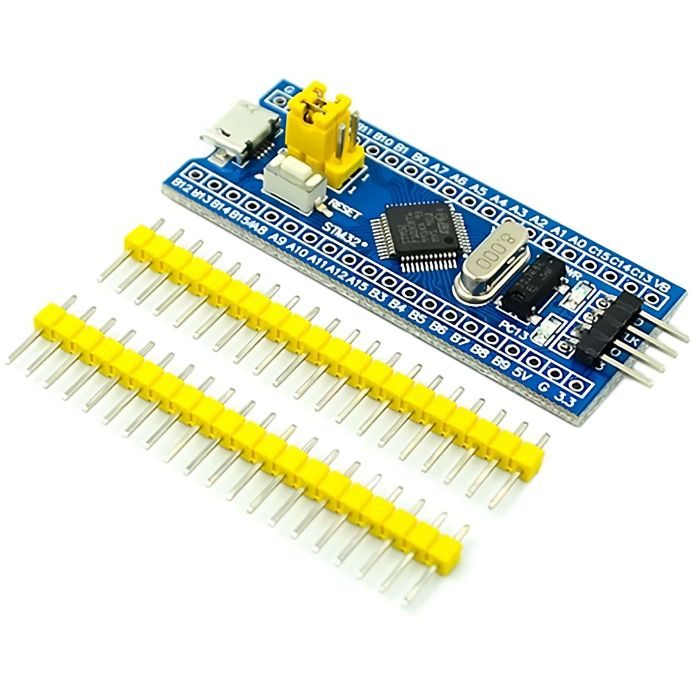

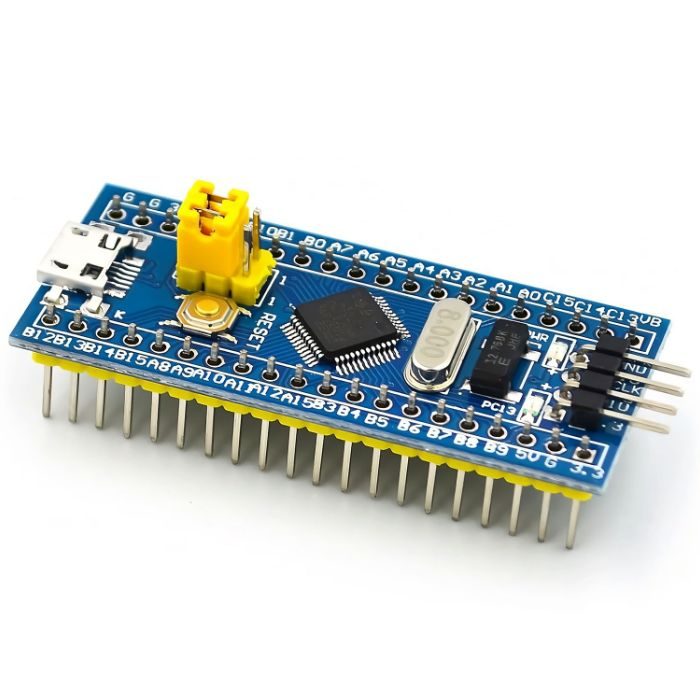

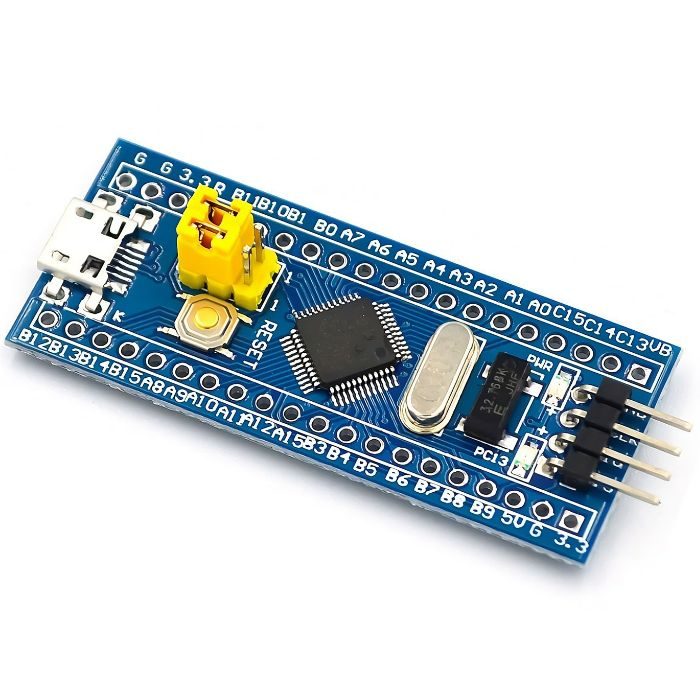

This is STM32F103C8T6 Minimum System STM32 ARM Core Board. This board is a low-cost Minimum System Development Board for ARM Microcontroller STM32F103C8T6. The STM32F103C8T6 is a medium-density performance line, ARM Cortex-M3 32bit microcontroller in 48 pin LQFP package. It incorporates a high-performance RISC core with a 72MHz operating frequency, high-speed embedded memories, an extensive range of enhanced I/Os, and peripherals connected to two APB buses. The STM32F103C8T6 features 12-bit ADC, timers, PWM timers, and standard and advanced communication interfaces. A comprehensive set of power-saving modes allows for the design of low-power applications.
The board suits learners who want to learn the STM32 microcontroller with ARM Cortex-M3 32-bit core.
Note: This can't be programmed using CUBE IDE
Applications:
- Embedded Design & Development
- Motor Drive & Control
- Medical instruments
- Wireless Applications
- DIY IoT Projects
Package includes:
- 1 x STM32F103C8T6 ARM Development Board
Specifications:
|
Model |
STM32F103C8T6 |
|
Core |
ARM 32 Cortex-M3 CPU |
|
Debug Mode |
SWD |
|
Work Frequency |
72MHz |
|
Flash Memory |
128KB |
|
SRAM |
20K |
|
Power |
2.0-3.6V |
|

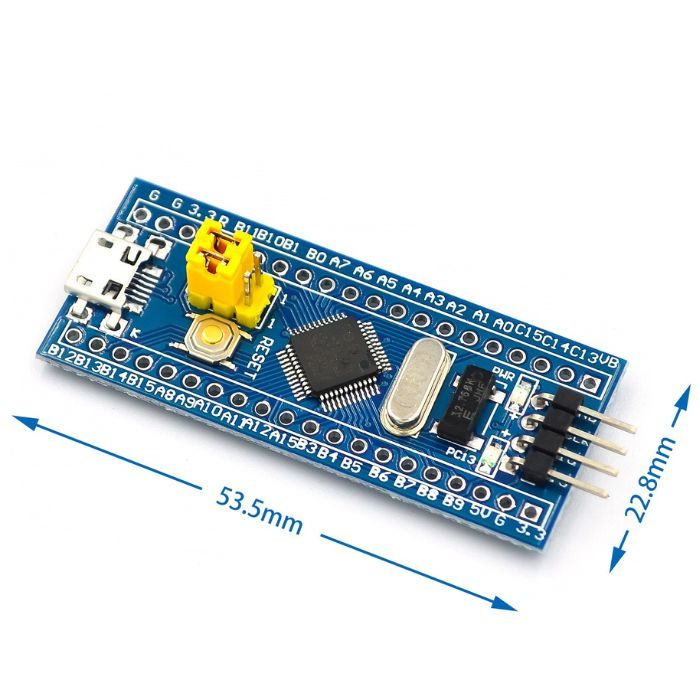

Dimensions |
55*20*10mm |
|
Weight |
10g |
1. What is STM32F103C8T6?
- The STM32F103C8T6 is a 48-pin LQFP medium-density performance line ARM Cortex-M3 microcontroller. It has a high-performance RISC core with a 72MHz operating frequency, fast embedded memories, a wide range of enhanced I/Os, and peripherals connected to two APB buses.
2. How powerful is STM32?
- The STM32H7 can operate at speeds of up to 480 MHz and has a benchmark performance of more than 1,000 DMIPS. This is one of the most powerful and fastest microcontrollers on the market right now.
