ST-Link V2 Programmer and Debugger
ST-Link V2 Programmer and Debugger
Regular price
Rs. 421
Regular price
Rs. 680
Sale price
Rs. 421
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 12 hours and 55 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- 5V power supplied by a USB connector.
- USB 2.0 full-speed compatible interface.
- 1.65V to 5.5V application voltage supported on SWIM interface.
- SWIM low-speed and high-speed modes supported.
- 1.65V to 3.6V application voltage supported on the JTAG/SWD interface and 5V tolerant inputs.
- Direct firmware update feature supported.
- Status LED which blinks during communication with the PC.

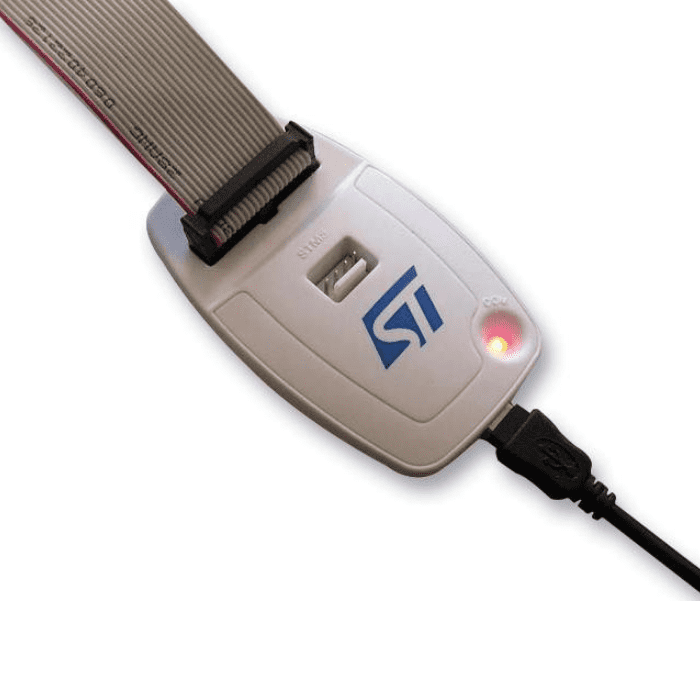

ST-Link/V2 Programmer and Debugger
ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.
STM8 applications use the USB full-speed interface to communicate with ST Visual Develop (STVD) or ST Visual Program (STVP) software. STM32 applications use the USB full-speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments.
In addition, to provide the same functionalities as the ST-LINK/V2, the ST-LINK/V2-ISOL features digital isolation between the PC and the target application board. It also withstands voltages of up to 1000 Vrms.
Note: This ST-Link Programmer will not get detected in the STM32CubeIDE as they are clones.
Check out our entire range of Universal Programmer
Applications:
- Automotive
- Communications Equipment
- Computers and Peripherals
- IoT Applications
- Personal Electronics

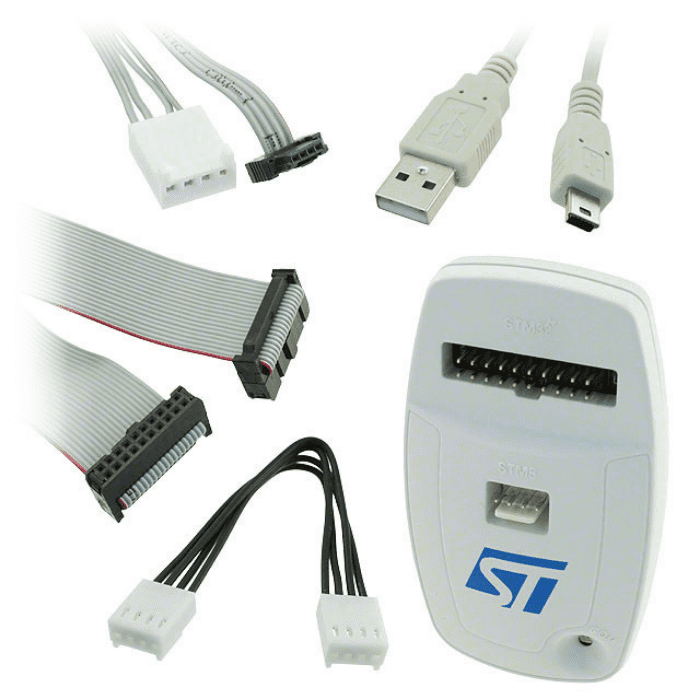

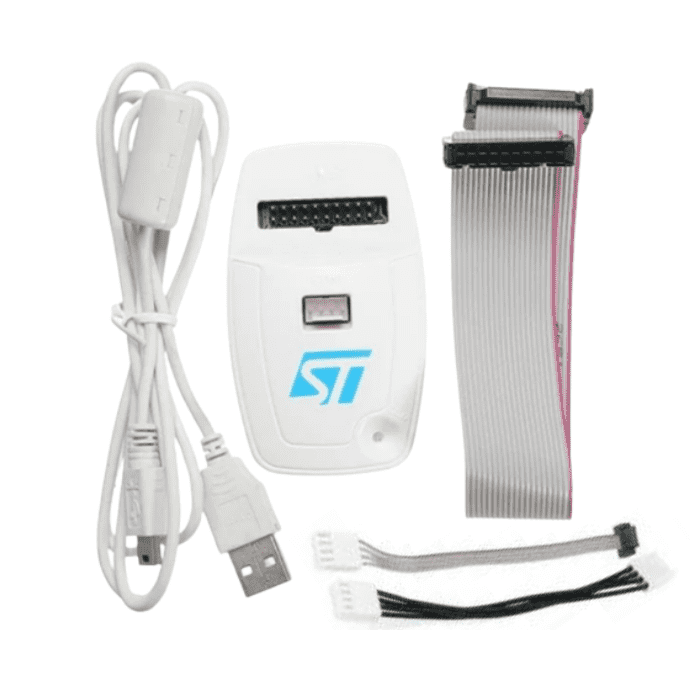

Package Includes:
- 1 x ST-LINK/V2 debugging and programming Unit

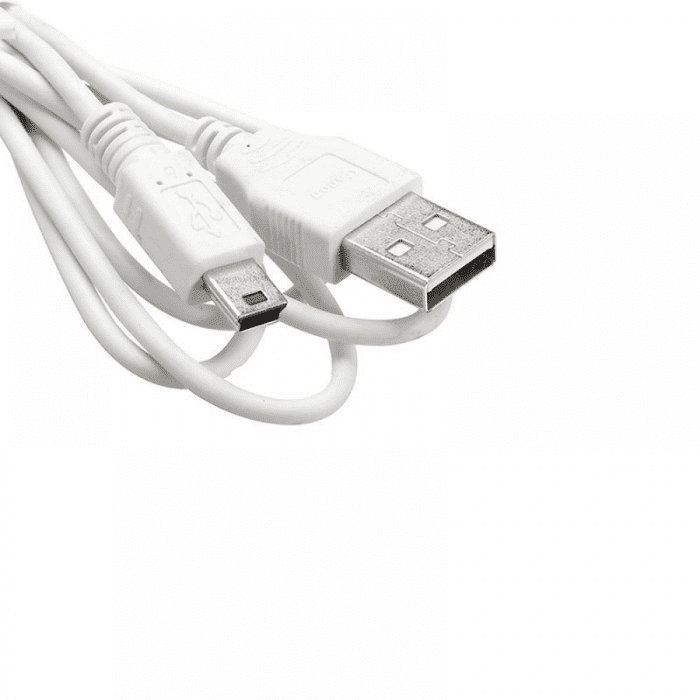

- 1 x USB standard A to mini-B cable
- 1 x Connecting Cable
- 1 x Flat ribbon with a standard ERNI connector at one end (A JTAG or SWD and SWV flat ribbon with a 20-pin connector)
Specifications:
|
Operating Supply Voltage |
1.65V - 5.5V |
|
Type |
Debugger, Programmer (In-Circuit/In-System) |
|
Interface |
USB |
|
Data Bus Width |
8b |
|
Height |
29.972mm |
|
Width |
109.982mm |
|
Weight |
145g |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
1. What is ST-Link V2 programmer?
- The ST-LINK V2 is an in-circuit debugger and programmer for STM8 and STM32 microcontrollers. The single-wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller on an application board.
2. What are the applications of ST link V2 programmer?
- STM8 applications use the USB full-speed interface to communicate with ST Visual Develop (STVD) or ST Visual Program (STVP) software. The ST link V2 programmer can be used for Automotive, Communications Equipment, Computers and Peripherals, IoT Applications, Personal Electronics
3. What is the use of ST-link work?
- ST-LINK V2 is a microcontroller in-circuit debugger and programmer for the STM8 and STM32 families. To communicate with any STM8 or STM32 microcontroller located on an application board, the single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used. STM8 applications communicate with ST Visual Develop (STVD) or ST Visual Program (STVP) software via the USB full-speed interface.
