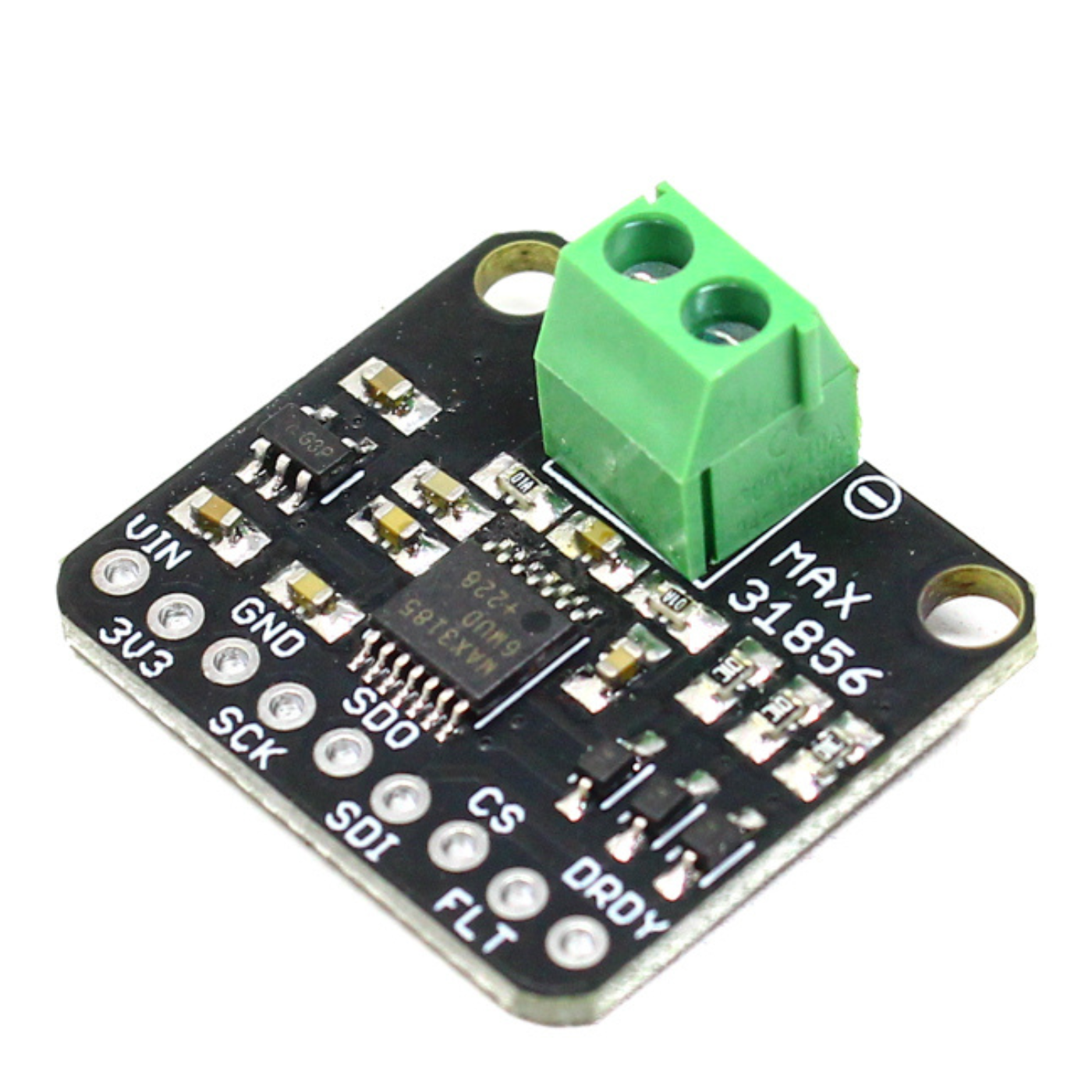

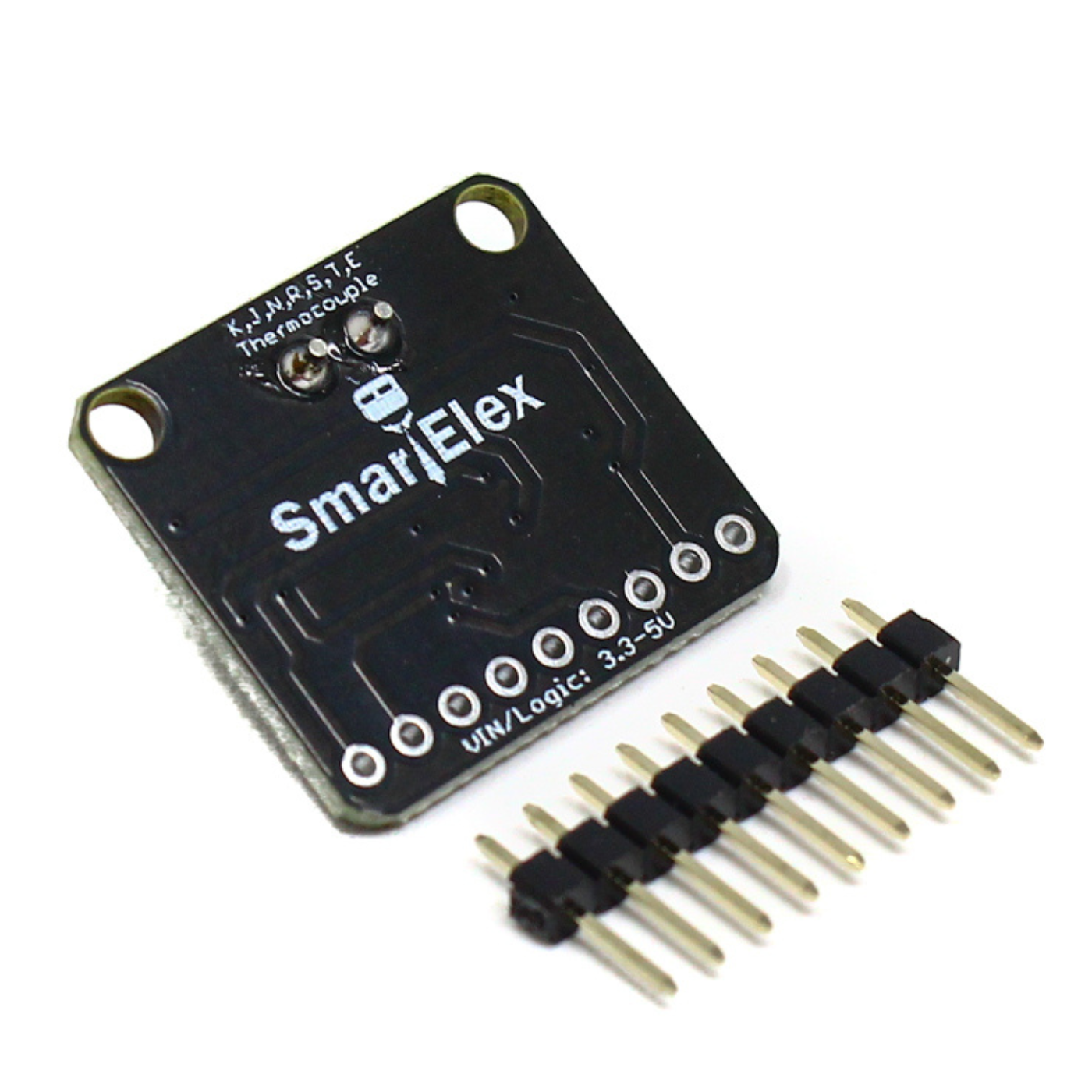

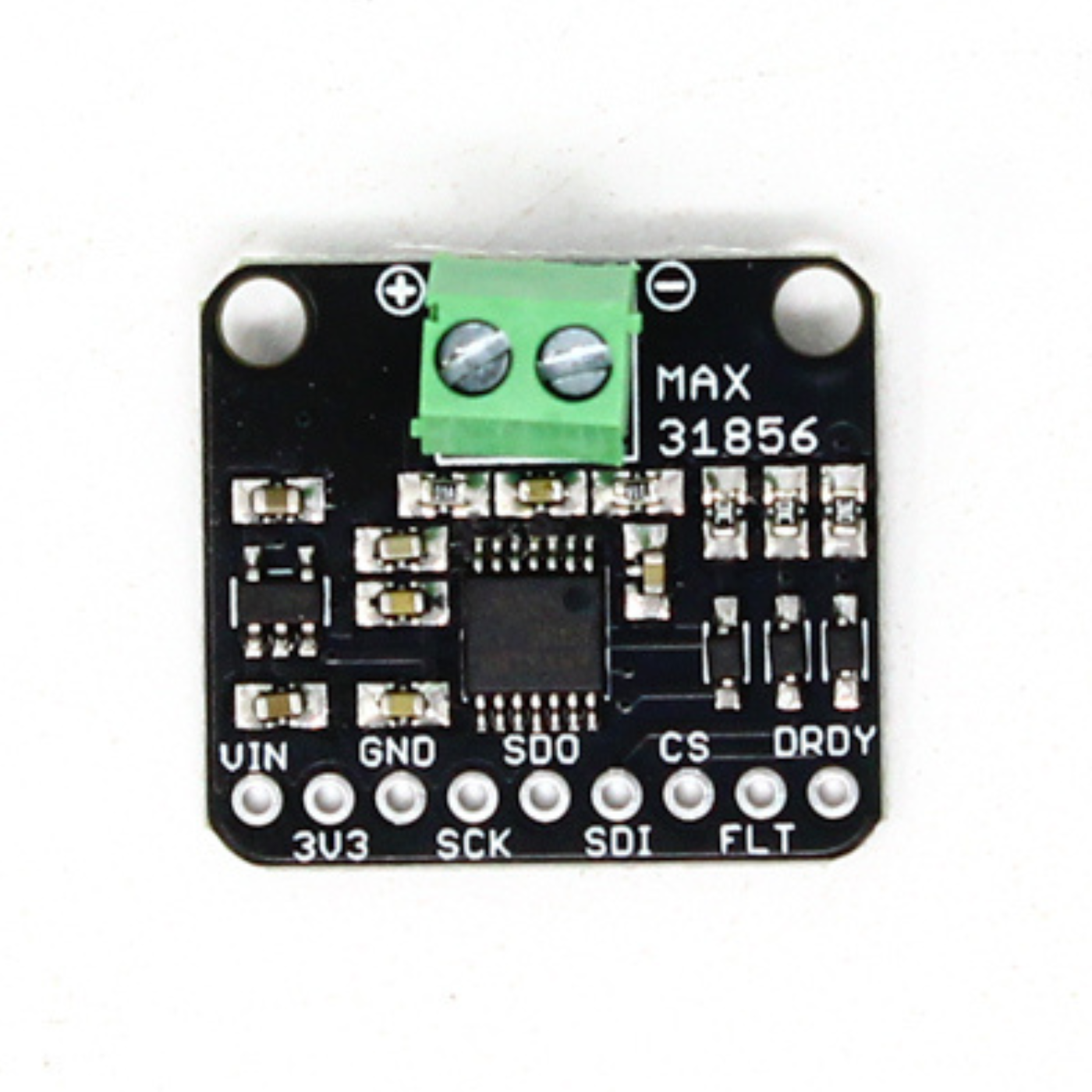

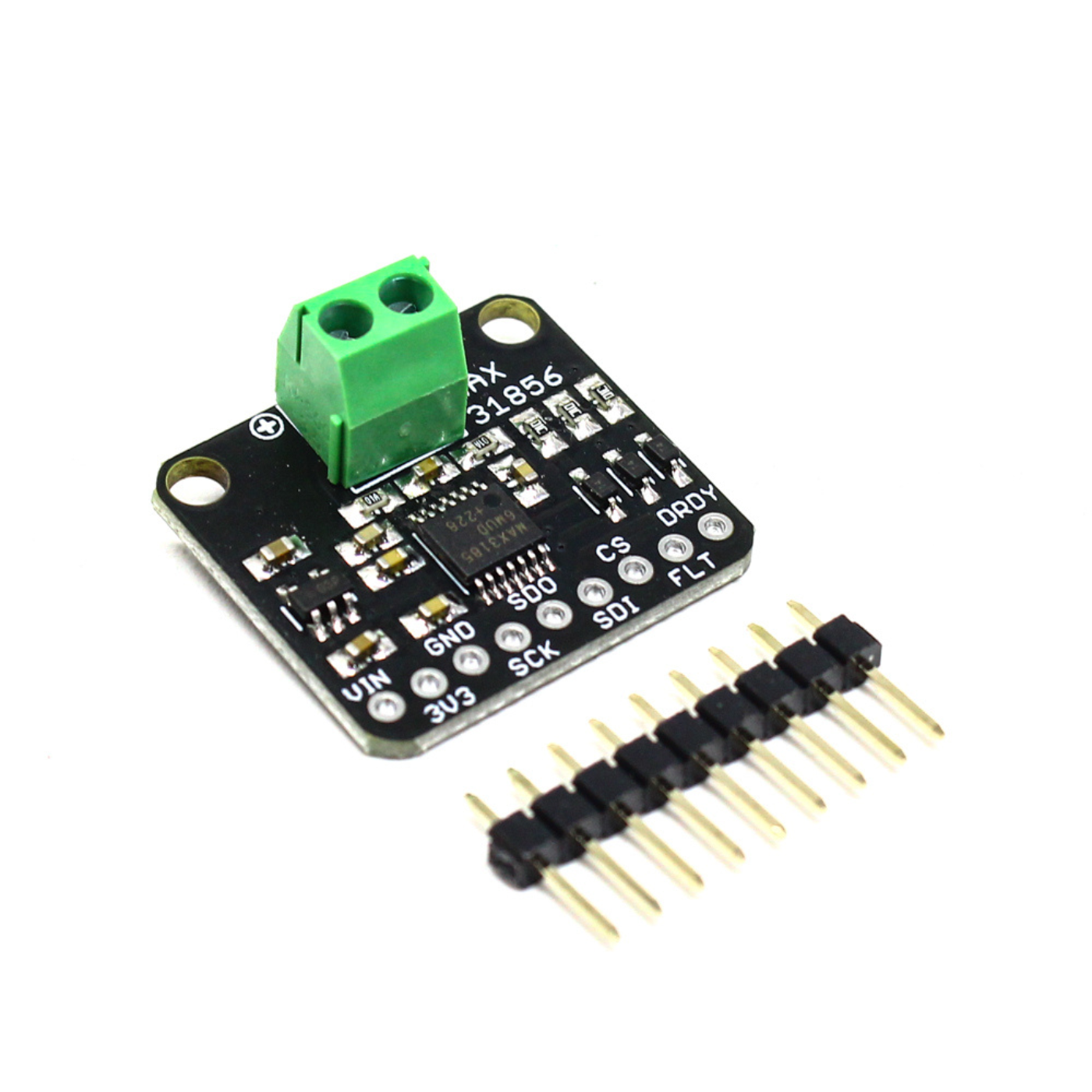

SmartElex MAX31856 Temperature PCB Breakout Board with SPI Interface
Couldn't load pickup availability
The SmartElex MAX31856 PCB Master Breakout Board is a high-precision thermocouple amplifier and converter designed to work with a wide range of thermocouple types including K, J, N, R, S, T, E, and B.
Powered by the reliable MAX31856 chip, it converts tiny thermocouple signals into accurate digital readings using a 4-wire SPI interface, making it easy to connect with microcontrollers like Arduino, Raspberry Pi, and ESP32.
This MAX31856 breakout board includes a built-in 3.3V voltage regulator, level-shifting circuitry, and inline filtering components for stable performance. It ensures accurate cold-junction compensation, fault detection, and wide temperature measurement capability ranging from -210°C to +1800°C.
Perfect for applications involving temperature monitoring and industrial automation, this thermocouple amplifier module delivers precise readings with minimal setup effort.
| Specification | Details |
|---|---|
| Model | Breakout Board |
| Model No. | MAX31856 |
| Power Supply (V) | 3.3 to 5 |
| Communication Mode | SPI |
| Length (mm) | 24.13 |
| Width (mm) | 21.59 |
| Weight (g) | 1 |
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.
In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
