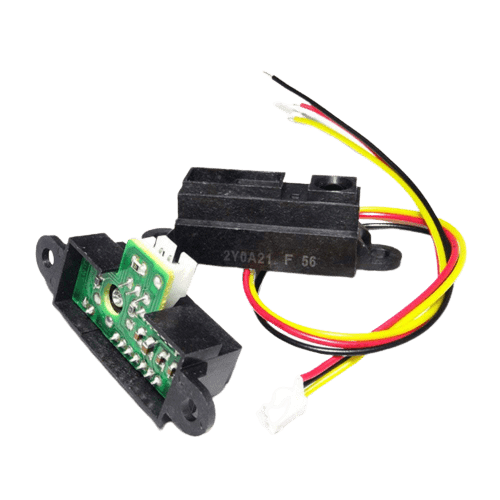

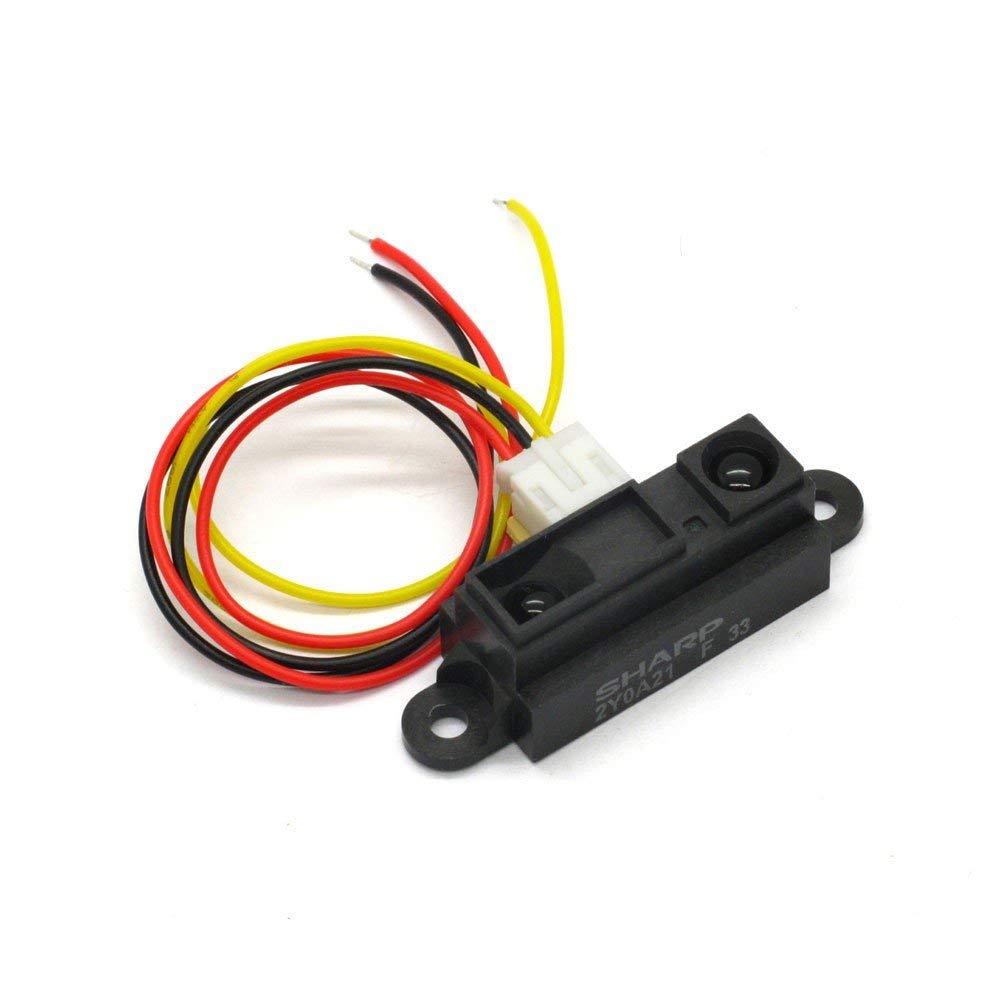

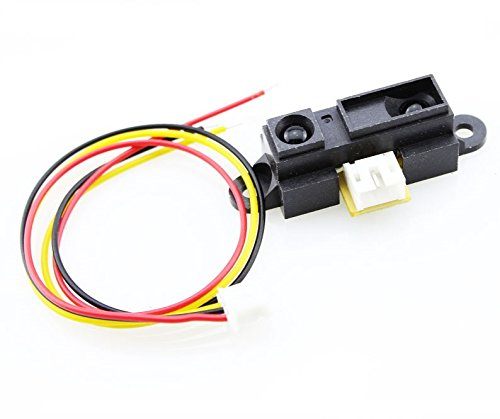

Sharp GP2Y0D810Z0F Digital Distance Sensor
Sharp GP2Y0D810Z0F Digital Distance Sensor
Couldn't load pickup availability
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- These sensors are good for short-range detection.
- It can detect objects between 2 cm and 10 cm.
- This sensor is a good choice for non-contact object detection.
- Comes with 12" long 3-JST interface wire.
Sharp GP2Y0D810Z0F Digital Distance Sensor
It is one of Sharp's fastest distance sensors - with a sample rate of almost 400 Hz and is an attractive alternative to short-range phototransistors and longer-range analog distance sensors.
Output is high normally and low when the sensor detects an object. This sensor only tells if the object's nearby - not how near or far the sensor is - so they're great for break-beam, obstacle detection, and object counting.
This sensor comes with a 3-pin male header and a 3-pin right-angle male header. You can connect these pins with a servo cable. The square pad is ground, the middle is VIN, and the remaining pad is output. If you place a large capacitor (more than 10uF) between power and ground you should see an increase in performance.
Check out the best collection of Sensors.
Features:
- Detection Range: Detects objects between 2 cm and 10 cm (0.8" to 4") away.
- Digital Output: Provides a digital output that goes low when an object is detected within its range.
- Quick Response Time: Fast response time with a sample rate of approximately 400 Hz.
- Low Power Consumption: Operates with an average current consumption of 5 mA.
- Operating Voltage: Works within a voltage range of 2.7 V to 6.2 V.
- Compact Size: Small and lightweight, making it suitable for various applications.
Applications:
- Obstacle Avoider Robot
- Maze solver
- Home Automation
- IoT Projects
Package Includes:
- 1 x Sharp GP2Y0D810Z0F Distance Sensor
- 1 x 12" long 3-JST interface wire
Specifications
| Supply voltage |
2.7 - 6.2V |
| Supply current | 5mA |
| Sampling rate | 390Hz |
| Principle Used | Infrared Signal |
| Type of Sensor | Analog Sensor |
| Dimensions | 3 x 2 x 1cms |
| Weight | 15 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
HC-SR501 PIR Sensor (Passive Infrared Sensor) + IR Proximity Sensor
37 in 1 Sensors Kit for Arduino
DIY Automatic Sanitizer Dispenser Kit
Found a better price?
Let us know!
We'll try to match the price for you
ADDITIONAL RESOURCES
1. What is Sharp Distance Sensor? What is its detection range?
- The Sharp distance sensors are a popular choice for many projects that require accurate distance measurements. This IR sensor is more economical than sonar rangefinders, yet it provides much better performance than other IR alternatives.
The detection range of this version is approximately 2cm to 10cm.
2. What are Distance Sensors used?
- Distance sensors are used to measure the distance or presence of target objects by sending a pulsed wave at the object and then measuring the time for it to return. Knowing the speed, the sensor can determine the distance of the object.
3. How does the sensor output its readings?
- The sensor provides a digital output, which is either HIGH or LOW depending on whether an object is detected within the specified range.
4. What is the operating voltage for this sensor?
- The Sharp GP2Y0D810Z0F operates at a voltage range of 2.7V to 6.2V.
5. What are some common applications for this sensor?
- This sensor is commonly used for obstacle detection in robotics, as a non-contact bumper in automated systems, and for object counting.
