Servo Motor Pan-Tilt Setup

1. What is Pan tilt motor?

• 2-Axis Pan and Tilt Camera/Sensor Mount Bracket for Servo SG90S The MG90S is based on a 2-axis pan tilt mechanism for mounting wireless or wired cameras and sensors on robot assemblies. This tilt mount achieves pan, roll and tilt by controlling the servo motor with PPM pulses. Suitable for DIY pan and tilt applications in your projects. It also supports various sensors and gauges for various project applications. Pan-tilt mounts can be used to add cameras, laser beam transmitters, and even remote-controlled cannons to robots and drones.

2. What is pan tilt mechanism?

• Most pan/tilt mechanisms include a motion-on-motion design, where one motor controls one axis of motion and a second, larger motor moves the first motor along with the payload of the other axis. increase. It adopts a pan-tilt mechanism and rotates three-dimensionally. Pan is the horizontal angle (0 to 360) about the upright Z axis, Tilt is the vertical angle (-90 to +90) about the rotated Y axis, Roll is the angle about the rotation and tilt axis toward X-Axis (0-360) . The zero direction (pan = 0, tilt = 0, roll = 0) is along the x-axis (east). pan=90 is north, pan=180 is west, pan=270 is south.

3. What is a Pan tilt unit?

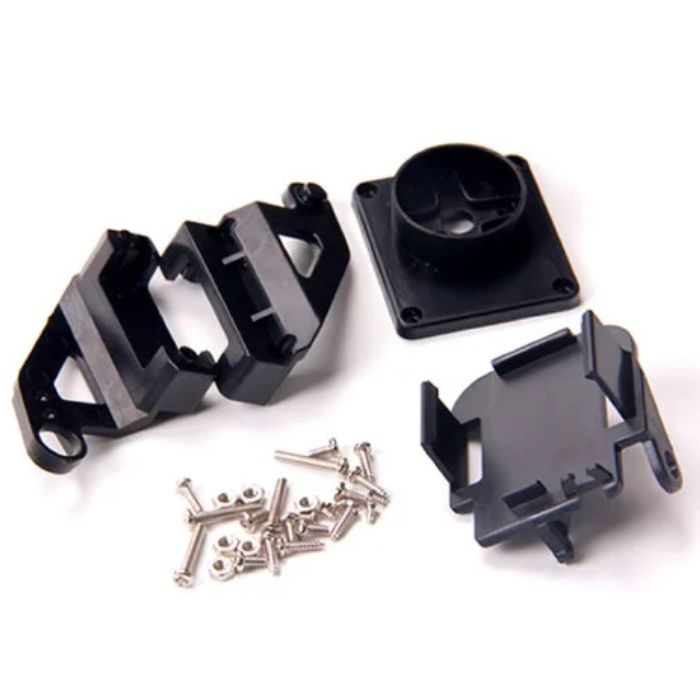

• The Pan Tilt Bracket 2 Axis is a great way to add custom movement throughout your project's range of motion. The pan/tilt servo motor can rotate about 180° left and right and tilt about 150° down (of course, it may be less depending on which servos you use). This version comes as a kit without servos, as opposed to the fully assembled version. So if you already have a set of servos or want to customize with one of the many micro servo options such as feedback type, this is probably the best option for you. The motors are simple everyday analog servos, so any microcontroller or driver can be used. This is perfect for beginners who want to move things around, the pan-tilt feature makes it easy to do both side-to-side and up-and-down movements.
