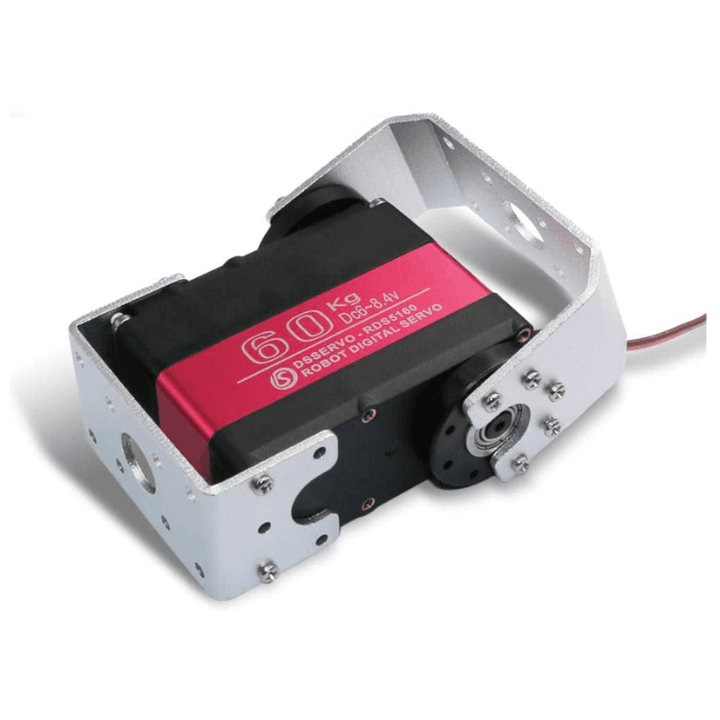

Robot Servo 60kg RDS5160 Metal Gear Digital servo Motor 180 Degree with Clamp
Let us know!
We'll try to match the price for you
Couldn't load pickup availability

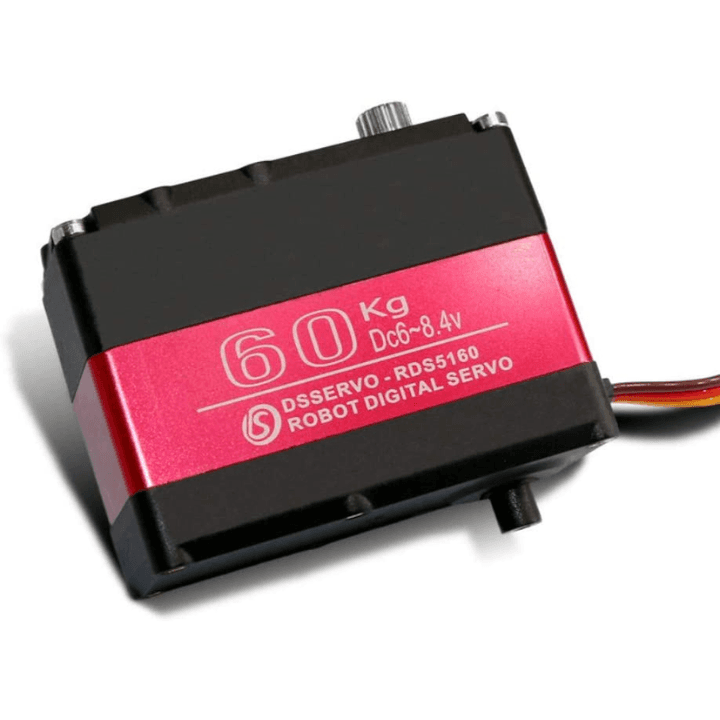

The DS5160 is a high-quality servo motor with a torque of up to 60kg. Suitable for high torque applications such as Robot Arms, Grippers, Flap Control in RC Planes, Steering Control in RC Cars, or as a general-purpose mechanical actuator. The improved DS5160 Servo has a higher torque and speed than the standard DS5160 Servo. These servos have metal gear and a tough construction. They provide high reliability, stability, simple installation, low noise, low vibration, smooth operation, and long life.
Note: The best use voltage is 7.4v. It is recommended to use 2s battery for power supply (6v-8.4v)
| Model | DS516060KG |
| Operating Voltage | 6.0-8.4V DC |
| Angle | 180 degree |
| Operating Speed @ 6V | 0.17 sec/60° |
| Operating Speed @ 7.4V | 0.15 sec/60° |
| Operating Speed @ 8.4V | 0.13 sec/60° |
| Stall Torque @ 6.0V | 58 kg/cm |
| Stall Torque @ 7.4V | 65 kg/cm |
| Stall Torque @ 8.4V | 70 kg/cm |
| Signal Dead Band | 3?s |
| Weight | 162 g (2.12 oz) |
| Motor Type | DC Motor |
| Gear Type | Copper & Aluminum |
| Working frequence | 1520?s / 333hz |

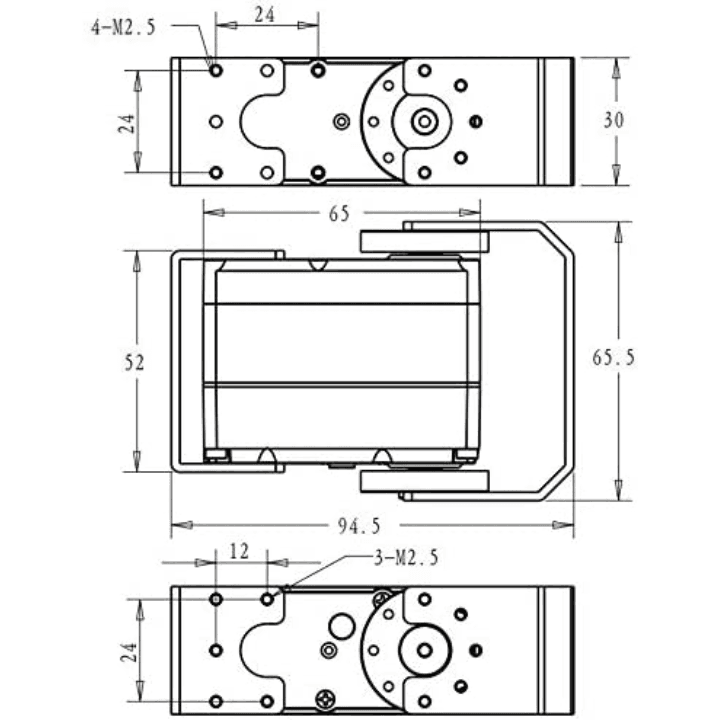

| Size | 65*30*48mm |
| Bearing | Double bearing |
| Gear | 18T |
