- Simplifies USB-C integration into electronics projects

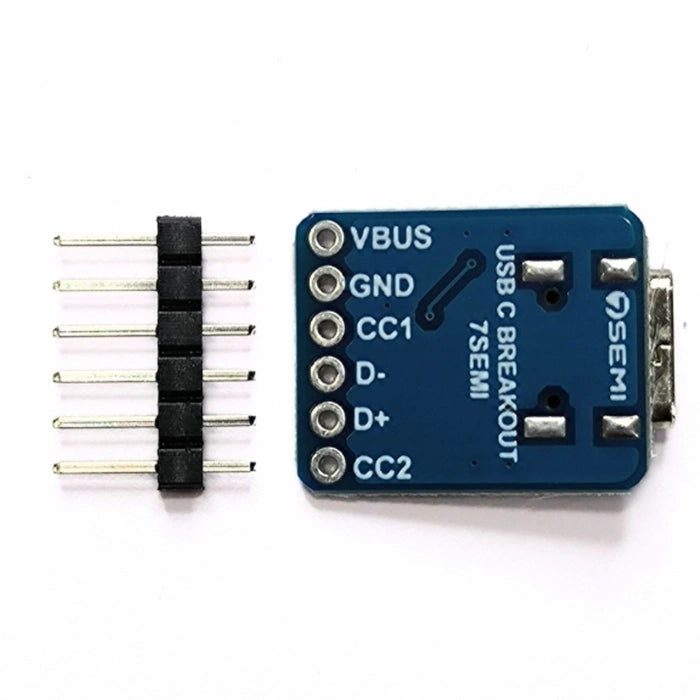

- Access to VBUS, GND, CC1, CC2, D+, and D- via 0.1" header
- Supports 1.5A nominal current, up to 3A based on source
- Ideal for linking microcontrollers, sensors, and displays
- No need to solder tiny SMD pads
- Compact, durable, and easy-to-use breakout board
- Compatible with the growing range of USB-C applications.
USB Type-C Connector Breakout (Female) - 7Semi

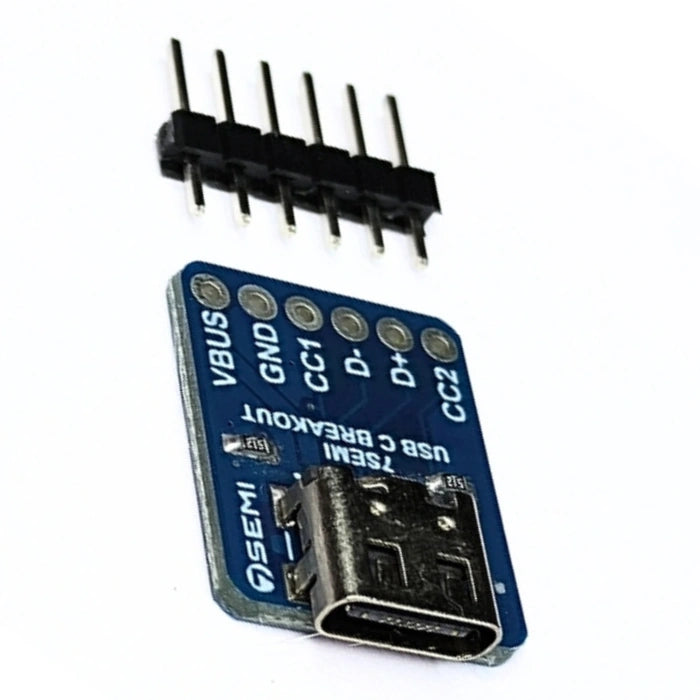

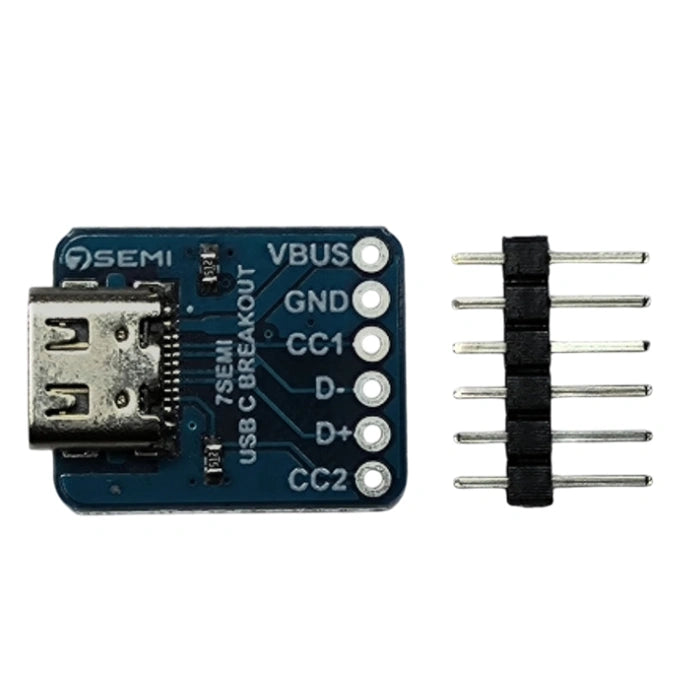

The 7Semi USB Type-C Connector Breakout (Female) offers a simple and efficient solution for integrating USB-C connectivity into your projects without the need to solder delicate SMD pads.
Designed for convenience, this breakout board provides easy access to essential USB-C signals, including VBUS, GND, CC1, CC2, D+, and D- via a standard 0.1" header. It supports a nominal current of 1.5A, extendable up to 3A depending on the upstream device.
Ideal for connecting microcontrollers, sensors, displays, and other electronics, this breakout board enhances your project’s flexibility and speed of development.
With USB Type-C becoming the universal standard across consumer electronics, automotive, and industrial systems, the 7Semi breakout board delivers a versatile, cost-effective solution to meet modern connectivity needs.
Features:
- Effortless Integration: Easily incorporate USB-C connectivity into projects without soldering tiny SMD pads.
- Comprehensive Pin Access: Breaks out VBUS, GND, CC1, CC2, D+, and D- to a 0.1" header.
- Power Delivery: Supports a nominal current of 1.5A, extendable up to 3A based on the upstream device.
- Versatile Applications: Ideal for connecting microcontrollers, sensors, displays, and other electronics.
- Compact Design: Space-efficient layout suitable for various project sizes.
- Durable Construction: Built to withstand repeated connections, ensuring long-term reliability.
- User-Friendly: Facilitates quick prototyping and development without complex setup.
Package Includes:
- 1 x 7Semi USB Type-C Connector Breakout (Female)
Specifications:
| Attribute | Details |
|---|---|
| Connector Type | USB Type-C Female |
| Pinout | VBUS, GND, CC1, CC2, D+, D- |
| Pin Pitch | 0.1" (2.54mm) |
| Current Rating | Nominal 1.5A; Up to 3A (depending on upstream device) |
| Mounting Type | Through-hole |
| Durability | 10,000 mating cycles |
| Mating Force | 5–20N (Newton) |

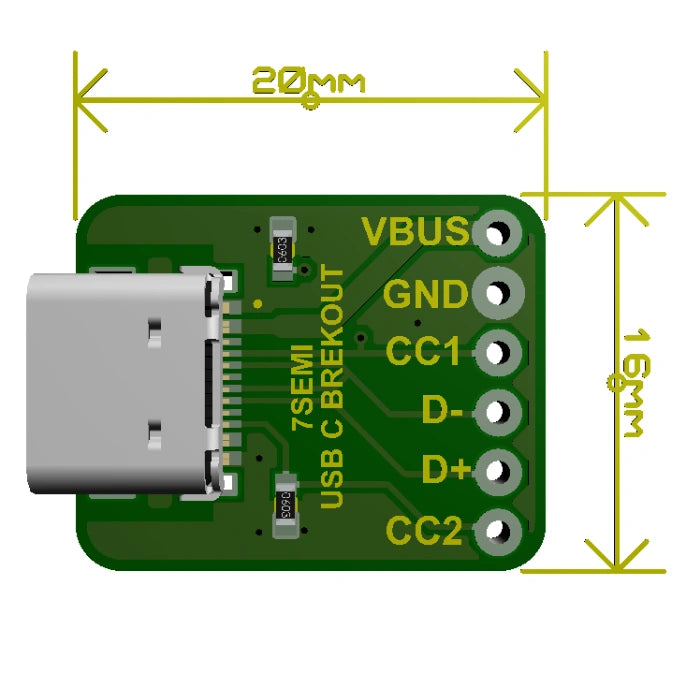

| Dimensions (LxWxH) | 2.1 x 1.6 x 0.5 cm |
| Weight | 2 gm |
| Compatibility | Suitable for microcontrollers, sensors, displays, and other electronics |
