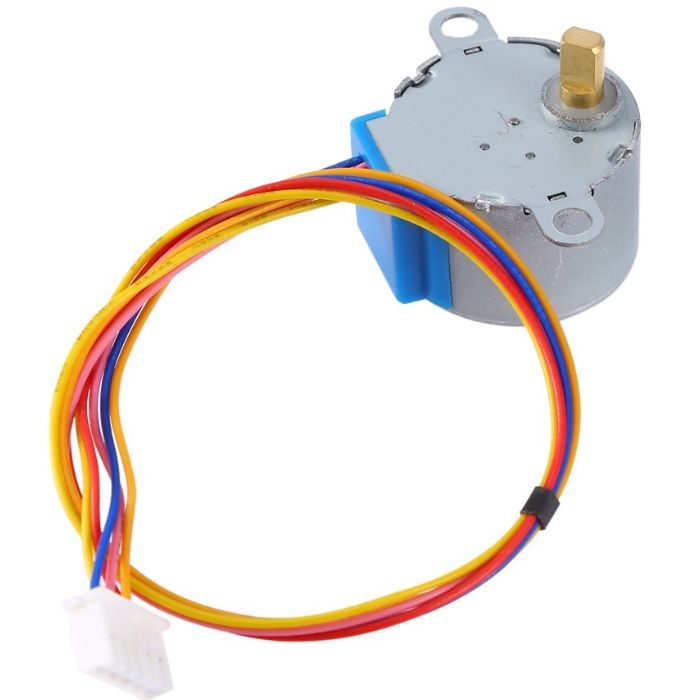

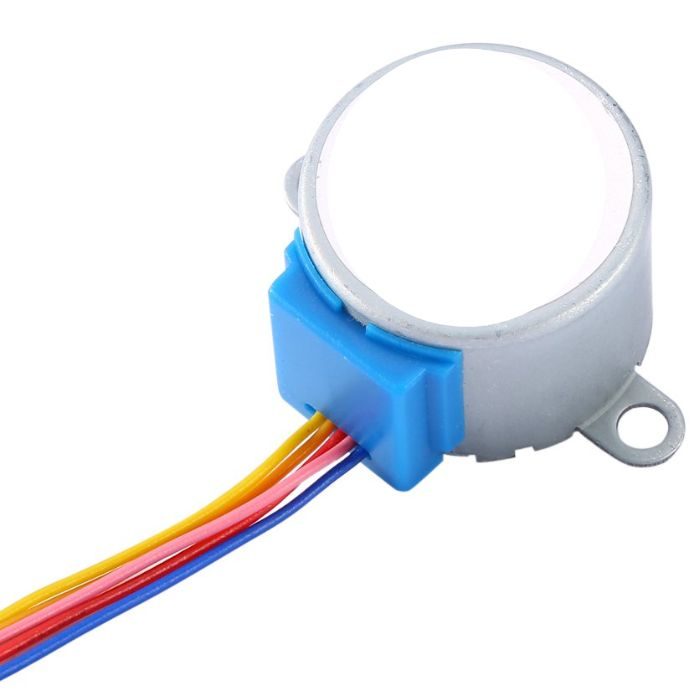

28BYJ-48 12V Valve DC Gear Stepper Motor

28BYJ-48 12V Valve DC Gear Stepper Motor

Regular price Rs. 95
Regular price Rs. 139 Sale price Rs. 95
Sale Sold out 32% off Best Price Guaranteed
You save Rs. 44 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • This is a 12V DC 28BYJ-48 Stepper Motor is small, inexpensive and high-quality geared step motor.
  • Stepper motor with a standard interface, when used directly pluggable.
  • A, B, C, D four-phase LED indicator which indicates the status of the stepper motor work.
  • Compact size stepper motor perfect for small robotics applications.
Trust Badge 1 Trust Badge 2 Trust Badge 3

28BYJ-48 12V Valve DC Gear Stepper Motor

This 12V DC 28BYJ-48 Stepper Motor is a small, inexpensive, and high-quality geared stepper motor. This is a widely popular combination of the stepper motors, that provided the stability and reliability of the system.

The control of the Stepper Motor movement angle is done by controlling the number of stepper motor driver pulses. The speed of the stepper motor rotation is also controllable by controlling the frequency of the pulses.

If you want to use this stepper motor in your projects, for that you will need a few essential components like

Features:

  • Stepper motor with a standard interface, when used directly pluggable.
  • A, B, C, D four-phase LED indicator which indicates the status of the stepper motor work.
  • Compact-size stepper motor perfect for small robotics applications.

Package Includes:

1 x 28BYJ-48 12V Valve DC Gear Stepper Motor

Specifications:

Model 28BYJ-48
Voltage supply 12V
No of phase 4
Stride Angle 5.625x1/64
Dimensions (mm) 44 x 44 x 28 (L x B x H)

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details
Trust Badge 1 Trust Badge 2 Trust Badge 3

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. Can a stepper motor run on DC?

  • Drives for stepper motors can have inputs that are either ac or dc. What happens inside the drive is that the input signal is converted to a series of square wave pulses that are applied to the motor's windings to power the motor and produce motion.

2. Are stepper motors stronger than DC motors?

  • Some DC motors also generate high torques at low speeds, but are more suited for continuous uses, as their torque is constant over their speed range. The main difference is that, while stepper motors can push harder from rest, DC motors tend to have more sustained output.

3. What is a DC stepper motor?

  • Stepper motors are DC motors that move in discrete steps. They have multiple coils that are organized in groups called "phases". By energizing each phase in sequence, the motor will rotate, one step at a time. With a computer-controlled stepping, you can achieve very precise positioning and/or speed control.

4. How is the stepper motor controlled?

  • They use open-loop control and are operated by having a controller generate pulses that are input to a driver, which in turn supplies the drive current to the motor. Stepper motors are controlled by the input of electrical pulses, such that the speed of motor rotation is proportional to the input pulse rate.

5. How does 28BYJ-48 stepper motor work?

  • The 28BYJ-48 stepper motor has four phases in total. The red wire is always pulled HIGH. The phase is energised when another lead is pulled LOW. The stepper motor only rotates when the phases are energised in a logical sequence known as a step sequence.
