- Tiny AI computer powered by NVIDIA Jetson Orin Nano 8GB
- Delivers up to 40 TOPS of AI performance
- PCIe expansion port supports up to 8 USB ports and dual CAN
- Customizable I/O for flexible integration
- Designed for autonomous machines: drones, patrol robots, delivery robots
- Supports 54V DC input, ideal for battery-powered systems
reComputer Mini J3011 NVIDIA Jetson Orin Nano 8GB Module with Extension

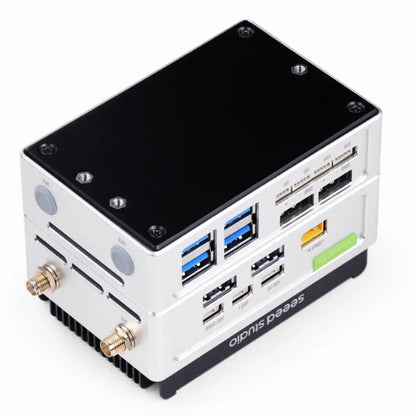

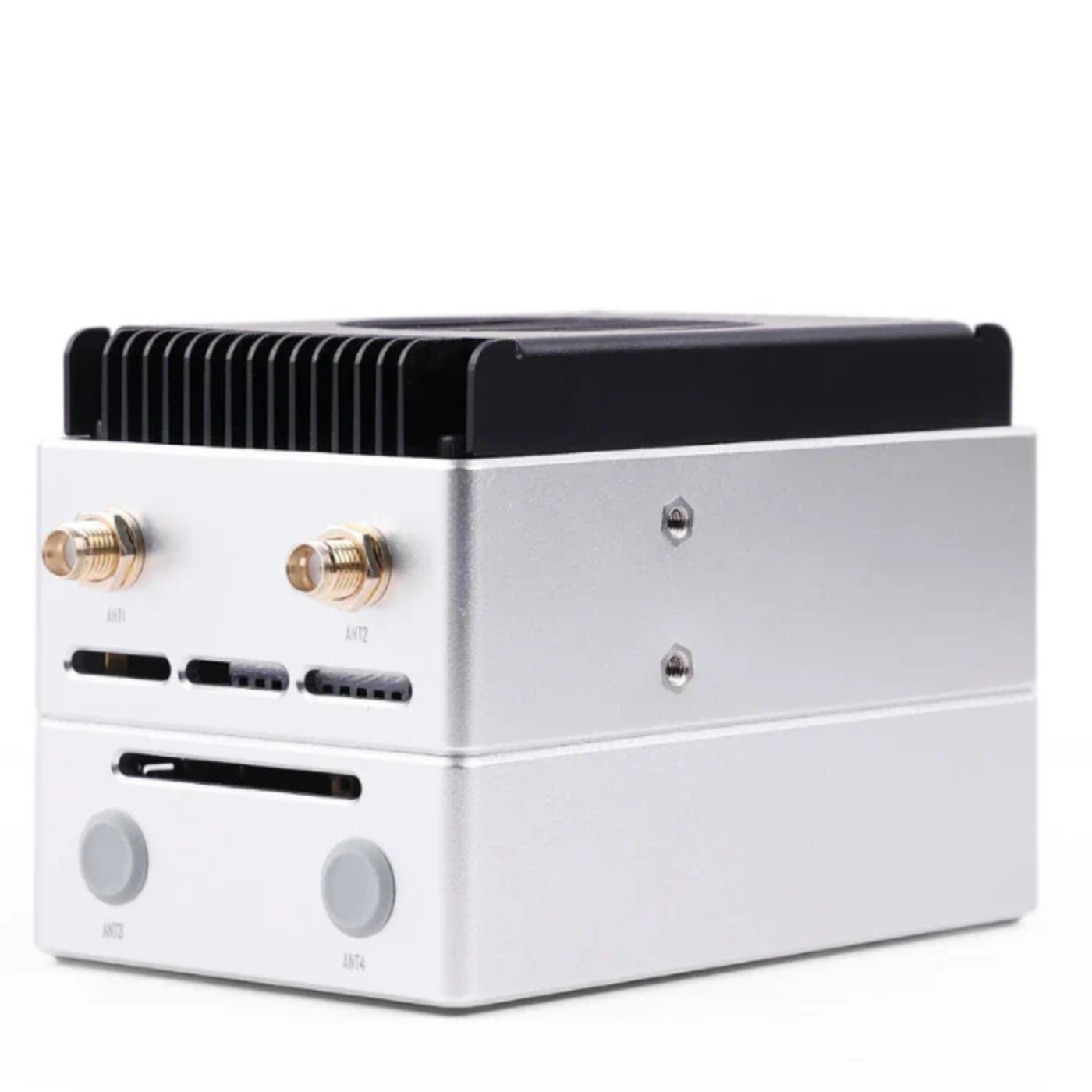

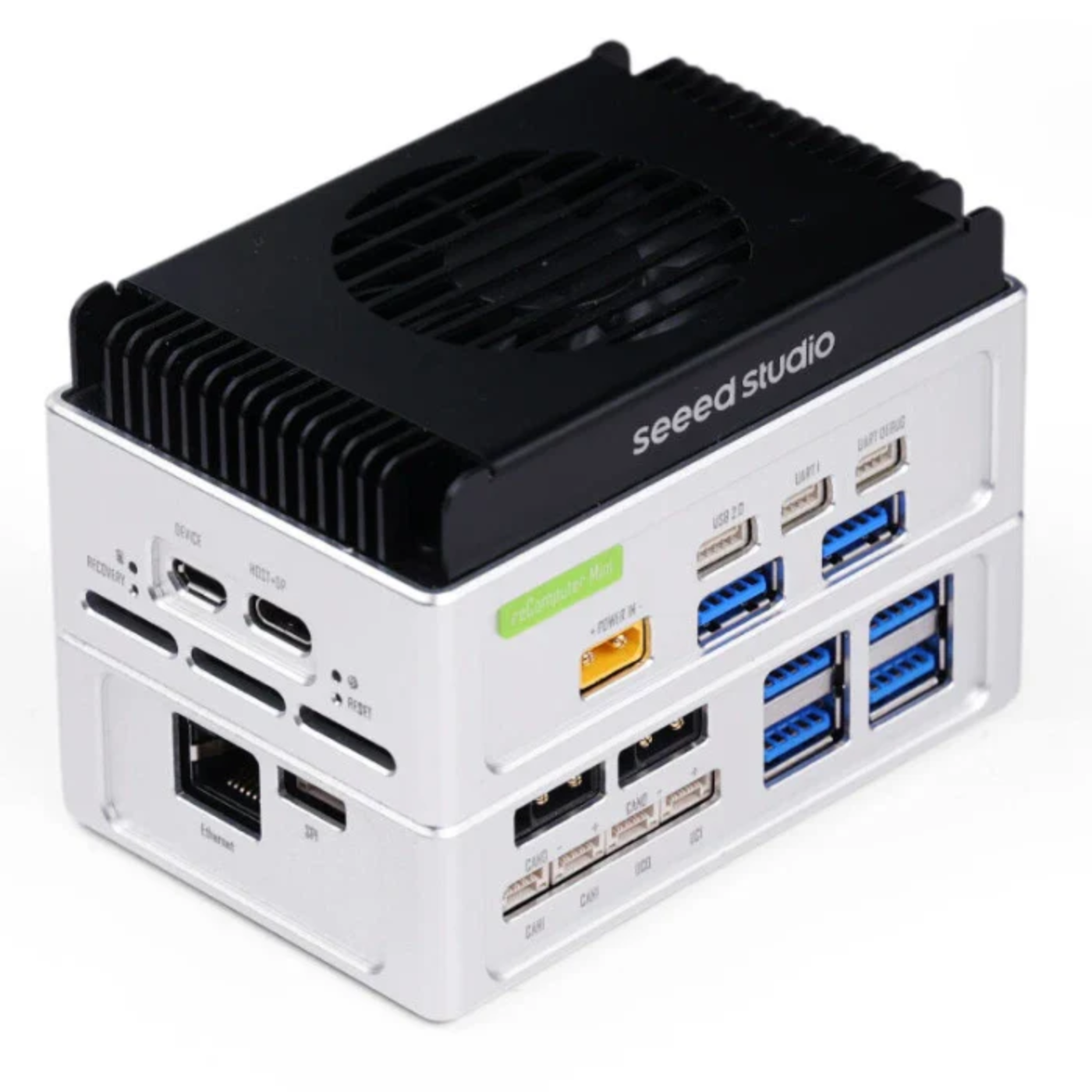

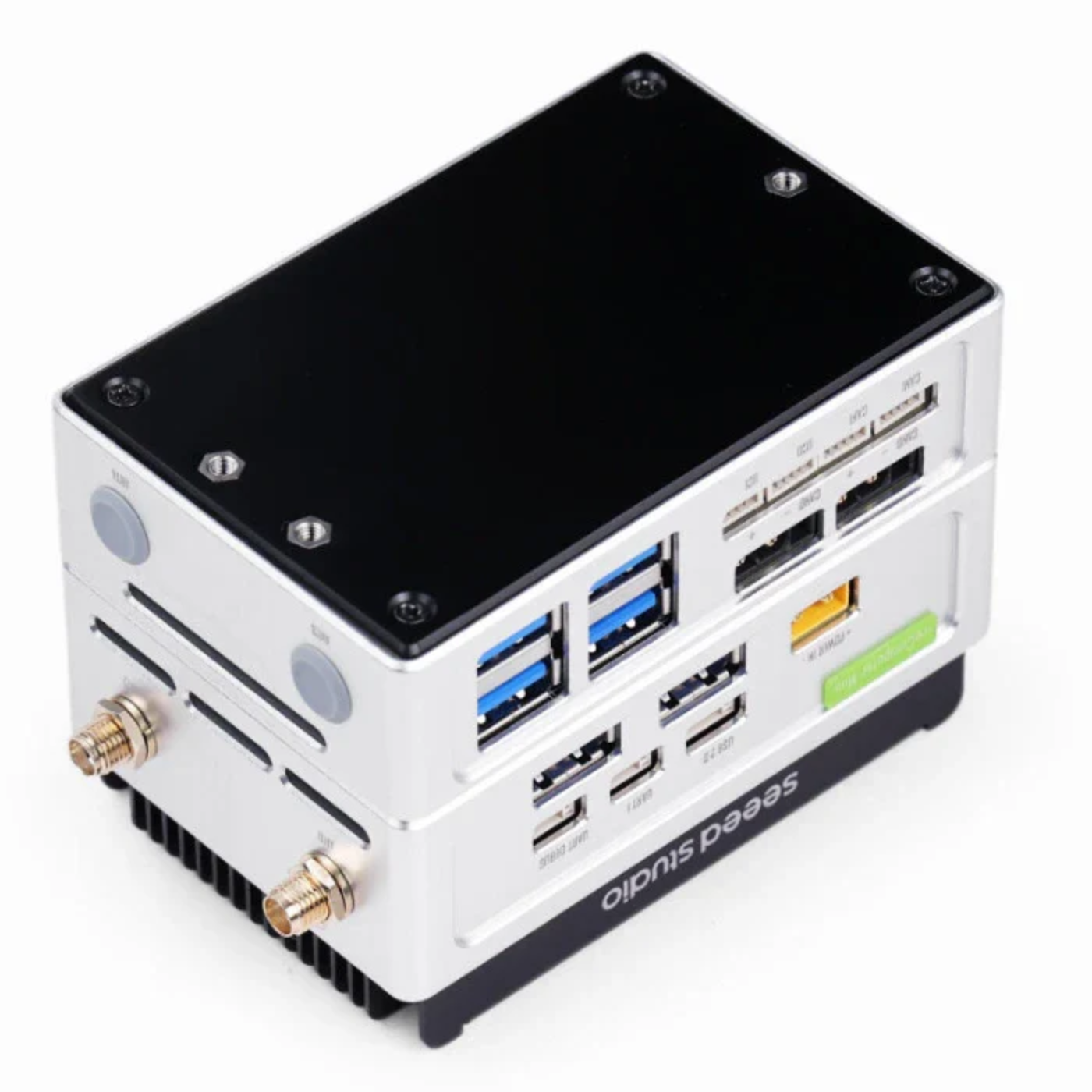

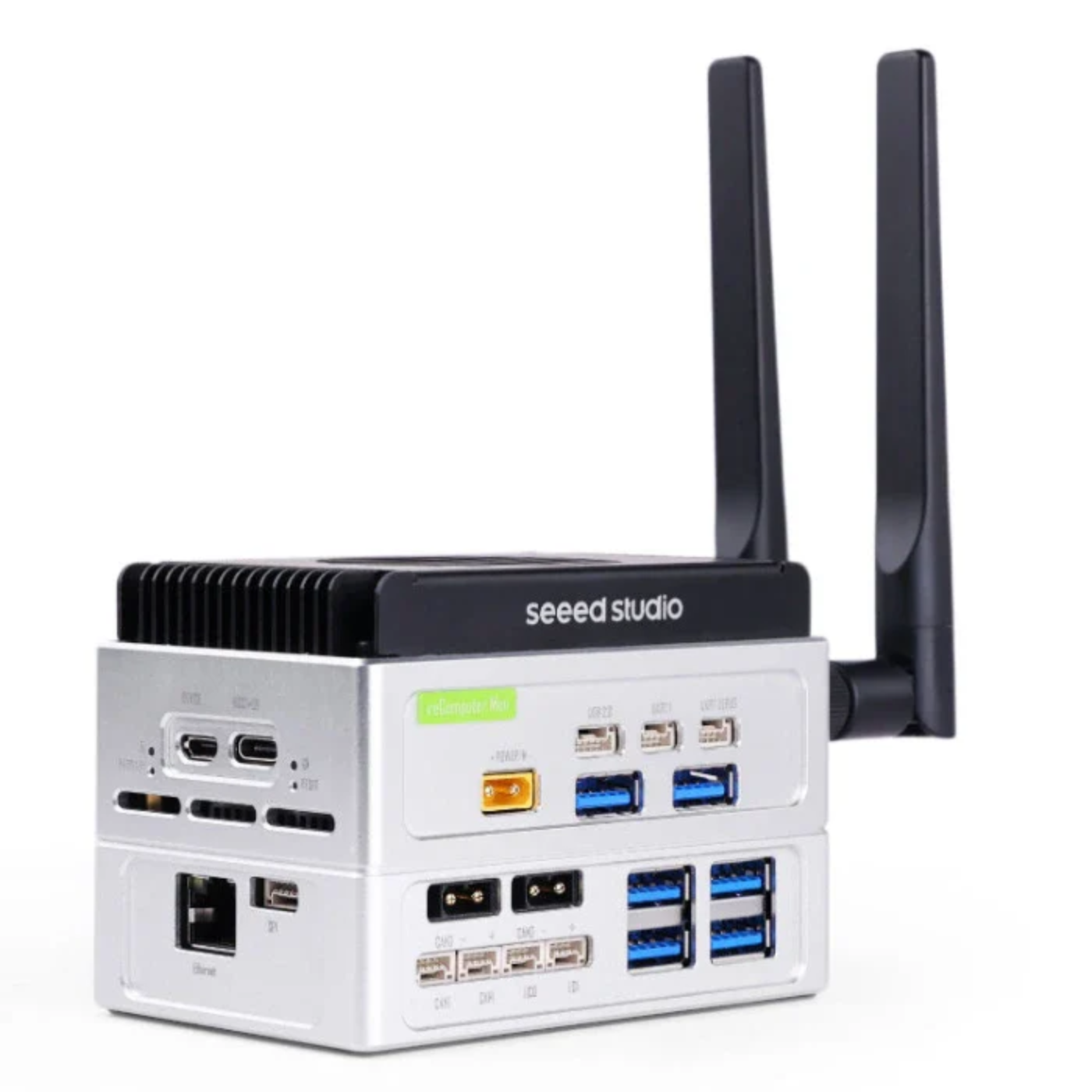

The reComputer Mini J3011 NVIDIA Jetson Orin Nano 8GB Module is a compact yet powerful AI computer built around the NVIDIA Jetson Orin Nano 8GB module, delivering up to 40 TOPS of AI performance. Designed for edge AI applications, this device features a PCIe port at the bottom, allowing for extensive expansion options such as up to 8 USB ports and dual CAN interfaces. These can also be customized to suit specific project needs. With its 54V DC input support, the J3011 is ideal for integration into battery-powered systems and autonomous machines like drones, patrol robots, and delivery robots. Its small form factor combined with high computing capabilities makes it perfect for embedded AI applications in demanding environments.
Features:
- Outstanding AI Performance in Production: The NVIDIA Orin SoC, which combines the NVIDIA AmpereTM GPU architecture with 64-bit operating capability, integrated sophisticated multi-function video and image processing, and NVIDIA Deep Learning Accelerators, achieves up to 40 TOPS AI performance with low power and latency.
- Hand-Size Edge AI Device: 63 x 95 x 66.7 mm, compact, including a Mini J401 carrier board, fan, enclosure, and an NVIDIA Jetson Orin Nano 8GB module. Wall and desktop mounts are supported.
- Generous with Rich I/Os: With dual channel CAN, GPIO, M.2 Key E, M.2 Key M, DP 1.4, up to 8 USB, and 1 RJ45 for GbE.
- Get Solutions to Market Faster: supported Jetson software and top AI frameworks, with JetPack 6.0 pre-installed on a 128GB NVMe SSD running Linux OS BSP.
- Scale to deploy: OTA and remote management services powered by Allxon and Balena are supported.
- Flexible Customization: based on the original design of the reComputer Mini J3011, this includes modifying the hardware interfaces, accessory modules, and logo.
Pinout:
Applications:
Able to Push the Boundaries of Generative AI
With the use of Vision-Language Models (VLM) like LLaVA, it is now possible to create AI agents that can handle vast quantities of live or recorded videos and images. These new AI agents assist almost every industry in summarizing, searching, and deriving actionable insights from video using natural language.
Construct AI Video Analytics for Multiple Streams
Jetson Orin NX uses the NVIDIA Multi-Standard Video Decoder to build video analytics. Standard Definition (SD), High Definition (HD), UltraHD (8K, 4K, etc.), and low-resolution mobile videos are all supported by this video decoder, which speeds up the process. 18x1080p30 streams can be captured by the reComputer J4012. View our YOLOv8 performance tests with NVIDIA Deepstream for both single and multi-model streams.
The Quickest Method for Using Computer Vision and Generative AI Models
We have provided a jetson-example for you. It provides one-line deploy projects for generative AI applications like Ollama and Llama3, computer vision applications like YOLOv8, and more. We have set up every environment so you can deploy projects with a single command.

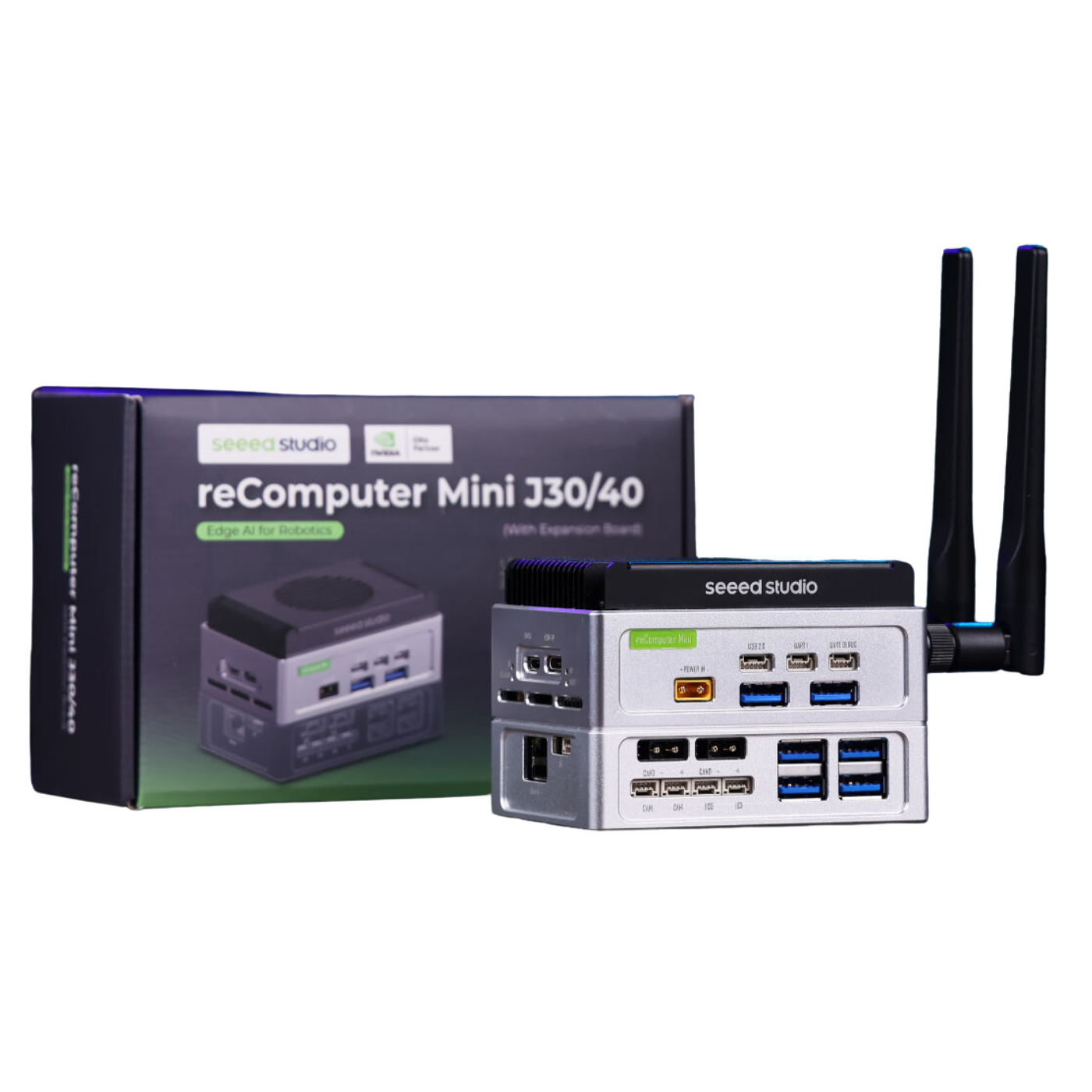

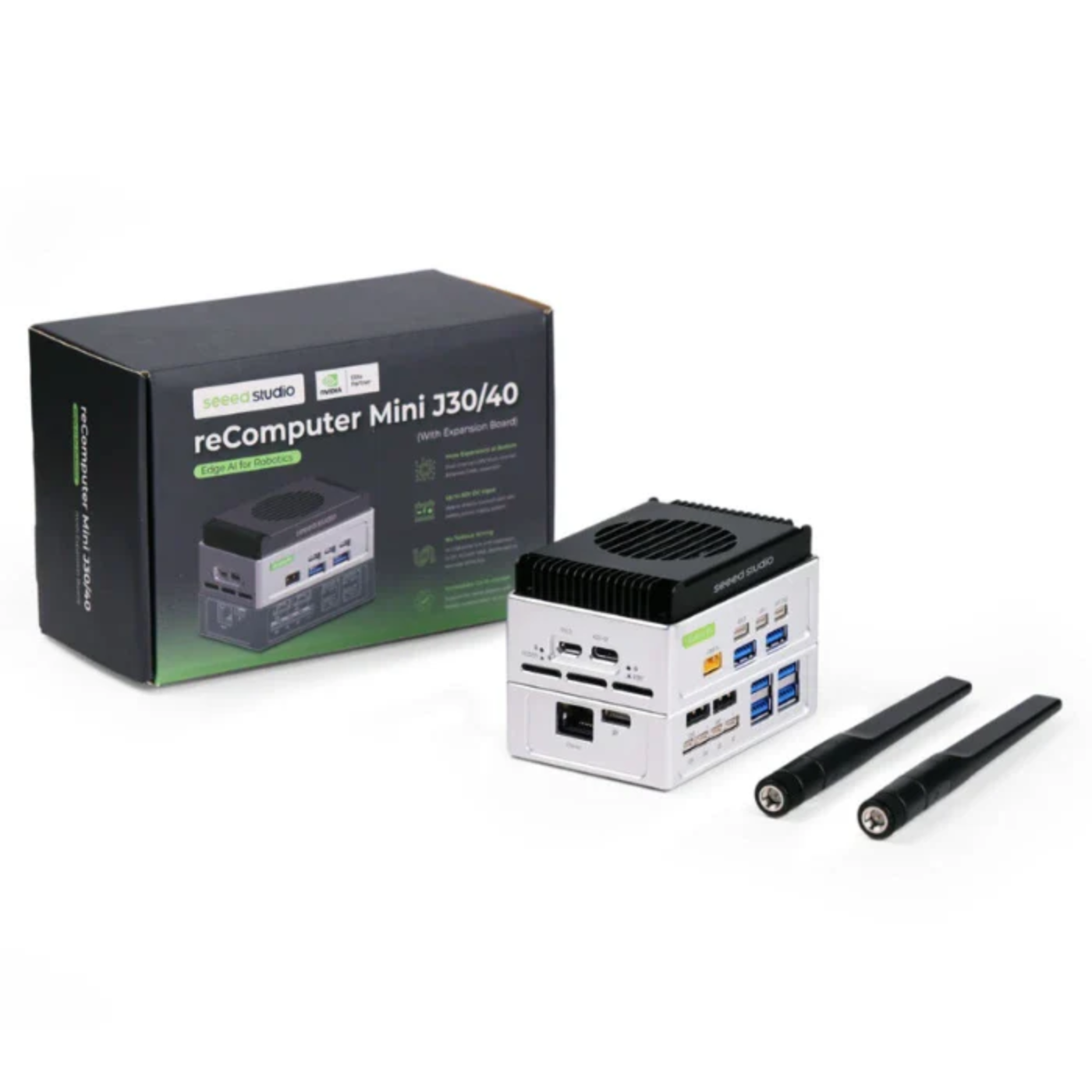

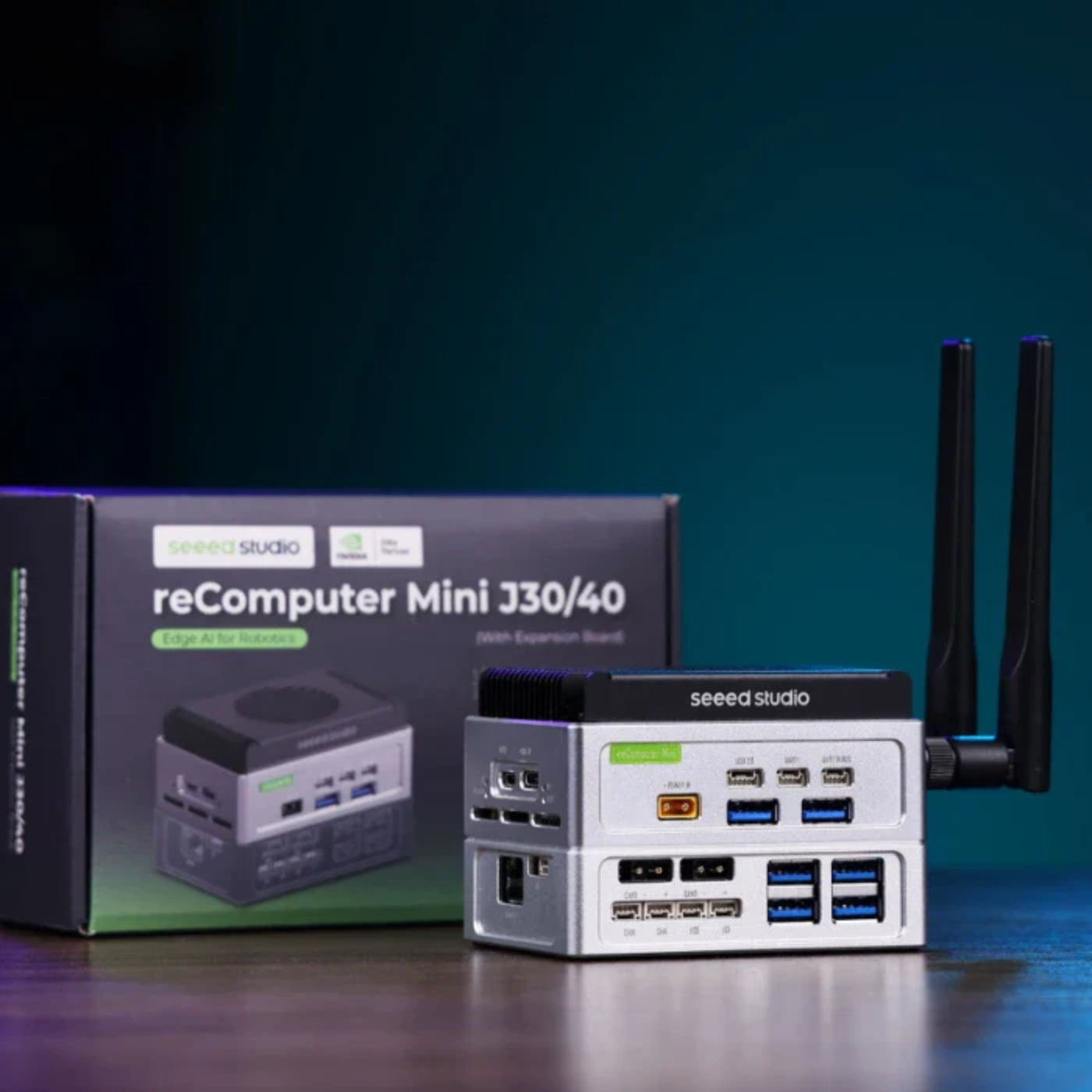

Package Includes:
- 1 x reComputer Mini J3011 (with Extension)
- 2 x Antenna
- 1 x xt30 to DC Power Connector
Specification:
reComputer Mini J3011 NVIDIA Jetson Orin Nano 8GB
| Component | Specification |
|---|---|
| Module | Jetson Orin System on Module |
| AI Performance | reComputer Mini J3011 - Orin Nano 8GB – 40 TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE (Orin Nano 8GB) |
| Memory | 8GB 128-bit LPDDR5 (Orin NX 8GB) |
| Video Encode | 1080p30 supported by 1–2 CPU cores |
| Video Decode |
|
| DL Accelerator | 2x NVDLA v2 |
Carrier Board
| Category | Specification |
|---|---|
| Storage | 1x M.2 Key M PCIe (M.2 NVMe 2242 SSD 128G included) |
| Networking | 1x M.2 Key E for WiFi/Bluetooth module |
| USB | 2x USB 3.2 Type-A (10Gbps) 1x USB 2.0 Micro-B (Device Mode) 1x USB 3.2 Type-C (Host Mode) 1x USB 2.0 JST-5pin (Host Mode) |
| UART | 1x UART 1x Debug UART |
| Display | 1x DP 1.4 (included in Type-C connector) |
| Fan | 1x 4-pin Fan Connector (5V PWM) |
| Button | 1x Reset Button 1x Recovery Button |
| Extension Port | 2x 60-pin High Speed Connector (for extension board) 1x 10-pin Power Connector (for extension board) |
| RTC | 1x RTC 2-pin |
| Power | 1x XT30 Connector (12–54V DC) |
Extension Board
| Specification | |
|---|---|
| Networking | |
| Ethernet | 1x RJ-45 Gigabit Ethernet (10/100/1000M) |
| I/O | |
| USB | 4 x USB 3.0 Type-A (5 Gbps) |
| CAN | 1 x CAN JST 4pin (5V) 1 x CAN (XT30 2+2) |
| FAN | 1x 4 pin Fan Connector (5V PWM) |
| I2C | 2 x I2C JST 4pin (3.3V) |
| SPI | 1 x SPI JST 6pin (3.3V) |
| Power | |
| Power Input | 2 x XT30 2+2 Connector (12-54V DC
|
Run All Ultralytics YOLO Models on Jetson Orin with One Command!
