Waveshare Raspberry Pi Compute Module 4 IO Board with PoE Feature
Let us know!
We'll try to match the price for you
Couldn't load pickup availability

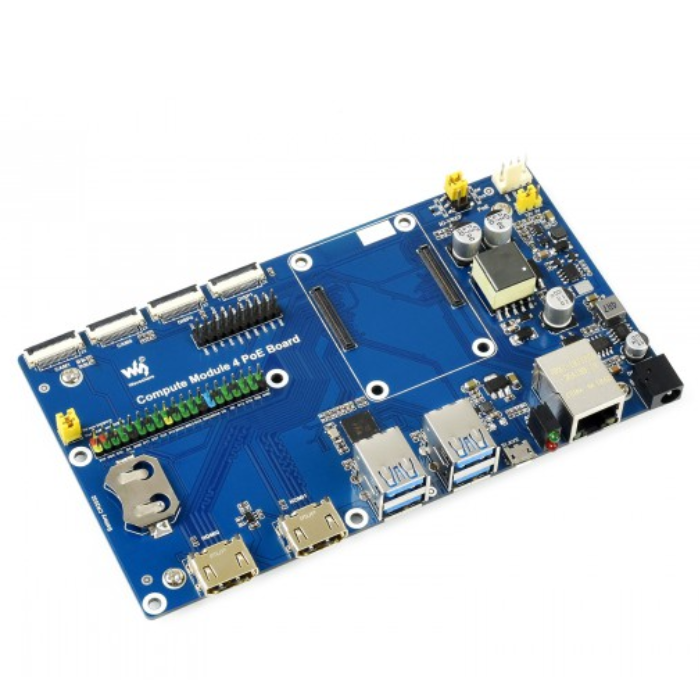

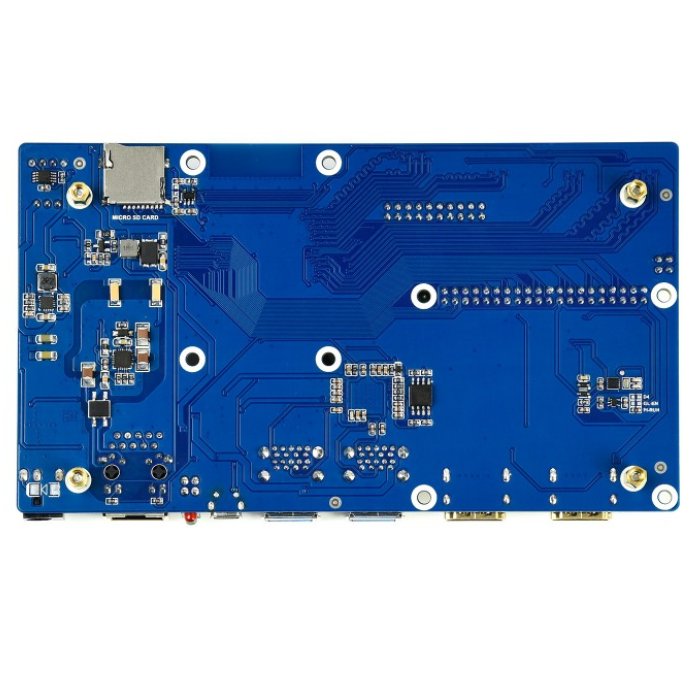

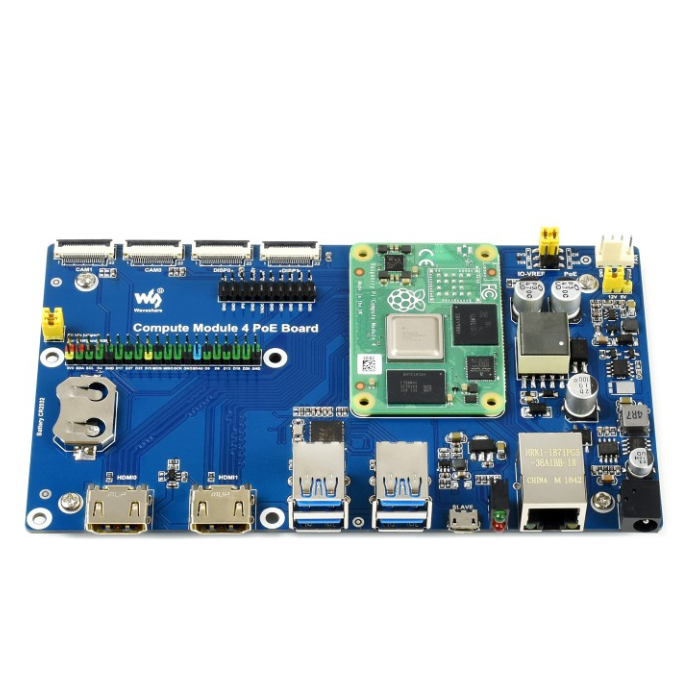

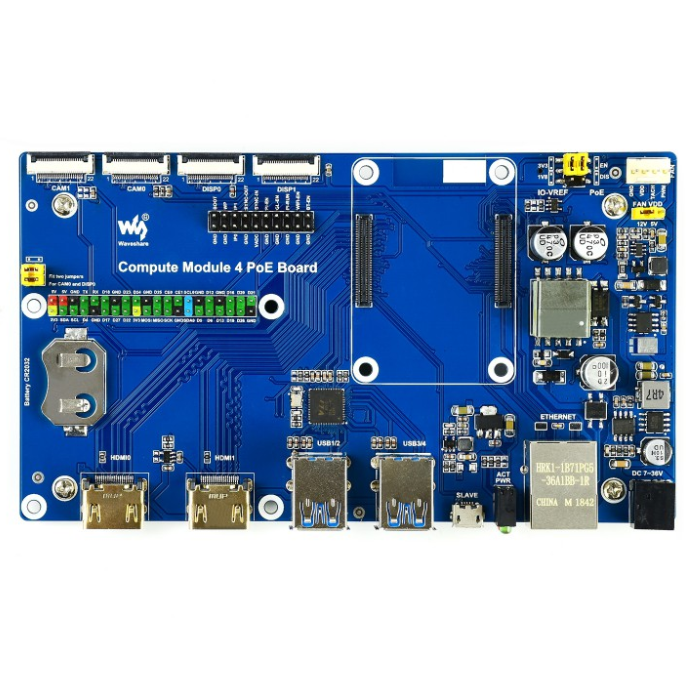

The Raspberry Pi Compute Module 4 IO Board with PoE (Power over Ethernet) functionality is a versatile and robust development platform designed specifically for all variants of the Raspberry Pi Compute Module 4 (CM4).
Ideal for prototyping, evaluation, or integration into final products, this IO board provides essential connectivity and interface options, including support for PoE, enabling power and data delivery over a single Ethernet cable.
Whether you're a developer testing CM4 capabilities or building an embedded solution, this board offers a reliable foundation with industrial-grade features.
| Specification | Details |
|---|---|
| CM4 Socket | Suitable for all variants of Compute Module 4 |
| Networking | Gigabit Ethernet RJ45 with 802.3af-compliant PoE support (5V/2.5A output) |
| GPIO Connector | Standard Raspberry Pi 40-pin GPIO header |
| USB Ports | 4 × USB 3.2 Gen1 ports |
| Display Interface | 2 × MIPI DSI display ports (22-pin, 0.5mm FPC connector) |
| Camera Interface | 2 × MIPI CSI-2 camera ports (22-pin, 0.5mm FPC connector) |
| HDMI Output | 2 × HDMI ports supporting up to 4K @ 30fps |
| RTC (Real-Time Clock) | Includes battery socket; can wake the Compute Module 4 |
| Storage | MicroSD card socket (for CM4 Lite variants without eMMC) |
| Fan Header | Supports fan speed adjustment and RPM measurement (5V / 12V fans) |
| Power Input | 7V to 36V DC input range |
