CD4070 - Quad 2-Input Exclusive-OR (XOR) Gate IC
Rs. 24 Rs. 19

CD4070 - Quad 2-Input Exclusive-OR (XOR) Gate IC

Rs. 24 Rs. 19

CD4070 - Quad 2-Input Exclusive-OR (XOR) Gate IC

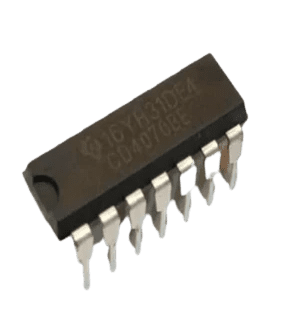

The CD4070 IC contains four independent Exclusive OR gates inside a single package. It is oftentimes referred to as a quad package 2-Input XOR gate IC. All four gates share the same power rail and each gate has two input lines and one output line. This IC gives the system designer a way to directly implement the Exclusive-OR Boolean function. The CD4070 makes use of complementary MOS (CMOS) transistors to achieve a broad power supply operating range, low power consumption, and a high noise margin. The IC operates at 5V, 10V, 15V, and even 20V. When operating at 5V the maximum low-level input voltage is 0.5 and the minimum high-level input voltage is 4.5.

check out : CD4078 - 8 Input NOR Gate IC

Pinout:

Pinout Of CD4070 IC

Pin Name Pin # Type Description
VDD 14 Power Supply Voltage (+3 to +15V)
GND 7 Power Ground (0V)
A1 to A4 1, 5, 8, 12 Input Inputs A of the four XOR gates
B1 to B4 2, 6, 9, 13 Input Inputs B of the four XOR gates
Q1 to Q4 3, 4, 10, 11 Output Outputs from the four XOR gates

Package Includes:

Selected qty of IC - CD4070

Specifications:

LOGIC Circuit XOR
Voltage Rating  3V to 15V
Propagation Delay (tpd) 280ns
Noise immunity 0.45 VDD
Inputs 2

1.How To Use the CD4070?

  • As with all ICs in the 4000 series, a power supply voltage of 3 to 15V is required. Some versions of the chip support up to 20V. For exact values, consult the datasheet for your version of the chip. To use any of the XOR gates on the chip, connect the VDD pin to the positive supply terminal and the GND pin to the negative supply terminal. The A and B pins are the inputs to the four XOR gates in the IC. The Q pins are the XOR gate outputs.

2.What is an XOR gate?

  • An XOR gate (Exclusive-OR gate) is a type of digital logic gate that produces a HIGH (or 1) output signal only when the two input signals are different. In other words, if the input signals are identical, the output is LOW (or 0).
