- This is PL2303HX USB To TTL Converter Cable
- Single-chip upgrade solution for Legacy RS232 devices to USB interface.
- Built-in TTL COM PC-PL2303HX Chip.
- Standard USB type A male and TTL 4 pin connector.
- Healthcare/Medical USB Interface Data Transfer Cable
- Serial-over-IP Wireless Solution
- Available for Linux, Mac, WinCE, and Windows (XP, 7), Win 8.
PL2303HX USB To TTL Converter Cable

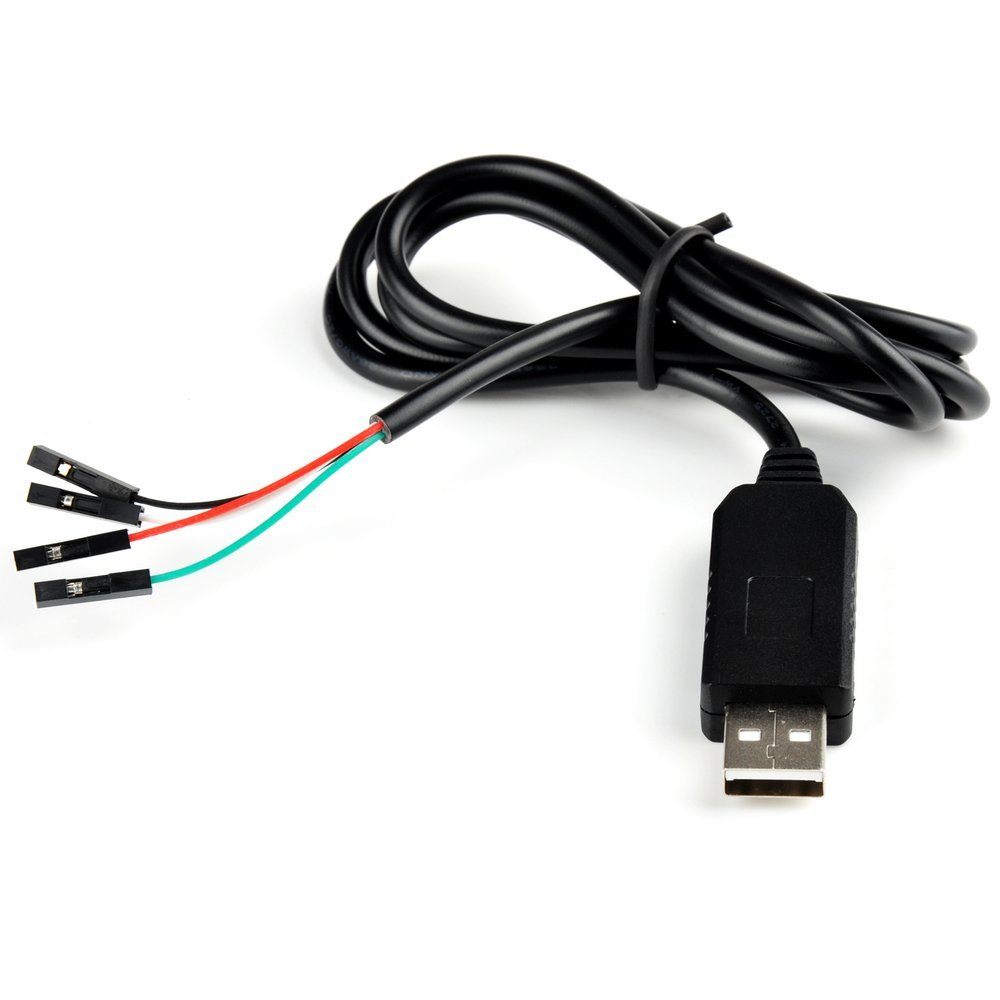

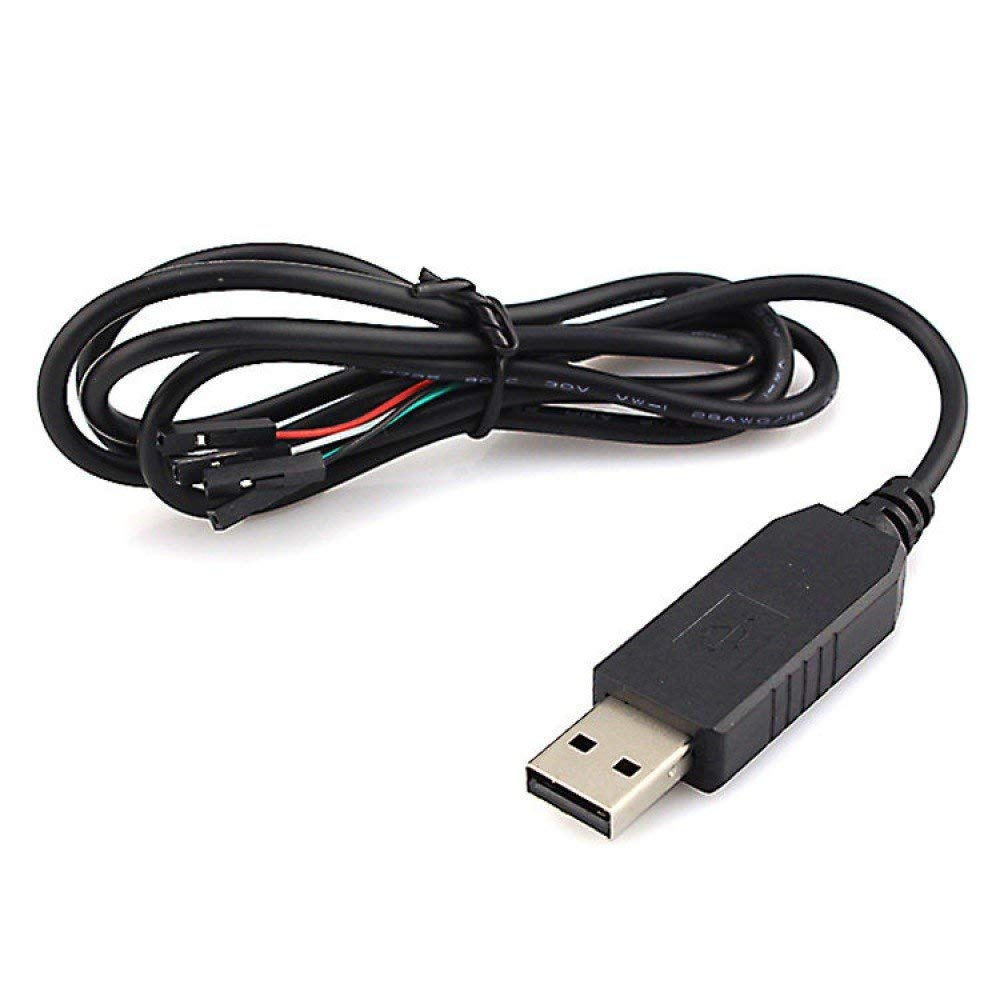

This is the PL2303HX USB To TTL Converter Cable , The cable is the simplest way to connect to the serial console port of your microcontroller/Raspberry Pi/WiFi router. A USB to Serial conversion chip is housed inside the large USB plug, and at the end of the 1M cable are four wires - red power, black ground, white RX into the USB port, and green TX out of the USB port.
The power pin receives 5V @ 500mA directly from the USB port, while the RX/TX pins are 3.3V levels for interfacing with most 3.3V logic level chipsets. This cable is ideal for powering and connecting to the debug/login console on the Raspberry Pi or BeagleBone Black due to the separated pin plugs.
Also useful for hacking WiFi routers to instal alternate operating systems, or almost any other 3.3V logic serial port. Because the wires are separated, this is often easier to use than an FTDI cable.
Applications:
- Single-chip upgrade solution for Legacy RS232 devices to USB interface
- USB to RS232 converters/cables/dongles
- Healthcare/Medical USB Interface Data Transfer Cable
- Personal Infotainment/Media Player Docking USB Interface
- Cellular/PDA USB Interface Data Transfer Cable
- Serial-over-IP Wireless Solution
- USB Barcode/Smart Card Readers
- GPS/Navigation USB Interface
- Point-of-Sale (POS) Terminals/Printers
- PC Docking Station/Port Replicators
- Industrial/Instrumentation/Automation Control USB Interface
Package Includes:
- 1 x PL2303HX USB To TTL Converter Cable
Specifications
| Black cable | GND |
| Green cable | TXD |
| White cable | RXD |
| Red cable | VCC |
| Dimensions | 3 x 2 x 1cms |
| Weight | 5 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
CP2102 USB to TTL Converter
9
Regular price
Rs. 109
Regular price
Rs. 247
Sale price
Rs. 109
Unit price
per
Incl. GST (No Hidden Charges)
Sale
USB 2.0 to TTL RS485 Serial Converter Adapter FTDI Module (FT232FRL SN75176)
2
Regular price
Rs. 139
Regular price
Rs. 249
Sale price
Rs. 139
Unit price
per
Incl. GST (No Hidden Charges)
Sale
PL2303HXD 6Pin USB TTL RS232 Convert Serial Cable
7
Regular price
Rs. 225
Regular price
Rs. 422
Sale price
Rs. 225
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. What is a USB to TTL converter?
- The USB TTL Serial cables are a range of USB to serial converter cables which provide connectivity between USB and serial UART interfaces. A range of cables are available offering user specified signal levels with various connector interfaces.
2. How do I know if my USB to TTL converter is working?
- Use a jumper wire and connect the RXD pin to the TXD pin of your USB-to-TTL adapter and plug it in to one of the USB ports of your Windows PC.
- Press Win+R to open the Run dialog, type devmgmt.
- In the Device Manager, expand Ports (COM & LPT) and check the port number assigned to your USB-to-TTL adapter.
3. How many connections can be made to a TTL serial port?
- When connecting it to any TTL Serial Port, only three connections are required: GND, RX, and TX. Furthermore, if your electronic device does not use voltage as the source to which USB is connected, Vcc should not be connected.
