Official Raspberry Pi Pico 2
Official Raspberry Pi Pico 2
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Dual Cortex-M33 or Hazard3 processors at 150MHz.
- 520 KB on-chip SRAM.
- Compatible with Raspberry Pi Pico 1.
- Drag-and-drop USB programming.
- Castellated module for easy soldering.
- Robust security features with boot signing.
- 2 × UART, 2 × SPI, 2 × I2C, 24 × PWM, and 4 × ADC.
- USB 1.1 controller with host/device support.
- 12 PIO state machines.
- Open-source SDK and MicroPython support.
- Operating temp: -20°C to +85°C.
- Input voltage: 1.8–5.5V DC.

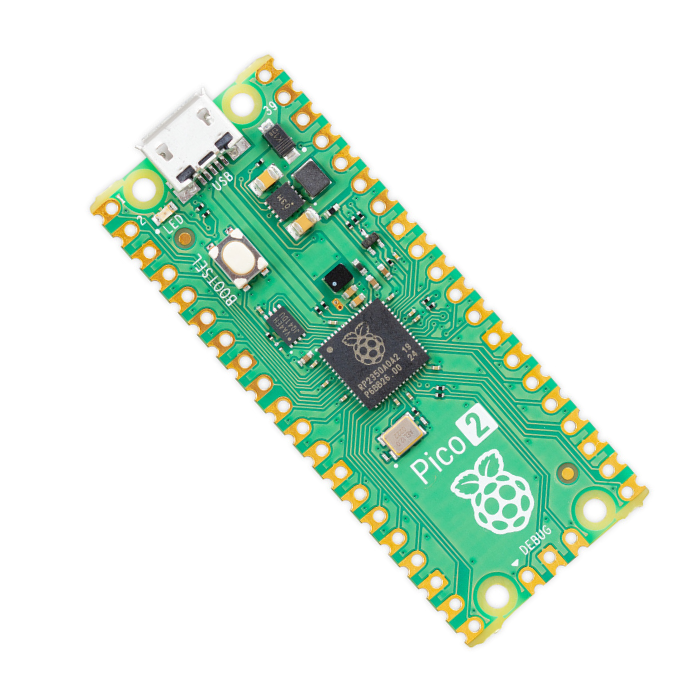

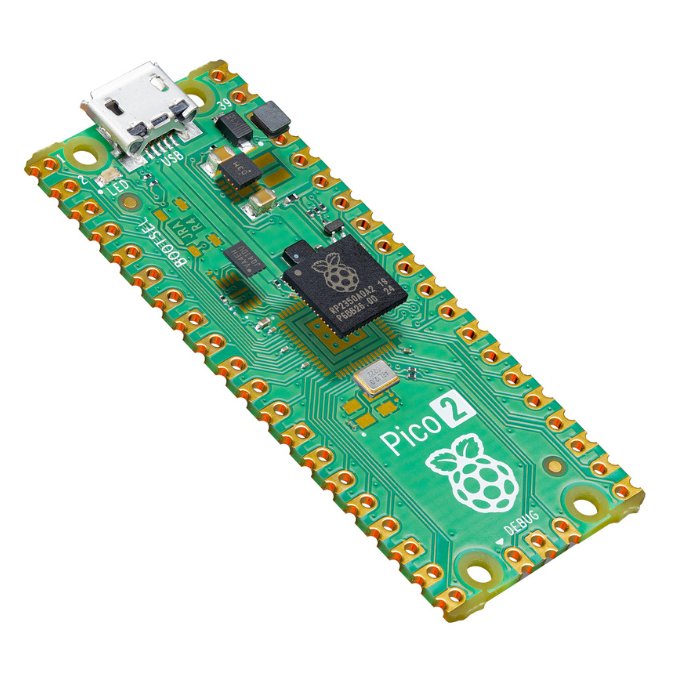

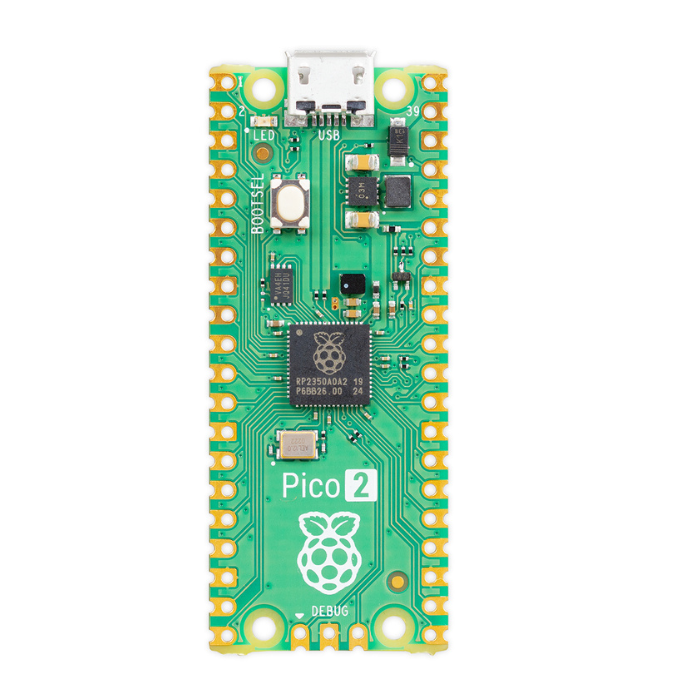

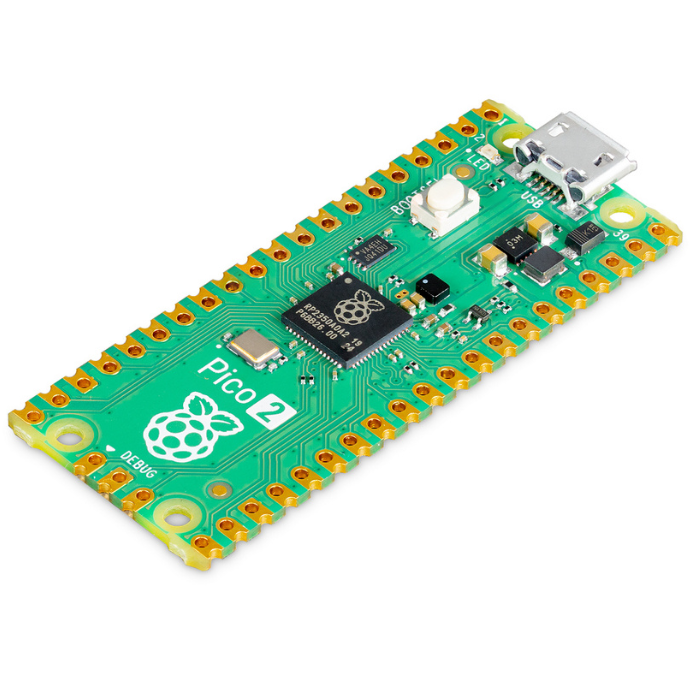

Official Raspberry Pi Pico 2
The Raspberry Pi Pico 2 is a powerful, next-generation microcontroller board, built with the new RP2350 chip. It’s faster, has more memory, and includes more powerful cores than the original Pico, making it perfect for a wide range of projects.
With both Arm Cortex-M33 and RISC-V core options, the RPI Pico 2 offers flexibility for developers to experiment with different architectures. It can be programmed in C/C++ and Python, making it great for both beginners and experts.
The Raspberry Pi Pico 2 also comes with improved security features and low-power options, making it more reliable and efficient for various applications. Plus, its open and transparent security design gives developers the confidence to use it in their projects.
Key Features
- Built with the high-performance RP2350 chip.
- Faster core clock speed and double the memory compared to the original Pico.
- Dual-core, dual-architecture: choose between Arm Cortex-M33 or RISC-V cores.
- Programmable in C/C++ and Python.
- Improved security with Arm TrustZone and secure boot ROM.
- Low-power options for energy-efficient projects.
- Compatible with previous Raspberry Pi Pico models.
- Open and transparent security design for confident product integration.
Package Includes
1 x Official Raspberry Pi Pico 2
Specifications
| Specification | Details |
|---|---|
| Processor | Dual Arm Cortex-M33 or dual Hazard3 processors @ 150MHz |
| On-chip SRAM | 520 KB |
| Compatibility | Software- and hardware-compatible with Raspberry Pi Pico 1 |
| Programming | Drag-and-drop programming via USB mass storage |
| Mounting | Castellated module for soldering to carrier boards |
| Security Features | Robust, fully documented security features with optional boot signing and protected OTP storage |
| Peripherals | 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 24 × PWM channels, 4 × ADC channels |
| USB Support | 1 × USB 1.1 controller with host and device support |
| PIO State Machines | 12 × PIO state machines |
| Software Support | Open source C/C++ SDK, MicroPython support |
| Operating Temperature | -20°C to +85°C |
| Input Voltage | 1.8–5.5V DC |
