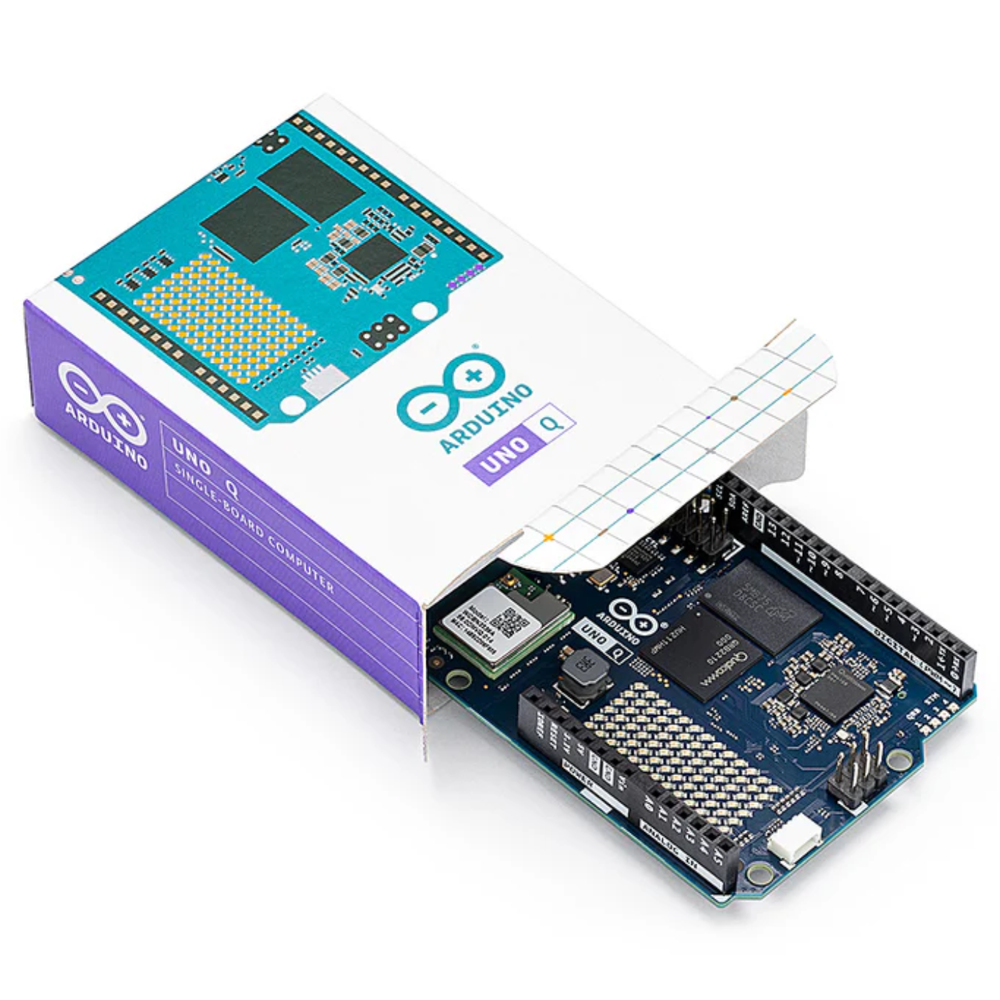

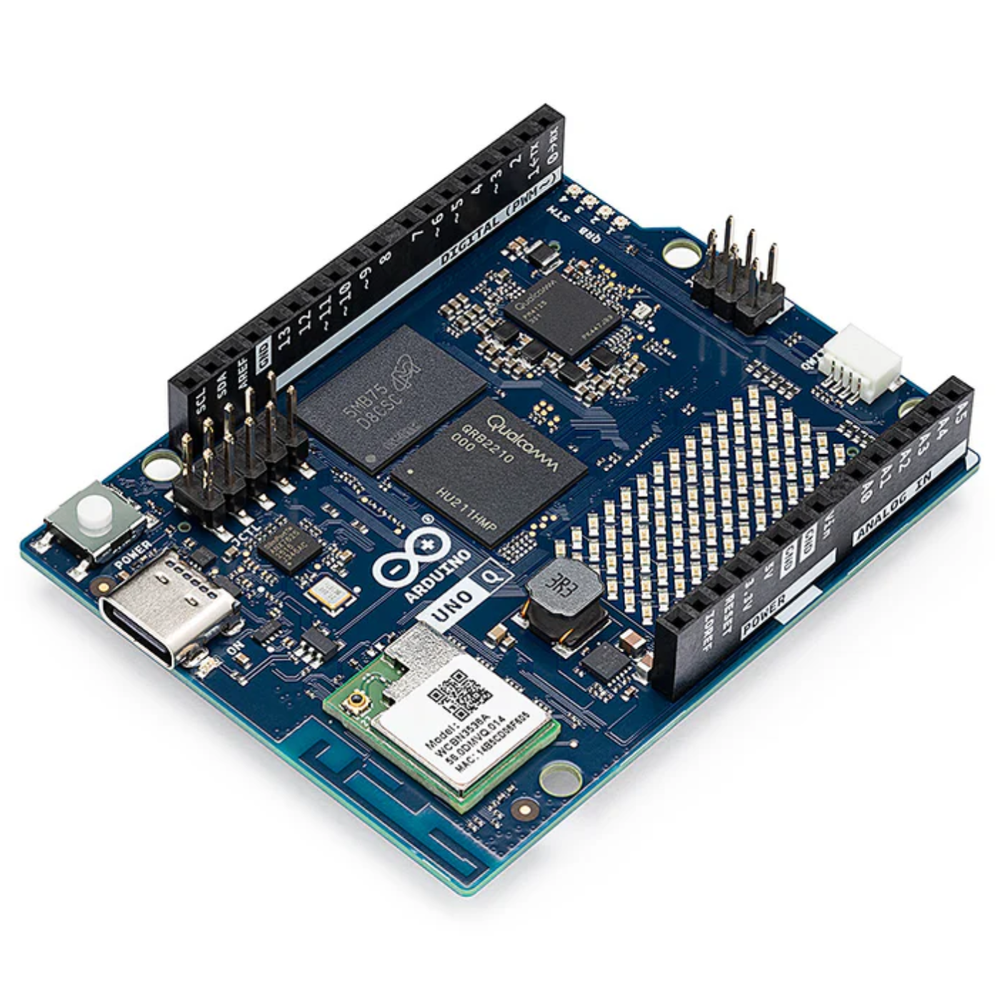

The Official Arduino UNO Q is a versatile single board computer designed for makers, developers, and innovators.
Its hybrid architecture combines a Linux® Debian-capable Qualcomm® Dragonwing™ QRB2210 microprocessor with a real-time STM32U585 microcontroller, giving you the flexibility to run AI-powered vision and sound applications while maintaining real-time control.
Fully compatible with the Arduino UNO ecosystem, it supports classic shields, Modulino® nodes, and third-party modules via the Qwiic connector.
With seamless software integration through Arduino IDE, Arduino Cloud, or Python® on Linux®, plus pre-built examples and AI models available in Arduino App Lab, the UNO Q makes building advanced projects intuitive and powerful.

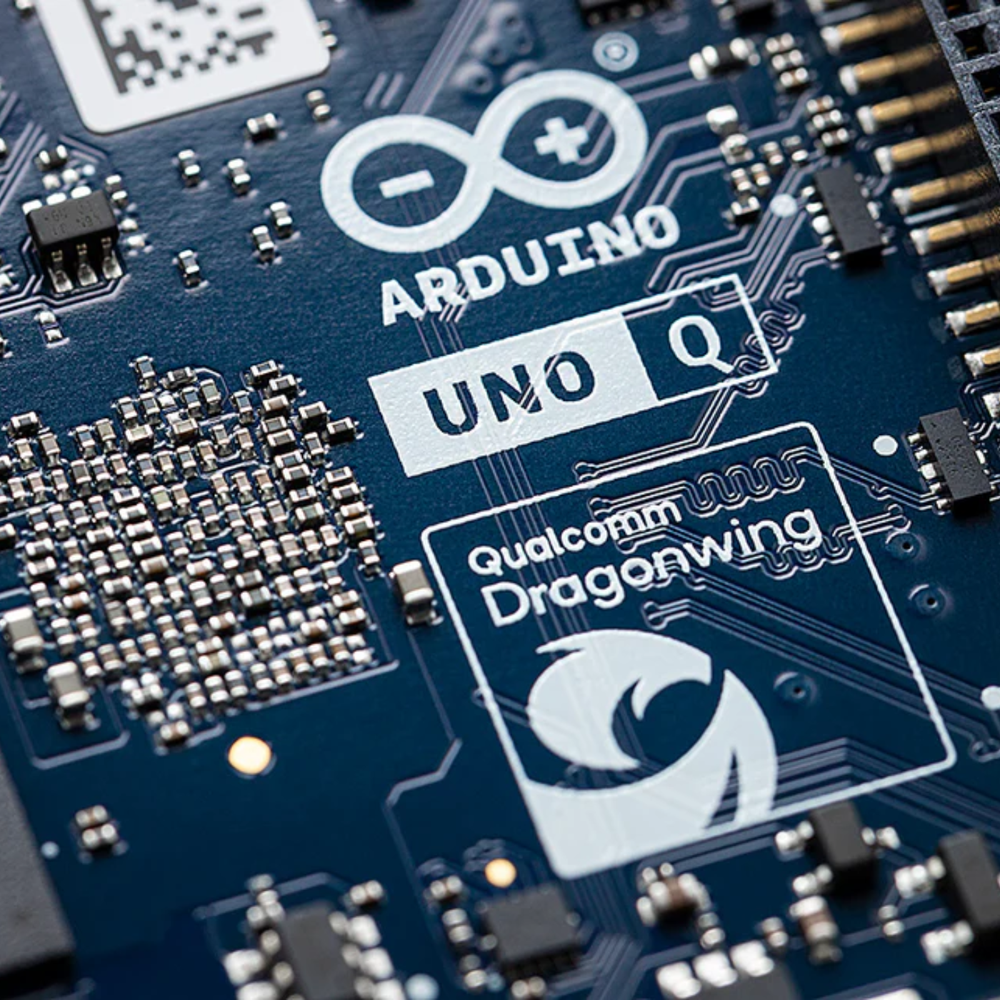

Your UNO Q is a compact, cost-effective platform with advanced features such as machine vision, owing to the Dragonwing QRB2210's integrated AI and GPU acceleration, quad-core 2.0 GHz CPU, Adreno GPU, 2x ISP, and support for camera, display, and audio.
App Lab is a brand-new comprehensive development environment that unifies the journey from Linux® to real-time OS.
Preloaded on the UNO Q, App Lab combines Arduino Sketches, Python® scripts, and containerized AI models to create fully integrated applications that can be administered from a single interface.
Get started quickly with Arduino Apps, self-contained examples that include everything you need. Add plug-and-play capabilities to your projects using pre-built Bricks to help you push your ideas even further.
With pre-loaded AI models in Arduino App Lab, you can use real-world data for a variety of tasks, including object/human detection, anomaly detection, image categorization, sound recognition, and keyword spotting.
| Specification | Details |
|---|---|
| Microprocessor (MPU) |
Qualcomm Dragonwing™ QRB2210: • Quad-core Arm® Cortex®-A53 @ 2.0 GHz • Adreno GPU 3D graphics accelerator • 2x ISP (13 MP + 13 MP or 25 MP) @ 30 fps |
| Microcontroller (MCU) |
STM32U585: • Arm® Cortex®-M33 up to 160 MHz • 2 MB flash memory • 786 KB SRAM |
| RAM | 2GB LPDDR4 |
| Power Supply |

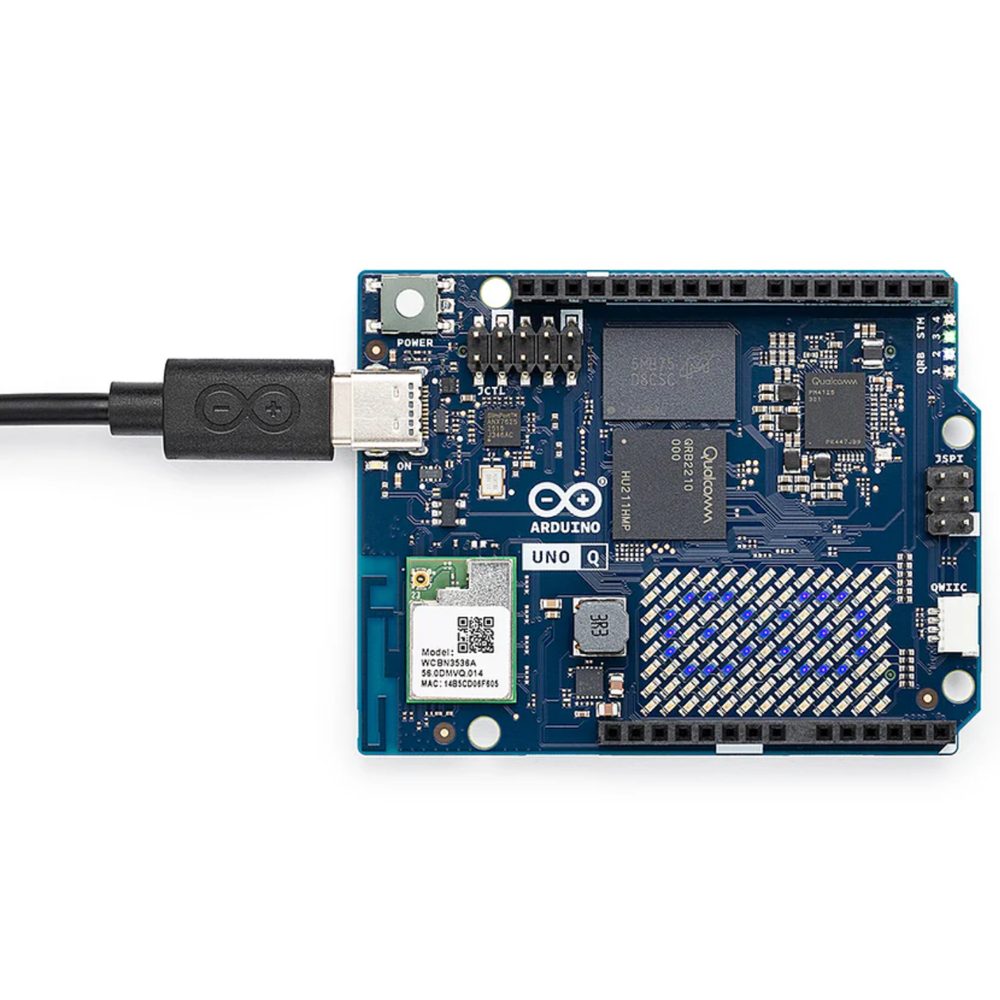

From USB-C connector 5 VDC max at 3 A Input Voltage (VIN): 5 VDC |
| Storage | 16GB eMMC |
| USB | 1× USB-C port with host/device role switching, power role switch, and video output |
| Connectivity |
• Wi-Fi® 5 2.4/5GHz with onboard antenna • Bluetooth® 5.1 with onboard antenna |
| Interfaces | I2C/I3C, SPI, PWM, CAN, UART, PSSI, GPIO, JTAG, ADC |
| Video |
Video output support via USB-C MIPI DSI pins on JMEDIA header |
| Extra Features |

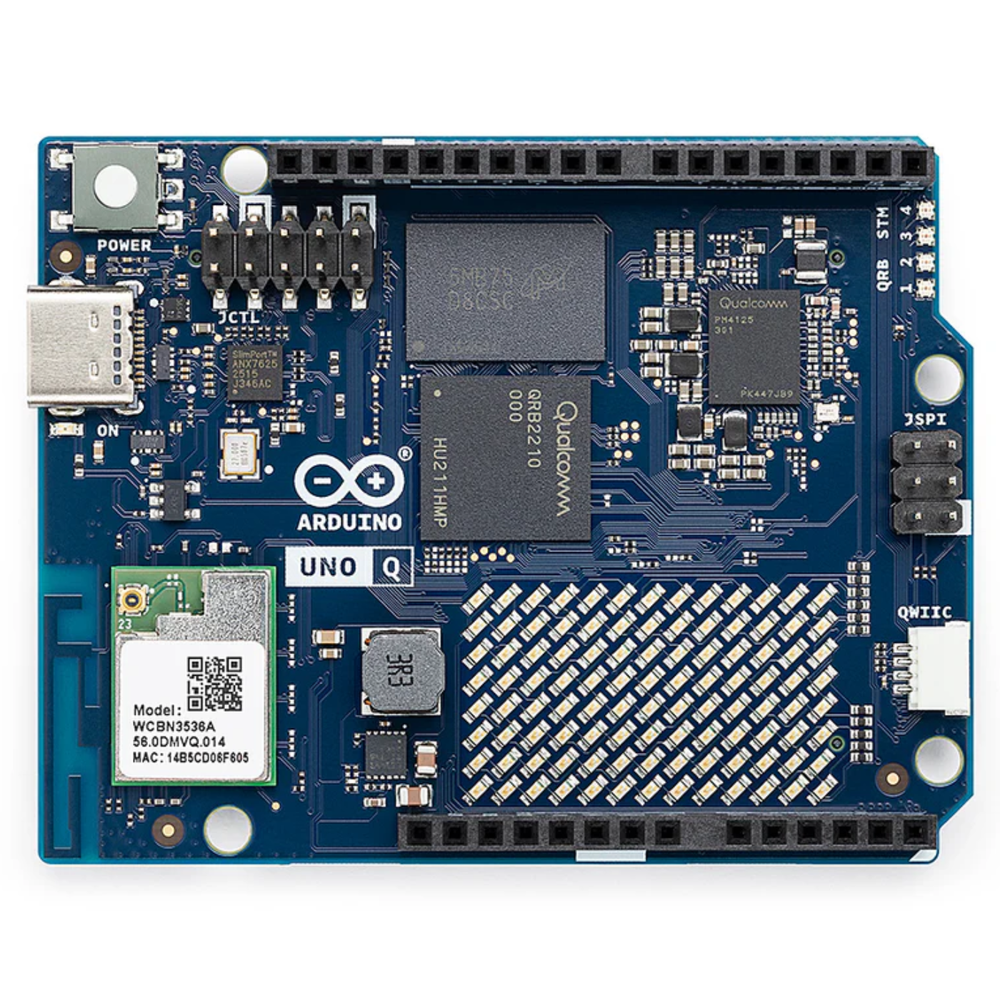

• 4× RGB user-controllable LEDs • 8×13 Blue LED Matrix • 1× Qwiic connector voltage 3V3, I2C • 1× User push-button • JCTL: MPU Remote Debug connector |
| Audio | Microphone IN / Headphone OUT / Line OUT on JMISC |
| Dimensions | 68.85 mm × 53.34 mm (UNO form factor) |
| MPU Operating System | Linux Debian OS with upstream support |
| Real-time Operating System | Arduino Core on Zephyr OS |
| Containerization | Docker and Docker Compose support |
| Supported OS for Arduino App Lab |
• Windows: Windows 10 or later (64-bit) • macOS: macOS 11 or later (64-bit) • Linux: Ubuntu 22.04 or later, Debian Trixie (64-bit) |
