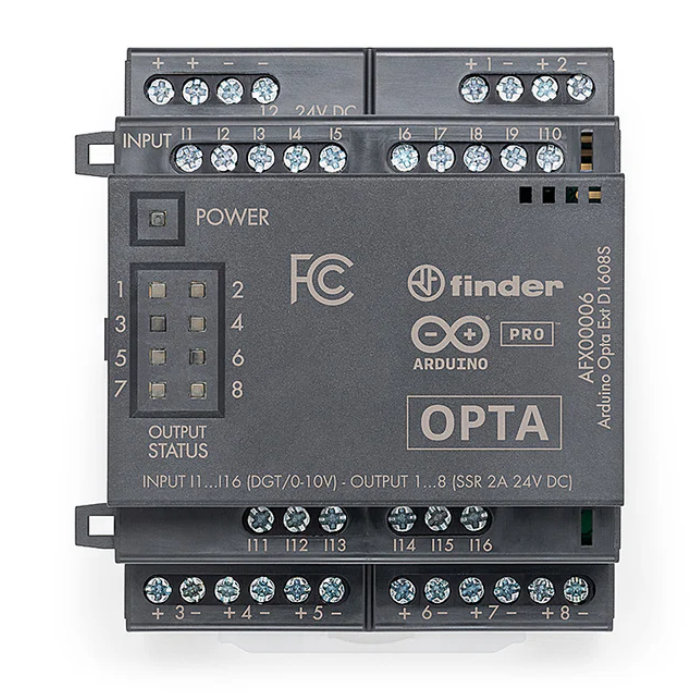

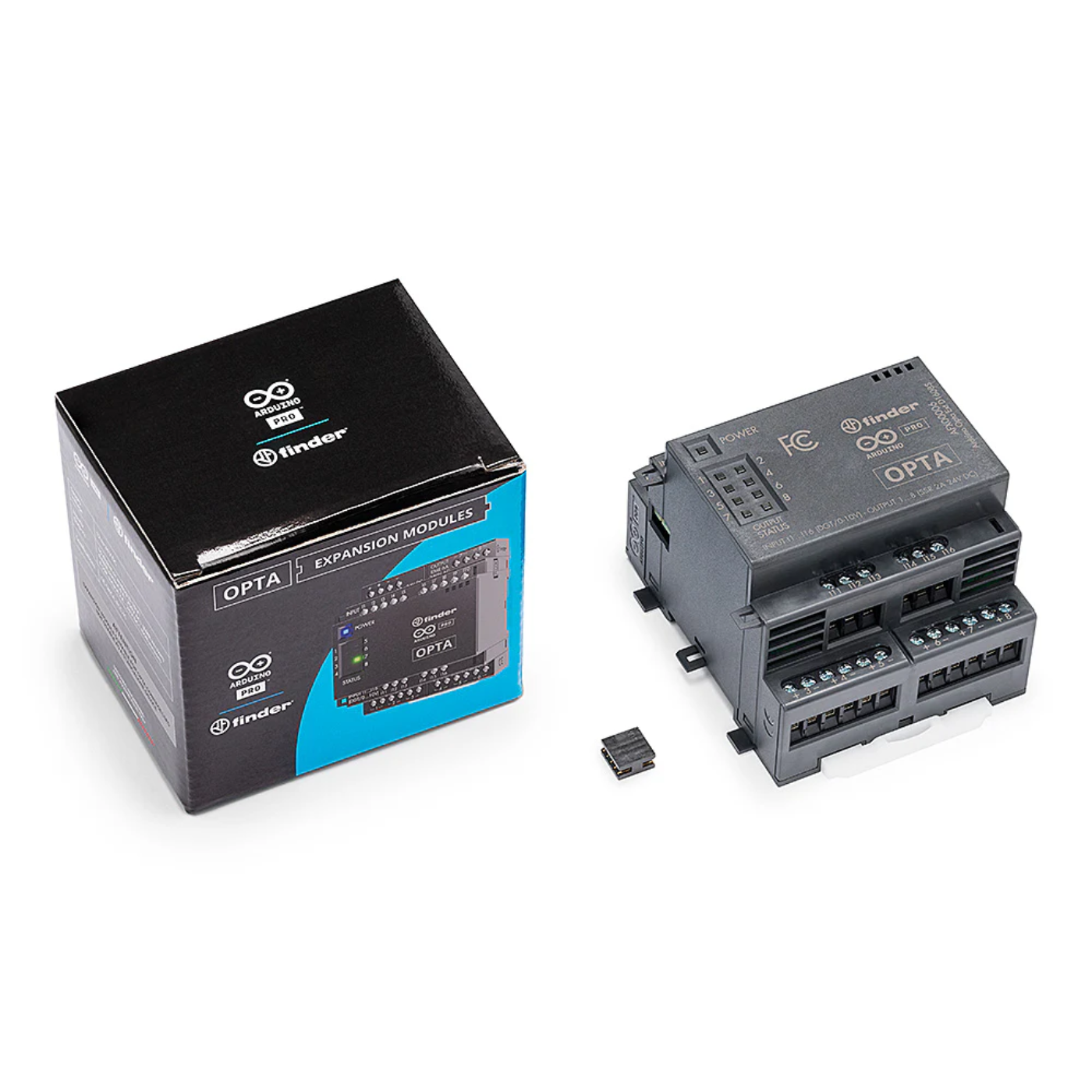

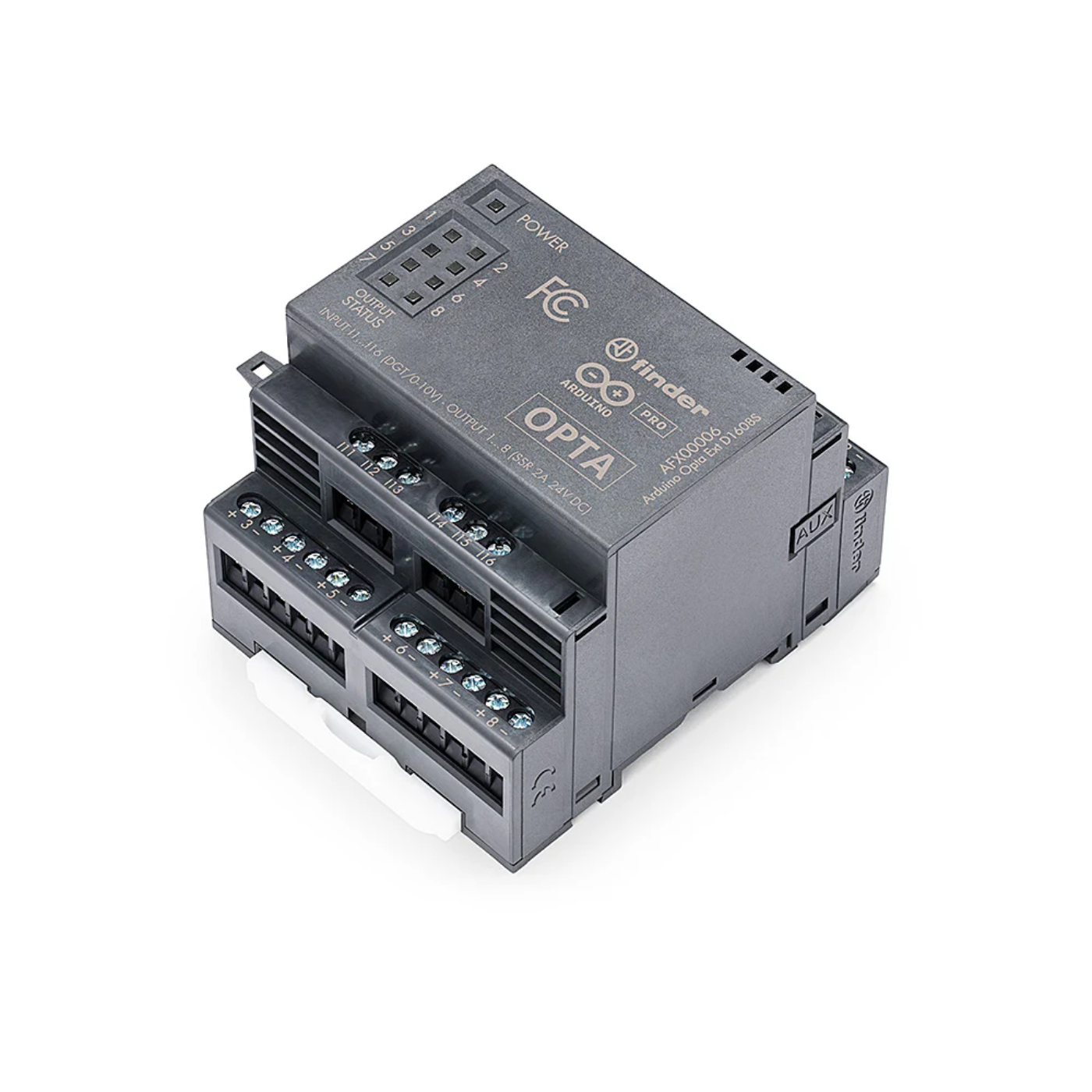

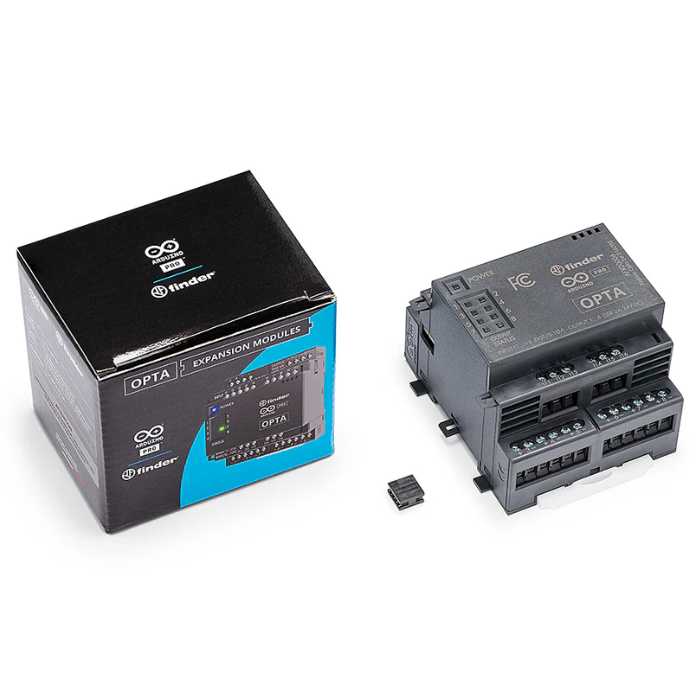

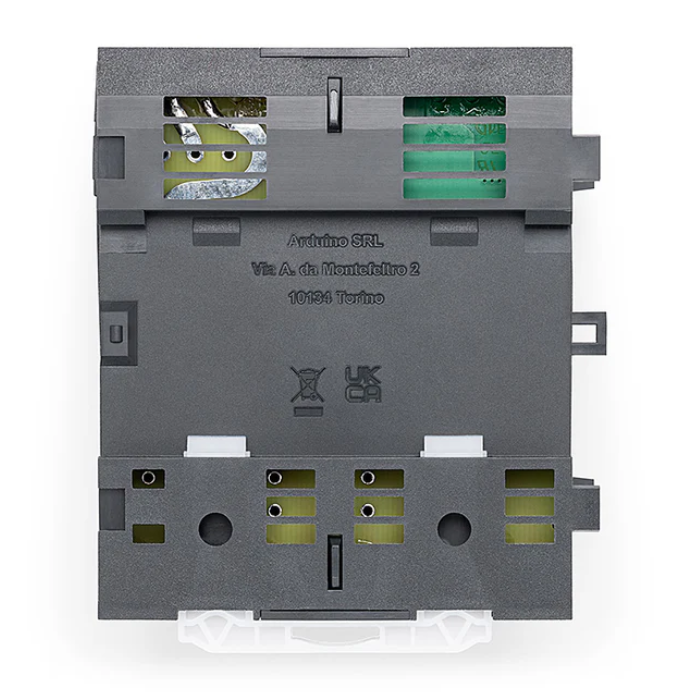

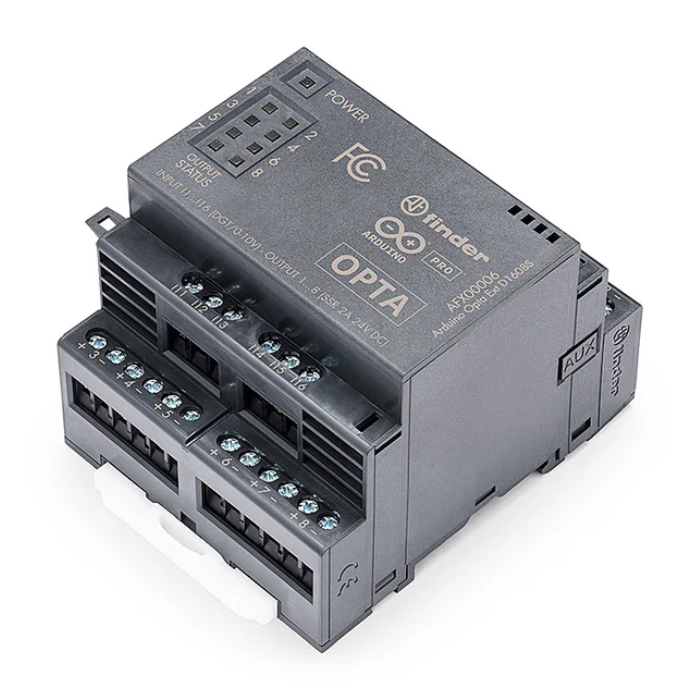

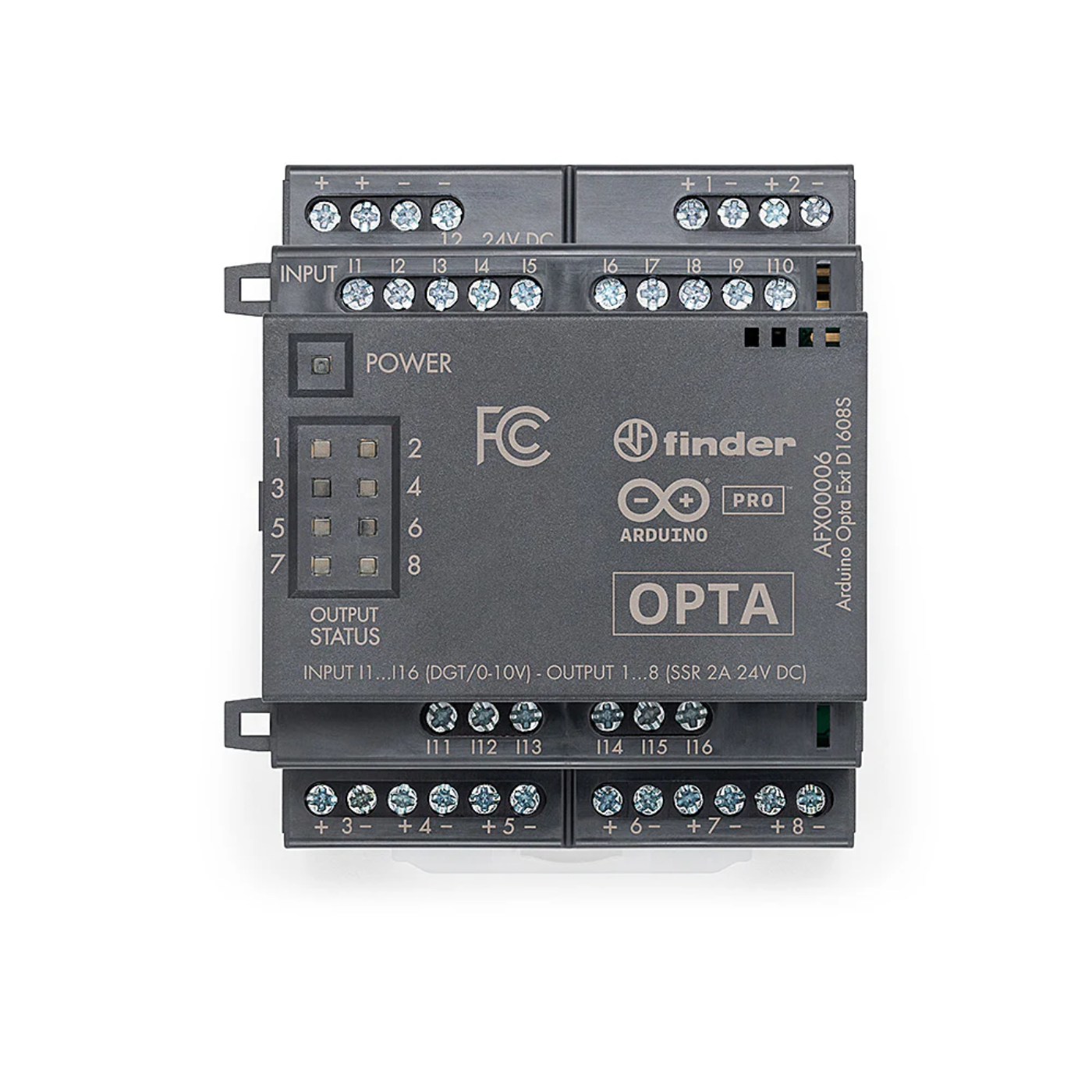

Official Arduino Pro Opta Ext D1608S
The Official Arduino Pro Opta Ext D1608S is a powerful expansion module designed to elevate the capabilities of your Arduino Opta. Engineered for real-time control, monitoring, and predictive maintenance, this module adds 16 programmable voltage inputs and 8 solid-state relays (24 VDC, 2A) to your system.
Installation is simple just snap the module onto the Opta base unit to instantly extend its I/O functionality. With seamless integration into the Arduino ecosystem or the IEC 61131-3 compliant PLC IDE, the D1608S allows for flexible, fast deployment in industrial and automation environments, ensuring robust and scalable control applications.
Features:
- Snap-On Modular Design: Supports up to 5 additional expansion modules, allowing flexible and scalable I/O configurations.
- Dual Programming Compatibility: Fully compatible with the Official Arduino IDE and PLC IDE (IEC 61131-3 standard), offering flexibility for developers and industrial programmers alike.
- Arduino Cloud Integration: Seamlessly connects with the Official Arduino Cloud for real-time remote monitoring, control, and customizable dashboards.
- Industrial-Grade Reliability: Engineered with industrial certifications to ensure robust performance, safety, and durability in demanding environments.
- DIN Rail Mountable: Features an easy-to-install DIN rail design, ideal for efficient setup in control cabinets and industrial enclosures.
Applications:
-
Industrial Automation: Increase control points for production lines, machinery, and automated equipment, enabling precise real-time monitoring and actuation.
-
Building Management Systems: Control lighting, HVAC, and security systems with additional relay outputs and voltage inputs for smart buildings.
-
Predictive Maintenance: Monitor equipment status and automate maintenance alerts or corrective actions using real-time data from multiple inputs.
-
IoT and Remote Monitoring: Integrate with Arduino Cloud for remote visualization, control, and management of industrial or commercial systems.
-
Modular Expansion for Opta Systems: Easily scale your control system by adding up to 5 snap-on modules to increase I/O capacity as project demands grow.
-
Educational and Research Applications: Ideal for prototyping and testing control and automation solutions in labs, training centers, or R&D environments.
-
Multi-Device Connectivity Projects: Coordinate multiple sensors, actuators, and relays efficiently for complex automation and IoT deployments.
1. How to connect the Arduino Pro Opta Ext D1608S to an Opta controller?
You can connect the Arduino Pro Opta Ext D1608S to your Opta PLC controller using the RS485 communication interface with a shielded twisted-pair cable. This enables smooth integration and expansion of input and output capabilities for industrial automation systems. Ensure proper termination at the far end of the bus to prevent signal reflections.
2. How to configure the Opta Ext D1608S Expansion Board in the Arduino PLC IDE?
You can configure the Opta Ext D1608S Expansion Board in the Arduino PLC IDE by selecting the correct COM port and defining the I/O mapping for its 16 digital inputs and 8 solid-state outputs. Once configured, it allows you to control and monitor connected devices efficiently within your ladder logic or structured text program.
3. How to power the Arduino Pro Opta Ext D1608S Expansion Board?
The Opta Ext D1608S operates on a 24V DC power supply connected to its spring-clamp terminals. You should ensure the power terminals are connected securely with the correct polarity to avoid damage and maintain stable operation in industrial environments with fluctuating loads and electrical noise.
4. How to use the Opta Ext D1608S for industrial automation projects?
The Arduino Opta Ext D1608S Expansion Board can extend your system's input and output options with optically isolated digital inputs and solid-state relay outputs. It's ideal for automation applications such as process control, machine monitoring, and smart building systems where silent switching and high cycle life are required.
5. How to troubleshoot communication issues with the Opta Ext D1608S?
If your Opta Ext D1608S isn’t communicating properly, you should check the RS485 wiring for continuity and correct A/B polarity, verify the power supply is within tolerance, and confirm the address configuration matches the network settings. Verifying baud rate settings and updating firmware through the PLC IDE can also fix connection issues.
Documentation
- Datasheet
For the full technical documentation, tutorials and much more, visit Arduino Docs
1. What is the Arduino Pro Opta Ext D1608S used for?
The Arduino Pro Opta Ext D1608S is an I/O expansion module that increases the digital input and output capacity of the Arduino Opta PLC. You can use it to connect more sensors, switches, relays, and actuators in industrial setups. It’s designed to enhance control and monitoring in automation systems.
2. How does the Arduino Pro Opta Ext D1608S connect to the Opta PLC?
The Opta Ext D1608S connects directly to the Arduino Pro Opta PLC using its built-in interface with support for Modbus RTU and Modbus TCP. You get seamless integration and reliable data transfer between units. This ensures stable communication in complex industrial networks.
3. What are the main features of the Arduino Pro Opta Ext D1608S module?
This module offers 16 digital inputs and 8 digital outputs, built for industrial-grade performance with high-voltage isolation and DIN rail mounting. You benefit from noise-resistant operation and long-term reliability. Its robust design makes it ideal for demanding automation environments.
4. What types of projects can benefit from the Arduino Pro Opta Ext D1608S?
This I/O expansion module is perfect for factory automation, machine control, building management, and IoT-based monitoring systems. You can scale your setup to manage more devices without replacing the core controller. It’s ideal for professional industrial projects requiring flexible I/O expansion.
5. Can I use the Arduino IDE or Arduino PLC IDE to program the Opta Ext D1608S?
Yes, the Arduino Pro Opta Ext D1608S is fully compatible with both the Arduino IDE and Arduino PLC IDE, allowing you to configure, program, and monitor extended I/O functions easily. You can write logic, debug in real time, and maintain consistency across your automation system using familiar tools.
6. Does the Arduino Pro Opta Ext D1608S support industrial safety and reliability standards?
Absolutely—the Opta Ext D1608S is built with industrial-grade components, providing signal isolation, surge protection, and stable communication. You can deploy it in electrically noisy or harsh environments with confidence. It ensures long-term, safe operation in mission-critical applications.
7. How does the Opta Ext D1608S help in scaling industrial control systems?
By adding 16 digital inputs and 8 digital outputs, the Arduino Pro Opta Ext D1608S allows you to expand your Arduino Opta PLC system without redesigning the core architecture. You can integrate additional sensors and actuators seamlessly. This modular approach simplifies scaling for growing automation needs.
