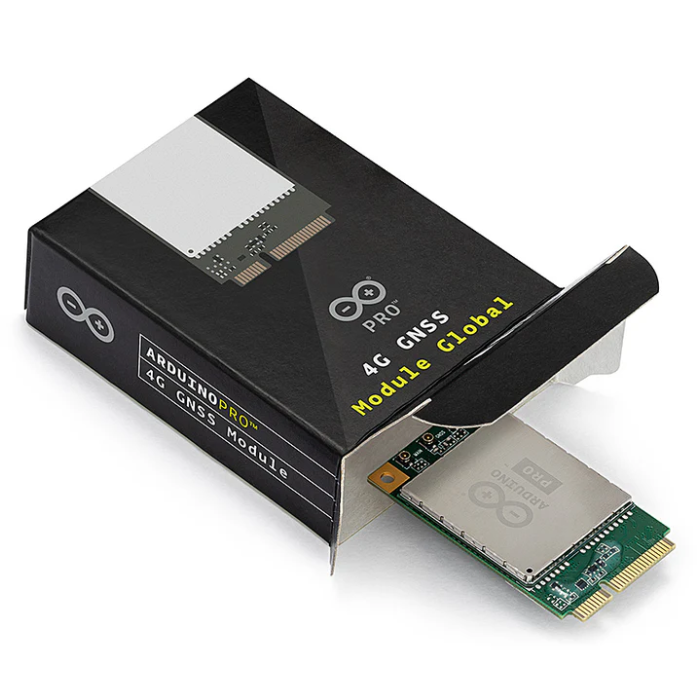

Official Arduino Pro 4G GNSS Module Global
The Arduino Pro 4G GNSS Module Global is a cutting-edge solution designed to significantly expand the connectivity capabilities of your Arduino Portenta projects, allowing you to unlock their full potential without needing to change the main board.
This versatile module, featuring a robust Quectel EG25-G Cat.4 modem and a Qualcomm MDM9x07 chipset, ensures fast data throughput and high bandwidth for quick downloads and uploads, even in the most remote locations. Its secure data transfer and long-range coverage make it an ideal choice for applications operating in challenging environments.
Developed in the widely adopted Mini PCIe form factor, this Arduino Pro 4G GPS Module integrates seamlessly into a variety of projects. Beyond providing reliable global 4G connectivity, it also guarantees backward compatibility with 2G and 3G networks, ensuring broad coverage.
The GNSS Arduino Pro functionality supports multiple satellite systems including GPS, GLONASS, BeiDou, Galileo, and QZSS, offering precise positioning for applications like fleet management and asset tracking. This module makes remote maintenance, firmware updates, and error analysis via the Arduino Cloud more efficient than ever.
Features:
- Modem: Quectel EG25-G, LTE Cat.4 with 2G/3G fallback for global coverage.
- Chipset: Qualcomm MDM9x07 for reliable performance.
- GNSS: Supports GPS, GLONASS, BeiDou (COMPASS), Galileo, and QZSS.
- Form Factor: Standard Mini PCIe for easy hardware integration.
- Data Throughput: High-speed for quick data download and upload.
- Network Compatibility: Global 4G LTE, with WCDMA (3G) and GSM (2G) support.
- Interfaces: USB, UART, PCM/I2C for versatile connections

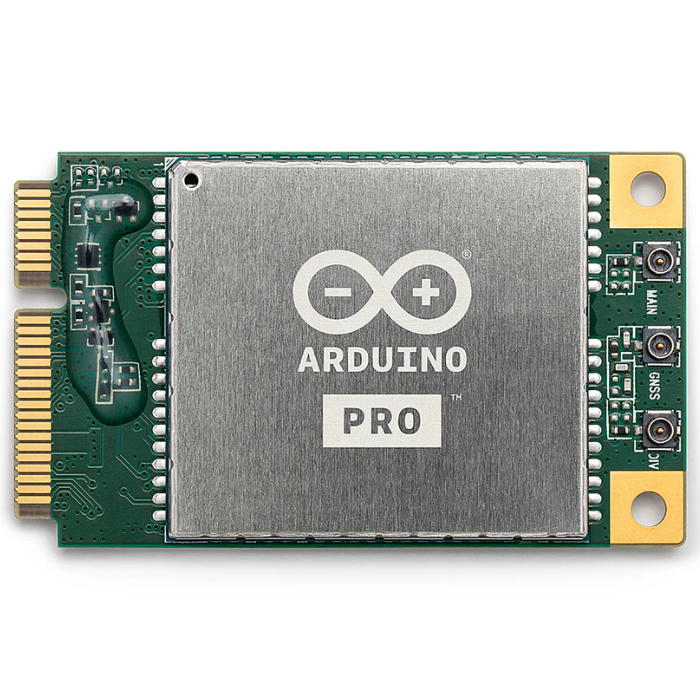

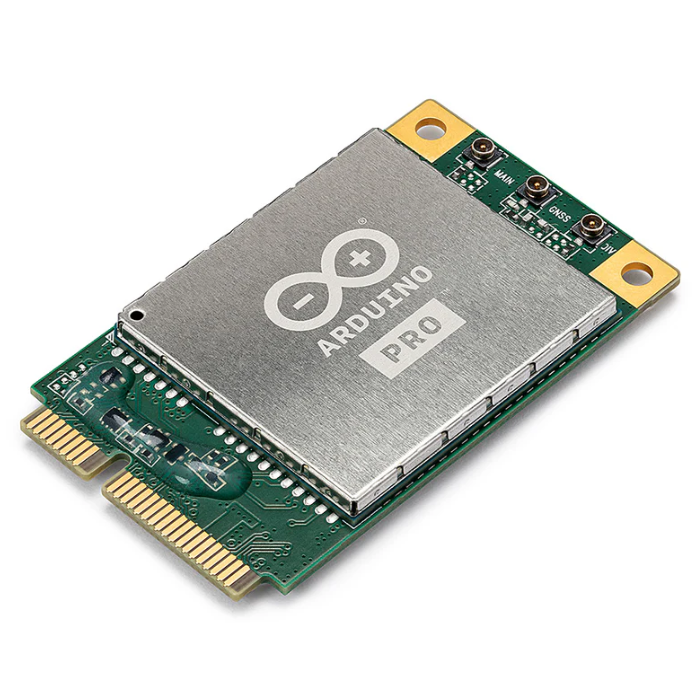

- Antenna Connectors: Main, diversity, and GNSS antenna receptacles
- Audio: Digital Audio (PCM) supported for voice applications
- Remote Management: Ideal for Arduino Cloud integration for updates and monitoring.
- SMS Functionality: Allows sending and receiving SMS for notifications.
Documentation
- Datasheet
For the full technical documentation, tutorials and much more, visit Arduino Docs
1. What is the Arduino Pro 4G GNSS Module Global used for?
The Arduino Pro 4G GNSS Module Global enables reliable 4G LTE connectivity and precise global positioning using integrated cellular and satellite systems. It’s ideal for IoT, asset tracking, and remote monitoring projects that require real-time location data and secure data transmission over long distances.
2. Does the module support both 4G and GNSS features simultaneously?
Yes, this Arduino Pro module can run 4G communication and GNSS positioning concurrently without performance degradation. You can transmit sensor data over LTE while continuously logging or streaming GPS coordinates, making it perfect for applications requiring data exchange along with accurate GPS tracking.
3. Which networks are compatible with the Arduino Pro 4G GNSS Module Global?
The TPX00200 module supports global 4G LTE Cat.1 connectivity across multiple frequency bands, ensuring compatibility with major international cellular networks in North America, Europe, Asia, and Oceania. This global support makes it suitable for worldwide deployment in scalable IoT solutions.
4. How can I integrate the module with an Arduino board?
You can connect the Arduino Pro 4G GNSS Module to compatible Arduino Pro boards such as the Opta or Portenta using the standardized high-density connectors. The setup works seamlessly with the Arduino IoT Cloud and Arduino IDE, simplifying configuration, firmware updates, and data management through a unified development environment.
5. What kind of positioning data does the GNSS feature provide?
The built-in GNSS system delivers accurate latitude, longitude, altitude, and time data by leveraging multiple satellite constellations including GPS, GLONASS, Galileo, and BeiDou. This multi-system support ensures precise positioning for IoT and tracking applications, even in challenging environments like urban canyons or under partial foliage.
6. Is the module suitable for outdoor and industrial applications?
Yes. The Arduino Pro 4G GNSS Module Global is built for robustness and reliability with industrial-grade components and EMI shielding, making it suitable for outdoor deployments, logistics tracking, smart agriculture, and industrial IoT use cases exposed to temperature extremes, vibration, and moisture.
7. What accessories are needed to start using the module?
To get started, you’ll need a compatible Arduino Pro board, a 4G antenna for LTE communication, a GNSS antenna for satellite reception, and an active SIM card with data service from a supported carrier. Once connected, you can configure it easily using the Arduino IDE and IoT Cloud platform for immediate prototyping and deployment.
Warranty Coverage:
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
Warranty Void If:
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
