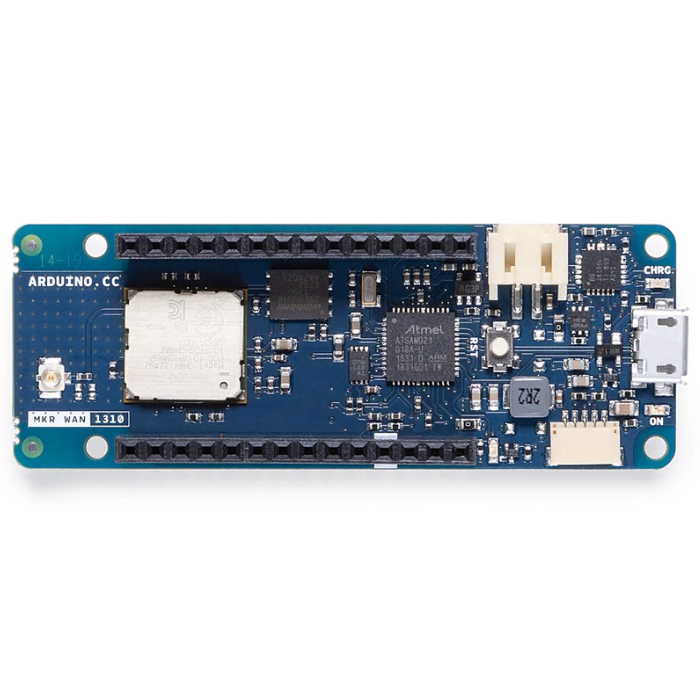

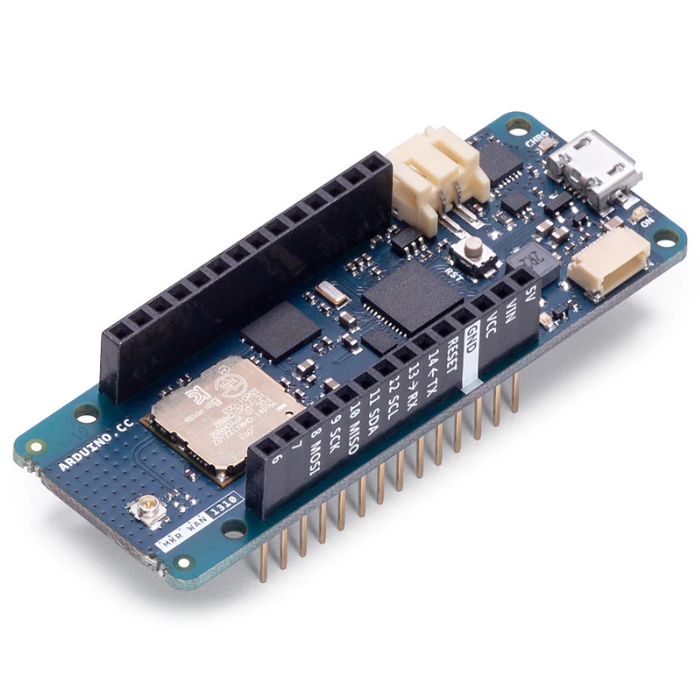

Official Arduino MKR WAN 1310 Development Board
The Official Arduino MKR WAN 1310 is an open-source development board designed to bring reliable and energy-efficient LoRa connectivity to your IoT projects.
Ideal for applications requiring low power consumption, this board integrates the powerful Arm Cortex-M0 32-bit SAMD21 processor, the advanced Murata CMWX1ZZABZ LoRa module, and the ECC508 crypto-chip for enhanced security.
It offers seamless connectivity with the Arduino IoT Cloud, custom LoRa networks using the Arduino LoRa PRO Gateway, and existing LoRaWAN infrastructures like The Things Network.
As part of the versatile MKR family, it supports a wide range of compatible shields, allowing users to prototype and deploy IoT solutions quickly and efficiently.
Features:
-
LoRaWAN Connectivity: Easily transmit data from remote locations to gateways connected to The Things Stack (TTS), enabling cloud-based data access via the Arduino IoT Cloud.
-
The Things Network Compatibility: Seamlessly integrates with LoRaWAN infrastructures like The Things Network for community-driven, wide-range wireless communication.
-
Peer-to-Peer Communication: Supports board-to-board communication—ideal for creating setups like remote LED control between two MKR WAN 1310 boards.
-
Flexible Networking Options: Use LoRa to implement your own private networks or connect to public LoRaWAN services.
-
Reliable Build Quality: Built to Arduino’s high standards, ensuring consistent performance and durability for long-term IoT applications.
Arduino MKR WAN 1310 Pinout Diagram:
1. How to set up the Arduino MKR WAN 1310 for the first time?
Connect the Arduino MKR WAN 1310 via micro-USB and open the Arduino IDE. Install the SAMD core from Boards Manager, then select the board under Tools ? Board and the correct port. Upload an example to verify serial output and basic LoRa setup.
2. How to connect the MKR WAN 1310 to a LoRa network?
Use the MKRWAN library and the provided examples to join a LoRaWAN network (OTAA/ABP). Enter your DevEUI/AppEUI/AppKey and region, then call begin() with the proper band plan. For private LoRa links, configure frequency, SF, and coding rate per gateway settings.
3. How to power the Arduino MKR WAN 1310 efficiently?
Power from USB, a Li-Po battery (via JST), or an external VIN rail for field deployments. This Arduino MKR board includes a charger and low quiescent draw to suit long-term nodes. Monitor battery voltage in code to manage duty cycle and extend runtime.
4. How to use the onboard memory for data logging?
Leverage the built-in flash storage to buffer sensor data between uplinks. Use Arduino file APIs to append timestamped records and purge after confirmed transmissions. This reduces airtime while preserving complete sensor readings locally.
5. How to connect sensors and external modules to the Arduino MKR WAN 1310?
Interface peripherals over I2C, SPI, or UART using the dedicated MKR pins. Keep wires short, add pull-ups for I2C, and level-shift 5V modules to 3.3V. For remote sensors, consider low-power buses and wake-on-interrupt designs.
6. How to optimize power consumption on the MKR WAN 1310?
Adopt duty-cycled sampling and sleep with the ArduinoLowPower library between transmissions. Disable unused interfaces, lower clock where possible, and minimize radio airtime. The MKR WAN 1310 is designed for ultra-low-power IoT nodes with multi-month battery life.
Documentation
The MKR WAN 1310 is open-source hardware! You can build your own board using the following files:
- Eagle File
- Schematics
- Fritzing
For the full technical documentation, tutorials and much more, visit Arduino Docs
1. What is the Arduino MKR WAN 1310 used for?
The Arduino MKR WAN 1310 is a low-power IoT development board designed for projects requiring long-range LoRa connectivity. You can use it to build remote sensor networks, smart agriculture systems, and smart cities applications where devices are spread over large areas. Its LoRa capability enables communication over several kilometers in open terrain.
2. How does the MKR WAN 1310 differ from other MKR boards?
The MKR WAN 1310 board stands out with its integrated LoRa module and optimized power efficiency, making it ideal for battery-powered IoT deployments that must run for months or years. You get reliable, low-bandwidth communication with minimal energy use, unlike Wi-Fi or Bluetooth-based MKR variants. This makes it perfect for remote, off-grid installations.
3. Can the Arduino MKR WAN 1310 connect to The Things Network (TTN)?
Yes, the Arduino MKR WAN 1310 Development Board can easily connect to The Things Network (TTN) using LoRaWAN communication, allowing you to send sensor data to the cloud through public or private gateways. You can register devices, manage payloads, and visualize data directly via TTN’s platform. This enables scalable, secure IoT applications with minimal infrastructure.
4. Is the MKR WAN 1310 suitable for outdoor IoT projects?
Absolutely—the Arduino MKR WAN 1310 is built for outdoor IoT systems like smart irrigation, environmental sensing, and asset tracking, thanks to its wide-area LoRa coverage and low energy consumption. You can deploy it in fields, forests, or urban environments where cellular or Wi-Fi isn’t available. It reliably transmits data even in challenging RF conditions.
5. What power options does the Arduino MKR WAN 1310 support?
The MKR WAN 1310 board supports both battery and USB power, giving you flexibility for off-grid IoT solutions. You can run it on a Li-Po battery for portable or remote deployments, leveraging its ultra-low sleep currents to extend life. This makes it ideal for low-energy applications requiring continuous, unattended operation.
6. Who should use the MKR WAN 1310 Development Board?
The Arduino MKR WAN 1310 is ideal for IoT developers, hobbyists, and researchers working on long-range wireless communication or remote data collection projects. If you need to monitor soil moisture, track wildlife, or manage remote infrastructure, this board provides the range, reliability, and ease of use to bring your LoRa-based IoT project to life.
Warranty Coverage:
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
Warranty Void If:
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
