Octal 3-state Inverting Buffer IC - 74HC540

Octal 3-state Inverting Buffer IC - 74HC540

Regular price Rs. 29
Regular price Rs. 39 Sale price Rs. 29
Sale Sold out 26% off Best Price Guaranteed
You save Rs. 10 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 8 hours and 46 minutes.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Output Drive Capability: 15 LSTTL Loads
  • Outputs Directly Interface to CMOS, NMOS, and TTL
  • Operating Voltage Range: 2.0 to 6.0 V
  • Low Input Current: 1 A
  • High Noise Immunity Characteristic of CMOS Devices
  • In Compliance With the JEDEC Standard No. 7 A Requirements
  • Chip Complexity: 124 FETs or 31 Equivalent Gates
  • NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
  • These Devices are Pb−Free and are RoHS Compliant
Trust Badge 1 Trust Badge 2 Trust Badge 3

Octal 3-state Inverting Buffer IC - 74HC540

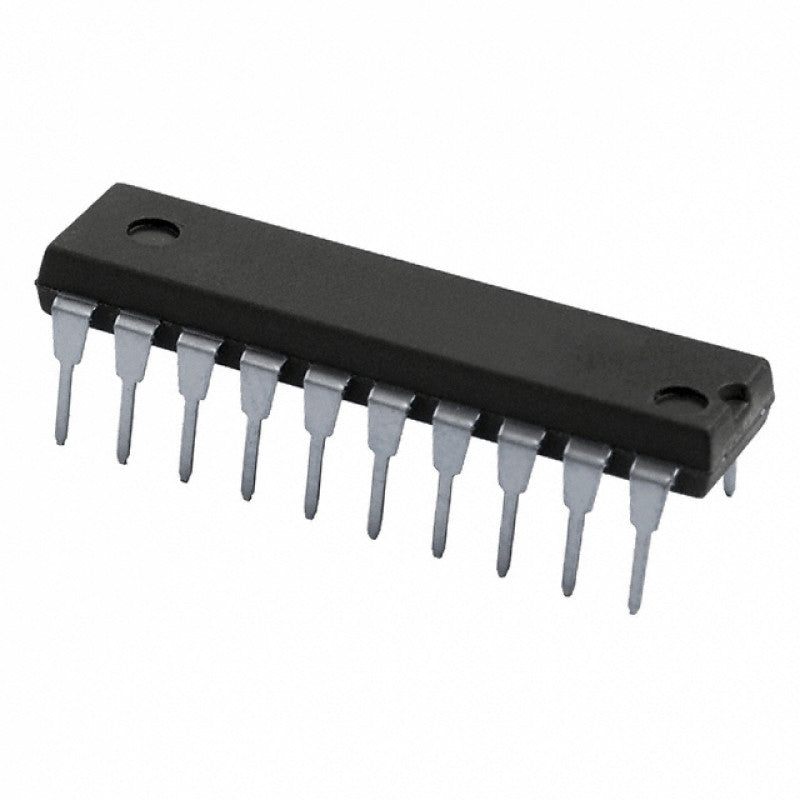

The 74HC Series 74HC540 is a 20 Pin Octal 3-state Inverting Buffer IC having a 2V to 6V Operating Voltage range with a 6mA output current. The 3-STATE  buffers utilize advanced silicon-gate  CMOS  technology.  They possess high drive current outputs, enabling high-speed operation even when driving large bus capacitances.

These circuits achieve speeds comparable to low-power Schottky devices while retaining the advantage of CMOS circuitry, i.e., high noise immunity, and low power consumption. Both devices have a fanout of 15 LS-TTL equivalent inputs. The  74HC540  is an inverting buffer and the MM74HC541 is a non-inverting buffer. The 3-STATE control gate operates as a two-input NOR such that if either G1 or  G2 is HIGH,  all eight outputs are in the high-impedance state.

Pinout:

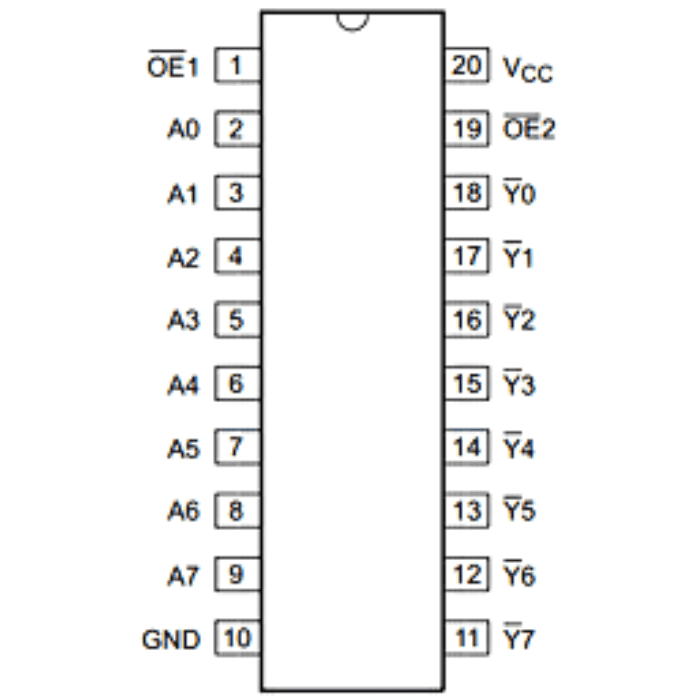

Pinout Of 74HC540 IC

Package Includes:

  • 1 x IC - 74HC540

Specifications:

Supply Voltage − 0.5 to + 7.0V
DC Input Voltage –0.5 to VCC + 0.5
DC Output Voltage −0.5 ≤ VO ≤ VCC + 0.5
DC Input Diode Current ±20 mA
DC Output Diode Current ±35 mA
Output Current ± 35 mA
DC VCC or GND Current, per pin ± 75 mA
Storage Temperature Range − 65°C to + 150 °C
Power Dissipation 500 mW
Lead Temperature 260 °C
