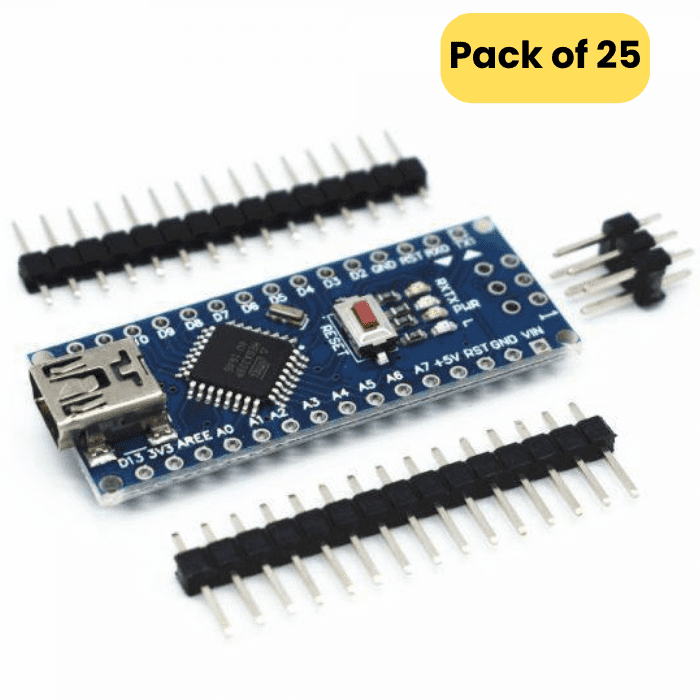

- This is Nano Board R3 compatible with Arduino (Pack of 25)
- The Nano R3 board for Arduino is powered via the Mini-B USB connection.
- It is integrated with 14 digital pins and 8 analog inputs all with 10 bits of resolution.

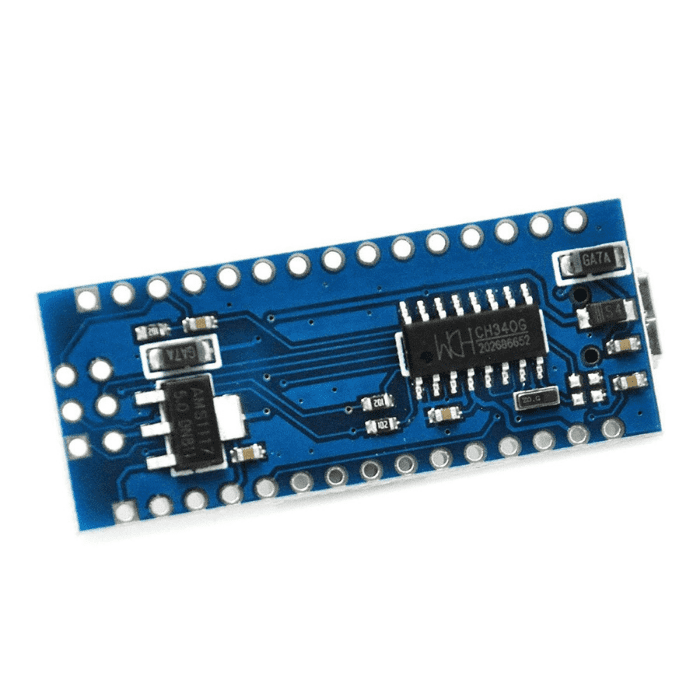

- The Nano Board R3 board is equipped with CH340 chip.
- This Nano R3 Arduino board has an operating voltage of 5V.

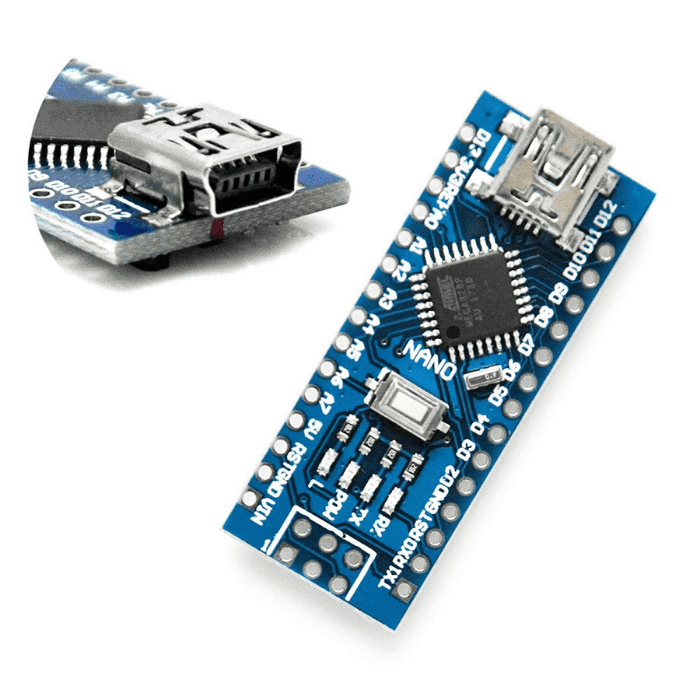

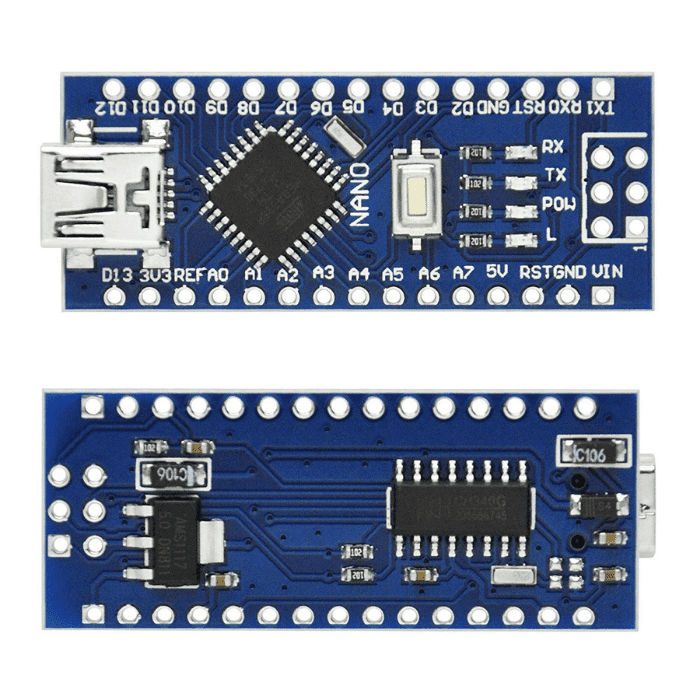

Nano Board R3 compatible with Arduino
The Nano board R3 is integrated with the CH340 chip and is compatible with Arduino. Each of the 14 digital pins on the Nano can be used as an input or output, using pinMode(), digitalWrite(), and digitalRead() functions. They operate at 5 volts. Each pin can provide or receive a maximum of 40 mA and has an internal pull-up resistor (disconnected by default) of 20-50 kOhms.
The Nano R3 board for Arduino is a small and breadboard friendly microcontroller development board. This Nano Arduino board is designed based on ATmega328 and has similar functionality of the UNO board. It features automatic reset during program download and supports ISP download, power supply by 9V battery, and external 5V ~ 12V DC power supply.
Applications:
- Automation
- Robotics
- Control Systems
- Embedded Computer
- Embedded Computer
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
Arduino Leonardo R3 compatible board
Arduino Uno R3 Board compatible
Arduino MEGA 2560 Atmel R3 compatible Board
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 25 x Nano R3 Board compatible with Arduino
Specifications:
| Microcontroller | ATmega328 |
| Analog Input Ports | 8 (A0 ~ A7) |
| Digital I/O Ports | 14 (TX, RX, D2 ~ D13) |
| Operating Voltage | 5V |
| Dimensions | 4.3 x 1.8 x 1cms |
| Weight | 5 grams |
1. What is Nano R3?
- The Nano board R3 incorporates the CH340 chip and is Arduino compatible. Using the pinMode(), digitalWrite(), and digitalRead() functions, each of the Nano's 14 digital pins can be used as an input or output. They run on 5 volts. Each pin has an internal pull-up resistor of 20-50 kOhms and can provide or receive a maximum of 40 mA.
2. What is Nano used for?
- The Nano R3 board is a small, breadboard-friendly microcontroller development board used in automation, robotics, control systems, embedded computer, and embedded computer.
