MPU-9250 9-Axis Attitude Gyro, Accelero, and Magnetometer Sensor Module

MPU-9250 9-Axis Attitude Gyro, Accelero, and Magnetometer Sensor Module-Robocraze
MPU-9250 9-Axis Attitude Gyro, Accelero, and Magnetometer Sensor Module-Robocraze
MPU-9250 9-Axis Attitude Gyro, Accelero, and Magnetometer Sensor Module-Robocraze
MPU-9250 9-Axis Attitude Gyro, Accelero, and Magnetometer Sensor Module-Robocraze
MPU-9250 9-Axis Attitude Gyro, Accelero, and Magnetometer Sensor Module-Robocraze
  • MPU-9250 9-Axis Attitude Gyro, Accelero, and Magnetometer Sensor Module-Robocraze
  • MPU-9250 9-Axis Attitude Gyro, Accelero, and Magnetometer Sensor Module-Robocraze
  • MPU-9250 9-Axis Attitude Gyro, Accelero, and Magnetometer Sensor Module-Robocraze
  • MPU-9250 9-Axis Attitude Gyro, Accelero, and Magnetometer Sensor Module-Robocraze
  • MPU-9250 9-Axis Attitude Gyro, Accelero, and Magnetometer Sensor Module-Robocraze

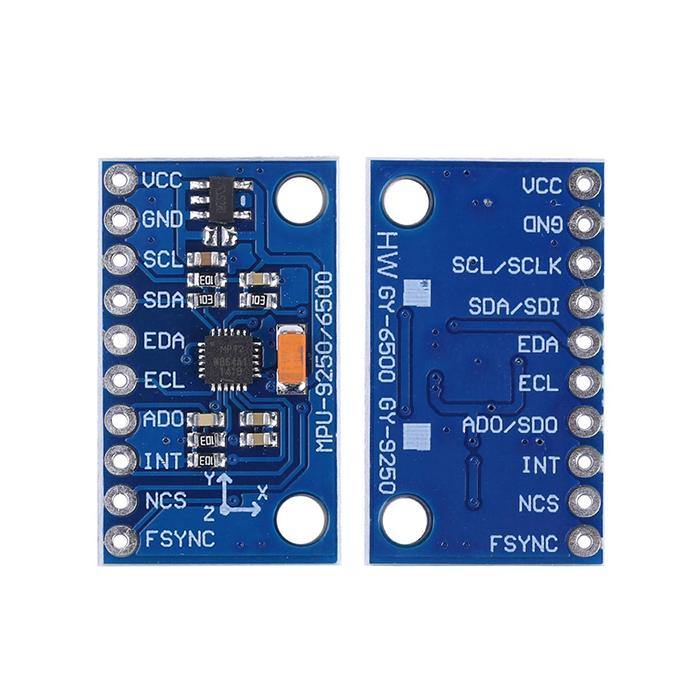

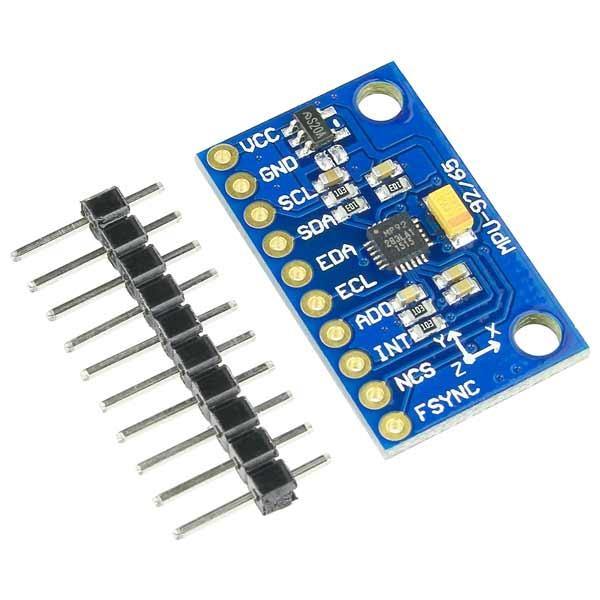

MPU-9250 9-Axis Attitude Gyro, Accelero, and Magnetometer Sensor Module

Regular price
Rs. 779
Sale price
Rs. 779
Regular price
Rs. 940
You save Rs. 161
17% off
You save Rs. 161
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team
  • Acceleration, Gyroscope, and Magnetometer
  • 9 DOF modules (three-axis gyroscope + triaxial accelerometer and three-axis magnetic field + atmospheric pressure).
  • Build-in ultra-low noise linear LDO voltage regulator.
  • Built-in onboard filters, which reduce noise from the motor and other high current electronics.
  • All sensors connected to the I2C bus.
  • Build-in the Logic level converter for I2C.
  • Power indicator LED.
  • Using Immersion Gold PCB, machine welding process to ensure quality.

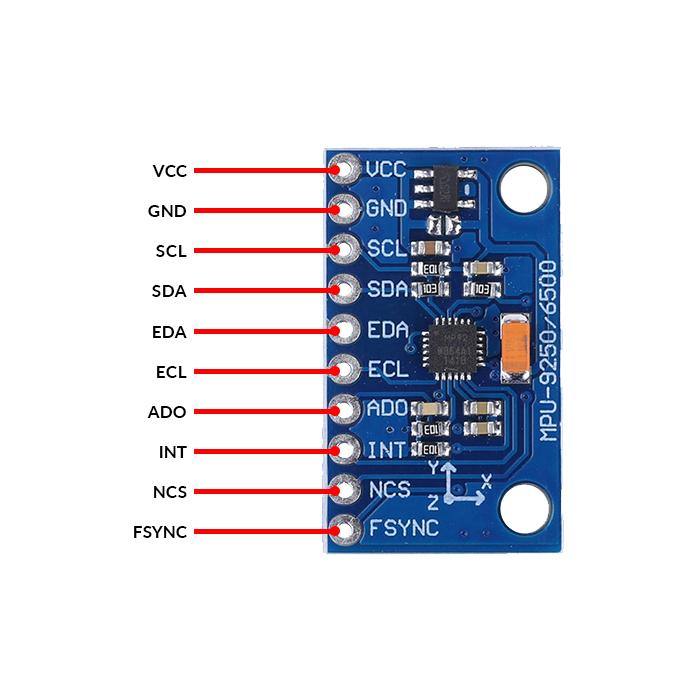

MPU-9250 9-Axis Attitude Gyro, Accelero, and Magnetometer Sensor Module

MPU9250 9-Axis Attitude Gyro Accelerator Magnetometer Sensor Module features the MPU-9250, which is a multi-chip module (MCM) consisting of two dies integrated into a single QFN package. One die houses the 3-Axis  accelerometer and gyroscope. The other die houses the AK8963 3-Axis magnetometer. Hence, the MPU-9250 is a 9-axis Motion Tracking device that combines a 3-axis accelerometer, gyroscope and magnetometer, and a Digital Motion Processor (DMP). It is based on I2C Address, Address: 0x68 by default, 0x69 if AD0 is pulled high.

The MPU-9250 also features an embedded temperature sensor. This module includes pull-up resistors on the SDA, SCL, and nCS lines, pull-down resistors on the FSYNC and AD0 lines, and an onboard 3.3V voltage regulator allowing you to power the module from 5V sources such as an Arduino. If you desire to power the module from 3.3V you can bridge the solder jumper next to the voltage regulator to bypass the regulator.

Applications

  • FPV, RC, and Robots systems
  • GPS navigation systems
  • Impact recognition and logging
  • Gaming and virtual reality input devices
  • Motion-activated functions
  • Intelligent power saving for handheld devices
  • Vibration monitoring and compensation
  • Free-fall detection
  • 6D-orientation detection

Package Includes:

  • 1 x MPU-9250 Module

Specifications

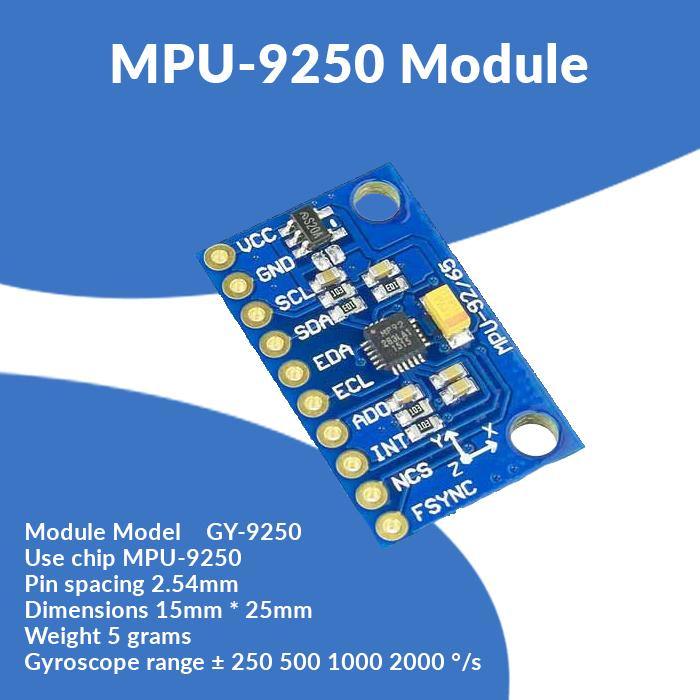

Module Model GY-9250
Use chip MPU-9250
Pin spacing 2.54mm
Gyroscope range ± 250 500 1000 2000 ° / s
Dimensions  15mm * 25mm
Weight  5 grams

1. What does an MPU 9250 do?

  • The MPU-9250 has an embedded Digital Motion Processor that can offload computation of motion processing algorithms from the MCU, allowing it to focus on other tasks. It makes use of information from the accelerometer, gyroscope, and even external sensors like magnetometers.

2. What is an MPU-9250 module?

  • The MPU-9250 is a 9-axis Motion Tracking device that combines a 3-axis accelerometer, gyroscope and magnetometer, and a Digital Motion Processor (DMP). The MPU-9250 also features an embedded temperature sensor. This module includes pull-up resistors on the SDA, SCL, and nCS lines, pull-down resistors on the FSYNC and AD0 lines, and an onboard 3.3V voltage regulator allowing you to power the module from 5V sources such as an Arduino.

3. What is the working principle of the MPU-9250?

  • The MPU-9250 communicates to a system processor using either a SPI or an I2C serial interface. The MPU9250 always acts as a slave when communicating with the system processor. The LSB of the I2C slave address is set by pin 9 (AD0).  It can process it at high speed and make it available to the host MCU.

4. What is Digital Motion Processor (DMP) in MPU?

  • The MPU-9250 has an embedded Digital Motion Processor that can be used to off-load computation of motion processing algorithms from the MCU, freeing it up to be doing other things. It uses the data from the accelerometer, gyroscope, and even external sensors such as magnetometers.  It can process it at high speed and make it available to the host MCU.

5. What can we do with MPU-9250?

  • The MPU-9250 is a high-performance accelerometer, gyroscope, and magnetometer option for use in applications such as gesture recognition in gaming, self-balancing robots, toys, cell phones, vehicle navigation, fitness monitoring, and similar applications where detection of movement direction and magnitude along with rotation is desired. Both the accelerometer and gyroscope each make use of three 16-bit ADCs with four programmable ranges for high sensitivity. The magnetometer makes use of three 14-bit ADCs.
