32×24 pixel IR thermal sensor array (768 thermal points)
Wide 110° field of view for broad thermal imaging
Temperature detection range: -40°C to 300°C
Accuracy: ±2°C for precise measurements
Factory-calibrated for out-of-the-box reliability
I2C digital communication interface for easy integration
Low power consumption: less than 23mA
Compact and lightweight breakout board design
Suitable for industrial diagnostics, research, IoT, and embedded systems

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

+91

Company / Client

GST *

Materials List

File(s) size limit is 20MB. Max 3 files.

Choose Categories * (select one or more)

Select Categories

STEM Kits Development Boards Electronic Components Drone 3D Printers/Pens Sensors Batteries & Power Supply Tools & Instruments

Enter the Captcha *

Reload Captcha

MLX90640 IR Thermal Camera Breakout 110° FOV I2C Interface - 7Semi

~~Rs 5,893/-~~ Rs 4,715/-

Quantity:

MLX90640 IR Thermal Camera Breakout 110° FOV I2C Interface - 7Semi

~~Rs 5,893/-~~ Rs 4,715/-

📄

Quick Decision

Best for Thermal Sensing
Wide View
Heat Detection
I2C Easy

✔️

Benefits

32x24 Sensor
110° View
Low Power
Fast Readout

⚖️

Pros & Cons

Wide FOV
Thermal Imaging
I2C Interface
Needs Processing

🎯

Use Cases

Heat Mapping
Human Detection
Fault Checking
Research Projects

Description
Specifications
Additional Resources
FAQ
Warranty
Shipping & Return

Description

MLX90640 IR Thermal Camera Breakout 110° FOV I2C Interface - 7Semi

Unlock professional-grade thermal imaging with the 7Semi MLX90640 IR Thermal Camera Breakout (110° FOV, I2C Interface). Featuring a high-resolution 32×24-pixel IR sensor array and an expansive 110-degree field of view, this compact module delivers accurate real-time thermal mapping over large areas in a single snapshot.

Engineered for precision and reliability, the MLX90640 covers a temperature detection range of -40°C to 300°C, with an accuracy of ±2°C. Its factory-calibrated sensor ensures reliable performance right out of the box.

Designed for seamless integration, the module operates via a standard I2C digital interface, making it compatible with a variety of microcontrollers and embedded platforms.

With ultra-low current consumption under 23mA, this breakout is ideal for battery-powered and portable applications. Whether you're working on industrial diagnostics, research, IoT projects, or embedded systems, the MLX90640 110° FOV Thermal Camera provides a robust and versatile thermal sensing solution in a lightweight, easy-to-use form factor.

MLX90640 Thermal Camera Breakout Captured Image

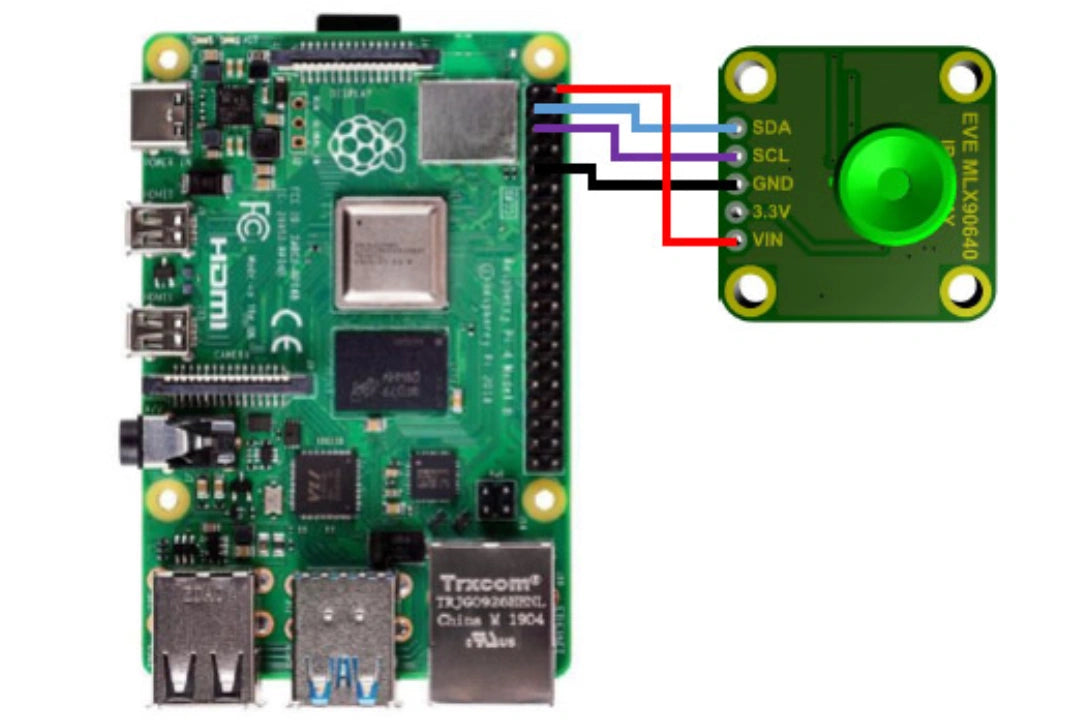

Camera Connection with Raspberry PI Circuit Diagram

7Semi MLX90641 and MLX90640 Thermal Camera Breakout Comparison Table

Features:

High-Resolution IR Sensor Array: 32×24-pixel thermal grid for detailed heat mapping.
Wide Field of View: 110° × 75° FOV covers expansive areas without repositioning.
Accurate Temperature Sensing: Measures from -40°C to 300°C with ±2°C precision.
Low Power Consumption: Efficient performance with current draw under 23mA.
Compact and Lightweight Design: Easy to mount and integrate into space-limited projects.
Factory Calibrated: Ready-to-use accuracy with no additional calibration required.
Digital I2C Interface: Seamless communication with 3.3V or 5V microcontrollers.
Programmable Refresh Rate: Adjustable from 0.5Hz to 64Hz for flexible performance.
Robust Operating Range: Functions reliably in ambient temperatures from -40°C to 85°C.
Low NETD Performance: 0.1K RMS at 1Hz enables detection of small temperature differences.

Specifications

Package Includes:

1 x 7Semi MLX90640 IR Thermal Camera Breakout 110° FOV I2C Interface

Specifications:

Specification	Details
Supply Voltage	3.3 - 5 V
Current Consumption	< 23 mA
Field of View (FOV)	-110 x 75 degrees
Operating Temperature	-40 ~ 85 °C
Target Temperature	-40 ~ 300 °C

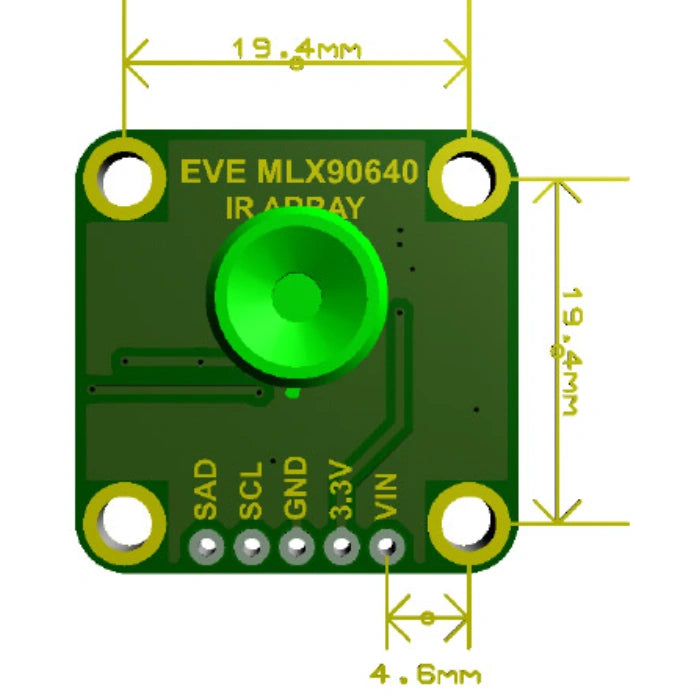

Dimensions (LxWxH)	2.8 x 2.6 x 0.8 cm
Weight	4 gm

Specifications:

Additional Resources

Related Blogs

Best Sensors for Arduino Beginners (Complete Guide)

09 June 2026

The best Arduino sensors for beginners are the DHT11 Temperature & Humidity Sensor, HC-SR04 Ultrasonic Sensor, and LDR Ligh...

Sensors

FAQ

1. What is the recommended working distance for the MLX90640?

The MLX90640 is a non-contact sensor. For accurate and meaningful spot measurements, a working distance of 10 cm to 1 meter is recommended. At a distance of 20 cm, each pixel covers approximately 1.2 cm of the target area. Because of the wide 110° field of view, reliable detection of small or specific heat sources becomes progressively more difficult at distances beyond 1–2 meters.

2. What are the resolution limitations of this thermal camera?

The sensor has a native resolution of 32×24 pixels, totaling 768 individual thermal detection points. While this is excellent for detecting general hotspots, human presence, or thermal leaks, it is too coarse for reading fine details (such as individual circuit board traces or tiny component faults). For finer detail, you must move physically closer to the target or use software-based image interpolation on your host microcontroller (like a Raspberry Pi).
