MKS OSC V1.0 Stepper Motor Drive Simple Controller Pulse PWM Signal Generator Module Speed Control 8-24V - Buy Online in India

MKS OSC V1.0 Stepper Motor Drive Simple Controller Pulse PWM Signal Generator Module Speed Control 8-24V

Rs. 539; ~~Rs. 649~~; Rs. 539
Unit price: per

Incl. GST (No Hidden Charges)

Please hurry! Only 265 left in stock

Quantity:

SKU: TIF3P0133

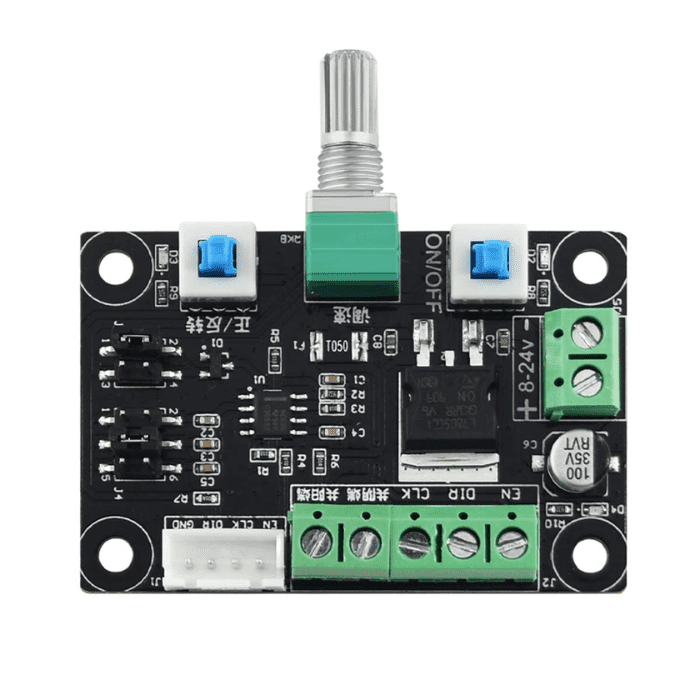

This is MKS OSC V1.0 Stepper Motor Drive Simple Controller Pulse PWM Signal Generator Module Speed Control 8-24V
This module is a pulse generating module, which supplies as a signal for stepper drivers. To control the stepper motor, it must be equipped with the driver.
Easy controller + stepper driver + stepper motor + DC power composed a simple control platform.
The controller consists of 3 kinds of frequency signal, including 5.4k-160khz, 540-16.6khz, 80-2.4khz, which can be chose by skipping stitch.
Support generating a pulse and PWM signal ,support skipping stitch choice.
Frequency measurement: the two ports of PUL and common-cathode (or common anode) can be measured .
