M5Stamp Pico Mate with Pin Headers
M5Stamp Pico Mate with Pin Headers
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Chip-set:ESP32-PICO-D4 (2.4GHz Wi-Fi and Bluetooth dual mode)
- Support UIFlow graphical programming
- Multi-IO pinout, support multiple application forms (SMT, DIP, fly-by-wire)
- Integrated programmable RGB LEDs and buttons
- Miniature module
| Also checkout M5 Stack Development Kits, Sensors&Hats, Cameras and Modules collection |

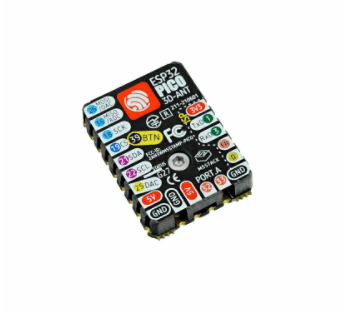

M5Stamp Pico Mate with Pin Headers
STAMP-PICO features an ultra-compact design with two low-power Xtensa® 32-bit LX6 microprocessors at 240MHz on a PCB are as tiny and delicate as a postage stamp. low power consumption. It is ideal for any space-constrained or battery-powered devices such as wearables, medical devices, sensors, and other IoT devices.
-
Multiform: 5 options of installation, means endless possibilities! (SMT, DIP, flywire, grove interface), with a high-temperature resistant plastic shell, 3D antenna and components can be better protected.
-
Low code development: STAMP-PICO supports UIFlow graphical programming platform, scripting-free, cloud push; and fully compatible with Arduino, MicroPython, ESP32-IDF, and other mainstream development platforms to quickly build various applications.
-
High Integration: STAMP-PICO contains 5V->3.3V DC/DC port, GPIOx12, programmable RGB light x1, button x1, finely tuned RF circuit, providing stable and reliable wireless communication.
-
Stong Expandability: Easy access to M5Stack's hardware and software ecology system: a wealth of sensors, actuators, functional modules, and accessories to choose from, Extremely fast adaptation.
Applications:
- Instrumentation
- Wi-Fi Remote Monitoring/Control
- Smart Home
- Color LED Control
- Fire/security intelligent integrated management
- Smart Card Terminal
- Wireless POS
Package Includes:
1 x M5Stamp Pico
1 x Heat Resistant Sticker
4 x Pin Headers
1 x 90° Grove Connector
1 x Hex Key
Specifications:
| Master Control Resource | ESP32-PICO-D4 |
| Flash | 4MB |
| Input Voltage | 5V @ 500mA |
| Power consumption | Normal standby:5V@29mA, WIFI STA mode: 5V@60mA, Bluetooth mode data sending status: 5V@84mA, Deep-sleep mode: 5V@0.35mA |
| Wireless communication distance | AP Mode: 16m, BLE Mode: 110m, Class Bluetooth Mode: 90m |
| UI | Programmable physical keys x 1, Programmable RGB LED (SK6812) x 1 |
| Antenna Type | 2.4G 3D Antenna |
| Wi-Fi | 802.11 b/g/n (up to 150 Mbps for 802.11n), spectrum range: 2.4 GHz ~ 2.5 GHz |
| Bluetooth | Bluetooth V4.2 BR/EDR and BLE standard, NZIF receiver, sensitivity up to -97 dBm |
| Module Resource Interface | ADC, DAC, touch sensor, SD/SDIO/MMC host controller, SPI, SDIO/SPI slave controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, IR remote controller, GPIO, pulse counter |
| IO interface x12 | G0, G1, G3, G26, G36, G18, G19, G21, G22, G25, G32, G33 |
| IO interface spacing | 2.54mm |
| Operating temperature | 0°C to 60°C |
| Dimensions | 18 x 24 x 4.4mm |
| Weight | 5gm |
