M5Stack Goplus2 DC Motor and Servo Driver Module (STM32F0)

Regular price
Rs. 2,335
Sale price
Rs. 2,335
Regular price
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team
  • 2x DC motor interface
  • 4x Servo interface
  • IR transmit & receive
  • 3x expand PORT B
  • STM32F030C8T6
  • Built in 500mAh battery
Also checkout M5 Stack Development Kits, Sensors&Hats, Cameras and Modules collection

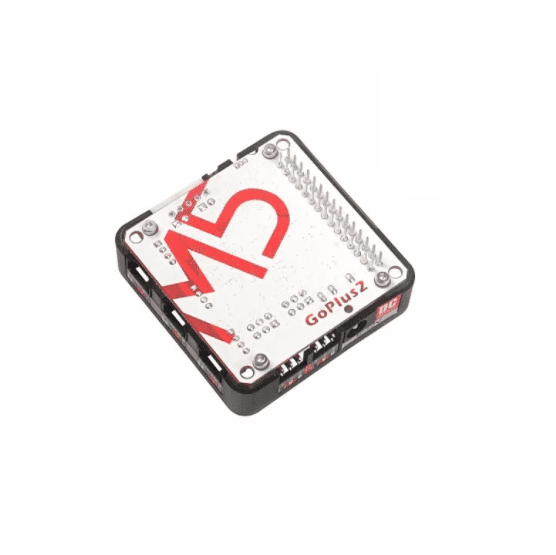

M5Stack Goplus2 DC Motor and Servo Driver Module (STM32F0)

M5Stack GoPlus2 is a stackable multi-functional motor and servo control module. The master control integrates the STM32F030C8T6 chipset. The module is equipped with a 2-way DC motor drive interface and a 4-way servo drive interface. Three PORT-B interfaces(Analog Input, Digital Output, Digital Input) can be expanded. Built-in 500mAh battery and support infrared (IR) transmission and reception. In order to meet the requirements of a multi-channel interface power supply at the same time, a DC power interface is provided for external power supply, the battery can be charged through the M5Core with USB-C.

Communication protocol: I2C(0x38)

Applications:

  • Actuator / motor driver
  • Acquisition and control of multiple input and output signals
  • Infrared controller
  • DIY Toy base

Package Includes:

1x GoPlus2 Module
2x DC Motor Cable

Specifications:

Main control chip STM32F030C8T6
Expand interface DC Motor x 2,PORT-B x 3, Servo x 4
motor drive DRV8833
IR Transmit and Receive
Battery 500mAh
Communication protocol I2C:0x38
Dimensions
54 x 54 x 13mm
Weight 58gm
