- ESP32-based, built-in Bluetooth, Wi-Fi
- 16M Flash,8M PSRAM
- Built-in speaker, power indicator, vibration motor, RTC, I2S amplifier, capacitive touch screen, power button, reset button
- TF card slot (16G Maximum size)
- Built-in lithium battery, equipped with power management chip
- Independent small board built-in 6-axis IMU, PDM microphone
- M-Bus Socket & Pins
- Compatible with multi-platform development UIFlow, MicroPython, Arduino

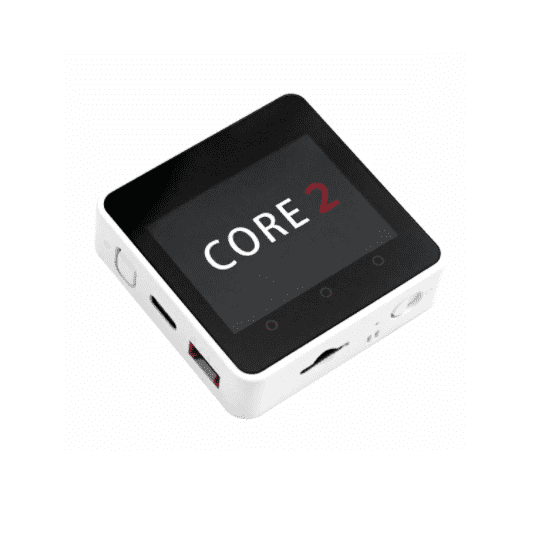

M5Stack Core2 ESP32 IoT Development Kit
M5Core2 is the second generation core device in the M5Stack development kit series, which further enhances the functions of the original generation of cores.
The MCU is an ESP32 model D0WDQ6-V3 and has dual-core Xtensa® 32-bit 240Mhz LX6 processors that can be controlled separately. Wi-Fi and Bluetooth are supported as standard and it includes an onboard 16MB Flash and 8MB PSRAM, USB TYPE-C interface for charging, downloading of programs and serial communication, a 2.0-inch integrated capacitive touch screen, and a built-in vibration motor.
M5Core2 also features a built-in RTC module that can provide accurate timing. The power supply is managed by an AXP192 power management chip, which can effectively control the power consumption of the base and built-in green LED power indicator helps to notify the user of battery level. The battery capacity has been upgraded to 390mAh, which can power the core for much longer than the previous model.
The M5Core2 retains the TF-card(microSD) slot and speakers. However, in order to ensure higher quality sound output, the I2S digital audio interface power amplifier chip is used to effectively prevent signal distortion. There are independent power and reset buttons on the left side and bottom of the base.
The 3 icons on the front of the screen are capacitive buttons that are programmable. There is a small expansion board on the back of the base with a 6-axis IMU sensor and microphone. The development platform and programming language supported by M5Stack Core2: Arduino, UIFlow (using Blockly, MicroPython language) No matter what level of your development and programming skills, M5Stack will help You gradually turn your ideas into reality.
Power on: One-click the power button on the left
Power off: Long press the left power button for 6 seconds
Reset: Click the RST button on the bottom side
- Internet of things terminal controller
- Stem education product
- DIY creation
- Smart home equipment
Package Includes:1 x M5Stack Core2
1 x Type-C USB(20cm)
|ESP32-D0WDQ6-V3||240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth|
|Input Voltage||5V @ 500mA|
|Interface||TypeC x 1, GROVE(I2C+I/0+UART) x 1|
|IPS LCD Screen||2.0"@320*240 ILI9342C|
|LED||Green power indicator light|
|Button||The power button, RST button, Virtual screen button*3|
|Vibration reminder||Vibration motor|
|I2S Power Amplifier||NS4168|
|USB Chip||CP2104/CH9102F (two chip versions, there is no difference in function and use)|
|TF card slot||16G Max|
|Lithium Battery||390mAh @ 3.7V|
|Antenna||2.4G 3D antenna|
|Operating temperature||0°C to 60°C|
|Base screw specifications||Hexagon socket is countersunk head M3|
||54 x 54 x 16mm|
