M5 Stack Solid State Relay Unit(BT136S)
M5 Stack Solid State Relay Unit(BT136S)

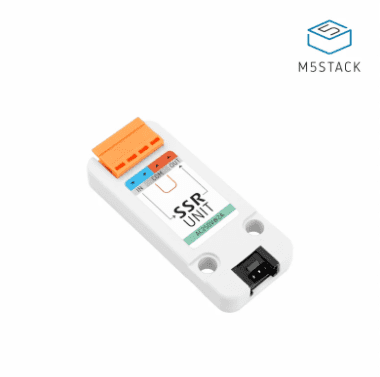

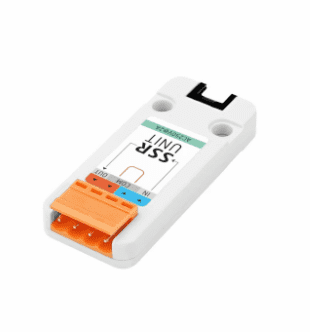

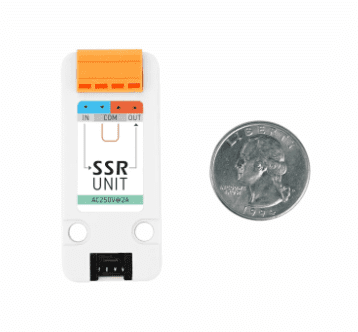

UNIT SSR Solid-state relays are different from traditional electromagnetic relays in that their switching life is much longer than that of electromagnetic relays. With integrated MOC3043M optocoupler isolation and zero-crossing detection, It supports input 3.3-5V DC control signal, and control output single-phase 220-250V AC power.
UNIT SSR is controlled by power semiconductor devices, with microsecond on/off speed and built-in overcurrent protection. Extensively used in lighting control, CNC machine tools, etc., where frequent on/off lines and fast response are required.
Note:
1. Please be careful when using high voltage AC loads, and do not operate with electricity.
2. This relay is for AC loads only.
Applications:
- Motor control
- Industrial and domestic lighting
- Heating and static switching
- Stage lighting
- Medical equipment, traffic signal lights

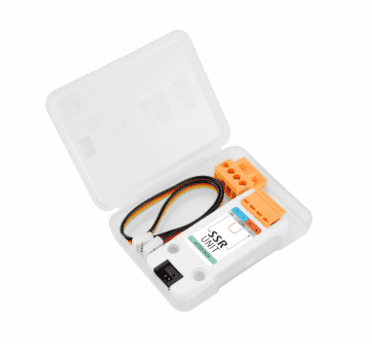

Package Includes:
1x Unit SSR
1x HY2.0-4P Cable

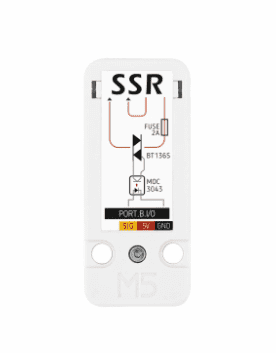

Specifications:
| SCR Model | BT136S |
| Optocoupler Isolation Model | MOC3043 |
| Control Signal | 3.3-5V DC |
| On/Off Voltage | 单相 AC: 220-250V |
| Max. load current | 2A |
| Number of control channels | 1 |
| Overcurrent protection | Fuse: 2A |
| Operating Temperature | -10 to +80°C |
| Dimensions |
54 x 54 x 16mm |
| Weight | 70gm |
Frequently Asked Questions
1. What is Unit SSR Solid-state relays?
- UNIT SSR solid state relays have a different switching life than traditional electromagnetic relays. electromagnetic relay. With built-in MOC3043M optocoupler isolation and zero-crossing detection, it supports 3.3-5V DC input control signal and 220-250V AC single-phase control output.
2. What is the use of M5Stack Solid state relay?
- UNIT SSR are controlled by power semiconductor devices, with microsecond on/off speed and built-in overcurrent protection. Extensively used in lighting control, CNC machine tools, etc., where frequent on/off lines and fast response are required.
3. What is the difference between a solid state relay and a regular relay?
- Major Advantages of a M5Stack solid state relay over mechanical relays is that is provides faster on/off speed and no physical contact wear, It is has complete silent operation and there is no chance of any electrical sparks for use in complex environments.
