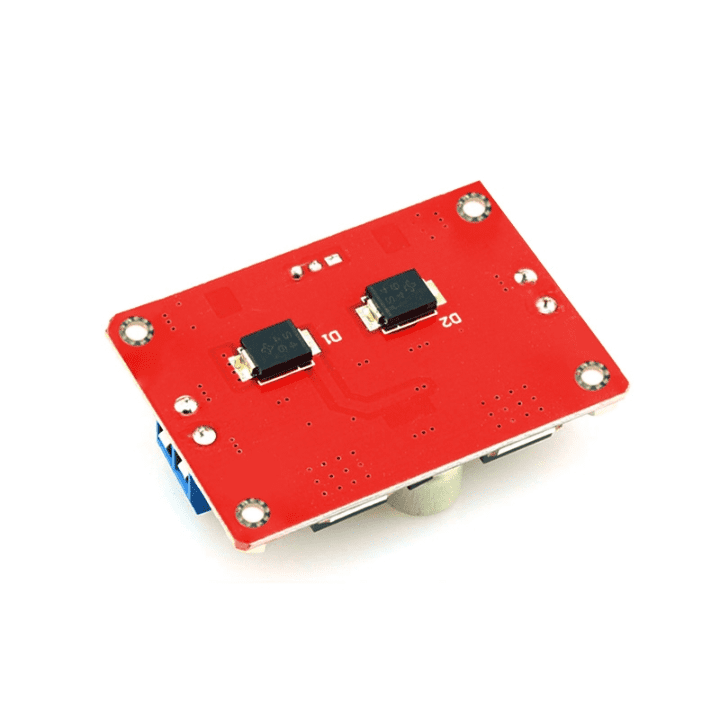

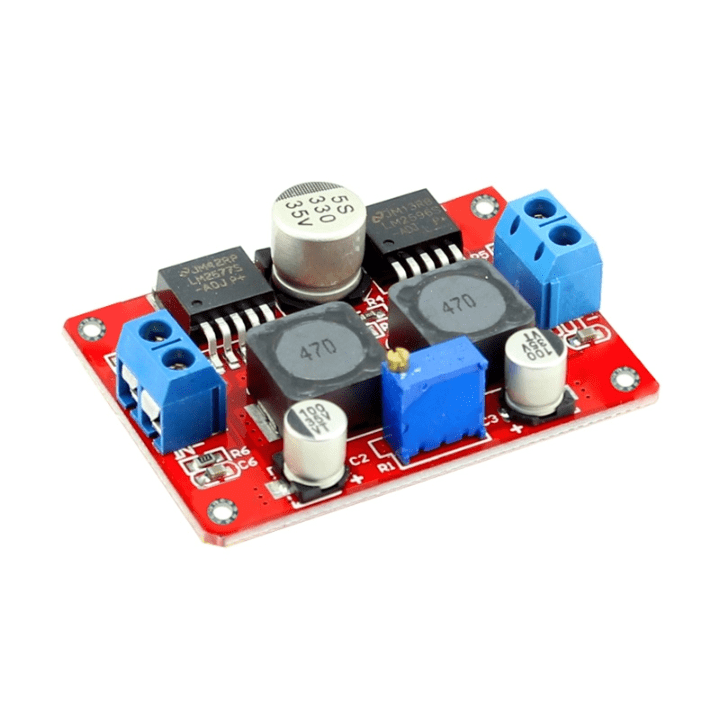

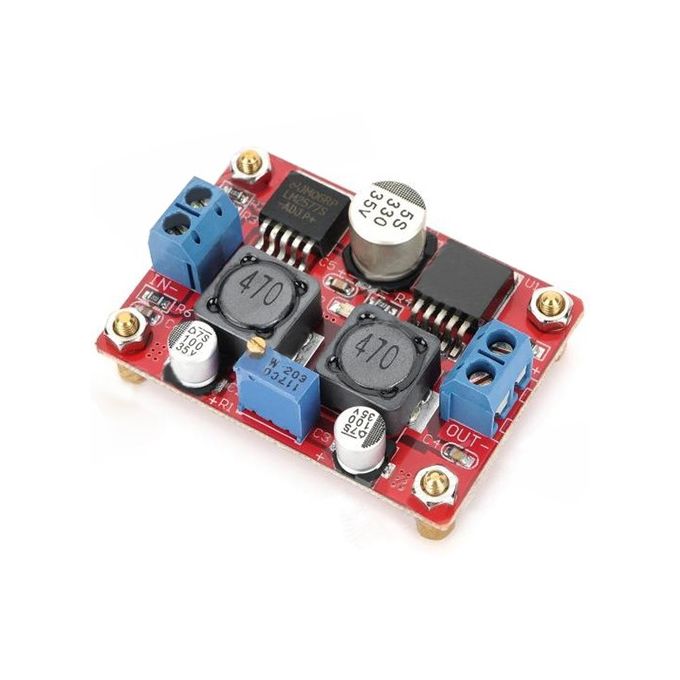

LM2596S & LM2577S DC-DC Adjustable Step-Up and step-down Power Supply Module
LM2596S & LM2577S DC-DC Adjustable Step-Up and step-down Power Supply Module
Regular price
Rs. 256
Regular price
Rs. 371
Sale price
Rs. 256
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 13 hours and 10 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is LM2596S & LM2577S DC-DC Adjustable Step-Up and step-down Power Supply Module
- Buck-boost converter for adjusting output voltage greater or less than input voltage
- High efficiency (over 95% when boosted) for reduced power consumption compared to linear regulators
- Input voltage range of 3.5-28V and adjustable output voltage range of 1.25-26V
- Max rated input and output current of 1A
- Integrates LM2596 and LM2577 for easy use and debugging assistance
- Step-up operation mode independent of output and input voltage
LM2596S & LM2577S DC-DC Adjustable Step-Up and step-down Power Supply Module
This is a buck-boost converter with an output voltage greater or less than the input voltage. Compared to linear regulators, DC/DC converters are primarily focused on efficiency and can achieve efficiencies of over 95% when boosted, thus reducing power consumption.
With this DC-DC Adjustable boost and buck voltage converter, you can change any other 3.5-28V power supply. The output voltage is adjusted from 1.25-26V. For example, your input voltage is 5V, you can adjust the output voltage from 1.25V to 26V any value. The max input and output rated current are 1A. This module integrates LM2596 and LM2577. It is very useful and easy to use.
It would be a good assistant in your debugging. LM2596S + LM2577S dual chip. Step-up operation mode: Independent of the output voltage and input voltage (input for arbitrary values of 3.5V-28V output 1.25V-26V arbitrary value).
PACKAGE INCLUDES:
- 1 x LM2596S & LM2577S DC-DC Adjustable Step-Up and step-down Power Supply Module
SPECIFICATIONS
| Input Voltage | 3.5-28V |
| Output Voltage | 1.25V-26V |
| Dimensions | 3 x 2 x 1cms |
| Weight | 5 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy

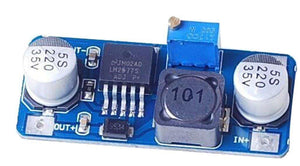

LM2577 DC-DC Step-up Power Converter Module
Regular price
Rs. 144
Regular price
Rs. 199
Sale price
Rs. 144
Unit price
per
Incl. GST (No Hidden Charges)
Sale
150W Dc-Dc Boost Adjustable Power Converter
Regular price
Rs. 151
Regular price
Rs. 208
Sale price
Rs. 151
Unit price
per
Incl. GST (No Hidden Charges)
Sale

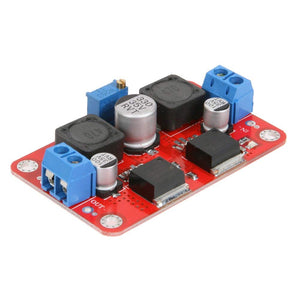

LM2596 & XL6009 DC-DC Adjustable Step-Up and step-down Power Supply Module boost and buck voltage converter
Regular price
Rs. 284
Regular price
Rs. 458
Sale price
Rs. 284
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
Found a better price?
Let us know!
We'll try to match the price for you
1. What is the function of LM2596S?
The LM2596S is an integrated circuit for step-down (buck) switching regulators that performs all the necessary active functions. It can efficiently power a 3-A load while maintaining outstanding line and load regulation. The adjustable version has an input voltage range of 4.5V to 40V. DC-DC power supply step-down modules frequently employ the LM2596S. The output capacitor of this IC serves two primary purposes: filtering the output and ensuring regulator loop stability.
2. What is the current of LM2596S?
The LM2596 is a step-down switching regulator with the capability to manage a maximum output load current of 3A.
