- The output voltage is DC 1.5V to 35V continuously adjustable, high-efficiency maximum output current of 3A.
- A DC-DC Buck steps down module with a 1.5V to 35V Voltage continuously adjustable.
- High efficiency with a maximum output current of 3A. (Additional heatsink is required)
- Rectification: non-synchronous rectification
- The module features a short circuit protection which helps current limiting, since the recovery

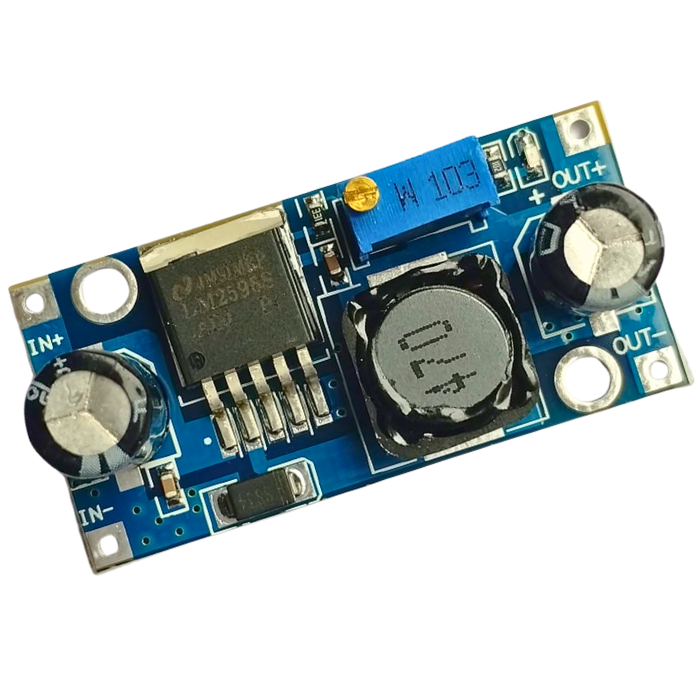

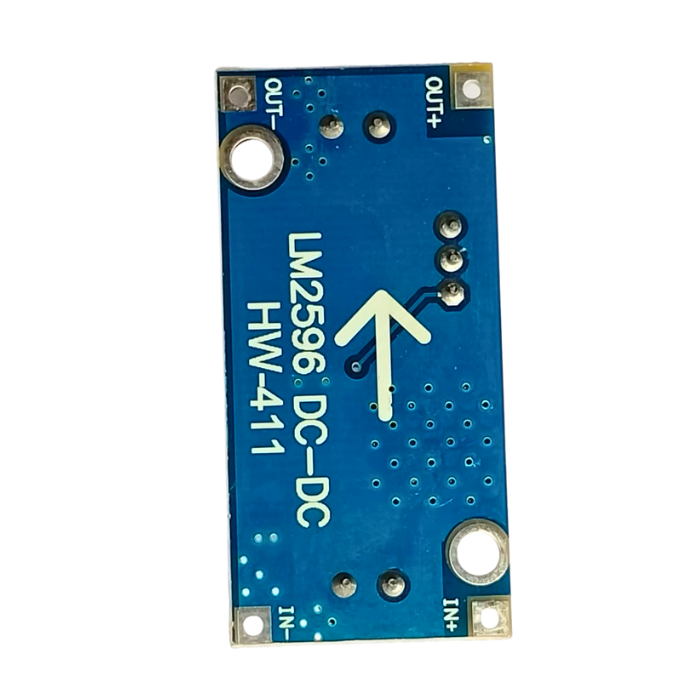

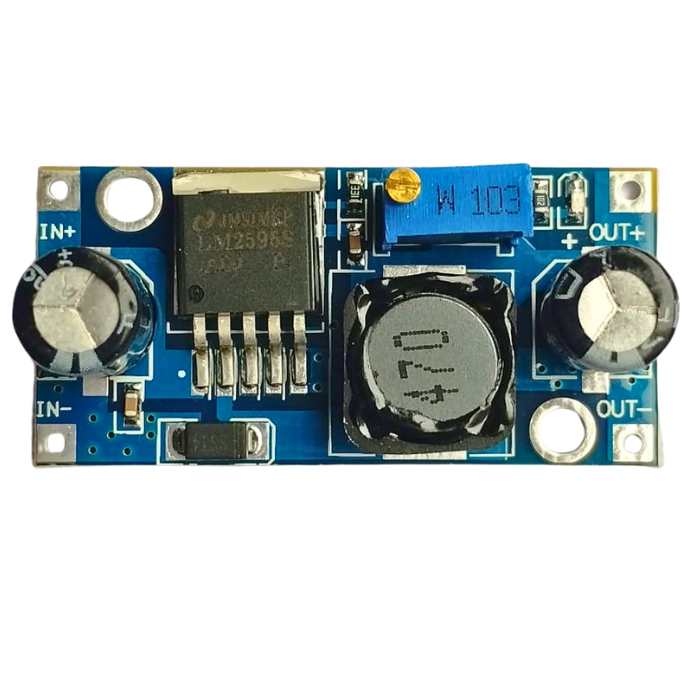

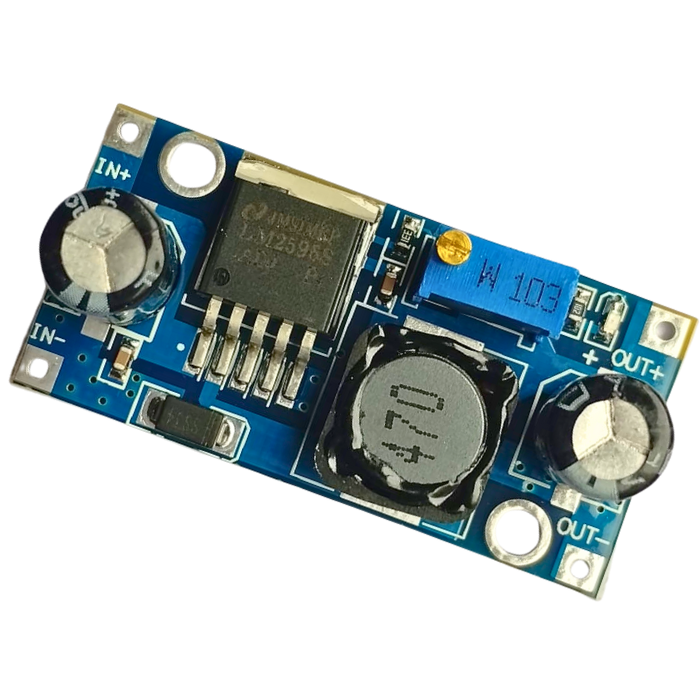

LM2596 DC-DC Buck Module
The LM2596 DC-DC Buck Converter Step-Down Power Supply Module is a step-down(buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5V, 12V, and an adjustable output version. The LM2596 series operates at a switching frequency of 150kHz, thus allowing smaller-sized filter components than what would be required with lower-frequency switching regulators.
This buck converter is internally compensated to minimize the number of external components to simplify the power supply design.
Since the LM2596 converter is a switch-mode power supply, its efficiency is significantly higher than popular three-terminal linear regulators, especially with higher input voltages. The LM2596 operates at a switching frequency of 150 kHz thus allowing smaller-sized filter components than what would be needed with lower-frequency switching regulators.
Features:
- Switching Frequency: 150KHz
- Rectification: Non-synchronous rectification
- Internally Compensated for minimized external components
- Efficient operation with higher input voltages compared to three-terminal linear regulators
- Short circuit protection for current limiting and recovery.
Pinout:
Pinout Of LM2596 DC-DC Buck Module
Applications:
- Used for USB on the go.
- Used for Point of load converters for PCs and laptops.
- Used for Battery Chargers.
- Used for Quad Copters.
- Used for Power audio amplifiers.
Package Includes:
- 1 x LM2596 DC-DC Buck Module
Specifications
| Material | PCB |
| Model | LM2596 |
| Output Voltage | 1.5-35V |
| Switching Frequency | 150KHz |
| Output current | Rated current is 2A, maximum 3A(Additional heatsink is required) |
| Dimensions | 3 x 2 x 1cms |
| Weight | 5 grams |
