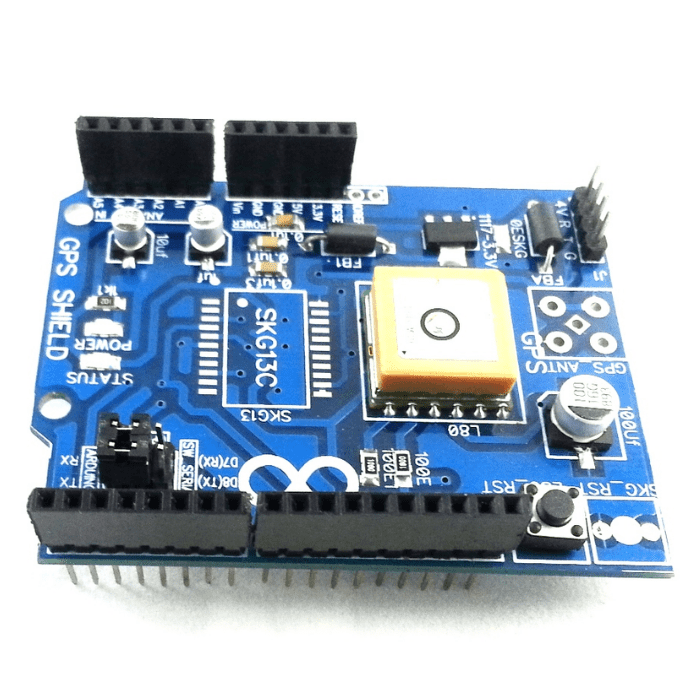

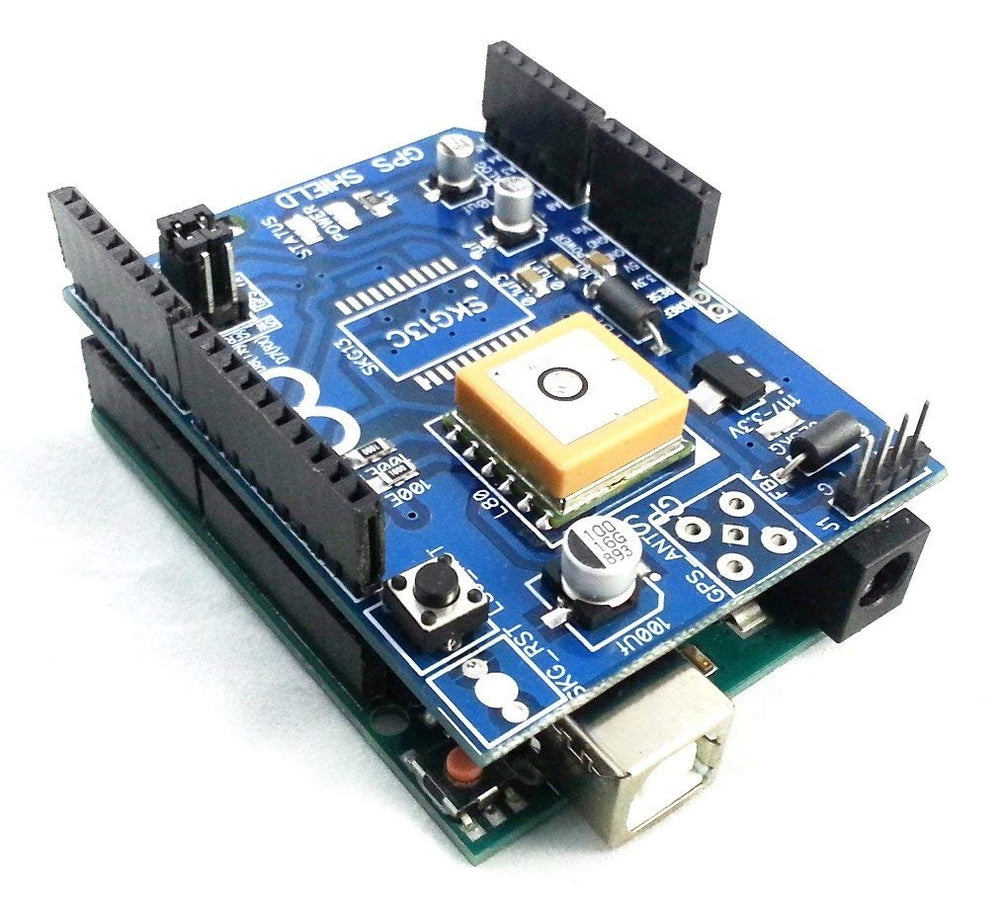

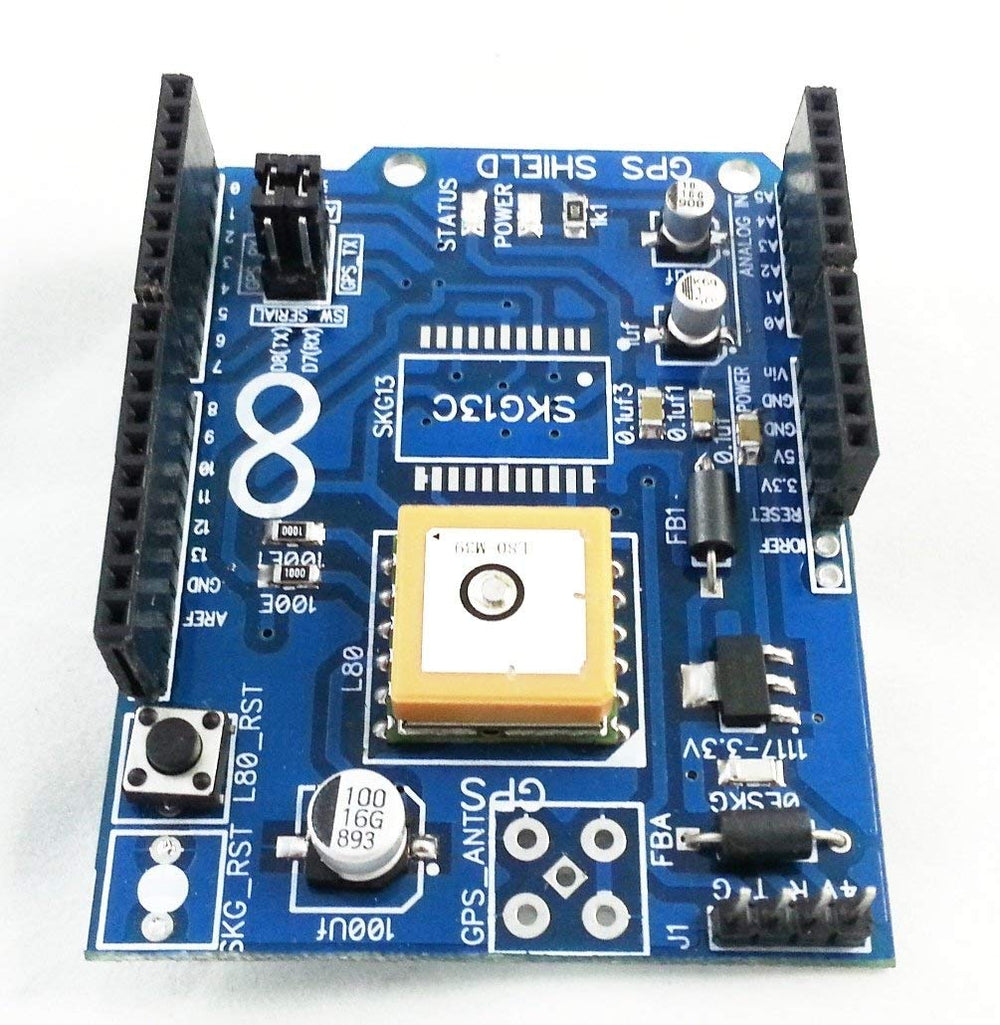

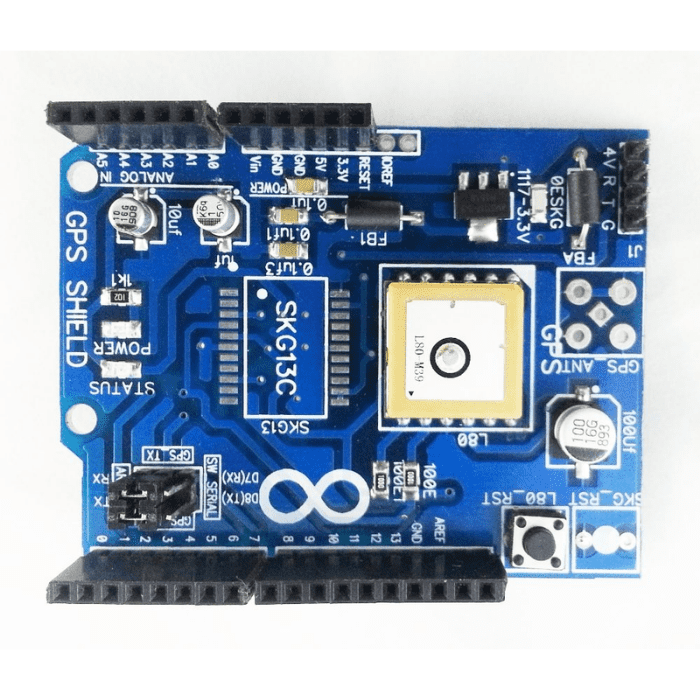

L80 GPS Shield

L80 GPS Shield

Out of stock

Regular price Rs. 1,028
Regular price Rs. 1,548 Sale price Rs. 1,028
Sale Sold out 34% off Best Price Guaranteed
You save Rs. 520 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.


FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

Contact form

  • L80 based GPS shield for Arduino Uno with AT command interface.
  • With 66 search channels and 22 simultaneous tracking channels, it acquires and tracks satellites in the shortest time even at indoor signal level
  • The embedded flash memory provides capacity for users to store some useful navigation data and allows for future updates.
  • The module supports various location, navigation and industrial applications including autonomous GPS, SBAS (including WAAS, EGNOS, MSAS, and GAGAN), QZSS and AGPS
  • Indicator LEDs for Power, Netlight, Status, 3D Fix and Keypad LEDs.

L80 GPS Shield

The shield features new generation GlobalTop GPS chipset and SIM800 Quad-band GSM/GPRS engine that works on 850/ 900/ 1800/ 1900 MHz. With GPS technology the shield supports satellite navigation along with cellular connectivity and that makes most of what you need for your robotics projects.

GSM/GPRS connectivity is controlled via AT commands, while the GPS functionality follows NMEA protocol. The shield also offers data storage on microSD card. The design of this shield allows you to drive the GSM module directly with the computer as well as with your Arduino Board. The package includes duck type SMA antenna for cellular network connectivity and an active external antenna for GPS functionality. GPS U2P module offers a high sensitivity, incredibly low power consumption while searching with -165dBm high sensitivity and 10Hz maximum update rate. Featuring an industry-standard interface and GPS function, the combination of both technologies on a single shield allows items, vehicles and people to be tracked seamlessly at any location and anytime with signal coverage.

The shield design is compatible with the older Arduino footprint as well as the new R3 footprint, which means that this shield is totally compatible with most of the Arduino Boards. That includes most popular Uno to the veteran Duemilanove. It also supports 3V3 boards such as Arduino Due, with onboard level shifting buffer gates. The shield can also used with Arduino Mega and Leonardo but the serial communication feature via software pins wont be available for these two boards, still that wont affect the functionality of the GSM module as it can be communicated over the hardware serial pins.

Tracking shield uses separate modules for cellular connectivity and location tracking, thereby the shield guarantees reliable GPS data and cellular connectivity simultaneously. These shields are manufactured with Automatic Pick and Place Machine for high quality standard. The shield itself is high quality PTH PCB with professionally designed circuitry. The onboard low dropout 3A power supply allows you to connect wide range unregulated power supply (7V-12V), also withstands the peak current draw that occurs during network scanning. The onboard level shifting circuitry is designed using buffer gates for added reliability. We have also considered optional customization as per users convenience, for which the design includes onboard PCB jumpers.

Package Includes:

  • 1 x L80 GPS Shield


Input Voltage 7V - 12V DC
Normal operation temperature -20 °C to +55 °C
Current 70mA @ 9V, Stable operation
Dimensions(mm)  67 x 53

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. What is L80 GPS Shield?

  • The SKG13 GPS Shield is a complete GPS receiver module with high sensitivity, ultra-low power consumption, and a small form factor that uses the NMEA protocol to serially transmit complete serial data messages including position, velocity, and time information. displayed in the port. The shield features the new generation GlobalTop GPS chipset and SIM800 quad-band GSM/GPRS engine running at 850/900/1800/1900MHz. With GPS technology, the shield supports satellite navigation and cellular connectivity, making the most of what you need for your robotics projects.

2. What are the features of an L80 GPS Shield?

  • Features of L80 GPS Shield Board:
    • AT command interface
    • Make and receive voice calls
    • Extremely fast TTFF (Time To First Fix) at a low signal level.
    • Send and receive SMS messages
    • MMC card slot for data storage
    • Quad-band GSM/GPRS Engine: SIM800
    • Bluetooth Connectivity, option for connecting chip antenna
    • GlobalTop U2P GPS with MediaTek MT3339 Chipset
    • Send and receive GPRS data (TCP/IP, HTTP, etc.)
    • Configurable Baud rate (9600-115200, factory default value: 9600)
    • Standard Audio Jack Connectors for external speaker and mic
    • Inbuilt Powerful TCP/IP protocol stack for internet data transfer over GPRS.
    • Level shifting circuitry to make it Arduino-safe
    • Option to Connect Passive and Active Antenna.
    • Indicator LEDs for Power, Netlight, Status, 3D Fix and Keypad LEDs
    • Standard Flap type SMA Socket
    • Separate Reset switches for both Arduino and the GSM module
    • Slide switch to swap the GSM module between Arduino and PC
