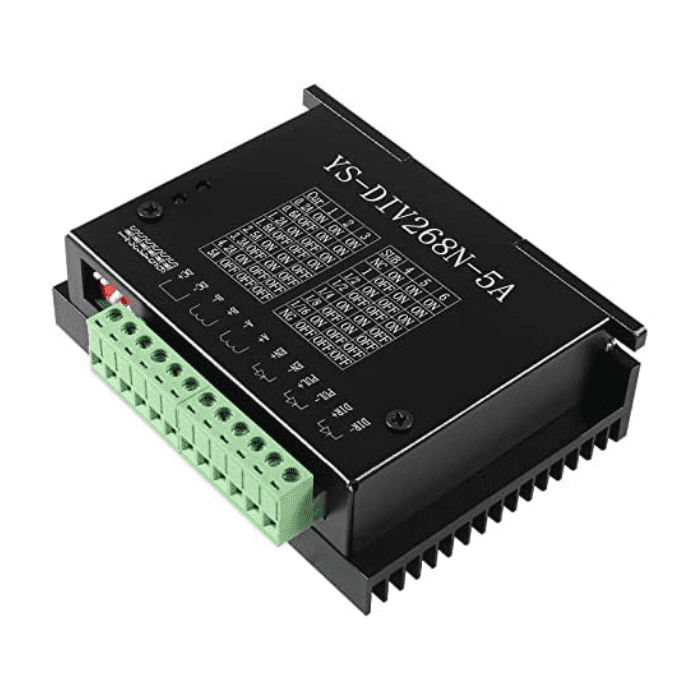

- This is YS-DIV268N-5A Hybrid Stepper Motor Driver
- Supply voltage is from 12 V to 48 V.
- Continuous current on the coil: adjustable from 0.2 A to 5 A.
- This has overvoltage, undervoltage, overcurrent, and white short-circuit protection.
- The stepper driver supports speed and direction control.
- Average current control, two-phase sinusoidal current drive output
- Optically isolated signal input / output.
Related Tags
YS-DIV268N-5A Hybrid Stepper Motor Driver 5A | Single Axis TB6600 0.2-5A Two Phase Hybrid Stepper Motor Driver Controller
TB6600 Stepper Motor Driver is an easy-to-use professional stepper motor driver, which can control a two-phase hybrid stepper motor. It is compatible with Arduino and other microcontrollers that can output a 5V digital pulse signal.
YS-DIV268N-5A subdivision-type two-phase hybrid stepping motor drive using DC 12 ~ 48V power supply, suitable for drive Two-phase hybrid stepping motor dynamic voltage 12 to 48V, the current is less than 5A outer diameter of 35 to 86 mm. This drive using the drive's current loop subdivision control, the motor torque ripple is very small, low-speed running is very smooth, almost no vibration and noise. High-speed torque is much higher than other two-phase drive, high positioning accuracy. Widely used in the engraving machine, CNC machine tools, packaging machinery, and other high-resolution requirements on the device
You can set its output current with a 6 DIP switch. There are 8 kinds of current control (0.2A, 0.6A, 1.2A, 1.8A, 2.5A, 3.3A, 4.2A, 5A) in all. And all signal terminals adopt high-speed optocoupler isolation, enhancing it's anti-high-frequency interference ability. As a professional device, it is able to drive 57, 42-type two-phase, hybrid stepper motor.

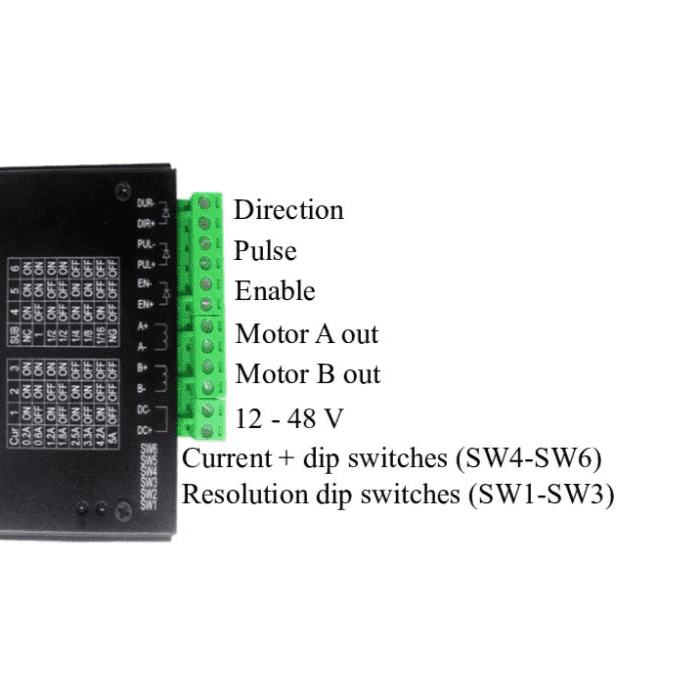

Control signal interface:
- PUL +: step pulse signal is input side or the positive pulse signal input positive terminal
- PUL-: the negative input of the negative input pulse signal or a positive pulse signal
- DIR +: stepping direction signal input to the positive terminal or negative pulse signal input to the positive terminal
- DIR -: stepping direction signal input of the negative side or reverse step pulse signal input negative terminal
- EN +: offline can reset signal input
- EN-: offline can reset signal input negative terminal
Note:
- VCC is 5V, R short
- VCC value of 12V, R 1K, more than 1 / 8W resistor
- VCC value of 24V, R 2K, more than 1 / 8W resistor
Features:
- H bridge bipolar constant current drive.
- Input signal high-speed photoelectric isolation.
- A total of standard single pulse interface.
- Offline retention function.
- The semi-enclosed casing can adapt to a more stringent environment. Provide energy saving half-automatic current lock function.
Applications:
- CNC Machines: Provides precise control for CNC milling, drilling, and cutting machines.
- Engraving Machines: Used in laser and mechanical engraving machines for accurate positioning.
- Packaging Machinery: Ensures precise movement and control in automated packaging systems.
- 3D Printers: Controls the stepper motors for accurate layer deposition and movement.
- Robotics: Used in robotic arms and other automated systems requiring precise motor control.
- Textile Machinery: Controls the movement of components in textile manufacturing equipment.
- Medical Devices: Provides precise control in medical equipment like automated dispensers and diagnostic machines
Package Includes:
- 1 x YS-DIV268N-5A Hybrid Stepper Motor Driver 5A
Specifications:
| Input Supply Voltage (VDC) |
12 ~ 48 |
| Supply Current (A) |
1 to 5 |
| Max. Output Current (A) |
0.2 to 5 |
| Max Power Output (W) |
160 |
| Operating Temperature (°C) |
-10 to 45 |
| Dimensions (mm) |
105 x 75 x 35 |
| Weight (gm) |
220 |
