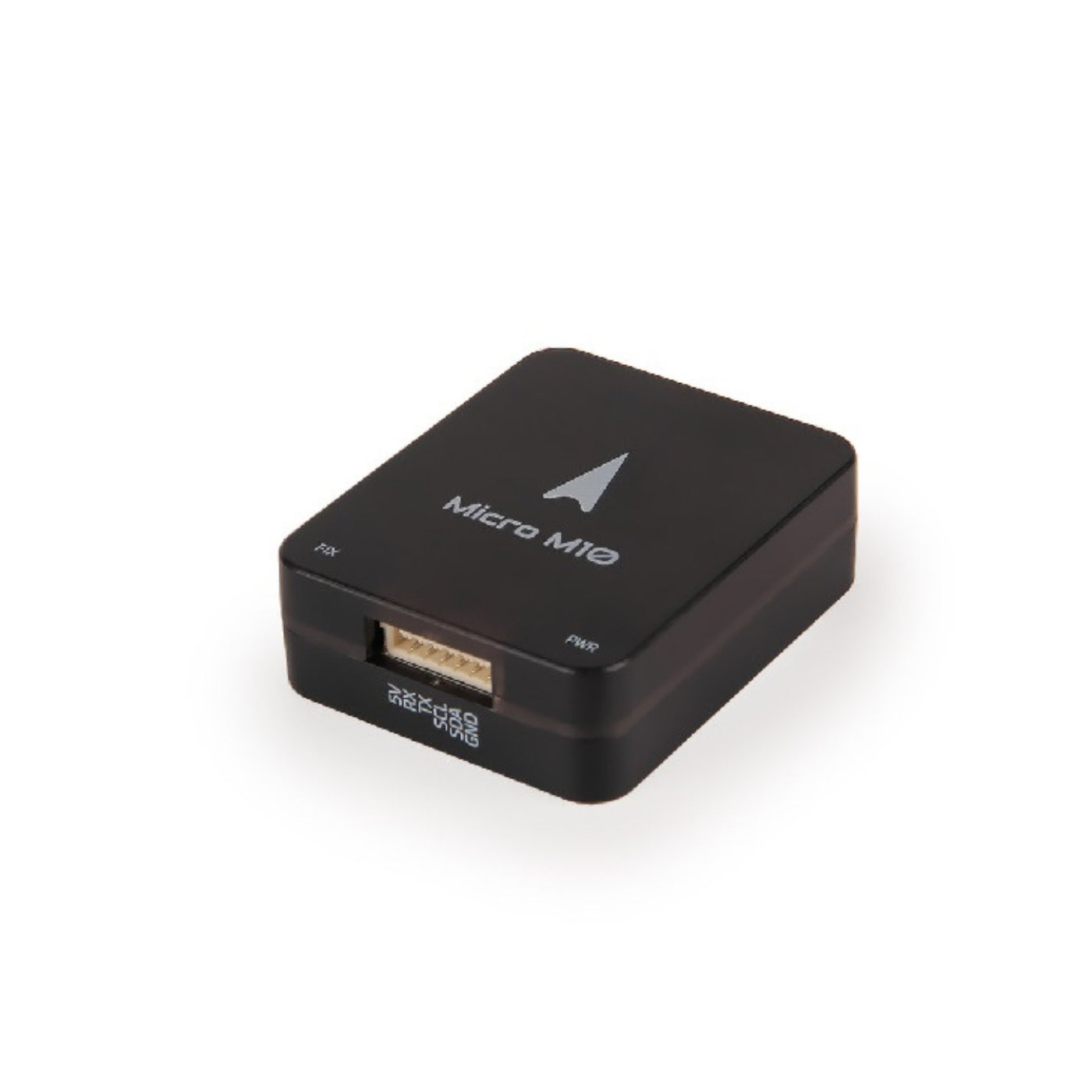

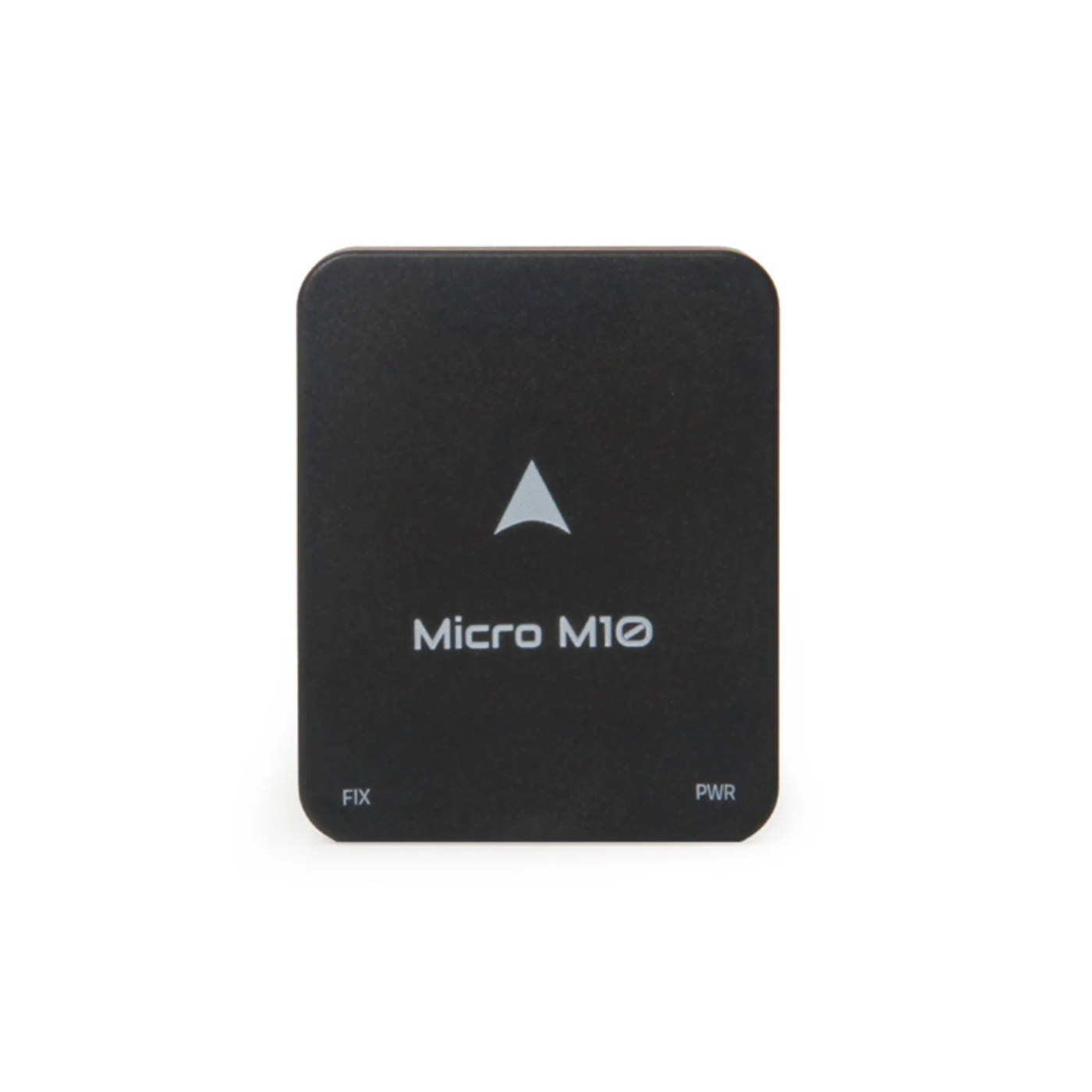

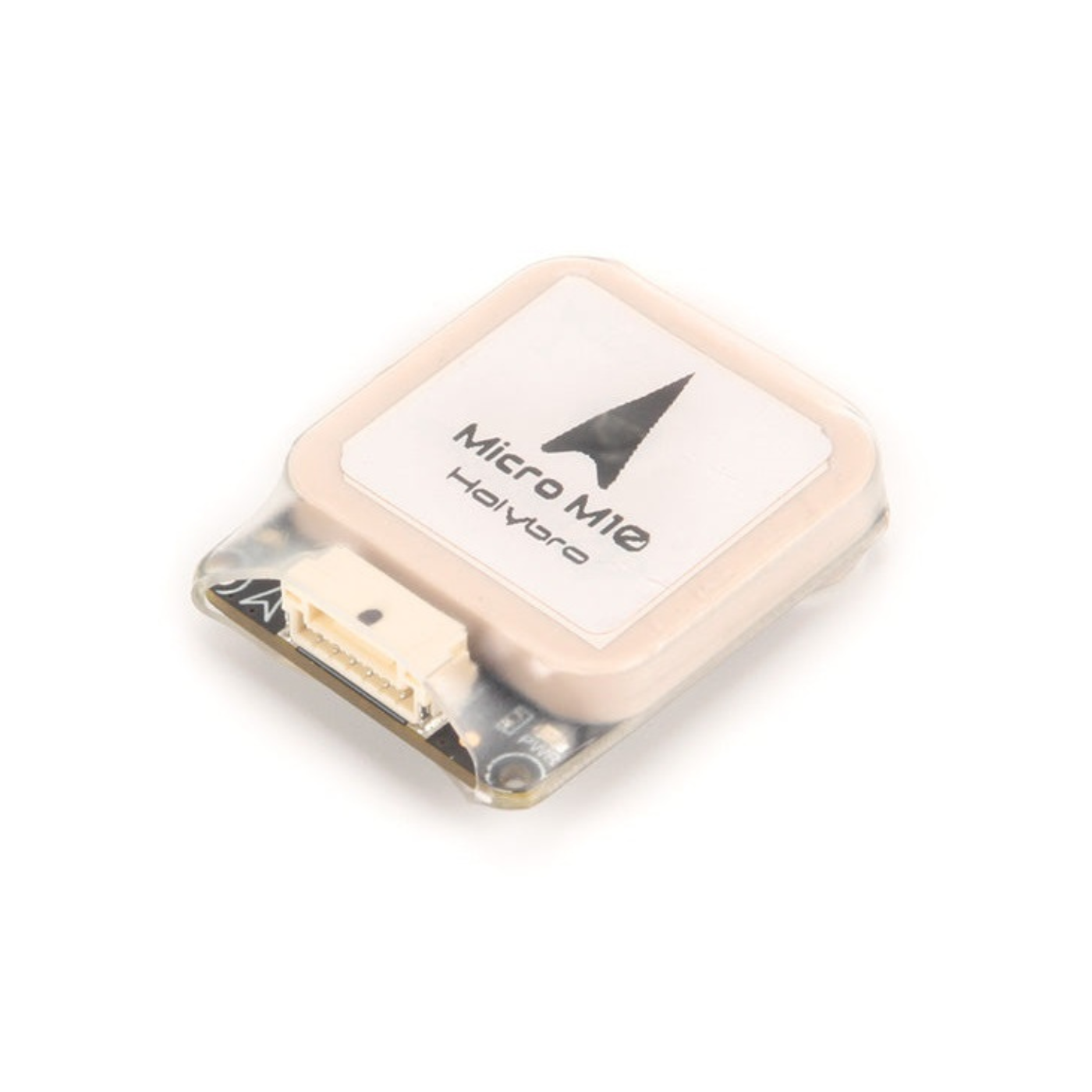

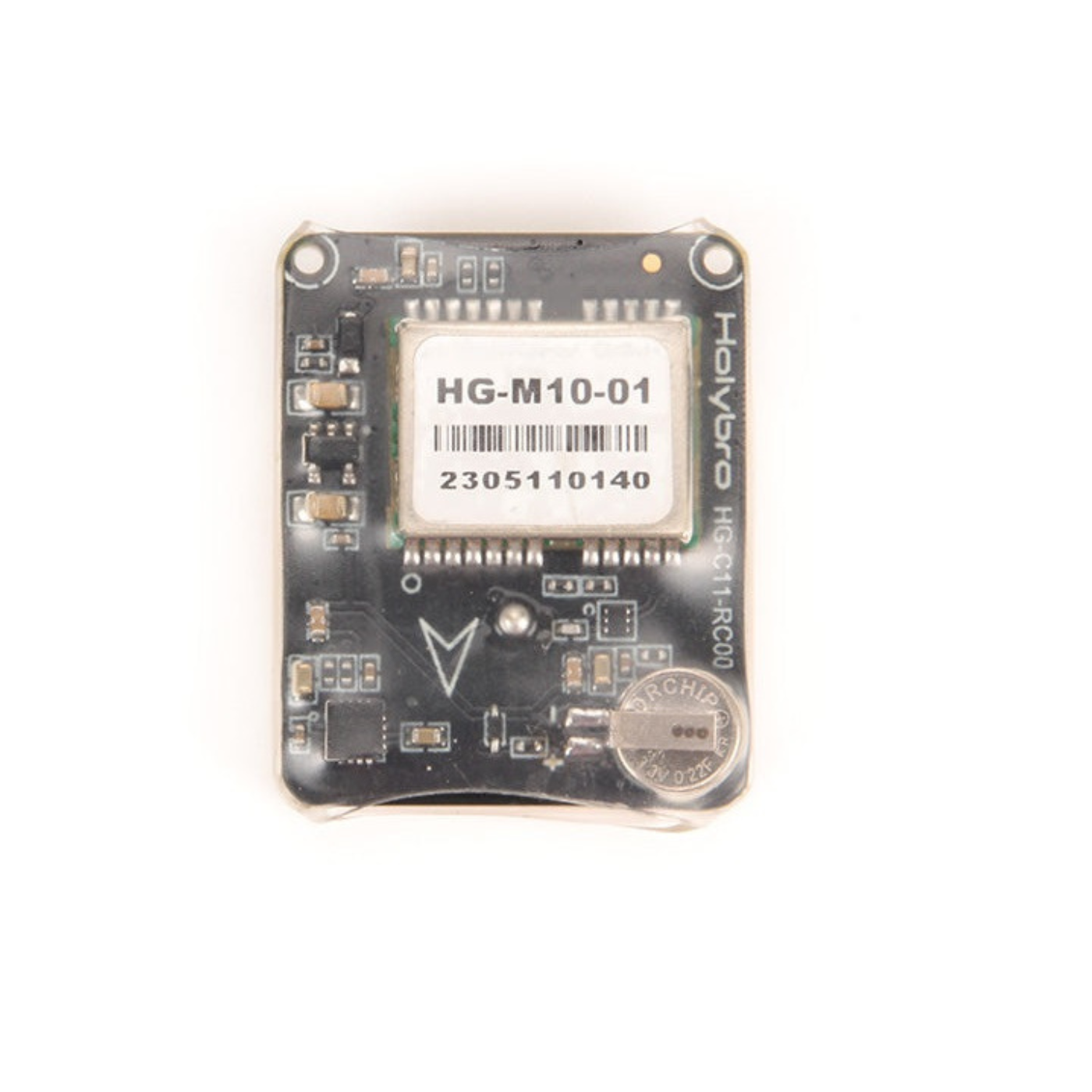

Holybro Micro M10 GPS With Case
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The Holybro Micro M10 GPS With Case is a compact and reliable M10 GPS module designed to deliver precise positioning and enhanced navigation performance for modern drones and UAV applications. Powered by advanced u-blox M10 series GNSS technology, this GPS unit supports multiple satellite systems for fast satellite lock and improved accuracy. Its lightweight design housed in a protective case ensures durability and stability, making it ideal for both hobbyist pilots and professional UAV developers who demand dependable location data for autonomous missions and waypoint navigation.
This micro GPS module with integrated GNSS support offers robust performance even in challenging environments, providing real-time position, velocity, and timing information to your flight controller. The included case not only protects the sensor and antenna but also simplifies installation and mounting on a variety of drone frames. Whether you’re building a custom multirotor, fixed-wing aircraft, or research UAV, the Holybro Micro M10 GPS With Case enhances flight reliability and situational awareness while maintaining a compact footprint.
| Item Type | GPS |
| Concurrent GNSS | Up to 4 GNSS – BeiDou, Galileo, GLONASS, GPS, QZSS |
| Frequency Band | GPS L1, Galileo E1, GLONASS L1, BeiDou B1, SBAS L1, QZSS L1 |
| Navigation Update Rate | Up to 25 Hz (single GNSS), up to 10 Hz (4 GNSS) |
| Baud Rate | 115200 |
| Input Voltage | 4.7 – 5.2 V |
| Current Consumption | < 200 mA @ 5 V |
| Operating Temperature | -40 to 80 °C |
| Dimensions (L × W × H) |
32 × 26 × 9 mm (without case) 34 × 28 × 11 mm (with case) |
| Weight |
14 g (without case) 16 g (with case) |
