Heart Rate Pulse Sensor Module
Heart Rate Pulse Sensor Module
Regular price
Rs. 130
Regular price
Rs. 219
Sale price
Rs. 130
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 4 hours and 26 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits

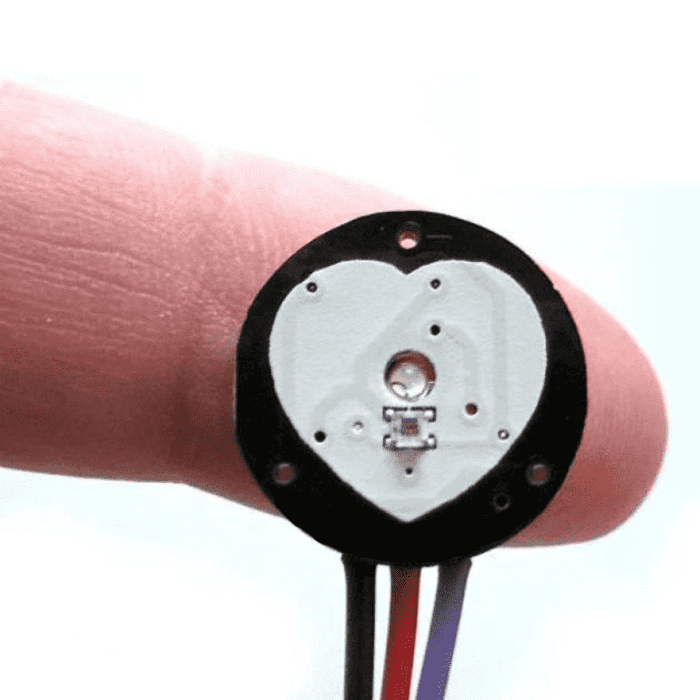

- Heart Rate Pulse Sensor Module can be put on the finger or earlobe, through interconnected line can be connected to the Arduino.
- This Pulse Sensor works with a 3V - 5V Arduino.
- Essence is an integrated optical amplifying circuit and noise eliminating circuit heart rate sensor.
- This Pulse Sensor includes the circuits like Amplification & Noise cancellation.
Heart Rate Pulse Sensor Module
Pulse Sensor is a low-cost, very small-size plug-and-play heart rate sensor for Arduino and Arduino compatible boards. It can be used by students, artists, athletes, makers, and game & mobile developers who want to incorporate live heart-rate data into their projects easily. Pulse Sensor Amped adds amplification and noise cancellation circuitry to the hardware. It's noticeably faster and easier to get reliable pulse readings. Pulse Sensor works with either a 3V or 5V Arduino.

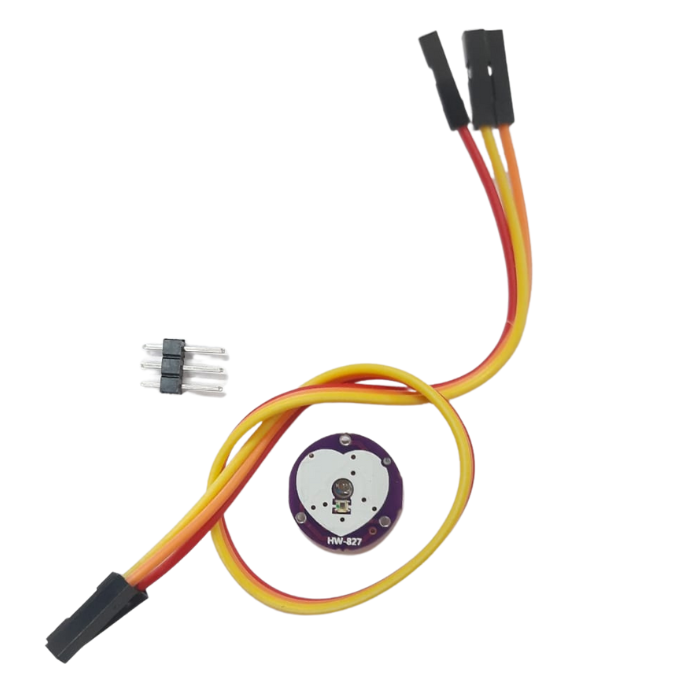

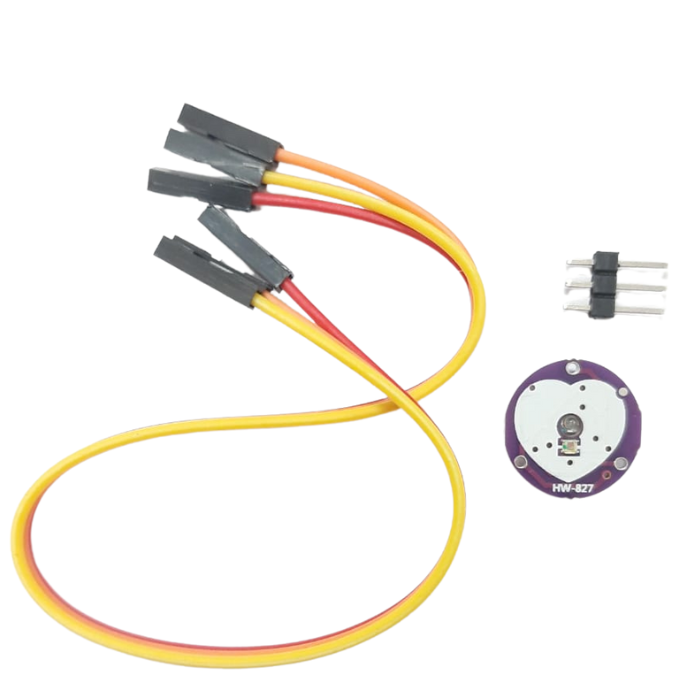

A Color-Coded Cable, with standard male header connectors. Plug it straight into an Arduino or a Breadboard. No soldering is required.
An Ear Clip perfectly sized to the sensor. It can be hot-glued or epoxied to the back of the sensor to get a reading from an ear lobe.
Parts to make a handy Velcro finger strap. This is another excellent way to get heart-rate data.
read more : Beginner Guide to Biomedical Sensors
Heart Rate Pulse Sensor Module Video Tutorial:
Video Tutorial on Heart Rate Monitoring with Arduino

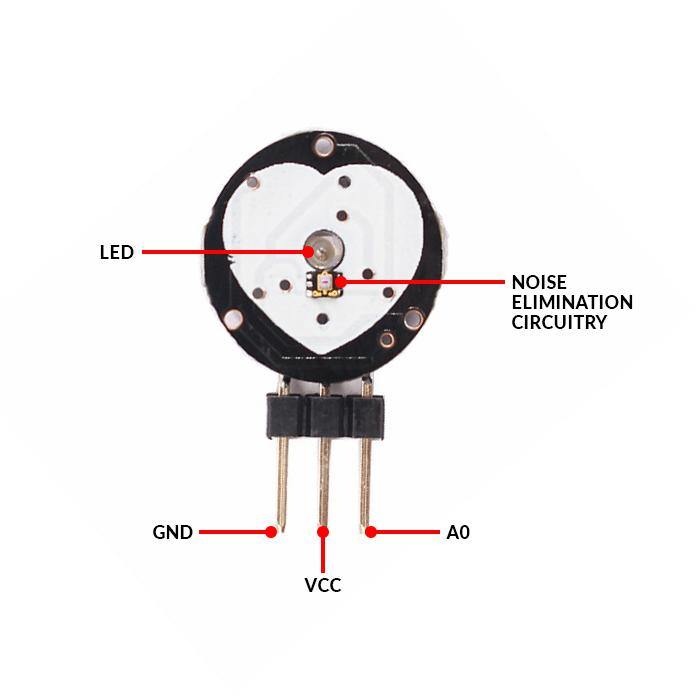

Pinouts:
Pinout of Heart Rate Pulse Sensor Module
- Ao - Analog value output connector
- VDC - Connect to 3.3V-5V
- GND - Connect to GND
Applications:
- Sleep Tracking
- Anxiety monitoring
- Remote patient monitoring or alarm system
- Health bands
- Complex gaming consoles
Package Includes:
- 1 x Pulse Sensor Module
Specifications:
| Power supply voltage | 3.3V ~ 5V |
| PCB Diameter (mm) | 15 |
| Package Dimensions | 8 × 6 × 2 cm |
| Weight | 50 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy

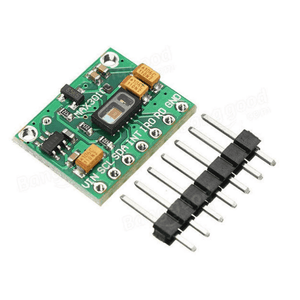

MAX30102 Pulse Oximeter Heart Rate Sensor Module
Regular price
Rs. 99
Regular price
Rs. 149
Sale price
Rs. 99
Unit price
per
Incl. GST (No Hidden Charges)
Sold out

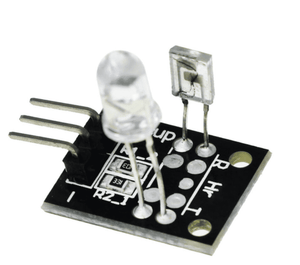

KY-039 Finger Heartbeat Detection Sensor
Regular price
Rs. 28
Regular price
Rs. 44
Sale price
Rs. 28
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
Arduino Uno R3 Original
Regular price
Rs. 1,841
Regular price
Rs. 2,699
Sale price
Rs. 1,841
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. What is a Heart Rate Pulse Sensor Module?
- An optical heart rate sensor measures pulse waves, which are changes in blood vessel volume caused by the heart pumping blood. An optical sensor and a green LED are used to detect pulse waves by measuring volume changes.
2. How does the heart rate sensor work?
- The Pulse Sensor is a plug-and-play heart-rate sensor. Students, artists, athletes, makers, and game and mobile developers who want to easily incorporate live heart-rate data into their projects can use it.
3. How do I connect Arduino to the pulse sensor?
- Connecting the Pulse Sensor to an Arduino is super simple. There are only three wires to connect: two for power and one for reading the sensor value. The module can be powered by either 3.3V or 5V. The positive voltage connects to '+' and the ground connects to '-'.
4. Where can I use the Heart Rate sensor module?
- The Heart Rate Sensor module is a low-cost, very small-size plug-and-play heart rate sensor for Arduino and Arduino compatible boards. The sensor is commonly used for Sleep Tracking, Anxiety monitoring, Remote patient monitoring or alarm system, Health bands, and Complex gaming consoles.
