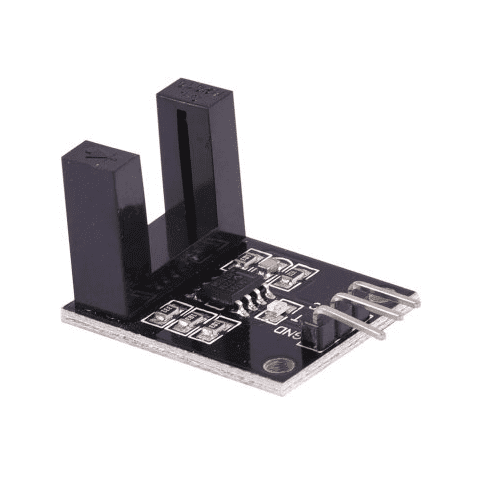

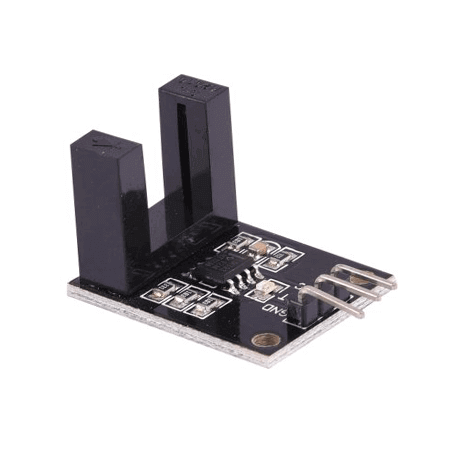

HC-89 Interrupt Sensor
HC-89 Interrupt Sensor
Regular price
Rs. 52
Regular price
Rs. 59
Sale price
Rs. 52
Unit price
per
Incl. GST (No Hidden Charges)
Couldn't load pickup availability
Currently, 11 people are actively viewing.
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
RC100
FLAT ₹ 100/- OFF
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Good signal and waveform, with a strong driving ability for more than 15mA.
- Equipped with a fixed bolt hole, easy install.
- It has the output state light, if output high level, the lights are off. if output low level, its on.
- If its covered, its output is high level; otherwise, its output is low level.
- The DO output interface can be directly connected to a micro-controller IO port if there is a block detection sensor, such as the speed of the motor encoder can detect.
- DO modules can be connected to the relay, limit switch, and other functions, it can also with the active buzzer module, compose alarm.
HC-89 Interrupt Sensor

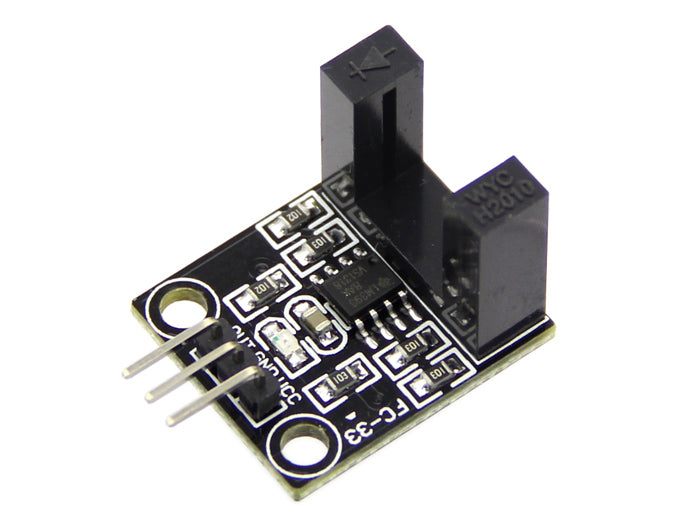

The HC-89 Interrupt Sensor is a sensor module that measures the rotational speed of an object. A Hall Effect sensor, which detects the existence of a magnetic field, is commonly used to measure the speed of an item. The rotational speed of a motor, wheel, or other spinning object is measured by this sensor. The output of the sensor is typically in the form of a square wave, with the frequency of the wave related to the speed of the item. The HC-89 sensor, as well as possibly related circuitry for communicating with a microcontroller or other device, is probably certainly present in the module you indicated. This is Speed Measuring Sensor Module For Arduino. An infrared emitter on one side and a receiver on the other side is used to detect the speed or RPM. There is an encoder wheel used to measure RPM that is placed between the sensor.
The DO output interface can be directly connected to a micro-controller IO port if there is a block detection sensor, such as the speed of the motor encoder can detect.
Pin Details:
- VCC: The positive 3.3-5 v power supply.
- GND: Connect power negative.
- DO: TTL switch signal output.
- AO: This is an analog output.
Package Includes:
- 1 x HC-89 Interrupt Sensor
Specifications
| Groove width | 10mm |
| Working voltage | 3.3 V to 5 V |
| Dimensions | 2.3 cmx2cm |
| Weight | 5 grams |
