Hall Effect Sensor Module

Rs. 32
Rs. 54
Rs. 32
Save Rs. 22
(-41%)
Incl. GST (No Hidden Charges) Found a better price?
Please hurry! Only 0 left in stock
SKU: TIFSS0194
  • The module has no trigger and outputs low level; the module has trigger and outputs high level.
  • The sensitivity is adjustable (fine adjustment).
  • There is signal output when there is magnetic field cutting.
  • The circuit board output switch, you can directly connect to the microcontroller or our relay module, buzzer module.
  • Can be used for motor speed / position detection and other occasions.

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

FLAT ₹ 100/- OFF
RC100
COPY CODE

When you shop for ₹2500 or more. Applicable at checkout.
*Coupons are not applicable on Original Boards and Kits.

Robocraze Academy Limited Time Offer
Hall Effect Sensor Module - Magnetic field detection for automation & robotics. -Hall Effect Sensor -Robocraze
Hall Effect Sensor Module
Rs. 54 Rs. 32

Hall Effect Sensor Module

Rs. 54 Rs. 32

Hall Effect Sensor Module

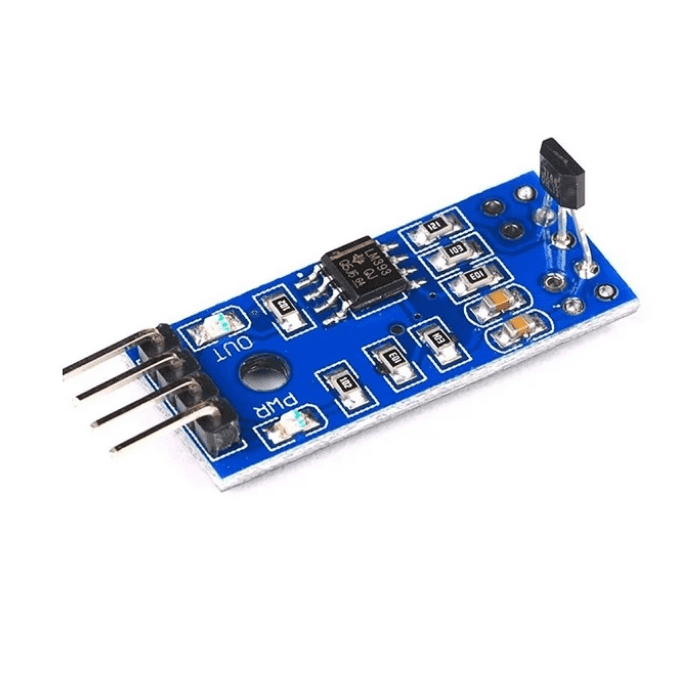

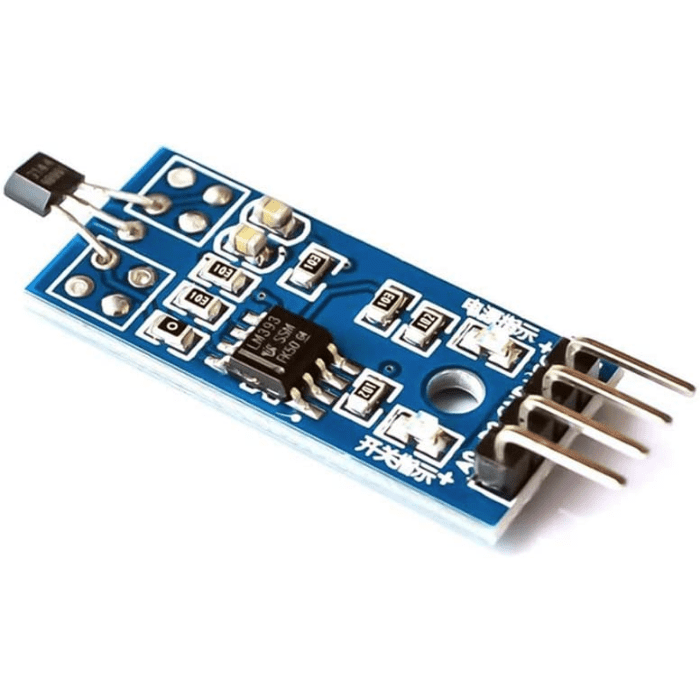

Hall Effect Sensor Module is used to detect the proximity of a magnet. It is very much smaller in size. When the magnetic field rises above a threshold level, the open-collector output transistor switches on, which pulls the logic-compatible output low and illuminates the onboard LED indicator.

It's fast (The turn-on threshold is 35-450 Gauss, the minimum hysteresis is 20 Gauss, and the operating voltage range is 4.5 - 24 volts. This module uses the Allegro MicroSystems A3144EUA sensor. It has a 3-pin interface, signal, V+, and GND.

To use this sensor/switch, place a 10K pull-up resistor between the "S" pin and the middle pin (+), and connect the "-" pin to the ground. Supply voltage to the middle pin. The "S" pin will go low (gets pulled to the ground) and the onboard LED indicator will turn on when a magnet is brought near.

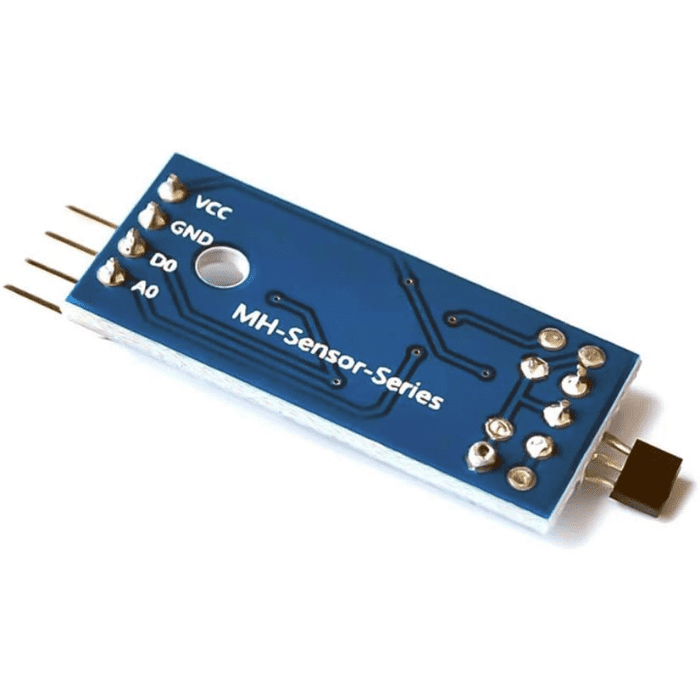

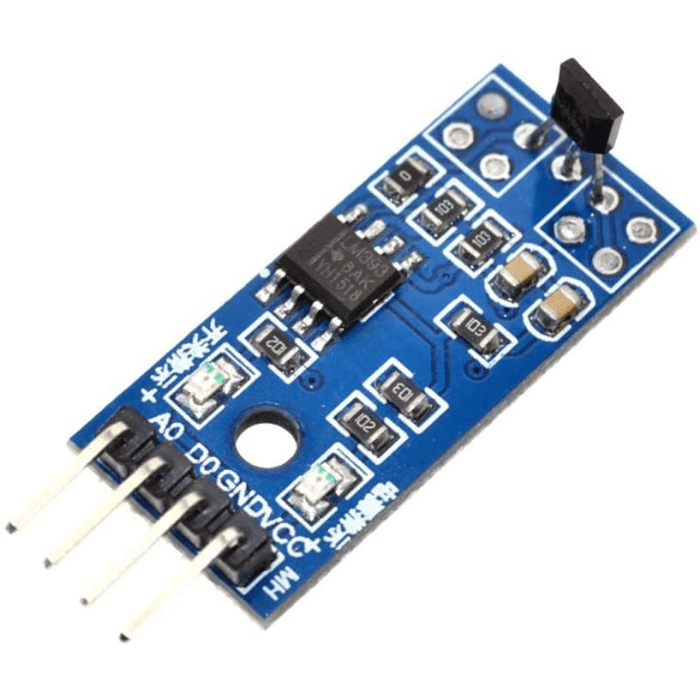

Pin Description:

  • VCC : 2.3 volts to 5.3 Volts
  • GND : power supply ground
  • AOUT (analog sensor output) : Arduino/ MCU input
  • DOUT (digital sensor output) : Arduino/MCU input

Applications:

  • Motor shaft speed measurement (shaft encoder)
  • Object position detection
  • Docking Detection
  • Door Open and Close Detection
  • Proximity Sensing
  • Valve Positioning
  • Pulse Counting

Package Includes:

  • 1 x Hall Effect Sensor Module

Specifications:

Sensor Type  Hall Effect Sensor Module
Power 2.3V ~ 5.3V
Mounting holes size 2mm
Dimensions  29.2mm * 11.2mm
Weight 5 grams

1. What is Hall Effect sensor module?

  • The Hall Effect Sensor Module is used to detect the presence of a magnetic field. The output of the module goes high in the presence of a magnetic field and it becomes low in the absence of a magnetic field.

2. Where do we use Hall Effect sensor module?

  • The Hall Effect sensor module is used for
    • Motor shaft speed measurement (shaft encoder)
    • Object position detection, Docking Detection
    • Door Open and Close Detection
    • Proximity Sensing
    • Valve Positioning
    • Pulse Counting
    • Other DIY Projects
