802.11 b/g/n
-
Wi-Fi Direct (P2P), soft-AP
-
Integrated TCP/IP protocol stack
-
Integrated TR switch, balun, LNA, power amplifier and matching network
-
Integrated PLLs, regulators, DCXO and power management units
-
+19.5dBm output power in 802.11b mode
-
Power down leakage current of <10uA
-
Integrated low power 32-bit CPU could be used as application processor
-
SDIO 1.1/2.0, SPI, UART
-
STBC, 1×1 MIMO, 2×1 MIMO
-
A-MPDU & A-MSDU aggregation & 0.4ms guard interval
-
Wake up and transmit packets in < 2ms
-
Standby power consumption of < 1.0mW (DTIM3)

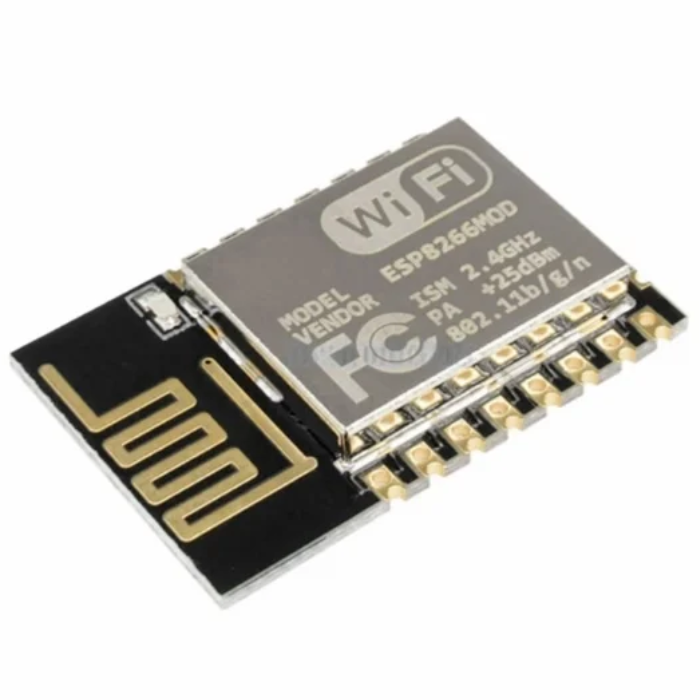

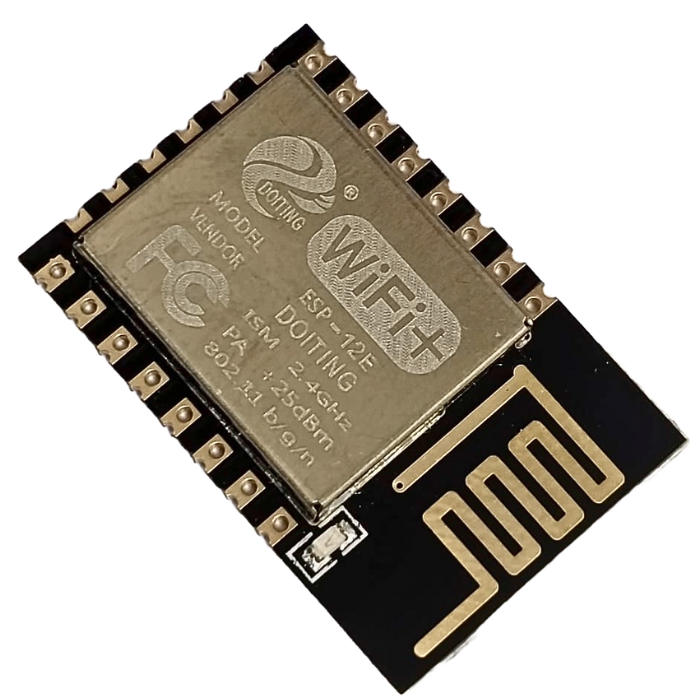

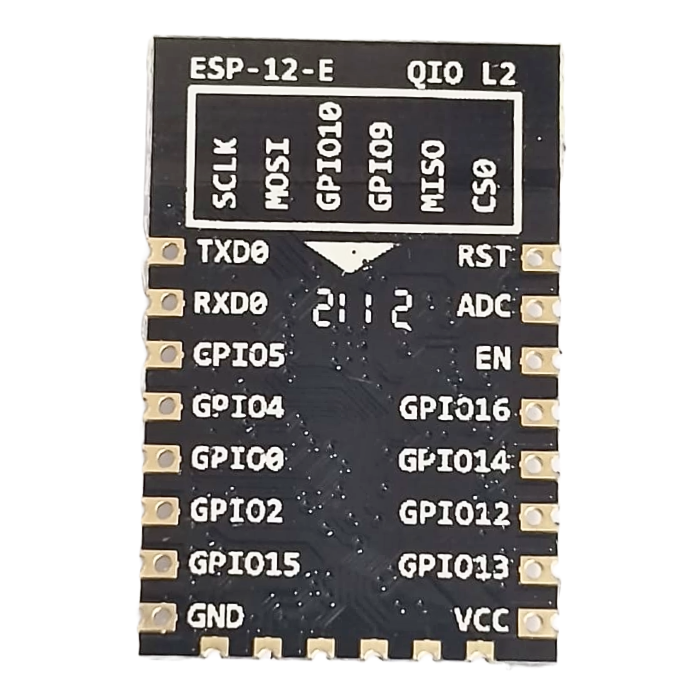

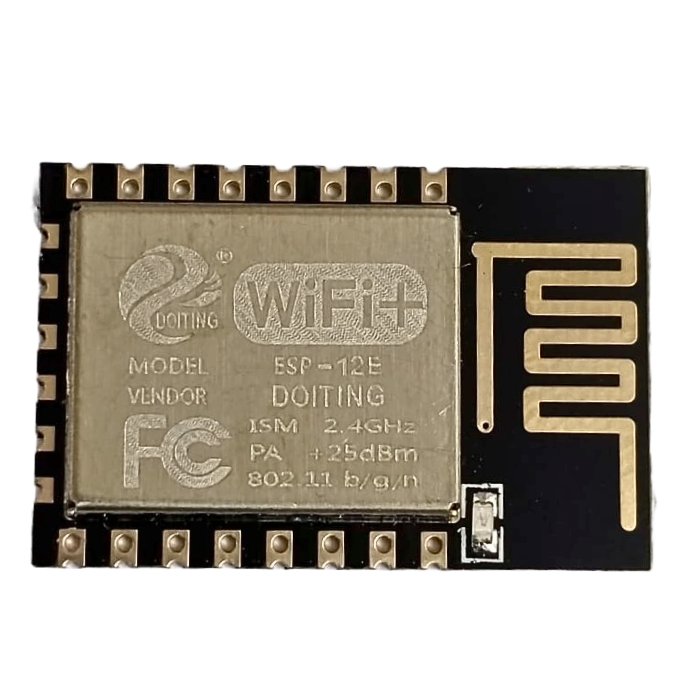

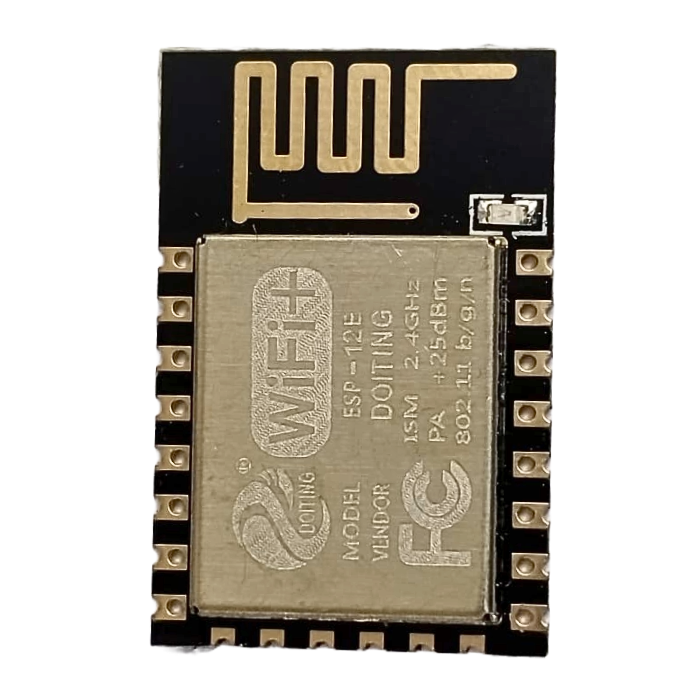

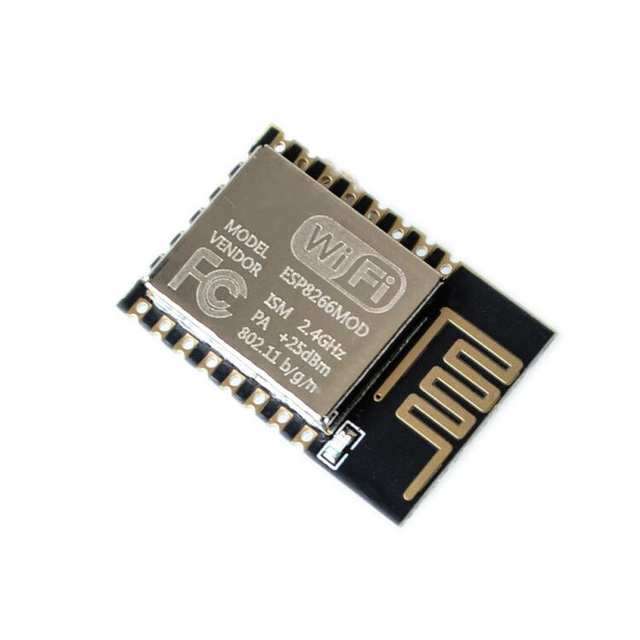

ESP8266-12e
ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.
ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.
Solutions:
- Supports APSD for optimal VoIP applications
- Patented spurious noise cancellation algorithm for integration in SOC applications
- Supports Bluetooth co-existence interface
- Self-calibrated RF to ensure optimal performance under all operating conditions
- Zero factory tuning
- No external RF components
Package Includes:
- 1 x ESP8266-12e
Specifications:
| Frequency Range | 2.412 - 2.484 GHz |
| Serial Transmission | 110 - 921600 bps |
| Wireless Network Type | STA / AP / STA + AP |
| Security Type | WEP / WPA-PSK / WPA2-PSK |
| Operating Voltage | 3.3V |
| Operating Temperature | -40ºC to +125 ºC |
| Dimensions | 3 x 2 x 1cms |
| Weight | 5 grams |
