DS3231 RTC Module (Real Time Clock, I2C) | Robocraze

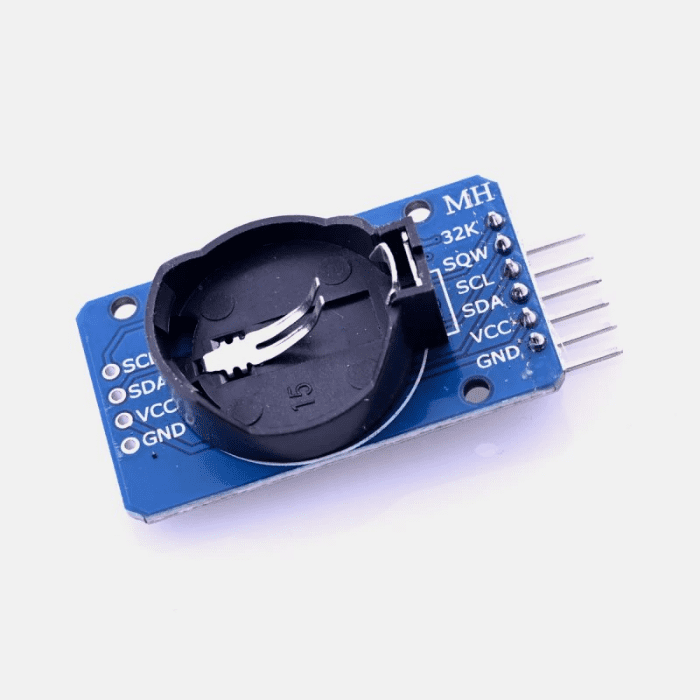

DS3231 Real Time Clock Memory Module without Battery

Rs 315/-
- 10%
Rs 315/-
Rs 349/-
Save Rs 34/-
πŸͺ™
RC REWARDS Earn 3 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 516 left in stock

Why Buy From Robocraze

Free Delivery Above β‚Ή999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between β‚Ή500 to β‚Ή3,000

SKU: TIFEC0066
  • Operating voltage ranges from 3.3V to 5.5V
  • Consumes only 500nA on battery backup
  • I2C interface (maximum transferrable speed is 400KHz @ 5V supply  voltage)
  • Highly Accurate RTC Completely manages All Timekeeping Functions
  • Low power Operations Extends battery-Backup Run Time
  • Programmable Square-Wave Output Signal
  • Digital temperature sensor with Β±3ΒΊC accuracy
Robocraze Academy Limited Time Offer
DS3231 Real Time Clock Module (No Battery) – Accurate RTC for time-based applications.-RTC Module -Robocraze
DS3231 Real Time Clock Memory Module without Battery
Rs 349/- Rs 315/-

DS3231 Real Time Clock Memory Module without Battery

Rs 349/- Rs 315/-

DS3231 Real Time Clock Memory Module without Battery

DS3231 is a low-cost, extremely accurate I2C real-time clock (RTC), with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. Real-time clock generator seconds, minutes, hours, day, date, month and year timing and provide valid until the year 2100 leap year compensation DS3231 available in commercial and industrial temperature ranges, using a 16-pin 300mil SO package.

DS3231 RTCΒ Β is a Precise Real-Time Clock Module with AT24C32 32Kbit EEPROM and a built-in 10-bit temperature sensor having a resolution of 0.25C.

The integration of the crystal resonator enhances the long-term accuracy of the device as well as reduces the piece-part count in a manufacturing line. The ds3231 Arduino is available in commercial and industrial temperature ranges and is offered in a 16-pin, 300-mil SO package.

Features:

  • Supports 2.2 to 5.5 V for the Real-Time Clock (RTC).
  • Equipped with a fast 400kHz I2C interface.
  • It's an extremely accurate I2C real-time clock (RTC).
  • Has an inbuilt temperature-compensated crystal oscillator (TCXO) and crystal.
  • Capable of tracking seconds, minutes, hours, day, date, month, and year.
  • Features a built-in 32Kbit EEPROM and a 10-bit temperature sensor with 0.25Β°C resolution.

Applications:

  • Robotics
  • Data Loggers
  • Servers
  • Computer Peripherals
  • GPS Modules
  • Utility power meters

DS3231 vs DS1307: Which RTC Module is Better?

When choosing a real time clock module Arduino enthusiasts often debate between the DS3231 and the older DS1307. While both modules communicate via the same standard I2C interface (making code migration simple), the DS3231 RTC module is the undisputed winner for accuracy.

Here is why:

  • The TCXO Advantage: The DS3231 features a built-in Temperature-Compensated Crystal Oscillator (TCXO). This means it automatically adjusts for temperature changes that normally cause crystals to speed up or slow down. The DS1307 relies on a standard external 32kHz crystal, which is highly sensitive to ambient temperature.
  • Drift Rate: Because of the TCXO, the DS3231 drifts by only 1 to 2 minutes per year (Β±2ppm). In contrast, the DS1307 can drift by several seconds per day, requiring frequent manual corrections.
  • Bonus Memory: This module also includes an AT24C32 (32Kbit) EEPROM chip, giving you extra non-volatile memory to store settings, logs, or calibration data even when power is lost.

Verdict: If your project requires reliable, long-term timekeeping (like data loggers, smart alarms, or automation), the DS3231 is the essential upgrade over the DS1307.

How to Set the Time with Arduino (Step-by-Step)

Getting your DS3231 RTC module up and running with an Arduino is quick and straightforward. Follow this simple 3-step guide to set the time and start logging.

Step 1: Wire the Module (I2C Connection)

Connect the module to your Arduino using just 4 jumper wires:

  • VCC β†’ Arduino 5V (or 3.3V)
  • GND β†’ Arduino GND
  • SDA β†’ Arduino A4 (or SDA pin on Mega/ESP32)
  • SCL β†’ Arduino A5 (or SCL pin on Mega/ESP32)

Step 2: Install the Library

Open your Arduino IDE, go to Sketch > Include Library > Manage Libraries, and search for "RTClib" by Adafruit. Click Install. This library fully supports the DS3231 and its AT24C32 EEPROM.

Step 3: Upload the Time-Setting Sketch

In the Arduino IDE, navigate to File > Examples > RTClib > ds3231. Upload the sketch to your board. Open the Serial Monitor (set baud rate to 9600). The sketch will automatically detect the module and set the RTC to the current time of your computer’s compilation.

Pro Tip: Want to take this project further? Check out our detailed tutorial: I Built a Digital Clock Using Arduino to learn how to display this time on an LCD or OLED screen and build your own custom desk clock!

Package Includes:

  • 1 x DS3231 Real Time Clock Memory Module

Specifications:

Operating Voltage (VDC) 2.7 ~ 5.5
Voltage Supply for RTC 2.2 V ~ 5.5 V
Battery Holder 2032 Coin Battery
I2C interface Fast (400kHz) I2C Interface.
Time and Date Format Time: HH: MM: SS (12/24 hr).
Date Format: YY-MM-DD-dd.
Dimensions in mm (LxWxH) 38 x 22 x 14
Weight(gm) 8

What is a DS3231 RTC module?

The DS3231 RTC Module is a low-cost I2C real-time clock (RTC) with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. The RTC keeps track of seconds, minutes, hours, days, dates, months, and years.

How do I set the time on my RTC module?

Connect your Arduino to your computer, then launch the Arduino IDE and select the SetTime sketch from the File->Examples->DS3231 RTC->SetTime menu. Open the Serial Window and ensure that the baud rate is set to 9600. If everything goes as planned, you should see a success message.

How does the DS3231 work?

The DS3231 is a real-time clock (RTC) with a temperature compensated crystal oscillator integrated. It consists of a battery that powers the DS3231 when the main power is turned off. As a result, it can continue to function normally. It comes in both industrial and commercial temperature ranges.

What is the difference between DS1307 and DS3231?

The main difference between DS1307 and DS3231 RTC modules is timekeeping accuracy and oscillator design. The DS1307 uses an external crystal and is more affected by temperature changes, while the DS3231 has a built-in temperature-compensated oscillator (TCXO), offering accuracy of Β±2 ppm (0Β°C to +40Β°C). The DS3231 also supports two alarms and 3.3V operation, making it better for precise timing applications.

Does RTC need a battery?

A real-time clock is similar to a watch in that it runs on a battery and keeps time for you even when the power goes out! You can keep track of long timelines with an RTC even if you reprogram your microcontroller or disconnect it from a USB or power plug.
